Stainless Steel Hexagon Head Screws With Washers: Structural Analysis and Selection Guide

In modern manufacturing, the reliability of threaded connections directly impacts equipment safety and stability. Nuts, as core components of fastener systems, have always been a crucial aspect of engineering design in terms of structure and selection. Stainless Steel Hexagon Head Screws With Washers, with their excellent load-bearing characteristics and ease of assembly, are widely used in automotive manufacturing, machinery, wind power, rail transportation, and large industrial equipment.

Structural Features and Design Principles of Flange Nuts

Structurally, a Hex Head Screw with Built-in Washer adds an integrally formed circular flange to the bottom of a traditional hexagonal nut. This flange essentially integrates the support function of a flat washer, effectively increasing the load-bearing area and reducing compressive stress per unit area under load, thus preventing localized damage to the surface of the connecting parts.

This design of the Hexagon Head Screw with Attached Washer also improves the torque-preload relationship of bolted connections, making preload easier to control and the connection more stable during assembly.

In terms of standards, common Hexagon Head Screws with Combined Washers comply with international or domestic standards such as GB/T 6177 and DIN 6923. Their thread specifications typically correspond to standard bolts, such as metric sizes like M8, M10, and M12, and are compatible with various mechanical structures. For precision or high-strength applications, the thread accuracy grade is usually controlled within 6H to ensure locking performance and interchangeability.

The Role and Matching Principles of Flange Dimensions

The flange dimensions of Hexagon Head Screws with Integrated Washers are a core parameter affecting the stress distribution on the nut. The design must balance the flange diameter and thickness-an excessively small flange diameter weakens the padding effect, leading to localized stress concentration at the contact surface; an excessively large flange may cause structural interference or add unnecessary weight. In practice, the flange diameter is generally 1.4 to 1.8 times the nominal thread diameter, which better balances stress uniformity and installation space requirements.

Data analysis reveals that the optimal flange dimensions also differ across different application industries. For example, automotive chassis structures prefer high-strength, small-flange-ratio designs to accommodate compact spaces, while wind power equipment or steel structure projects tend to use nuts with larger flange sizes to improve anti-slip performance. The optimal flange size combination can be selected based on industry and assembly conditions to achieve efficient selection of washer-equipped Hexagon Head Screws.

Thread Technology and Precision Control

As the core of Hexagonal Head Screws with Washers, the thread's manufacturing process directly determines the reliability of the connection. High-precision threads require control over pitch, thread angle, and pitch diameter while ensuring surface roughness meets specifications (Ra ≤ 3.2μm).

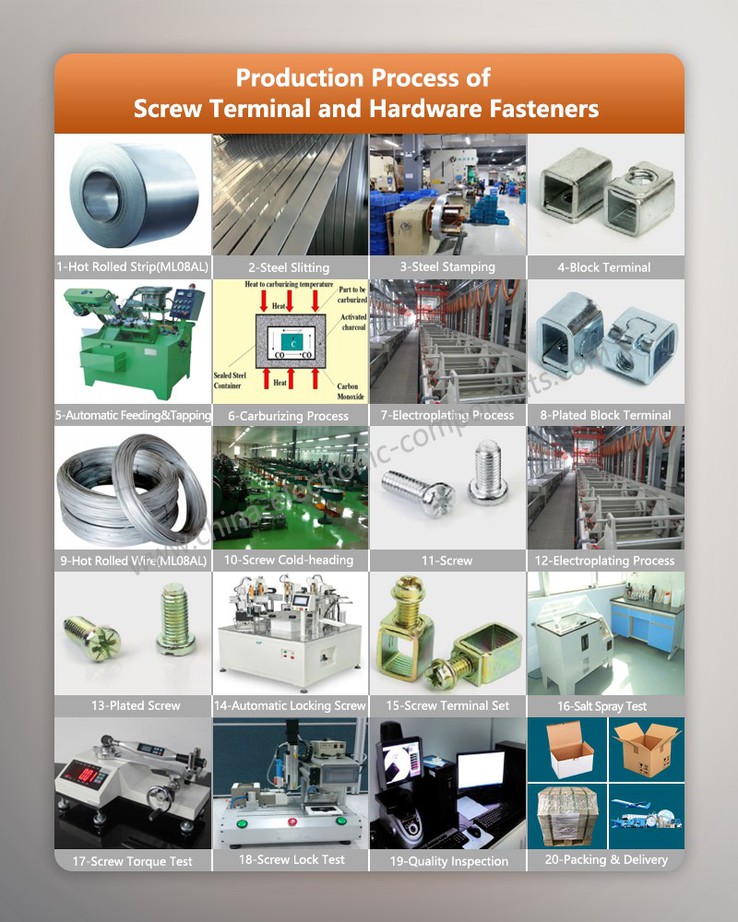

Material forming often employs cold heading or machining, followed by thread rolling to further improve thread strength and surface hardening layer consistency. For applications requiring anti-loosening and vibration-damping, some Hex Head Screws with Washer Assemblies are designed with toothed flange faces, where the tooth texture and micro-interlocking of the assembly surface create a mechanical self-locking effect.

A full-process quality traceability system can be established during manufacturing, equipped with automatic thread inspectors and torque-tensile testing equipment. Strict adherence to IATF16949 and ISO9001 quality system standards ensures controllable thread precision and reliable locking performance for every Hex Head Screw with Washer, from raw material intake to final shipment.

With the trend towards lightweight and high-precision machinery, the Hexagon Head Screw with Combined Washers exhibits unique advantages in multiple industries:

Automotive Manufacturing: Hexagon Head Screws with Washer Fitted are used in engines, suspension systems, and braking devices to reduce the number of components and improve vibration resistance.

Wind Power Generation Equipment: Large wind turbine tower flange connections need to withstand alternating stress; Hex Head Screws with Built-in Washers ensure stable torque transmission.

Rail Transit Equipment: In high-speed train chassis and braking systems, Hexagon Head Screws with Attached Washers are used for applications requiring long-term fatigue resistance and anti-loosening performance.

Machinery Equipment Manufacturing: In equipment with high assembly precision requirements, Hexagon Head Screws with Attached Washers can automatically correct small angular deviations, simplifying the process flow.

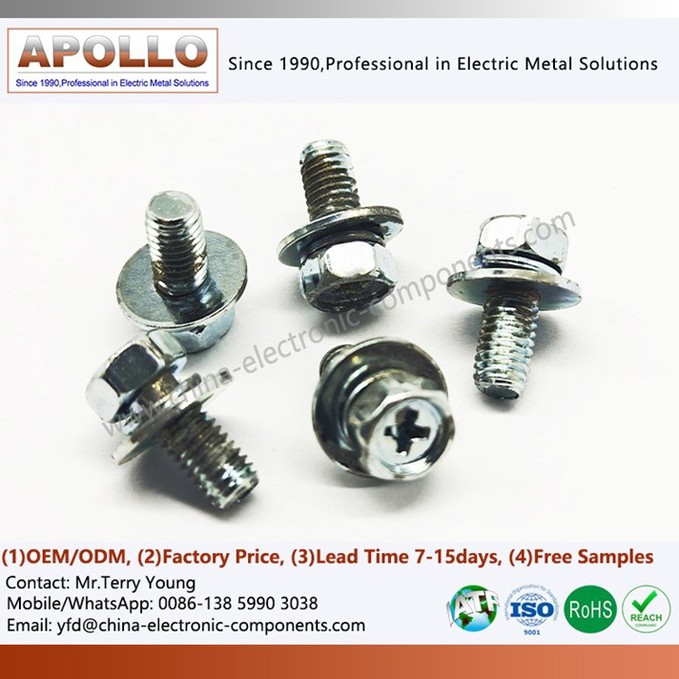

Combining nut selection principles with the actual needs of industrial assembly, our Stainless Steel Hexagon Head Screws with Washers perfectly adapt to various nut connection scenarios. Made of high-grade stainless steel, this product features an integrated washer design that complements the nut's structural advantages, effectively increasing the stress-bearing area and reducing contact compressive stress. It also boasts excellent corrosion resistance and vibration resistance. The thread precision and strength grade strictly adhere to industry standards, allowing for precise matching with nuts of various sizes to meet the high-strength, high-precision assembly needs of industries such as automotive, wind power, and rail transportation.

If you have any purchasing needs for this product, please feel free to contact us for details. We will provide you with high-quality Hexagon Head Screw with Combined Washer products and professional support solutions, and we look forward to cooperating with you!
