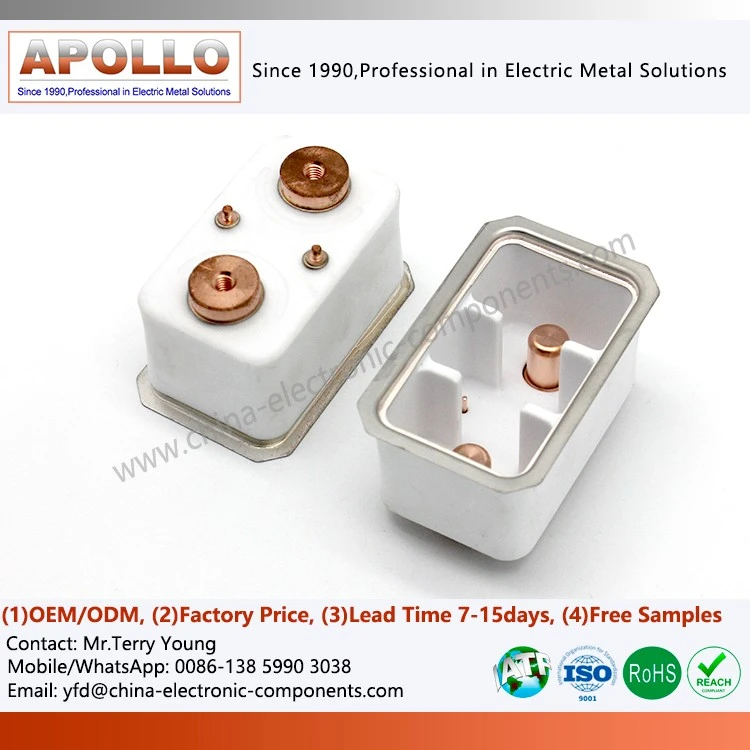

HVDC Contactor Ceramic Enclosure
Products Description
In high-voltage direct current (HVDC) systems, the HVDC contactor ceramic enclosure not only controls circuit switching but also needs to maintain stable performance under high voltage, high current, and frequent interruption conditions. The ceramic body, as the core packaging structure of the contactor, directly determines the overall lifespan and safety level.
This product, through its metallized ceramic structure design, highly integrates three major functions: insulation performance, structural strength, and hermetic sealing. It can maintain stable operation under complex conditions (high-temperature cycling, arc impact, and mechanical vibration), making it an irreplaceable key component in high-end HVDC contactors.
Technological Advantages: Why Choose Our Metallization Solution?
Arrow Erosion Resistance
The metallized ceramic components' inner wall undergoes special microstructural control, making it less prone to cracking or metal deposition under the high-temperature impact of frequent high-voltage switching.
Low Dielectric Loss
Effectively reduces temperature rise under high-frequency interference, ensuring that the outer shell does not experience thermal breakdown under high-voltage, high-current operation.
Dry Pressing and Isostatic Pressing
Ensures highly uniform ceramic metallization density, eliminates internal micropores, and greatly enhances the breakdown voltage threshold under high-voltage environments.
Nanoscale Coating Technology
Precise control of the metallization layer thickness results in excellent weld wettability, effectively solving the industry-common problems of ceramic cracking caused by "false welds" and "weld stress concentration."
Key Functions: Multidimensional Value in System-Level Architecture
Maintaining Physical Vacuum/Pressure Boundaries
Providing an ideal arc-extinguishing environment (oxygen-free or with specific gases) for the contacts.
01
High-Voltage Electrical Isolation
Ensuring absolute insulation between the moving and stationary contacts (potentially differing by thousands of volts), preventing breakdown.
02
Structural Load Bearing and Stress Absorption
Serving as the contactor's "skeleton," connecting and securing the metal end caps to the internal structure of the arc-extinguishing chamber, bearing the long-term fatigue loads of external installation torque and the internal spring mechanism.
03
Thermal Management and Isolation
Acting as an excellent heat conductor during arc generation, transferring heat to the outside while remaining thermally stable, protecting surrounding sensitive electronic Precision Metallized Alumina Ceramic Components from high-temperature heat radiation.
04
Detail Showcase: Witnessing Engineering Quality in the Tiniest Details
| "Sharpness and Clarity" of Metallized Edges | Under a microscope, the edges of the metallized layer are straight, burr-free, and free from penetration and diffusion. This seemingly minor detail directly determines the precision of the effective insulation distance of the Precision Metallized Ceramics, eliminating the risk of edge discharge. |
| "Smooth Curve" of Weld Corners | The weld at the junction of the ceramic and the metal end cap exhibits a smooth, concave, rounded corner transition, without metal accumulation. This not only reflects perfect control of capillary action in the brazing process but also means that there are no stress concentration points, greatly enhancing resistance to mechanical impact. |
| "Matte Texture" of the Surface | The specially treated Metallized Alumina Ceramics for Electrical Components surface exhibits a uniform and delicate matte finish. This is not for aesthetic purposes but to eliminate light reflection interference that surface gloss may cause. Furthermore, this microscopic morphology is more conducive to adhesive sealing during assembly or to good adhesion with sealing rings. |
contact us
If your project has higher requirements for the airtight reliability, long-term stability, and structural consistency of high-voltage DC contactors, we can provide customized Metallized Ceramics for Electrical Components packaging solutions based on engineering application scenarios. You are welcome to submit your technical parameters to initiate an inquiry and communication.
