Power Transmission Tools: Laminated Busbars And Integrated Busbars Drive The Upgrade Of New Energy Vehicle System Integration

As the new energy vehicle industry continues to evolve towards higher voltage and greater integration, the 800V voltage platform is gradually becoming the mainstream technology. Against this backdrop, the vehicle's electrical architecture is undergoing profound changes, with battery systems and chassis structures becoming increasingly integrated, and power transmission solutions being upgraded in tandem. As a key electrical connection carrier, the laminated busbar is becoming one of the core components of the high-voltage system, providing crucial support for improving the overall vehicle's electrical performance.





























































The trend of battery system integration is reshaping the logic of vehicle design. By eliminating traditional module layers and achieving deep integration between the battery cells and the vehicle body structure, not only is space utilization significantly improved, but the overall vehicle weight is also effectively reduced and energy density performance optimized. This technological path makes the coupling between the battery system and the power system tighter, placing higher demands on high-voltage connection components and driving Bus Bar Solutions for Electrical Power Distribution towards high integration and high reliability.

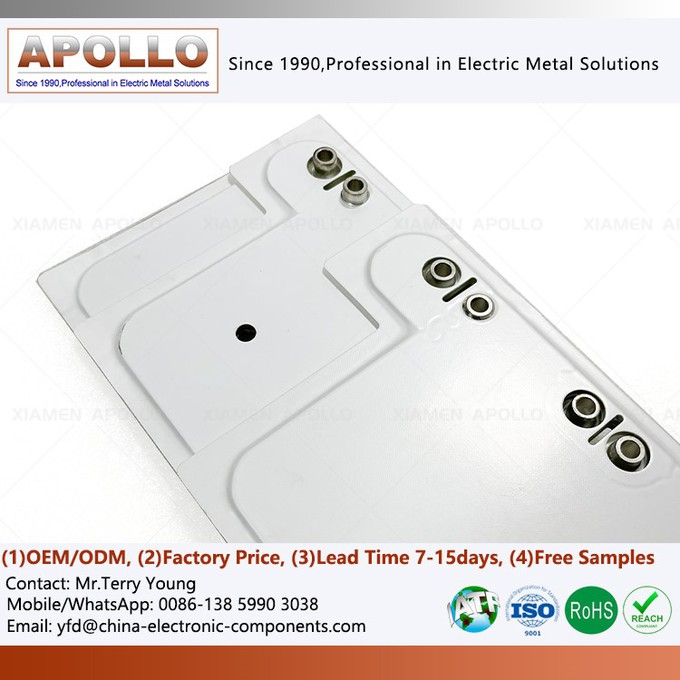

Meanwhile, electric drive systems are accelerating their evolution towards multi-integrated structures. The high integration of the drive system, electronic control unit, and power devices places more stringent standards on the electrical performance and structural design of internal electrical connections. In this process, Motor Drive Laminated Bus Bars for Power Electronics, with their advantages of low inductance, high current carrying capacity, and compact structure, have gradually replaced traditional cable solutions, becoming the mainstream choice for internal connections in electric drive systems.

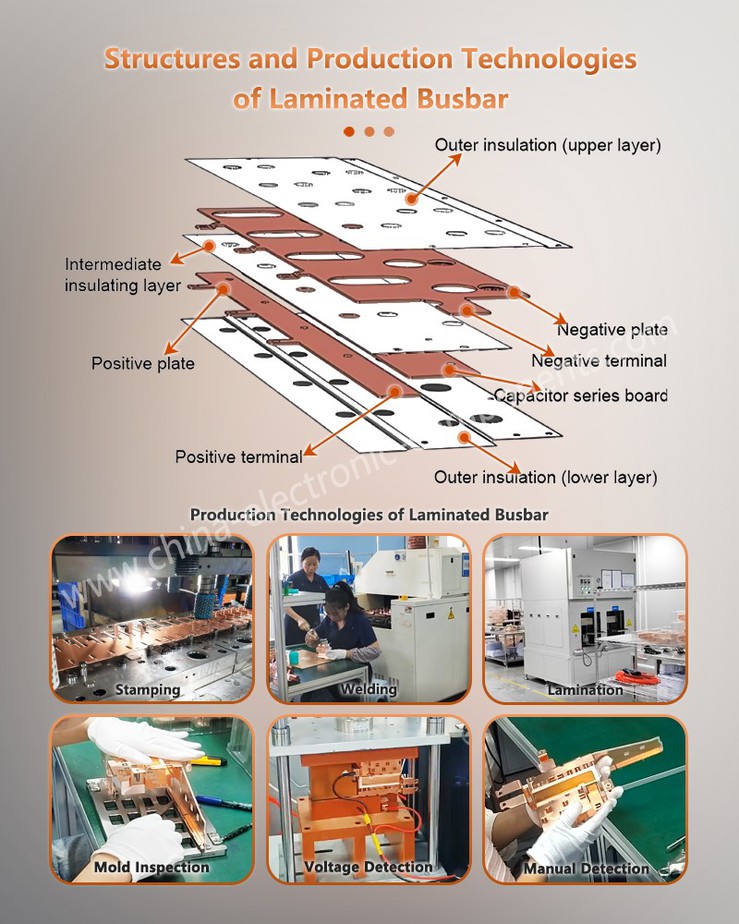

In terms of electrical performance, the laminated busbar, through its composite structure design of multiple conductors and insulation materials, effectively improves current-carrying capacity and optimizes thermal management performance. Compared with traditional wires, its conductive layer area is larger, and the heat dissipation path is more uniform, helping to reduce temperature rise and improve system stability. Solutions represented by Laminated Copper BusBars can maintain excellent conductivity in high-power output scenarios, meeting the stringent power transmission requirements of high-voltage platforms.

















































































Furthermore, the laminated structure inherently possesses low stray inductance characteristics. The close stacking design of the positive and negative conductors effectively cancels electromagnetic fields, thereby significantly reducing the risk of transient voltage fluctuations. In the context of the widespread application of high-frequency switching devices, this characteristic is particularly crucial for suppressing voltage spikes and improving system safety, enabling Laminated Bus Bars for High Current Inverters to play a vital role in high-voltage inverter systems.



At the structural design level, laminated busbars offer high flexibility, allowing for diverse customization to suit different equipment spaces, such as L-shaped, U-shaped, or complex three-dimensional structures. This ability to closely conform to the equipment's contours enables efficient wiring within compact spaces, while simultaneously improving assembly consistency and reliability. Flexible structural solutions, exemplified by Laminated Flexible BusBars, can further adapt to complex installation environments, enhancing system integration.



Parallel development with electric drive systems is the integrated upgrade of battery management systems. Integrated busbars (CCS) significantly reduce the use of traditional wiring harnesses by integrating signal acquisition, electrical connections, and structural components, simplifying the internal structure of the battery pack. Based on flexible circuit technology, integrated solutions for power electronics bundling solutions achieve efficient electrical connections while also handling signal acquisition and system control functions.

















































































Compared to traditional copper wire harness solutions, integrated busbars offer significant advantages in terms of lightweight design, space utilization, and automated production. Their highly integrated structure not only reduces assembly steps but also enables rapid installation through automated equipment, improving production efficiency and reducing the risk of human error. This trend is driving the standardization and modularization of Bus Bar Customized for Electrical Protection Solutions, further adapting to the needs of large-scale manufacturing.



From an industry development perspective, with the rapid growth of the new energy vehicle and energy storage markets, high-voltage, high-current application scenarios are expanding, continuously increasing the performance requirements for electrical connection systems. Laminated busbars and integrated busbars, as key fundamental components, will play an increasingly important role in power transmission efficiency, safety, and system integration. In the future, technological innovation surrounding BusBars for Power Electronics will continue to drive the evolution of new energy vehicle electrical architecture towards greater efficiency and reliability.





We focus on the R&D and manufacturing of high-performance electrical connection solutions. Our products cover multi-specification Laminated BusBars, high-reliability insulated busbars, and customized power connection components, widely used in new energy vehicles, power electronics, and energy storage systems. Leveraging our mature process system and rigorous quality control capabilities, we can provide customers with integrated support from design optimization to mass production, helping to build efficient, safe, and stable power transmission systems.
