Chicago Screw Rivet
Products Description

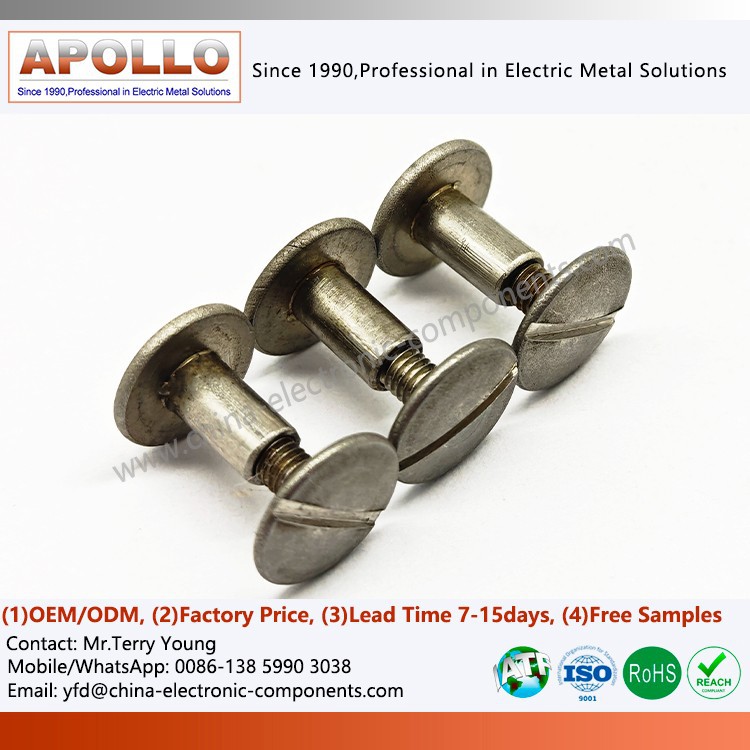

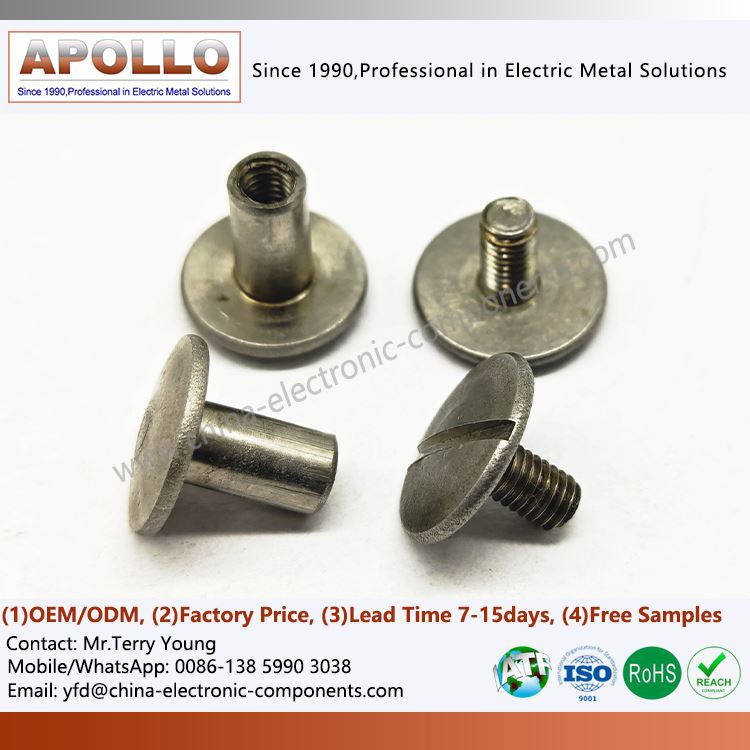

Chicago Screw Rivets are essentially a precision combination of an internally threaded sleeve and an externally threaded screw. Unlike traditional rivets, which cannot be altered once installed, Chicago screws give structural components a "second life":

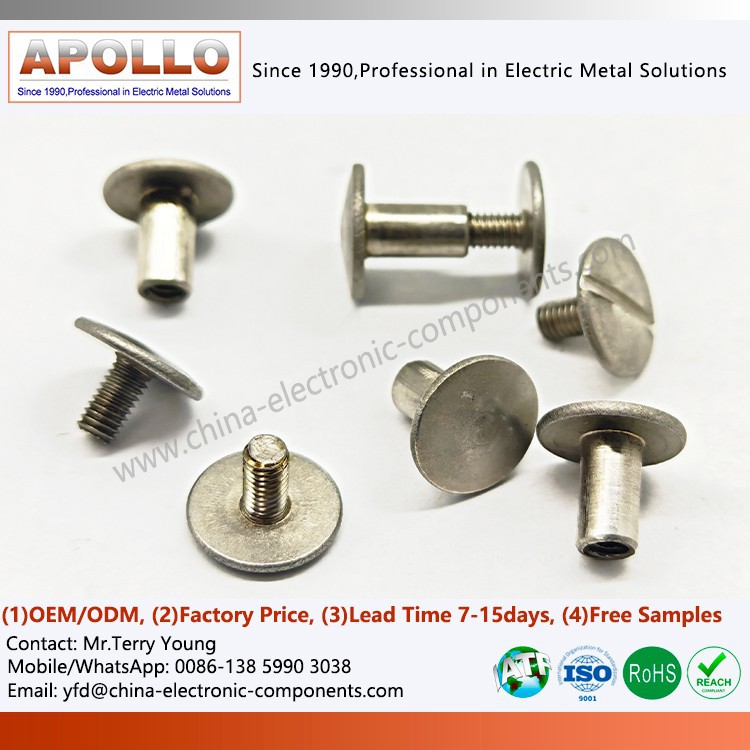

Symmetrical geometry: Both ends can feature smooth, round, or flat heads, providing excellent surface visual consistency.
Non-destructive assembly and disassembly: Allowing for multiple disassemblies and maintenance without damaging the main material, making them ideal for modular designs.
Design Advantages: A Balance Between Aesthetics and Mechanics
Extremely Low Head Profile
After tightening, the head height is almost flush with the contact surface, avoiding snagging or visual obtrusion caused by protrusions.
Anti-Rotation Drive Groove Design
Offers multiple drive methods, including slotted, Phillips, hex, and Torx, with anti-theft grooves. Precise groove depth design ensures that the tool does not slip or damage the Chicago Screw head during high-torque tightening.
Thread Self-Locking Pre-treatment
Based on customer requirements, we can pre-apply microcapsule sealant to the thread section to prevent automatic loosening under continuous vibration.
Main Functions: From Static Fastening to Dynamic Reconfiguration
Non-destructive Flexible Clamping
In soft materials such as leather, nylon, and thick cardboard, the torque of traditional screws can easily cause material tearing or stress concentration. Chicago Bolts, through their extra-large flange base, transform localized point loads into uniform surface loads, achieving non-destructive fastening of fragile media.
High-Frequency Tool-Free Disassembly and Assembly Cycles
Its most significant feature is its "loose-leaf" opening and closing capability. In applications requiring repeated opening, closing, and replacement of internal media (such as high-end ledgers and specimen books), quick separation and reconfiguration can be achieved simply by pinching both ends and rotating them in opposite directions. Flat Head Chicago Screw can withstand thousands of disassembly and assembly cycles without failure.
Visual Concealment and Surface Flush
In high-end appearance component applications, the countersunk head design allows the Stainless Steel Chicago Bolt head to be completely embedded in the countersunk hole of the connected component, achieving an absolutely flush surface, concealing all connection traces, and enhancing the overall look and premium feel of the product.
Rivet-like shear rigidity
In the locked state, the male and female threads mesh tightly, and the core cross-section can provide shear strength no less than that of a solid metal rivet, ensuring the structural stability of the connection when subjected to tension or lateral force.
Detailed Exhibits: Defining the Hidden Barriers to High Quality
| The "Zero Burr" Standard on the Flange Back | Rub the Electrical Panel Chicago Bolt flange face firmly on silk or fine leather. If there is no snagging, it indicates that the cutting edge and burnishing process on the back has reached its peak. This detail directly determines whether the product will scratch expensive end materials. |
| The Full Chamfer at the Thread Entry | Observe the thread entry of the female screw. High-quality Chicago Screw Rivets have a very smooth flared chamfer. This allows the male head to be automatically corrected even with slight angular deviations during initial screwing, achieving "blind tightening" without stripping. |
| The Sharpness of the Head Edges and Grooves | The edges of slotted or Phillips head grooves and the knurled teeth, without meticulous blunting, can easily scratch the fingers of end users during manual operation. Our Chicago Binding Screws undergo microscopic blunting treatment on all sharp edges, ensuring absolute safety and comfort during operation. |
contact us
If your Post and Screw Fastener has higher requirements for the stability, maintainability, and assembly efficiency of the connection structure, we can provide customized optimization solutions based on the actual application scenario. You are welcome to submit drawings or requirements to obtain engineering-level support.
