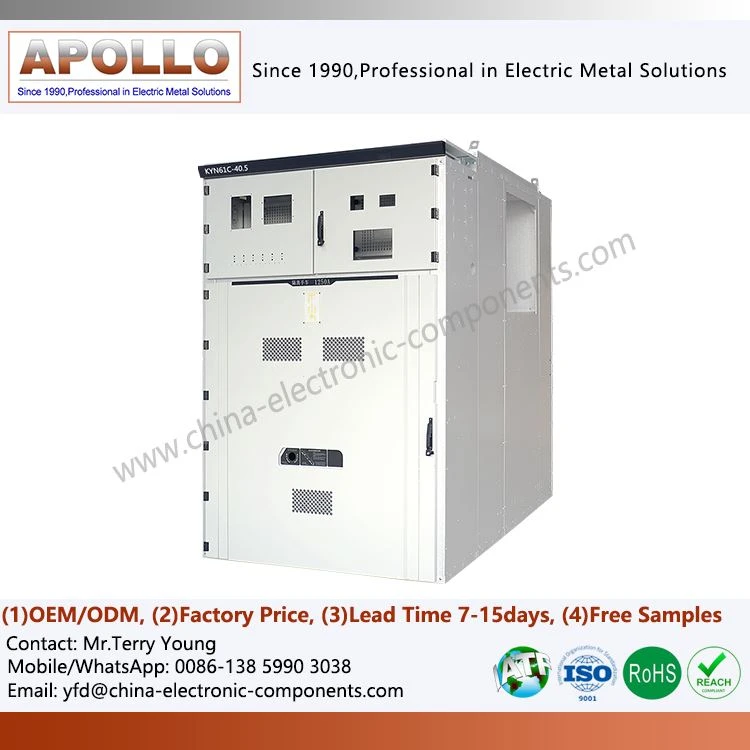

Electrical System Cabinet
Products Description
Electrical system cabinets are highly customized, complex mechatronic components. Our products possess the following key features:
Systemic Integration: Seamlessly integrates circuit breakers, contactors, PLC logic control, variable frequency drives (VFDs), and thermal management modules, achieving scientific zoning of strong and weak current circuits.
Dual Physical and Electromagnetic Protection: In addition to basic IP-level protection, we emphasize internal shielding to effectively prevent the impact of high-frequency interference (EMI) on precision control components.
Modular Scalability: Employing a standard internal skeleton structure, it supports modular horizontal expansion for future business growth without requiring replacement of the entire cabinet.
Main Functions: System-Level Empowerment Beyond On/Off Control
| Dynamic Energy Routing and Flexible Distribution | Not only can it stably distribute electrical energy, but PLC System Cabinet for Sewage can also work with the host computer system to dynamically adjust power distribution strategies according to different production line conditions (standby, full load, peak), achieving optimal energy efficiency. |
| Edge Logic Execution and Status Awareness | The built-in PLC and intelligent instruments not only receive instructions to drive the actuators, but also collect multi-dimensional status parameters in real time, such as voltage, current distortion rate, insulation impedance, and plc cabinet components temperature and humidity, transforming traditional "black box operation" into "white box transparent management." |
| Active Safety Interlocking and Fault Tolerance Mechanism | Mechanical door locks and electrical safety circuits form a dual hardware and software interlock. Under any energized state, opening dangerous areas is strictly prohibited; when a single point of failure occurs in the main control system, the underlying hardware safety circuits (such as safety relays and emergency stop circuits) can independently cut off dangerous power sources, ensuring the absolute safety of personnel and equipment. |
Detailed Display – Key Features for Project Selection
Wiring and Marking
Primary and secondary circuits are visually distinguished using different colored cable trays; each circuit breaker and terminal block has an adhesive-backed wire number tube or laser-printed nameplate for quick on-site engineer connection.
01
Door Panel Function Nesting
Control cabinet doors have embedded observation windows or touchscreen screens surrounding the inner panels, with button and indicator light areas defined by borders. Emergency stop buttons are located on the visually prominent green-backlit or yellow-bordered front panel and feature automatic reset upon release.
02
Cable Inlets
Cable inlets are pre-installed on the metal sealing plate at the bottom of the Control cabinet Industrial PC. Depending on the required number of cables, pre-drilled dustproof brush plates or cable sealing lock kits with higher IP protection ratings are selected.
03
Door Grounding and Electromagnetic Sealing
The cross-sectional area of the grounding braided copper strip between the cabinet door and the PLC System Enclosure is not less than the specified value. A conductive sealing strip is added to the door frame contact surface to ensure continuous electromagnetic shielding.
04
Hex Socket Fasteners and Color Marking High-strength
Internal hex bolts are used at the main circuit connection points. After tightening to the required torque, the bolts are dipped in blue or orange torque markings. On-site inspections can easily identify whether the bolts have been loosened or remain in their original state.
05
Materials and Manufacturing Advantages: Crafting an Industrial Body with Ingenuity
Manufacturing Advantages (Advanced Manufacturing)
Flexible Sheet Metal Production Line: The Industrial Panel Cabinet is made of imported high-strength cold-rolled steel or stainless steel, processed by fully automated CNC turret punch presses and bending centers, ensuring a stable cabinet frame structure that does not deform under long-term loads.
Automated Coating Process: The surface undergoes 12 pretreatment processes (including phosphating and ceramic coating), using outdoor-grade high-polymer UV-resistant spraying, with salt spray corrosion resistance far exceeding industry standards.
Material Advantages (Material Science)
High-Temperature Resistant Insulating Base Plate: The internal mounting backplate uses reinforced alloy or SMC insulation material, possessing excellent electrical isolation and mechanical strength.
Conductive System: The current-carrying busbar uses 99.99% oxygen-free copper and undergoes punching, bending, and tin/silver plating treatment by a fully automated CNC busbar processing machine, ensuring extremely low contact voltage drop.
contact us
If you are looking for an Automation Panel Cabinet supplier that combines structural manufacturing capabilities, engineering understanding, and stable delivery capabilities, please submit your drawings or project requirements. We will help you shorten the delivery cycle and reduce overall project risks with more professional system integration solutions.
