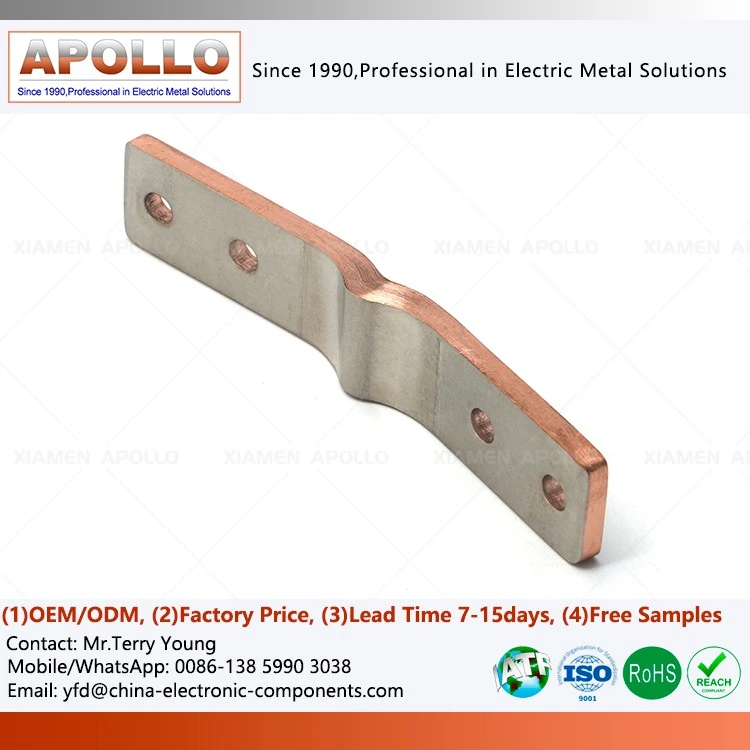

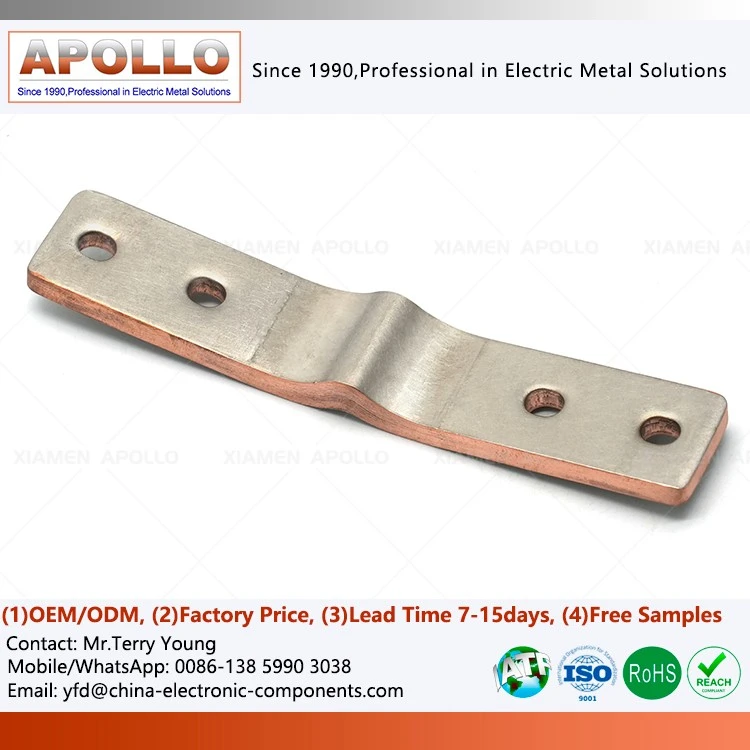

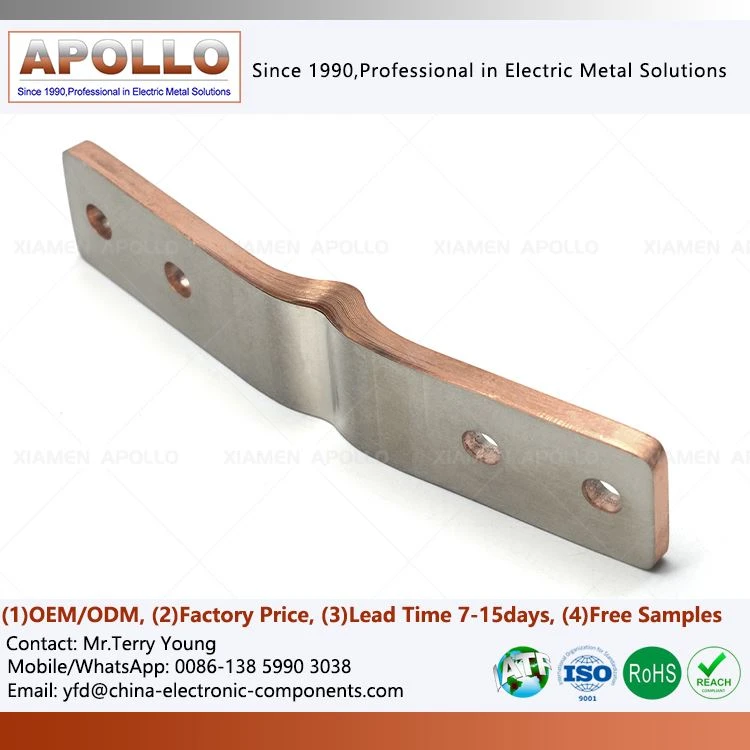

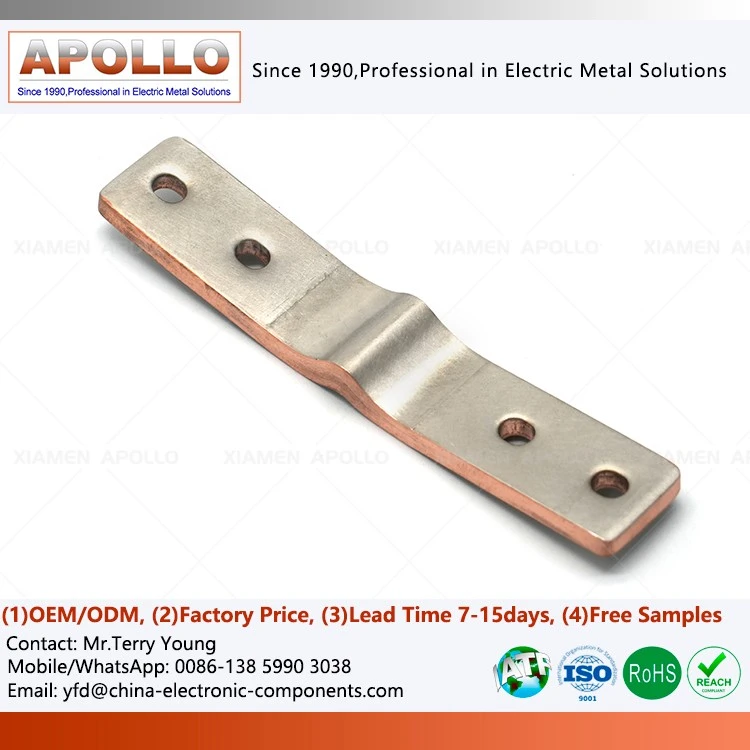

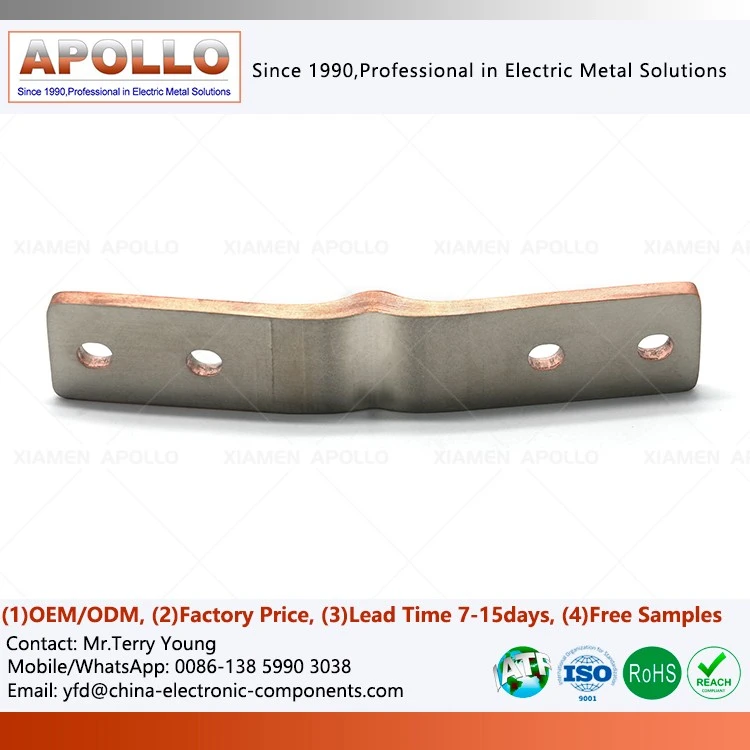

Laminated Copper Foil Bus
Products Description
A laminated copper foil busbar is a flexible conductive connection component formed by stacking multiple layers of highly conductive copper foil and encapsulating them with insulating material. Combining the excellent electrical conductivity of copper with the flexibility, electrical insulation, and spatial adaptability inherent in a laminated structure, this product serves as a critical connection component in applications such as new energy vehicle (NEV) power batteries, high-voltage electrical systems, energy storage equipment, and industrial power systems.
Compared to traditional rigid copper busbars, laminated copper foil busbars offer superior structural adaptability.
Depending on the application scenario, laminated copper foil busbars are generally categorized into two types:
Small-scale copper foil flexible busbars: Primarily used in the new energy sector for NEV power battery packs, battery modules, cell interconnects, and high-voltage power distribution systems;
Large-scale laminated copper busbars: Primarily used for high-current connections in power equipment, frequency converters, power distribution cabinets, energy storage systems, rail transit, and industrial electrical equipment.
Material Advantages: Quality Control at the Source
High-Purity Copper (T2/Pure Copper)
With electrical conductivity exceeding 98%, these materials ensure minimal Joule losses. We strictly control oxygen content to prevent "hydrogen embrittlement" in high-temperature operating environments, thereby guaranteeing long-term electrical stability.
Customized Insulation Materials
To meet the high-temperature and flame-retardancy requirements of new energy vehicle battery packs, we utilize halogen-free, specially modified polymers rated for temperatures of 125°C or even 150°C. These materials offer not only excellent insulation properties but also superior tear strength and chemical corrosion resistance for Copper Foil Laminated Busbar Soft Connection.
Aging-Resistant Plating
Electrical applications often involve harsh environments. Our nickel plating provides exceptional corrosion resistance, making it suitable for industrial settings with high humidity and salt spray, while ensuring low contact resistance throughout a service life spanning decades.
Design Advantages: An Engineering Balance of Flexibility and Reliability
Versatile Terminal Options
Customizable connection interfaces-including welded, crimped, bolted, or pre-terminated ends-to minimize the risks associated with on-site secondary processing.
Optional Insulation and Protection
Solutions such as heat-shrink tubing, insulating coatings, or specialized insulation layers are available to enhance safety-whether for high-voltage environments inside battery packs or humid conditions in power cabinets-without compromising flexibility.
Space Optimization
Precise calculation of bending radii and interlayer sliding allowances enables the shortest possible connection paths within confined battery pack spaces, thereby reducing parasitic inductance and energy loss.
A Blend of Standardization and Customization
The product line includes established short-connection specifications that accommodate standard battery module spacings, while also supporting rapid custom designs tailored to specific Copper Foil Busbar Used for High Current Voltage spacings and current-carrying requirements.
In-depth Analysis of Typical Application Scenarios
New Energy Electric Vehicles (EV/HEV)
Main series connections for battery modules, connections between battery packs and PDUs (Power Distribution Units), and supercapacitor connections.
Energy Storage Systems (ESS)
Flexible Copper Foil Busbar with Laminated Copper Shunt connections for battery clusters within containerized energy storage units and DC-side connections for PCS (Power Conversion Systems).
Industrial Power Electronics
Laminated Copper Foil for high-power variable frequency drives (VFDs) and UPS (Uninterruptible Power Supply) systems, as well as connections for rectifier cabinets used in electrolytic smelting.
Rail Transit
Auxiliary power supply systems for high-speed trains and subways, and internal connections for traction converters.
contact us
Thanks to their flexible structure, high electrical conductivity, reliable insulation, and adaptability to engineering requirements, Flexible Shaped Copper Busbar Used for Line Busbars have become indispensable connection components in new energy vehicles, power equipment, and energy storage systems.
If you are selecting components for new energy battery systems, power equipment, or energy storage projects, we can provide professional, customized solutions tailored to your structural designs, current requirements, and installation environments-leveraging our engineering expertise to ensure product reliability and efficient project delivery.
