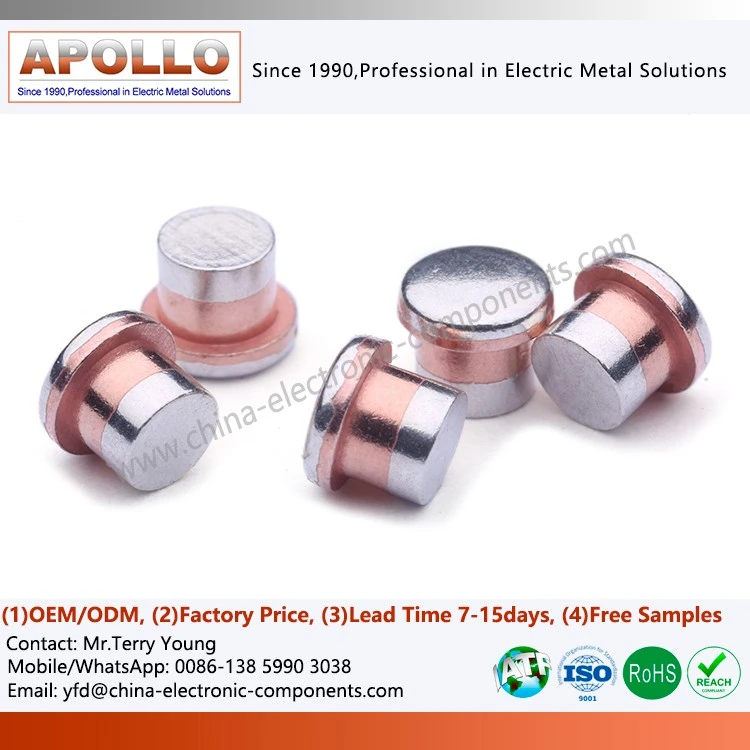

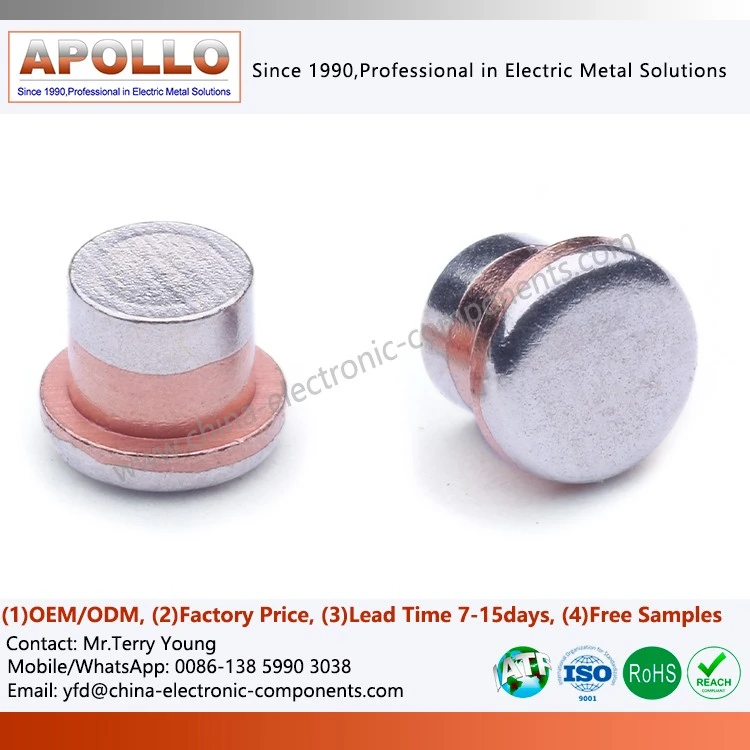

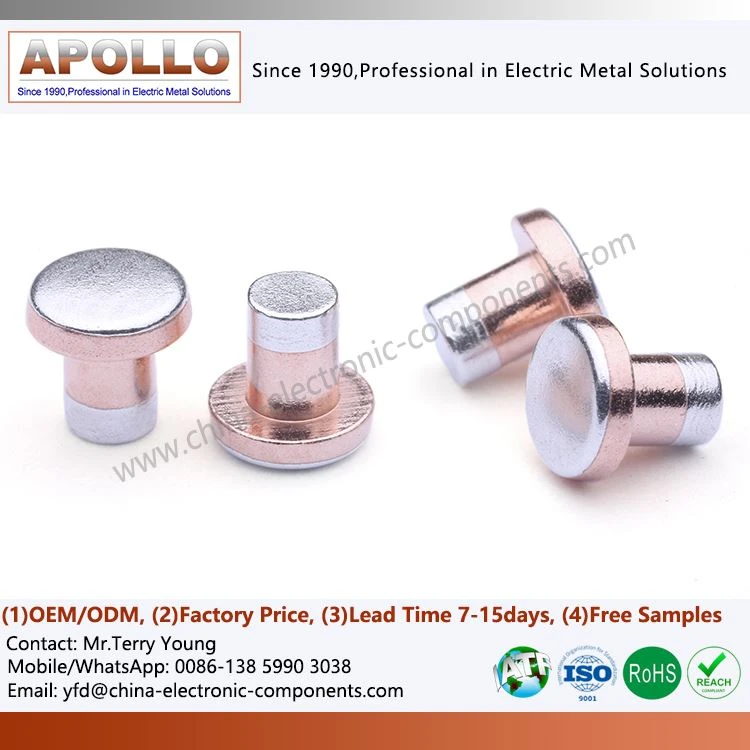

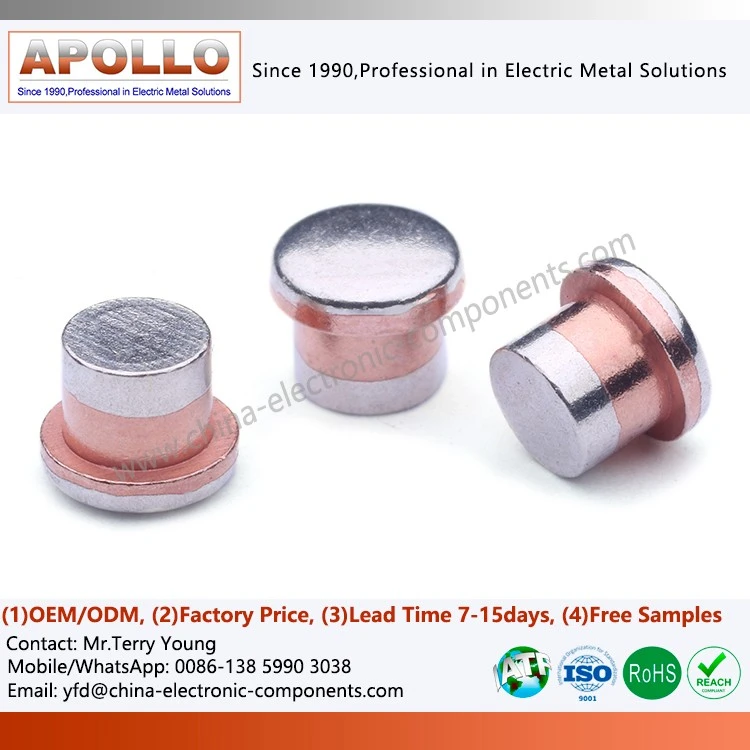

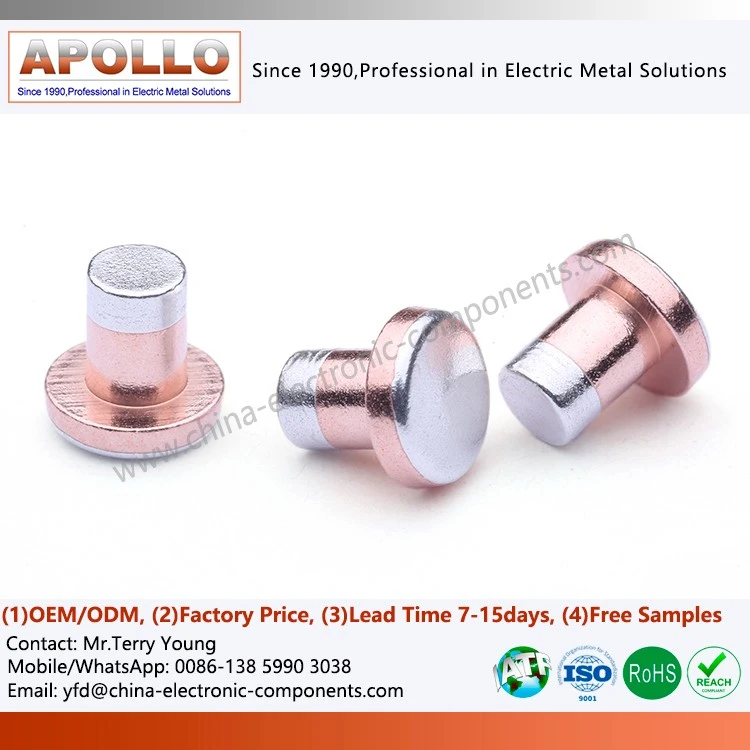

Trimetal Silver Composite Contact Rivets For Switch
Products Description
The core value of Trimetal Silver Composite Contact Rivets for Switch lies in the functional layering of materials; their structure is not merely a simple composite but is engineered to optimize performance under specific electrical operating conditions:
1. Surface Silver Alloy Layer
Located at the contact interface (head and shank contact areas)
Provides excellent electrical conductivity and low contact resistance
Offers high resistance to arc erosion
Reduces contact failure caused by oxidation
2. Intermediate Copper Core
Provides a highly conductive structural base
Optimizes the current transmission path
Offers mechanical strength and shock absorption
Ensures overall structural stability
3. Tri-layer Metallurgical Bonding Structure
Unlike simple plating or mechanical press-fit assemblies, tri-metal contact rivets utilize metallurgical bonding to achieve diffusion-based interlayer connections, fundamentally enhancing bond strength and long-term reliability.
Detail Showcase: Meeting exacting standards through high-magnification microscopic quality
Clear and continuous bonding interface
Under a metallographic microscope, the silver-copper composite wire exhibits a perfect, gradual transition, free from any micro-voids, delamination, or inclusions.
Surface finish (Ra)
The Trimetal Silver Contact Rivet surface undergoes a specialized non-destructive chemical polishing process, achieving a mirror-like finish that effectively minimizes contact resistance fluctuations during initial contact.
Flat stepped surface
The stepped surface of the rivet is perfectly perpendicular to the central axis, ensuring precise vertical alignment when assembled onto the Tri - Metal Button Silver Electric Contacts bridge.
Application Advantage: Reshaping the Relay Value Chain
Significant Cost Structure Optimization
Substantially reduce Bill of Materials (BOM) costs without compromising electrical lifespan, directly boosting product gross margins.
Supply Chain Security
Mitigate the direct impact of international silver price fluctuations on costs. The copper layer acts as a buffer, making raw material costs more controllable.
Performance-Based Competitive Differentiation
Unlike the standard stamped composite strip Ag Silver Alloy Trimetal Contact used by competitors, our cold-headed tri-metal composite rivets feature higher density and superior grain flow; this effectively reduces temperature rise and enhances the product's overload capacity.
Manufacturing Advantages and Production Processes
Premium Raw Materials
We utilize high-purity silver alloy strips and electrolytic oxygen-free copper cores, ensuring the purity and compatibility of each material layer.
01
Composite Forming Process
Advanced hot-bonding or combined hot/cold-bonding technologies are employed to achieve metallurgical diffusion bonding across the silver-copper-silver layers, while strictly controlling the interface to prevent oxide inclusions for the Trimetal Silver Electrical Alloy Contact.
02
Precision Processing Sequence
The composite material undergoes multiple stages-including stamping, heat treatment for strengthening, and surface finishing-to form the final rivet configuration.
03
Precise Control of Silver Layer Thickness
Through specialized inspection and process parameter optimization, we ensure uniform silver layer thickness at both the head and shank, as well as robust bonding, thereby eliminating the risk of delamination.
04
Quality Verification System
Every batch of Trimetal Silver Contact Point undergoes rigorous testing, including metallographic analysis, bond strength testing, electrical performance cycling, and simulated operational life testing.
05
contact us
Trimetal Contact Rivets For Electronics represent more than a simple material substitution; they constitute a structural optimization technology for industrial electrical systems. By leveraging metallurgical composite design to achieve an engineering balance between performance and cost, they offer a more sustainable solution for high-frequency switching contact systems.
For manufacturers of relays and industrial control equipment, this solution enables significant optimization of material structures while ensuring electrical reliability, making it a key technological choice for enhancing product competitiveness.
If you are currently selecting contact solutions for relays or industrial switches, we can provide tailored, engineering-grade trimetal contact solutions based on your specific electrical load and structural requirements, helping you achieve superior reliability and an optimized system cost structure.
