AC Core For Industrial Relay
Products Description
This AC Core for Industrial Relay is a key magnetic circuit component in AC electromagnetic systems, primarily used in industrial control relays, AC control relays, and related electromagnetic actuators. It performs core functions such as magnetic flux guidance, attraction force generation, and stable electromagnetic energy transfer.
The product features the following significant structural design characteristics:

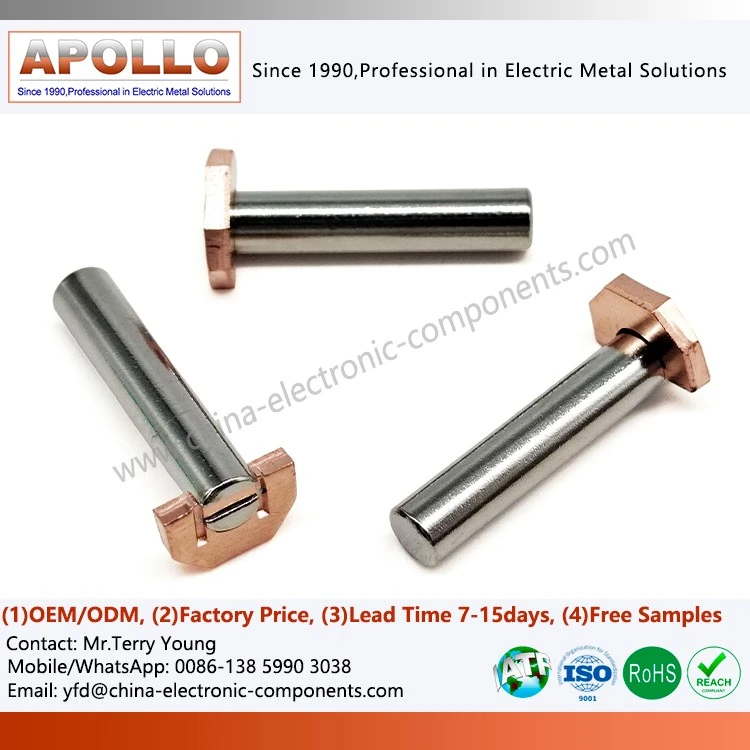

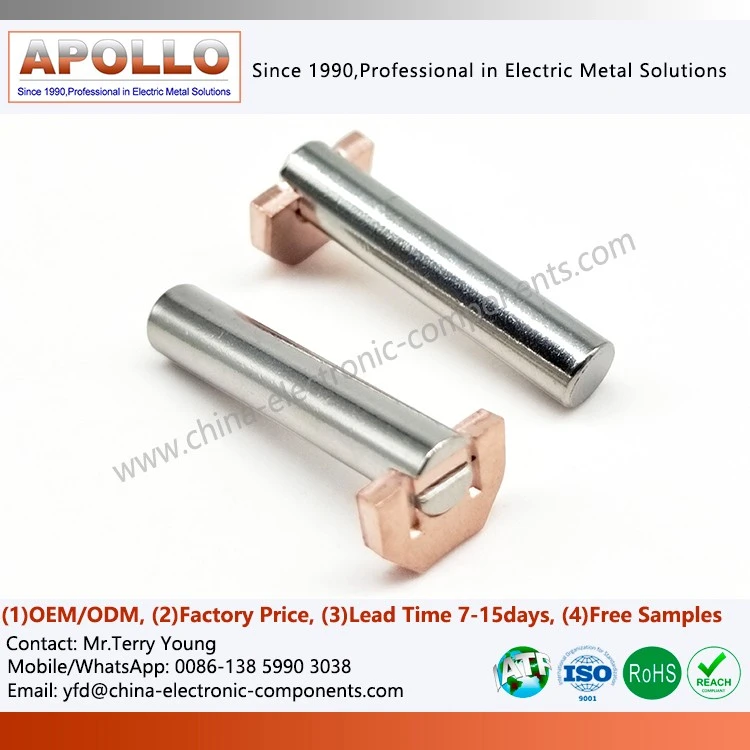

Slotted Core Structure Design: Optimizing the magnetic circuit distribution through a rational slotting method effectively reduces hysteresis losses and eddy current effects under AC conditions, improving the stability and repeatability of the attraction process.

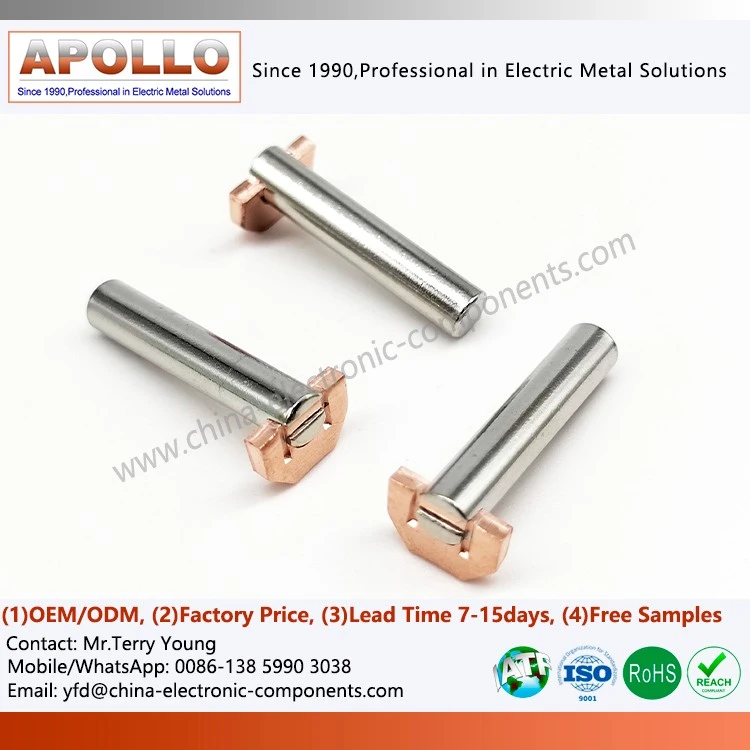

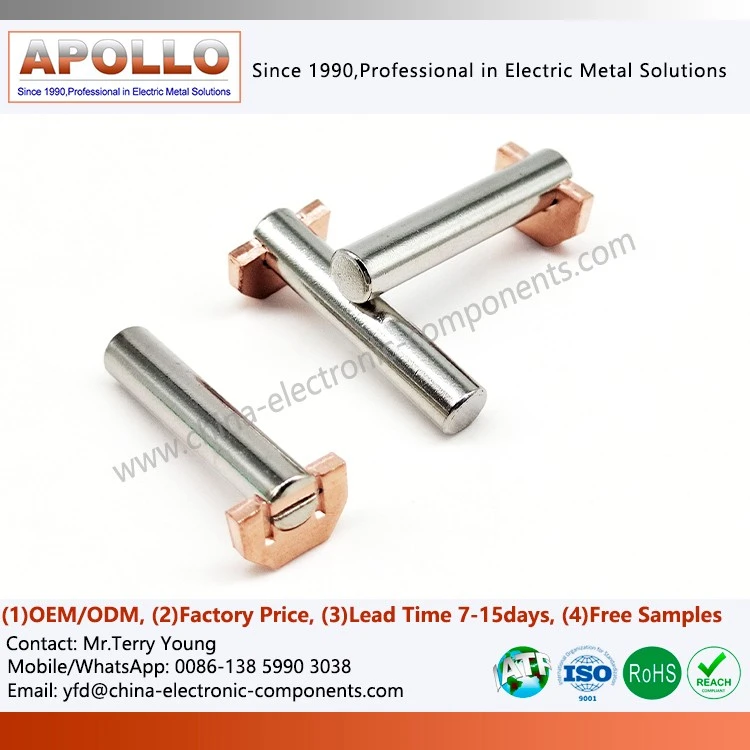

Integral Riveting with Stamped Copper Components: Utilizing high-purity stamped copper conductive components, it is firmly bonded to the core body via mechanical riveting. This stable structure eliminates the need for welding, making it suitable for mass industrial applications.
Dedicated Design for AC Operating Conditions: The structure and materials are optimized in conjunction with the periodic changes in magnetic flux under AC power, ensuring reliable operation even under long-term alternating magnetic fields.
Product Nature and Core Features
Slotted Precision Magnetic Control Structure
Utilizing a customized slotted design, precise slot layout, and dimensional planning optimizes the magnetic flux path, reducing hysteresis and eddy current losses, improving permeability and magnetic energy conversion efficiency, and ensuring stable magnetic performance under AC operating conditions.
Riveted Copper Integration Design
Precision riveting technology firmly integrates copper stamping components with the core. The copper components combine conductive synergy with efficient heat dissipation, adapting to the high current conditions and heat dissipation requirements of AC industrial control relays, while simultaneously enhancing the overall structural strength of the components.
AC Industrial Control Dedicated Adaptation
Customized structural dimensions are designed for the operating frequency, rated voltage, and installation space of AC industrial control relays, precisely matching the relay's electromagnetic system design to ensure rapid magnetic drive response and precise on/off control.
High adaptability to operating conditions
Made of high magnetic permeability iron core material, and enhanced with a special heat treatment process, it can withstand temperature fluctuations, vibration shocks, and electromagnetic interference in industrial scenarios. It does not experience magnetic performance decay during long-term operation, ensuring the stability of industrial control systems.
Technical Features: Precision Coupling of Magnetic Circuit and Thermal Performance
Precision Fit of the Short-Circuit Ring
The fit gap between the copper stamping and the slot is controlled at the micrometer level. An excessive gap increases magnetic reluctance, making engagement difficult; an insufficient gap hinders assembly. Our technology achieves a "zero-gap" interference fit, ensuring magnetic circuit continuity.
Optimized Air Gap Magnetic Field Design
Through simulation design of the core pole shape and slot position, we optimized the magnetic flux distribution, reducing the impact energy during closure, minimizing secondary contact bounce, and improving contact electrical life.
Application of High Permeability and Low Loss Materials
We select silicon steel materials with high magnetic permeability and low iron loss to ensure greater attraction force at the same ampere-turns, allowing for the design of smaller, lower-power relays.
Application Advantages: Imbuing Industrial Relays with Superior Dynamic Quality
Ultra-Quiet Operation and Ultra-Low Vibration: This is the most intuitive improvement in user experience. Thanks to a near-perfectly smooth pull-in transition, the relay is exceptionally quiet during both the pull-in and holding phases, free from unpleasant AC hum. This not only improves the working environment but also means minimal stress impact on internal mechanical components, crucial for applications requiring high vibration resistance, such as machine tools and rail transportation.
Extremely Long Electrical and Mechanical Life: Smooth force characteristics reduce the impact of the armature on the Electrician Pure Iron Core poles, minimising secondary contact bounce and significantly reducing arc erosion. Lower core operating temperatures and vibrations also extend coil insulation life and overall structural stability. This allows the relay to easily withstand millions, even tens of millions, of frequent operations.
Enhanced operational reliability and consistency: Eliminating the risk of zero-crossing of the pull force means that the relay can still reliably engage without "jittering" or "failure to engage" even when the mains voltage fluctuates or is at the critical operating voltage. Highly consistent core magnetic parameters across batches ensure a concentrated distribution of operating voltage/current parameters across all products, providing circuit designers with more reliable and precise design boundaries.
