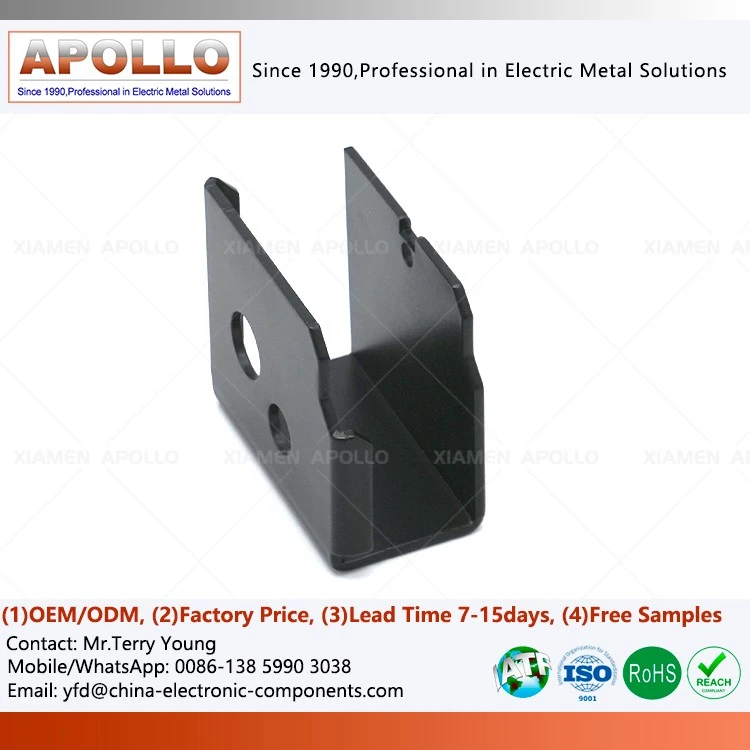

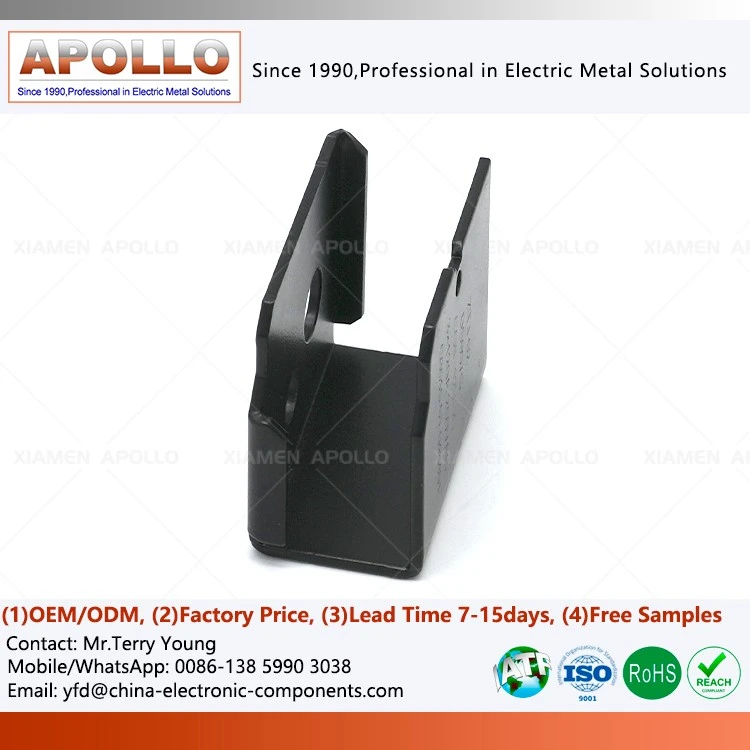

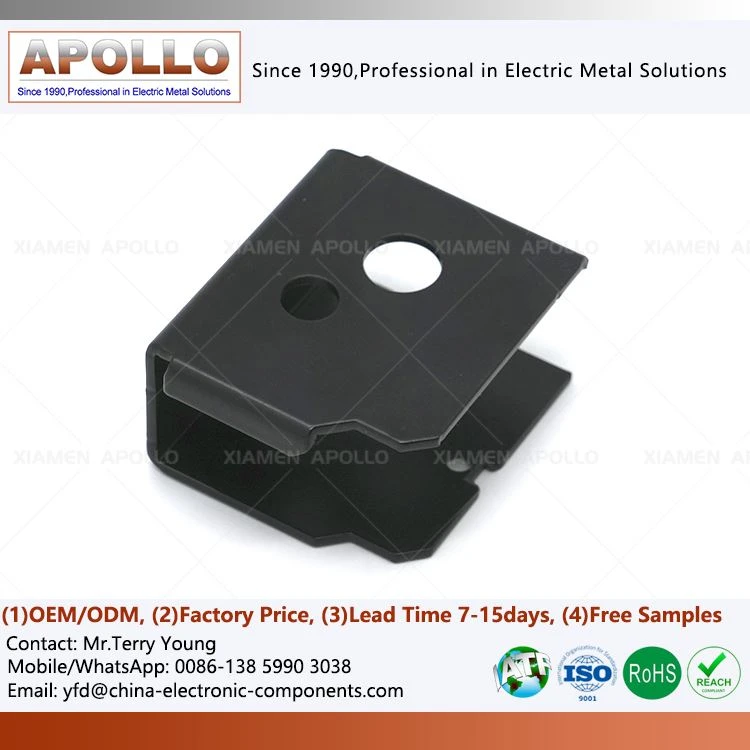

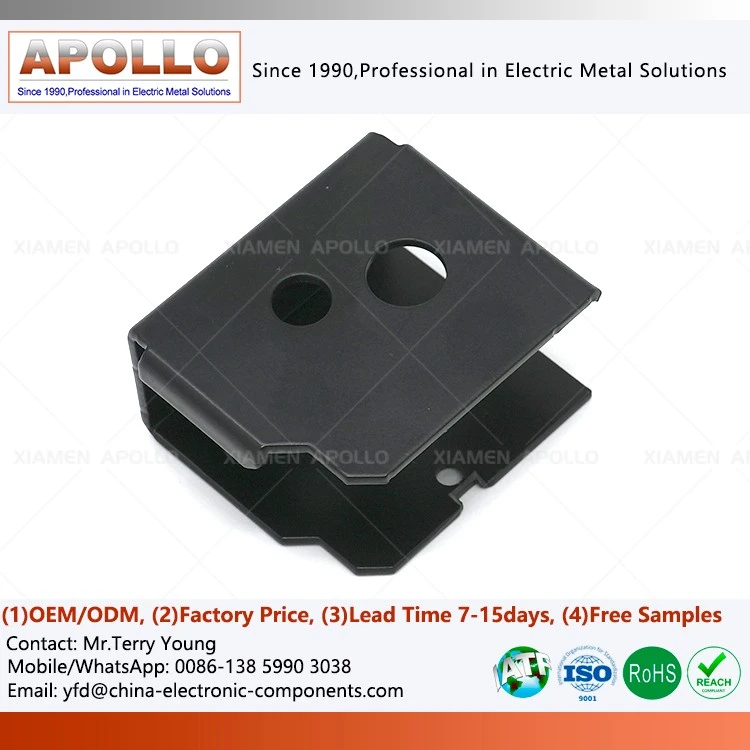

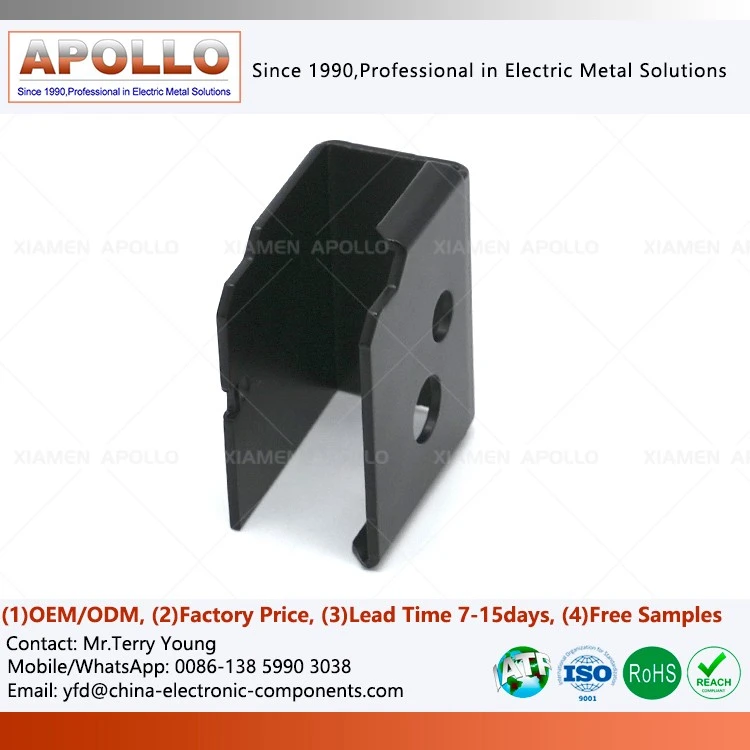

Magnetic Latching Relay Shielding Cover
What is a Magnetic Latching Relay Shielding Cover?
The Magnetic Latching Relay Shielding Cover is a precision metal component designed for electromagnetic compatibility (EMC) and structural protection; its effectiveness relies on the synergy of material conductivity, geometric enclosure, and surface protection.
Cold-rolled carbon steel substrate: Selected for its uniform thickness, good electrical conductivity, and formability, this material serves as the foundation for electromagnetic shielding.
Precision-formed structure: Processes such as stamping, bending, and deep drawing are used to create a housing that matches the relay's profile, ensuring a tight fit upon installation and minimizing leakage through gaps.
Powder-coated finish: Post-forming powder coating creates a uniform insulating and anti-corrosive layer, protecting the substrate from corrosion while preventing accidental short circuits with relay terminals or other conductive components.
Shielding functionality: The housing channels external electromagnetic energy to ground or attenuates it via a highly conductive metal path, thereby reducing interference with the relay's coil and contact systems.
Structural compatibility: The design accounts for internal installation space, mounting methods, and heat dissipation requirements within the electricity meter, supporting various fixation options such as snap-fits, screws, or welding.
EMI Shielding Housing Key Design Advantages and Technical Features
Closed Magnetic Circuit and Micro-Gap Encapsulation Structure
Precision engineering of the interlocking seams and pin apertures minimizes magnetic leakage openings, achieving a dual-protection effect-combining a "Faraday cage" and magnetic shielding. The Electromagnetic Interference Shield provides near-total enclosure.
Pin Positioning and Clearance Design
The EMI Protection Housing base features high-precision clearance holes and locking clips that ensure a micron-level fit with the relay base, preventing any displacement or wobbling during wave soldering or manual soldering processes.
Heat Dissipation and Internal Pressure Equalization Vents
Without compromising the continuity of the magnetic shielding, the structure cleverly incorporates micro-convection vents; these accelerate the dissipation of heat generated when the relay coil is energized and actuated, thereby extending the relay's service life.
EMI Protection Housing Detail Showcase: A Commitment to Quality in Every Detail
Edge Treatment
The edges and openings of the shield undergo rounding or hemming processes, ensuring a smooth finish free of sharp corners; this protects assembly workers and prevents scratches to the PCB's solder mask.
Hole Precision
Mounting and locating holes are positioned with high precision, aligning perfectly with the relay body and PCB mounting holes to facilitate seamless automated insertion-eliminating the need for manual adjustment and significantly boosting customer production efficiency.
Coating Quality
The powder-coated surface features uniform color (typically matte black or gray) and a refined texture, free from runs or impurities; the Signal Interference Shield Cover offers excellent weather resistance, resisting fading or chalking even under prolonged UV exposure or high temperatures.
Clear Markings
We can apply part numbers, logos, or environmental compliance symbols to the shield surface via laser engraving or screen printing based on customer requirements, facilitating traceability and brand identification.
Frequently Asked Questions for Cold Rolled Steel Shield Cover
What is the primary shielding principle of the magnetic latching relay's shielding housing?
-
It utilizes the high conductivity and geometric enclosure of the carbon steel housing to create an electromagnetic barrier. This attenuates external interference energy or diverts it to a grounding path, thereby minimizing the impact on the relay's internal coils and contacts.
Does the powder-coated finish affect shielding performance?
-
The powder coating primarily serves to provide insulation and corrosion resistance. During design, specific areas-such as grounding points or conductive contact zones-are treated selectively or left exposed to ensure the integrity of the overall shielding path.
Can the product be customized regarding cutouts and mounting methods?
-
Yes. Cutout locations and dimensions, as well as mounting features like clips or screw holes, can be adjusted based on the relay's form factor, the internal layout of the electricity meter, and assembly requirements.
What operating environments is it suitable for?
-
It is designed primarily for indoor and outdoor installations in smart meters and power terminal equipment; the powder coating offers basic resistance to temperature, humidity, and corrosion. For environments involving severe corrosion or extreme temperatures, material and coating specifications can be evaluated separately.
How is consistency in dimensions and performance ensured across batches?
-
Consistency in forming precision and coating quality is maintained through the use of precision molds, in-process dimensional sampling, and monitoring of surface treatment parameters; batch traceability is also supported.
contact us
If you are seeking highly reliable and customizable Sheet Metal Relay Cover solutions for smart meters or power control systems, our engineering team is ready to provide professional structural assessments and customization support tailored to your relay packaging and EMC specifications.
