Magnetic Latching Relay Shield Cover
What is a Magnetic Latching Relay Shield Cover?

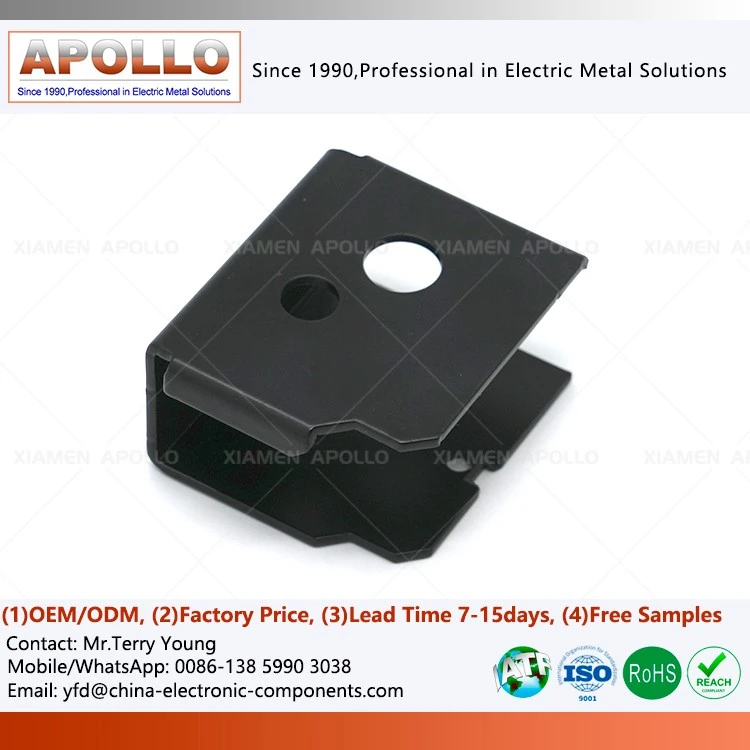

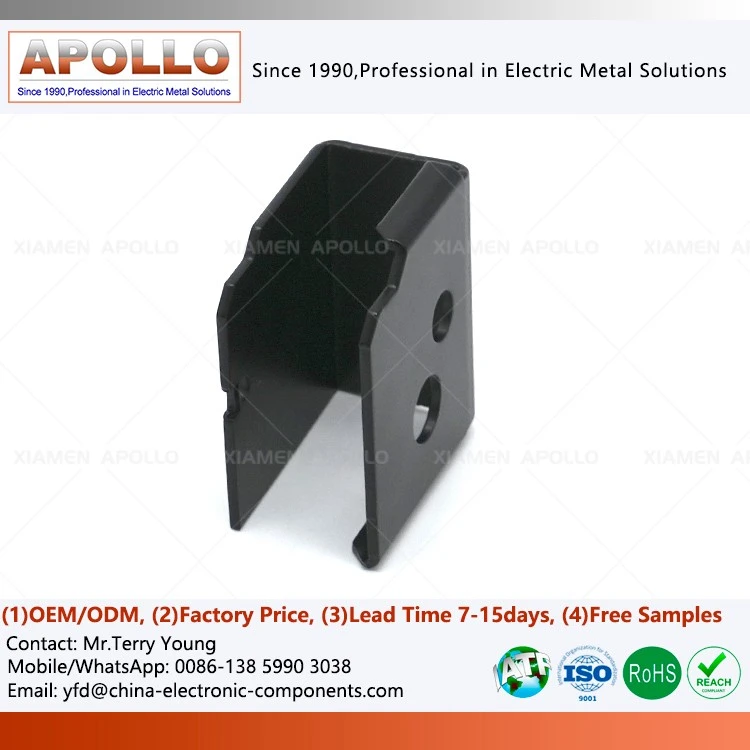

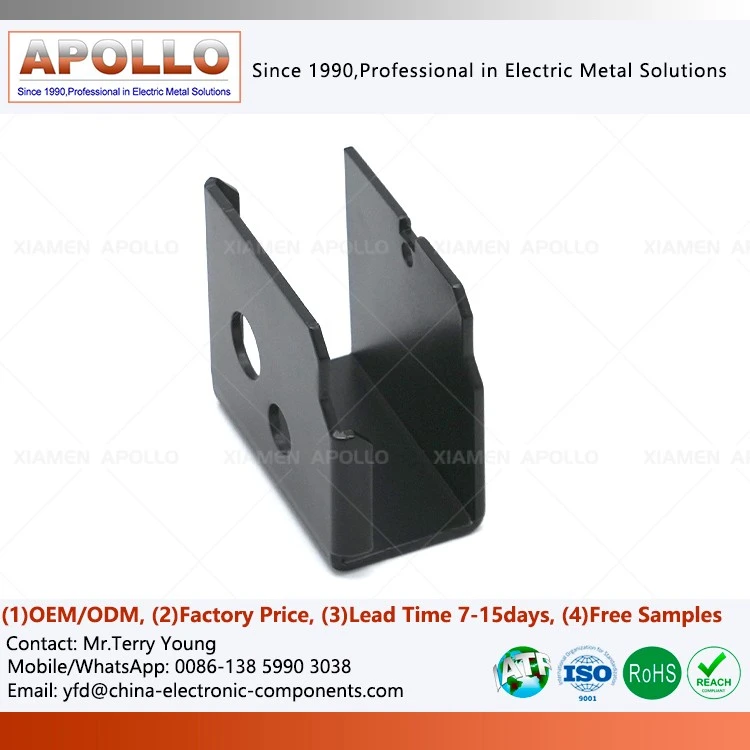

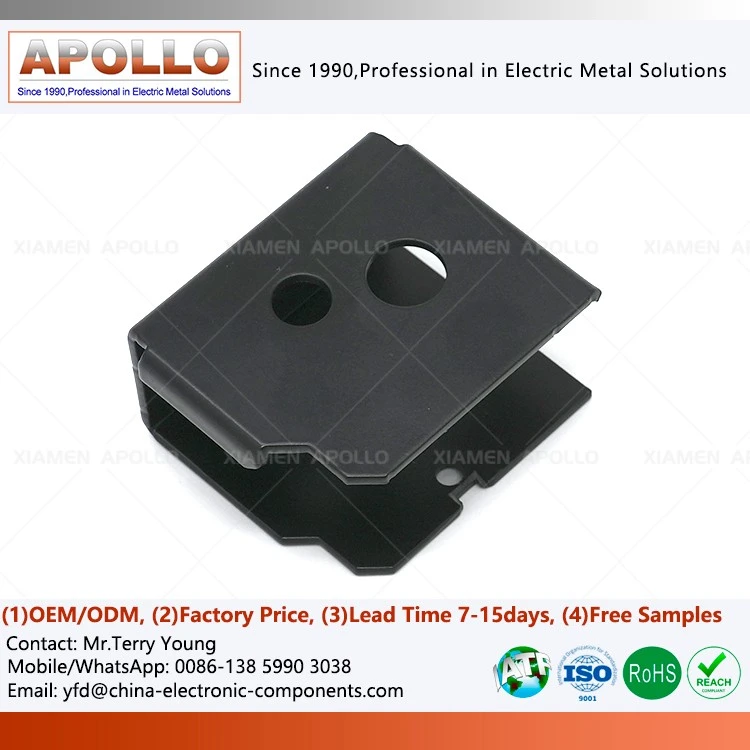

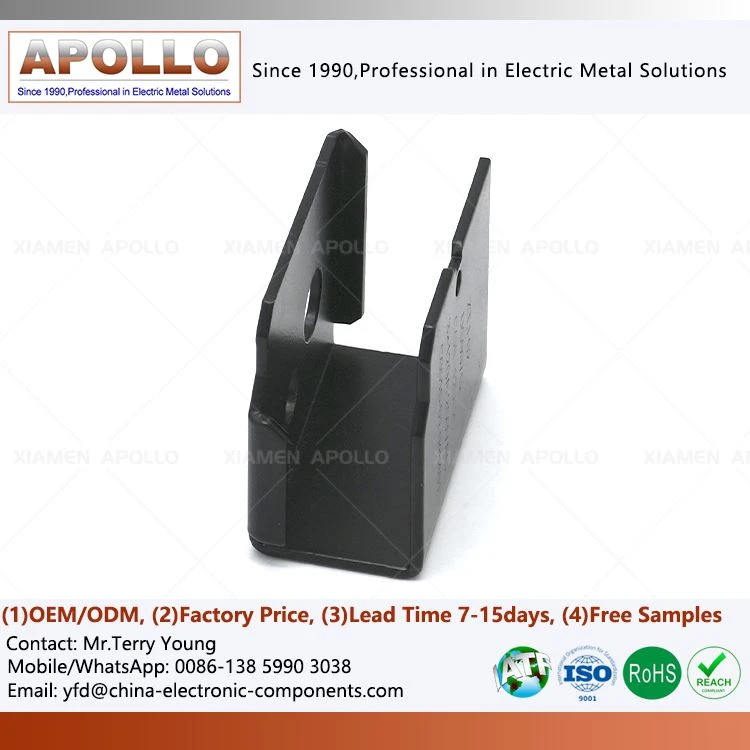

This Magnetic Latching Relay Shield Cover features a U-shaped, semi-enclosed design. Compared to fully enclosed shielding covers, the U-shaped structure provides effective magnetic shielding while maintaining access to the relay terminals, allowing wiring operations to be performed without removing the shield.
This design offers three key engineering advantages:
Targeted Shielding: The U-shaped structure concentrates shielding on the relay's sides and top-the areas most susceptible to external magnetic fields-thereby maximizing shielding effectiveness with minimal material usage;
Unobstructed Wiring: The area around the relay base and terminals remains open, ensuring that wiring, testing, and maintenance operations are not hindered by the shielding housing;
Lightweight Design: Compared to fully enclosed solutions, the U-shaped structure eliminates unnecessary material coverage, achieving an optimal engineering balance between product weight and shielding performance.
Relay Shield Housing Advantages: Balancing Shielding Effectiveness with Production Line Compatibility
For engineering procurement and R&D teams, the true value lies in interference suppression performance, first-pass assembly yield, and lifecycle reliability.
Establishing an Effective Electromagnetic Shield
The metal Magnetic Latching Relay Shield Housing creates a low-impedance shielding path that attenuates external magnetic fields and high-frequency noise; this helps stabilize the operation and holding states of the latching relay and reduces the risk of metering anomalies caused by interference.
01
Balancing Structural Protection and Electrical Isolation
The powder-coated finish protects the carbon steel substrate while providing necessary insulation clearance to prevent accidental contact with surrounding conductive components and minimize mechanical damage during transport and assembly.
02
High-Precision Fit Enhances Assembly Efficiency
Precision forming ensures consistent fitment between the shield, the relay, and the meter baseplate, reducing on-site adjustment time and making the component ideal for high-speed production lines.
03
Strong Environmental Adaptability
The powder coating offers excellent adhesion and fundamental weather resistance, meeting the demands of long-term meter operation across varying temperature and humidity conditions.
04
Facilitating Rapid Engineering Changes
Adjustments to relay models or internal meter layouts can be quickly accommodated through mold modifications or process tweaks, thereby shortening the new Magnetic Latching Relay Metal Cover introduction cycle.
05
EMI Shield Cover Functional Value: Multifaceted Engineering Benefits Beyond Electromagnetic Shielding
Electromagnetic Isolation
It effectively attenuates external electromagnetic interference coupling with the relay's internal coils and permanent magnets. By reducing the likelihood of malfunctions, EMI Shielding Housing ensures metering accuracy and the reliability of control logic-its primary functional purpose.
Physical Protection
The enclosed EMI Protection Housing acts as a mechanical barrier, protecting the relay from damage caused by foreign object impacts, dust ingress, or accidental contact during installation, transport, and operation, thereby extending the relay's service life.
Insulation
The insulating properties of the powder-coated finish ensure the shield itself is non-conductive; this prevents short circuits caused by accidental contact, even within the densely packed interior of an electricity meter.
Heat Dissipation Support
The design incorporates heat-dissipating fins at the base, allowing the shield to provide electromagnetic protection without compromising thermal performance. This prevents the formation of "heat traps," ensuring the relay's temperature rise remains within limits during rated operation.
Frequently Asked Questions for Signal Interference Shield Cover
Q1: Does the powder coating on the carbon steel shield reduce magnetic shielding effectiveness?
-
A: The powder coating is a non-magnetic, insulating material with a thickness typically in the range of tens of microns; this has a negligible impact on magnetic permeability regarding low-frequency magnetic fields (such as 50/60Hz power frequency). Conversely, the insulation provided by the coating allows the shield to be mounted safely against live components, enabling more compact system designs and indirectly optimizing the shielding layout.
Q2: How do you ensure the shield does not rust over the electricity meter's service life?
-
A: We employ a dual-protection strategy. First, we use high-quality cold-rolled carbon steel as the base material; second, we apply an epoxy/polyester powder coating following rigorous pre-treatment (phosphating). Our products pass strict salt spray tests (typically exceeding 48–72 hours), fully meeting the 10–15 year service life requirement for smart meters in harsh outdoor environments.
Q3: Can this shield withstand the high temperatures of reflow soldering?
-
A: Yes. We select high-temperature-grade powder coatings that feature high curing temperatures and excellent thermal stability. The products can withstand the peak temperatures of SMT reflow soldering (typically around 260°C) without coating discoloration, blistering, or peeling upon cooling, demonstrating excellent thermal shock resistance.
Q4: Can you accommodate custom opening shapes or heat dissipation vents?
-
A: Certainly. We have a professional tooling engineering team capable of customizing the shape, location, and quantity of openings based on your PCB layout and thermal dissipation requirements. We conduct simulations during the design phase to ensure that custom openings do not significantly compromise overall electromagnetic shielding effectiveness.
Q5: What are the available mounting methods for the shield?
-
A: We offer various mounting methods to suit different assembly processes, including SMT (Surface Mount Technology) pin designs, DIP (Dual In-line Package) straight-pin designs, and lead-free designs secured via clips or screws. Please provide your assembly requirements, and we will recommend the optimal solution.
contact us
If you are seeking a stable and reliable supplier of Electromagnetic Interference Protection Covers for magnetic latching relays, Apollo offers specialized metal stamping solutions tailored to your relay design, application environment, and project requirements, helping you achieve more efficient product development and reliable mass production delivery.
