The Technology Trends in Laminated And Integrated Busbars: Driving Upgrades in High-Voltage Connections For New Energy Vehicles And Energy Storage Systems

As new energy vehicles (NEVs), energy storage systems, and power electronics rapidly evolve toward high voltage, high power density, and high integration, traditional wiring harnesses and standard conductive connection solutions are increasingly unable to meet modern electrical system requirements for low loss, high reliability, and space optimization.



Driven particularly by the adoption of 800V high-voltage platforms, SiC power devices, and innovations in battery system architecture, laminated busbars and Cell Contact Systems (CCS)-characterized by low parasitic parameters, high integration, and excellent mechanical reliability-have emerged as key technological directions in high-performance electrical interconnection.



From the integration of power batteries into the chassis to the high integration of electric drive systems, NEVs are shifting from the optimization of individual components to system-level integration. Efficient, safe, and compact power transmission structures have become fundamental to extending driving range, reducing system losses, and enhancing manufacturing efficiency in NEVs.







Cell-to-Chassis (CTC) technology is emerging as a major trend in the development of NEV battery structures. By eliminating the traditional battery module layer and integrating cells directly into the vehicle chassis, this technology achieves deep integration between the battery system and the vehicle body structure.



Compared to traditional battery pack designs, CTC technology reduces the number of components and structural complexity while freeing up internal space and improving battery capacity utilization. Reducing module structural parts and interconnects optimizes the vehicle's overall weight, further enhancing energy efficiency and driving range.



As battery systems become more highly integrated-with increased cell counts and greater electrical interconnection complexity-demands on internal interconnect components have risen. Functions such as voltage sensing, high-voltage connections, thermal management, and safety monitoring must be highly integrated within a limited space, driving the development of CCS technology.



Inside an NEV battery pack, a CCS typically integrates voltage sensing circuits, temperature sensors, connection terminals, and insulation structures to facilitate data transmission between the cells and the Battery Management System (BMS). Compared to traditional wiring harness solutions, CCS technology eliminates numerous discrete wires, resulting in a more organized internal layout and enabling automated assembly processes.





Electric drive systems in new energy vehicles are evolving toward "all-in-one" integration and higher power density. Highly integrated electric drive systems have become the mainstream technological approach; the continuous integration of motor controllers, reduction gearboxes, and power electronic modules has further improved vehicle space utilization and energy conversion efficiency.



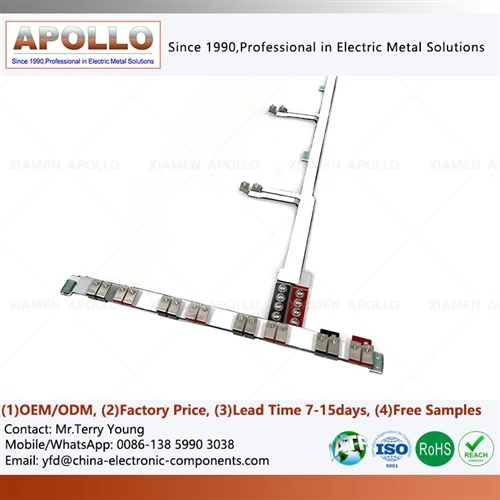

Within the electric drive system, high-voltage power must be transmitted efficiently between the traction battery, inverter, capacitors, and power modules. Compared to traditional cable connections, laminated busbars-characterized by low inductance, high current-carrying capacity, and structural flexibility-have become critical interconnection components in modern power electronic systems.



As a composite conductive structure, a laminated busbar typically consists of multiple layers of copper or aluminum conductors and insulating materials, bonded through a precision lamination process. By tightly stacking positive and negative conductors, the current loop area is effectively minimized, parasitic inductance is reduced, and the system's dynamic response capability is enhanced.



In high-frequency switching environments-such as inverter systems utilizing SiC MOSFET power devices-lower stray inductance helps mitigate voltage spikes and high-frequency oscillations during switching transients, thereby improving the operational stability of power devices. Consequently, laminated busbars have become a vital structural component in high-performance power electronics.



Laminated busbars are not limited to the new energy vehicle sector; they are also widely used in renewable energy generation, power conversion, and industrial automation equipment. For instance, in photovoltaic (PV) inverter systems, multilayer laminated busbars meet the rigorous interconnection requirements associated with high voltages, high currents, and long-term operation.







As the voltage platforms of new energy vehicles continue to rise, traditional connection methods face challenges such as excessive space requirements, significant electromagnetic interference, and complex assembly processes. Laminated busbars overcome these limitations through structural optimization.



First, regarding current transmission capability, the laminated structure maximizes the utilization of the conductor's cross-sectional area, thereby improving current-carrying efficiency. Simultaneously, the multi-layer conductor structure increases the heat dissipation surface area, helping to minimize temperature rise during prolonged operation.



Second, regarding insulation design, laminated busbars utilize an integrated encapsulated structure. This allows for precise control of creepage distances and electrical clearances, ensuring the insulation reliability required for high-voltage platforms. This is particularly important for 800V new energy vehicles and high-voltage energy storage systems.



Furthermore, laminated busbars offer significant structural design flexibility. They can be configured into various shapes-such as L-shapes, U-shapes, or multi-layer composite structures-to suit the internal spatial constraints of compact inverters, motor controllers, and power modules.



In industrial applications, laminated busbar power solutions have increasingly become a key focus for optimizing high-power electrical systems. For instance, busbars used in industrial variable frequency drives (VFDs/VSDs) must meet stringent requirements for rapid switching, high-current transmission, and stable operation; laminated busbars effectively enhance system reliability.





Traditional power battery data acquisition systems typically rely on copper wire harnesses, using multiple wires to connect individual cells for voltage and temperature monitoring. However, as battery pack capacities and cell counts increase, traditional wire harness solutions reveal drawbacks such as excessive space consumption, complex assembly, and limited automation capabilities.



CCS (Cell Contact System) integrated busbars replace traditional wire harnesses with flexible printed circuits (FPCs), rigid printed circuit boards (PCBs), or stamped conductive busbars, enabling an integrated design for data acquisition circuitry. By consolidating acquisition lines, connection structures, and insulation components, the number of discrete parts is significantly reduced.



This integrated structure is highly conducive to automated manufacturing. Automated equipment can pick up the entire assembly and install it directly into the battery pack, thereby boosting production efficiency and minimizing the risk of errors associated with manual installation.



For new energy vehicles and energy storage equipment, the CCS system serves not only as a data acquisition interface but also as a critical component ensuring the safe operation of the battery system. Reliable data acquisition enables the Battery Management System (BMS) to monitor cell status in real-time, thereby enhancing the precision of battery management.





Driven by the rapid growth of the new energy industry, the application scope of laminated busbars continues to widen. Beyond electric drive systems in new energy vehicles, they are widely utilized in sectors such as wind power, photovoltaics, energy storage, grid infrastructure, and rail transportation.



In wind power generation systems, generator busbars must withstand high currents and complex environmental fluctuations during long-term operation; busbar structures characterized by low power loss and high reliability help improve energy conversion efficiency. In the rail transit sector, high-power traction systems impose rigorous demands on the mechanical strength, electrical performance, and environmental adaptability of interconnection components. Laminated busbars designed for alternative energy public transportation meet the requirements for stable power transmission in new energy transport equipment.



Busbar structures also play a pivotal role in energy storage converters, static var generators (SVG), and industrial power supply systems. For instance, busbars for SVGs satisfy the need for rapid response and high-reliability operation in power electronics equipment.







As the industry advances-driven by the development of 800V (or higher) voltage platforms for new energy vehicles and the rising power ratings of energy storage, grid infrastructure, and renewable power generation systems-electrical interconnection components are evolving toward greater integration, lower losses, and increased intelligence.



By optimizing current paths, minimizing parasitic parameters, and enhancing structural reliability, laminated busbars offer highly efficient interconnection solutions for high-power electronic systems. Their value continues to grow across applications ranging from inverters and battery systems in new energy vehicles to industrial power conversion equipment.



In the new energy transport sector, laminated busbars for alternative fuel cell and hybrid electric vehicle systems meet the need for compact, highly reliable interconnections. Meanwhile, in rail transit power systems, laminated busbars for modern AC locomotive inverters serve as critical components for improving energy conversion efficiency.



Driven by continuous advancements in materials science, manufacturing processes, and automated production, laminated and integrated busbars will continue to propel the new energy industry toward high performance, high efficiency, and intelligent manufacturing, establishing themselves as indispensable core interconnection technologies for future high-voltage electrical systems.
