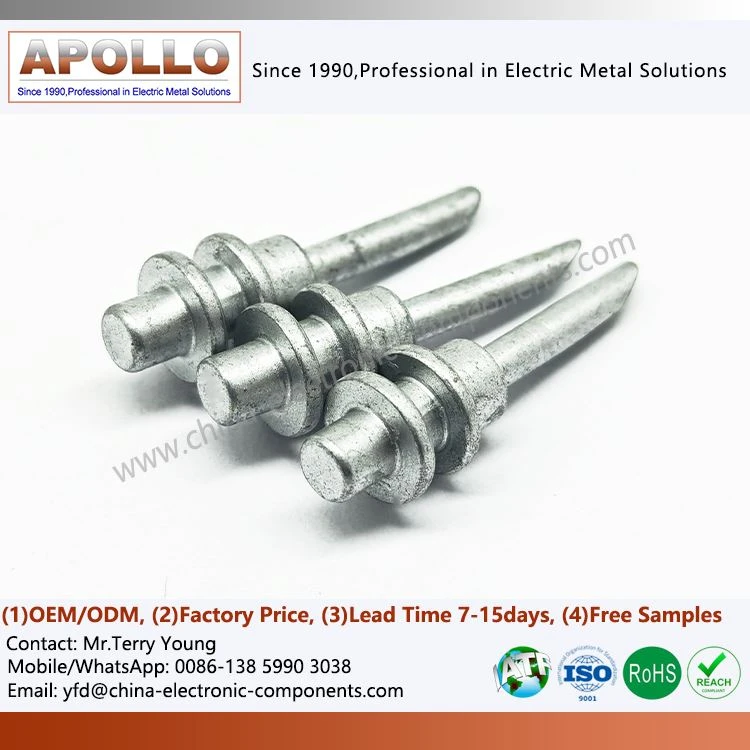

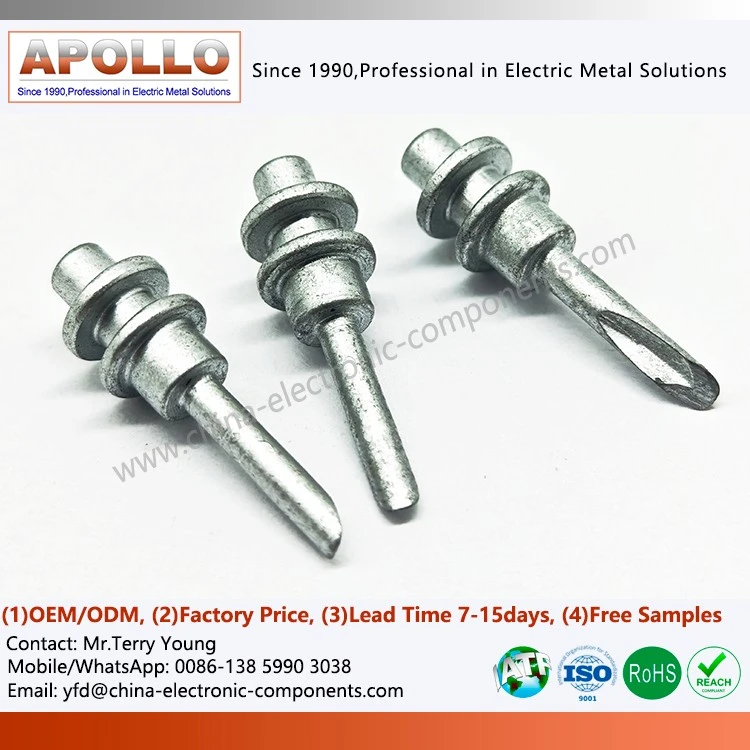

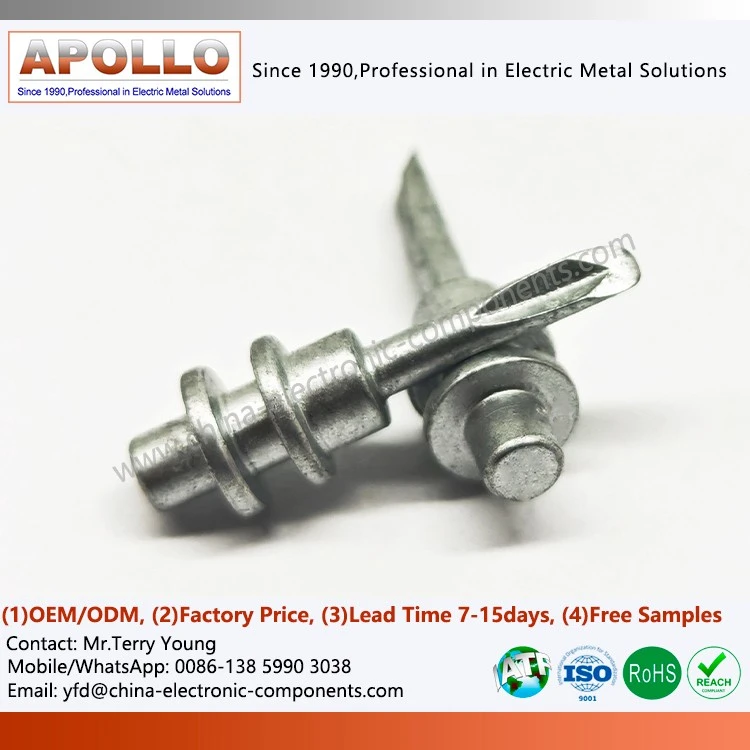

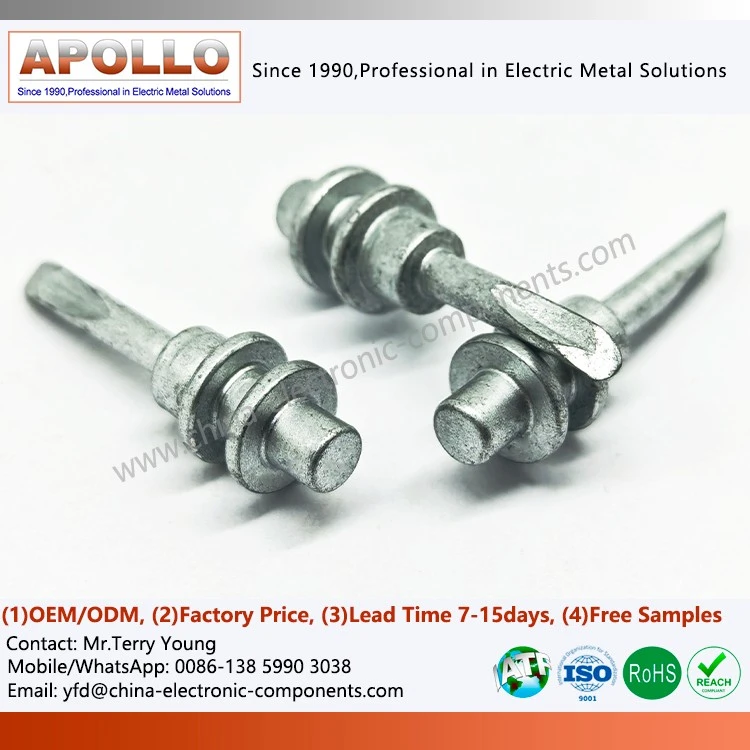

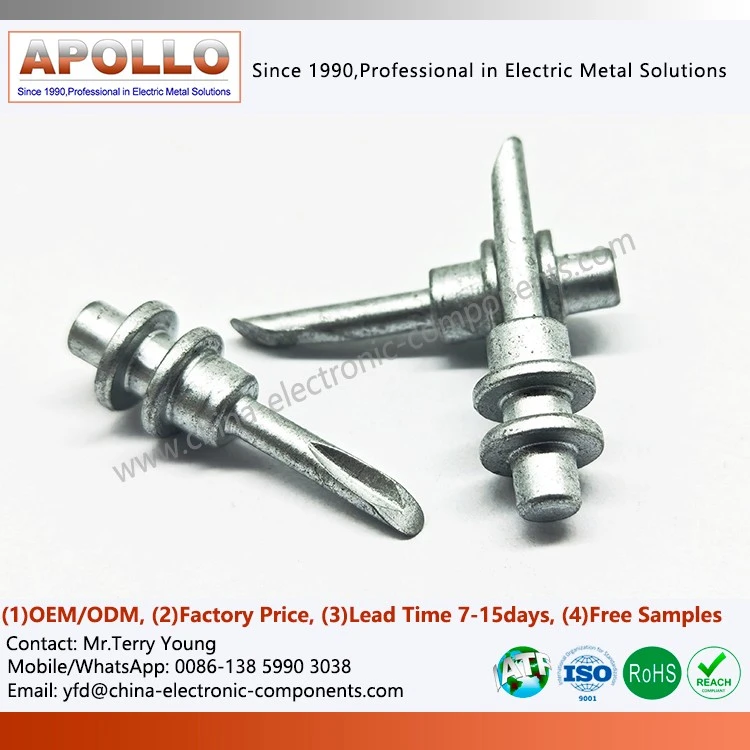

Break Mandrel Self-Drilling Rivet
Products Description
The Break Mandrel Self-Drilling Rivet is designed for sheet metal fastening applications where traditional drilling and preparation increase labor time and production steps. The drill tip blind rivet features a pointed pilot structure and a break-stem mandrel, enabling direct penetration into thin metal sheets before forming the locking joint.
As a professional China blind self-drilling rivet manufacturer, Xiamen Ansite Technology Co., Ltd. provides OEM rivet production from tooling development, material selection, cold heading, precision machining, heat treatment, surface finishing, and automated inspection.
The pilot point blind rivet structure is engineered for automotive panels, electrical cabinets, HVAC equipment, construction materials, and industrial enclosures requiring rapid installation without separate drilling operations.
Different drill-point geometries, mandrel strengths, and body materials can be developed according to customer assembly requirements. Our engineering team supports 2D/3D drawing review, DFM analysis, and prototype validation before mass production.
Production processes include cold forming, CNC secondary machining, automatic assembly, and pull-force testing to maintain stable fastening performance across high-volume manufacturing environments.
Application Scenarios & Industry Integration
EV Battery Pack Enclosures
Fastening structural aluminum frames and protective covers without heat deformation.
01
Commercial Energy Storage (ESS) Cabinets
Securing outer sheet metal panels and internal mounting brackets.
02
Automotive Body-in-White (BIW)
Joining dissimilar metal sheets, such as aluminum-to-steel joints, with high vibration resistance.
03
HVAC & Industrial Sheet Metal Housing
High-speed assembly of ductwork, control boxes, and power distribution units.
04
Solar PV Racking Systems
Structural joining of galvanized steel profiles requires high shear strength and outdoor corrosion resistance.
05
Engineering Material Options
| Material | Advantages | Typical Applications |
| Aluminum Alloy | Lightweight, corrosion-resistant | Automotive panels, electronics housing |
| Carbon Steel | High mechanical strength | Industrial equipment, construction |
| Stainless Steel 304 | High corrosion resistance | Outdoor equipment, marine applications |
Everything You Need to Know
Q1: How does a sharp-point blind rivet reduce assembly cost compared with conventional blind rivets?
A sharp-point blind rivet removes the separate drilling operation before fastening. This reduces tooling changes, operator handling time, and production steps, improving assembly efficiency for high-volume sheet metal manufacturing applications.
Q2: Can self-drilling pop rivets maintain a stable clamp force after mandrel breaking?
Yes. The break-stem structure is designed to create consistent expansion inside the workpiece. Controlled mandrel strength and dimensional accuracy help maintain stable clamp force after installation under vibration environments.
Q3: Can the drill-point blind rivet be customized for different sheet thickness ranges?
Yes. We develop customized rivet lengths, drill tip angles, grip ranges, and materials based on customer panel thickness and installation requirements. Prototype validation can be completed before mass production.
contact us
Send your 2D/3D drawings, material requirements, or assembly parameters to our engineering team. Xiamen APOLLO provides DFM feedback, prototype support, and factory-direct quotation for custom drill point blind rivets within 24 hours.
Contact us for OEM self-drilling blind rivet solutions designed for your production requirements.
