Technical Analysis of High-Voltage DC Contactors: How Epoxy and Ceramic Types Define the Safety Boundary of Energy Storage Systems

High-voltage DC contactors are core switching devices in energy storage systems, connecting battery clusters to power conversion systems (PCS). Their breaking capacity under high voltage and high current conditions directly determines the system's safety margin. As energy storage systems evolve towards voltage platforms of 1500V and above and higher power densities, the material system, packaging structure, and arc-extinguishing technology of contactors are becoming key technological watersheds. Among these, epoxy encapsulation and ceramic encapsulation constitute the current mainstream technology paths, but they differ fundamentally in design logic and performance boundaries.





























































From a fundamental mechanism perspective, the core technical challenge of high-voltage DC contactors lies in the rapid extinguishing of DC arcs.

Since DC does not have a natural zero-crossing point, once an arc forms, it must be suppressed by external forced means. Epoxy encapsulation structures typically employ a combined arc-extinguishing mechanism of "magnetic blowout + gas cooling." An inert gas is filled in the sealed cavity, and a magnetic field drives the arc to elongate and enter the arc-extinguishing structure, thereby achieving energy dissipation and arc extinguishing. This type of structure has mature technology and controllable cost, making it suitable for medium-voltage applications. However, its sealing performance and high-temperature resistance are limited by the materials, and its stability under extreme conditions has boundaries.

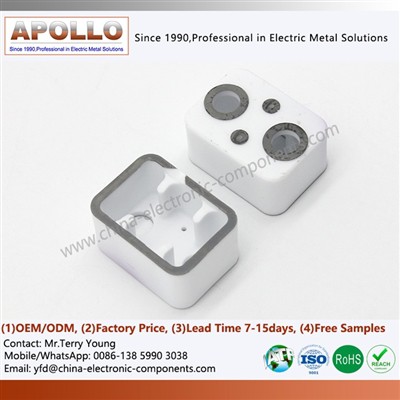

In contrast, ceramic encapsulation technology significantly improves arc-extinguishing capability through a more hermetic structural system. The hermetic encapsulation housing, built based on Alumina Metallized Ceramics, creates a stable, high-performance gas arc-extinguishing environment internally, and, combined with a magnetic blowout structure, achieves more efficient arc control. The ceramic material itself possesses excellent high-temperature resistance, arc impact resistance, and mechanical strength, enabling it to withstand greater thermal shock and electrodynamic loads during high-voltage breaking. Especially with the support of the metallization of alumina ceramics process, a reliable connection is achieved between the ceramic and metal, ensuring long-term hermeticity and structural stability.



Regarding key performance parameters, the two technologies differ significantly. Epoxy-encapsulated contactors are typically used in systems of 1000V and below, and their breaking capacity and short-circuit withstand capability are limited by the thermal properties of the material and structural strength. Ceramic-encapsulated contactors, on the other hand, can operate stably at voltage platforms of 1500V and above, maintaining higher breaking reliability even under high-voltage, high-current surge conditions. Arc-extinguishing cavities constructed using high-strength metallized ceramic components significantly improve short-circuit withstand capability and thermal stability, providing greater safety redundancy for the system.



At the materials and manufacturing level, ceramic technology routes place higher demands on processing and metallization techniques. For example, precision machining of aluminum ceramic parts is used to achieve high-precision structural dimensional control, while metallization of aluminum is used to form a weldable metal layer on the ceramic surface to meet complex electrical connection requirements. Furthermore, the application of precision metallized ceramics enables key structural components to achieve higher standards in dimensional consistency and conductivity, which is crucial for the long-term stable operation of high-voltage devices.

















































































From an application perspective, epoxy-encapsulated contactors are more suitable for low- to medium-voltage scenarios such as commercial and industrial energy storage systems and charging/swapping equipment. These applications are cost-sensitive and space-constrained, requiring high device size and large-scale production capabilities. In grid-side energy storage, power frequency regulation systems, and high-voltage direct current transmission and distribution scenarios, systems are rapidly evolving towards higher voltage platforms, placing higher demands on device safety and reliability. Against this backdrop, ceramic-encapsulated contactors built upon Metallized Alumina Ceramics for Electrical Components are increasingly becoming a key choice.

















































































Furthermore, critical components within ceramic encapsulation structures, such as Metallized Ceramic Housing for Power Semiconductors and Metallized Ceramic Insulating Tubes Metalizating Ceramic Parts, not only provide structural support but also play a crucial role in electrical insulation and thermal management. These Metallized Ceramics for Electrical Components effectively improve overall device performance by optimizing heat conduction paths and electric field distribution. Furthermore, the role of Alumina Metallized Ceramics for Bonding in achieving multi-material connections provides technical support for complex structural designs.



In summary, epoxy encapsulation and ceramic encapsulation are not simple substitutes but rather technological paths serving different voltage levels and application requirements. Epoxy solutions support current mainstream applications with mature processes and cost advantages, while ceramic solutions rely on advanced material systems such as Alumina Metallized Ceramics for Electronic Applications, providing a technological foundation for high-voltage and high-reliability scenarios. With the continuous trend of energy storage systems moving towards higher voltages, high-performance packaging technology based on Metallized Ceramics for Electrical will become an important factor in determining the safety boundary of the system.
