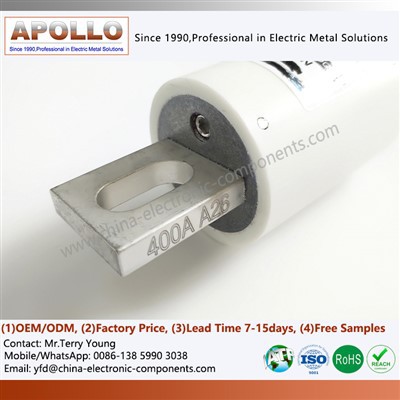

Fuse Cap And Contact High Temperature Soldering
Products Description
Our Fuse Cap and Contact High Temperature Soldering are precision-manufactured electrical end-caps and contact elements, designed for demanding environments where reliability, conductivity, and thermal stability are essential. Each unit is fabricated from high-conductivity copper or copper-based alloys, and the components are joined using a proven high-temperature soldering (tin-brazing) process. This results in a robust, metallurgical bond that withstands elevated temperatures, maintains low contact resistance, and ensures stable long-term performance under heavy current loads. The product is suitable for applications such as EV battery protection fuses, industrial power distribution, UPS systems, renewable energy storage, and other high-power or high-reliability electrical systems. With customizable materials, plating options and configurations, our Fuse Cap and Contact Soldering product line offers both flexibility for OEM/ODM clients and dependable performance for critical infrastructures.
Key Advantages & Benefits
High Electrical Conductivity and Thermal Stability
The Copper Cap and Fuse Terminal Contact base material-high-conductivity copper or copper alloy-ensures minimal contact resistance, so current flow is efficient and power loss is kept to a minimum, which is vital for high-current applications.The solid metallurgical bond formed by high-temperature soldering remains thermally stable even under elevated temperatures, preventing loosening or degradation of the joint during prolonged heavy load or thermal cycling.As heat generated at contact points is effectively managed through good thermal conduction, risk of overheating is reduced, contributing to safer, more reliable operation over the lifetime of the system.
01
Superior Mechanical Strength and Long-Term Reliability
The Copper End Caps Round and Fuse Link Contact process creates a bond with mechanical strength often comparable to or exceeding that of the parent metals, delivering durability under mechanical stress, vibration, or thermal expansion.
Solder joints produced by controlled, professional processes exhibit excellent long-term stability and resistance to fatigue, ensuring consistent performance over repeated thermal cycles or heavy duty operation.
Because the joint is metallurgically unified rather than relying on mechanical compression or clamping, there is no risk of loosening over time, which significantly reduces maintenance and replacement costs.
02
Flexibility of Materials and Surface Treatments
The Copper Contact for Round Type Fuse can be tailored to customer requirements: you may choose from pure copper or copper alloy bases, and select from various plating or coating options (such as tin, silver, nickel, or anti-corrosion coatings) to suit environmental, electrical, or aesthetic demands.This flexibility ensures compatibility with different use cases - from high-humidity outdoor energy storage systems to harsh industrial environments or automotive power modules - by enhancing corrosion resistance and contact stability.Customizable plating and finishing also help maintain compliance with regulatory requirements (e.g., RoHS) and facilitate export to global markets.
03
Compliance & Quality Assurance for Industrial Applications
Joints are produced under controlled manufacturing conditions, with consistent soldering parameters, ensuring joint integrity and traceability - a necessity for applications demanding high reliability, such as EV power systems, energy storage, industrial UPS, or data-center power distribution.
Because the soldering materials and processes are compatible with modern environmental and safety standards, the Fuse Cap and Contact Resistance welding assemblies can meet RoHS, REACH or similar regulatory requirements, facilitating global compliance.
04
Technical & Process Overview
Base Materials and Construction
Copper Cap and Fuse Contacts are fabricated from high-conductivity copper or copper-based alloys selected for their electrical and thermal properties. Prior to soldering, parts undergo precision stamping or machining to ensure proper fit and alignment.
The Copper Cap and Fuse Terminal is designed to ensure full penetration and wetting of the filler metal through capillary action, resulting in a homogeneous metallurgical bond rather than a mere surface adhesion.
After soldering, parts may undergo surface finishing or plating (tin, silver, nickel, anti-corrosion coating) according to client requirements for electrical performance or environmental protection.
High-Temperature Soldering Process
The high-temperature soldering process (tin-brazing) uses filler metals with appropriate melting points and flux or protective atmosphere to produce strong, reliable joints without melting the parent materials.
This method avoids excessive heat input to the bulk metal, minimizing thermal distortion or changes in base material properties - a critical factor when precise tolerances and material integrity are required.
The Copper Cap and Fuse End Blade Femules delivers both excellent electrical conductivity and mechanical robustness, suitable for applications requiring stable performance under thermal stress, heavy current load, or environmental exposure.
Quality Control and Testing
Each Outer Cap and Automotive Fuse Terminals undergoes contact resistance measurement to verify electrical continuity and low resistance, ensuring that electrical conductivity requirements are met before delivery.
Visual and mechanical inspections check for proper solder flow, absence of voids, cracks or cold solder joints - minimizing risk of failure due to poor workmanship or solder defects.
For customers requiring higher reliability, optional stress tests (thermal cycling, vibration, humidity exposure) can be arranged to validate long-term durability and suitability for harsh operational environments.
Typical Use Cases & Application Areas
Electric Vehicles (EV) and Energy Storage Systems
In EV battery protection circuits or BMS fuse modules, Fuse Cap and Contact High Temperature Soldering assemblies deliver the current-carrying capacity and thermal stability required for high-voltage battery packs and power distribution.
For on-board power distribution units (PDU) or high-current fuse modules, the soldered joint ensures reliable connection under vibration, temperature fluctuations, and long-term cycling - critical for automotive safety and performance.
Industrial Power Distribution, UPS, PDU, and Infrastructure Equipment
In industrial UPS systems, data-center power distribution units (PDUs), or heavy-duty power modules, these Fuse Cap and Contact Soldering ensure low-loss, high-reliability protection and supply continuity.
For high-current power distribution panels, switchgear, or backup power systems, the robust soldered contacts support the heavy loads and intermittent high-current events common in industrial environments.
Renewable Energy and Harsh-Environment Systems
In photovoltaic (PV) inverters, solar energy storage systems, or hybrid renewable-energy assets exposed to temperature swings, humidity or outdoor conditions, the Fuse Cap and Contact Resistance welding can resist corrosion and maintain stable performance.
For off-grid or remote installations, where maintenance is difficult, the long-term stability and low failure rate of soldered joints are distinct advantages.
