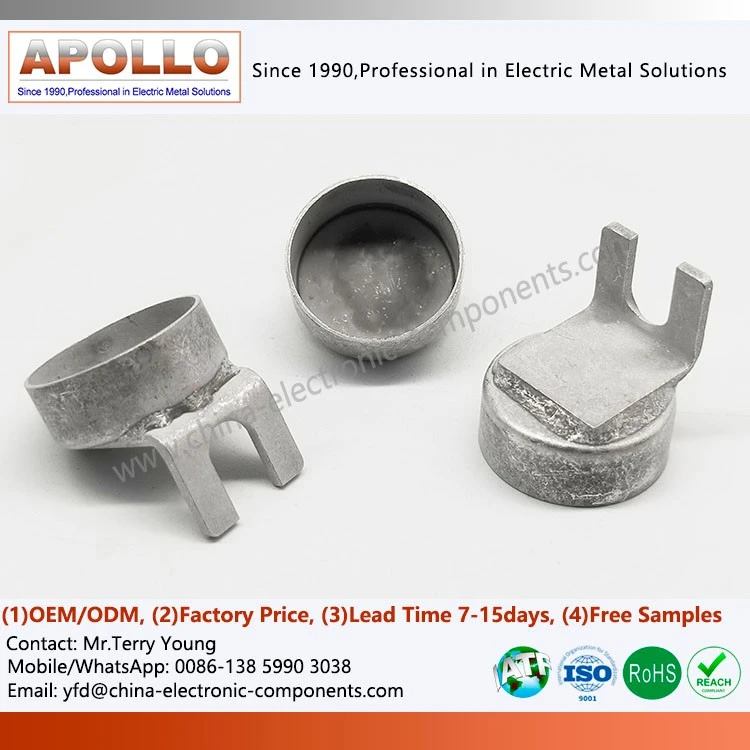

Copper Cap Contact For Electric Vehicle Fuse
Products Description
The Copper Cap Contact for Electric Vehicle Fuse is a key conductive connection component specifically designed for high-voltage fuses in new energy vehicles, primarily used to achieve a reliable connection between the contact blade and the end structure. This product integrates the contact blade and cap-shaped end structure through high-precision copper machining and welding processes, forming a stable conductive path and mechanical connection structure. In the high-voltage system of electric vehicles, the fuse plays a crucial role in overcurrent protection, while the contact cap assembly directly affects current transmission efficiency and the reliability of the fusing response. The product's design balances conductivity, thermal stability, and mechanical strength. By controlling the welding heat-affected zone (approximately 200–300℃), it effectively reduces the risk of material property changes, ensuring long-term stable operation of the component under high current and complex operating conditions.
Technical Features
Precision Welding Process
Copper Cap Contact for Semiconductor Fuses utilizes high-precision welding equipment, the weld joints are uniform and strong. Strict control of the welding temperature profile ensures a fine metallographic structure at the weld joints, preventing the formation of brittle structures.
Tight Fit Design
The fit gap for Copper Cap Contact for Eaton Bussmann Series EV Fuses is strictly controlled, ensuring stable electrical contact during normal operation and rapid separation under overload conditions.
Arc Suppression Capability
During high-power operation of electric vehicles, fuses may experience strong arc transients. The copper cap design of this Cap and Contact for EV Charging Fuse effectively disperses arc energy, suppresses the continued spread of the arc, and prevents damage to surrounding circuits.
Application Areas
Battery Electric Vehicles
Suitable for high-voltage operating conditions (rated current 50-300A) in battery electric vehicles. Addressing the high-frequency start-stop and electrolyte corrosion issues, this Copper Cap Contact for Electric Car Fuse features low heat impact at 200-300℃, robust welding, and excellent sealing to ensure stable operation of fuses in the battery pack and high-voltage distribution box.
Hybrid Electric Vehicles
Suitable for the complex high-voltage operating conditions of hybrid electric vehicles. Utilizing a reinforced vibration-resistant design, low heat impact at 200-300℃, and stable conductivity, this Cap and Contact for EV Charging Fuse ensures accurate switching of fuses in the high-voltage distribution and battery management systems during dual-power switching.
Fuel Cell Vehicles
Suitable for the harsh high-voltage environment of fuel cell vehicles. Employing a special corrosion-resistant copper alloy and sealing coating, combined with low heat impact at 200-300℃ and stable conductivity, this Copper Cap Contact for Semiconductor Fuses ensures reliable operation of fuses in the high-voltage distribution box and fuel cell stack.
Quality Control and Certification
Heat Affected Zone Control
Strict temperature profile control ensures that thermal shock during welding does not exceed 200-300℃, preventing weld deformation or failure due to overheating.
01
Weld Strength Testing
Tensile testing is conducted on the Copper Cap Contact for Eaton Bussmann Series EV Fuses using a tensile testing machine to ensure the welds remain strong under vibration and impact conditions.
02
Electrical Performance Verification
Low resistance and arc withstand tests are performed to verify the safe disconnection capability of Copper Cap Contact for Semiconductor Fuses under overcurrent conditions.
03
Certification
Cap and Contact for EV Charging Fuse meets the high safety requirements of the automotive industry (IATF 16949), and can provide corresponding test reports according to customer needs.
04
contact us
If you are developing a high-voltage protection system for new energy vehicles, we can provide you with a highly reliable Copper Cap Contact for Electric Vehicle Fuse solution. Please contact us for technical support and sample services.
