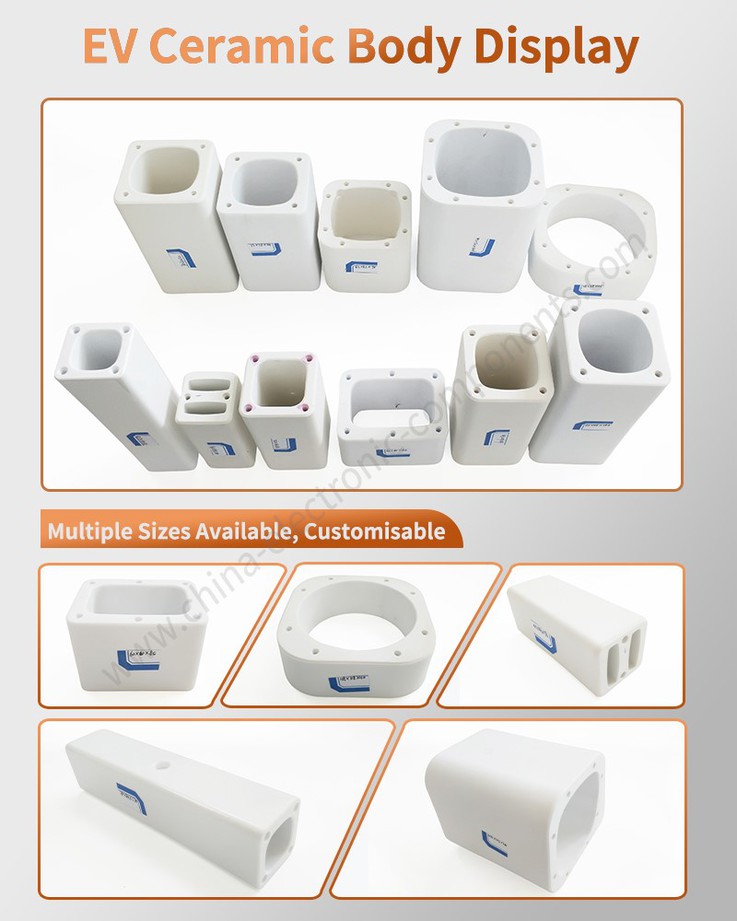

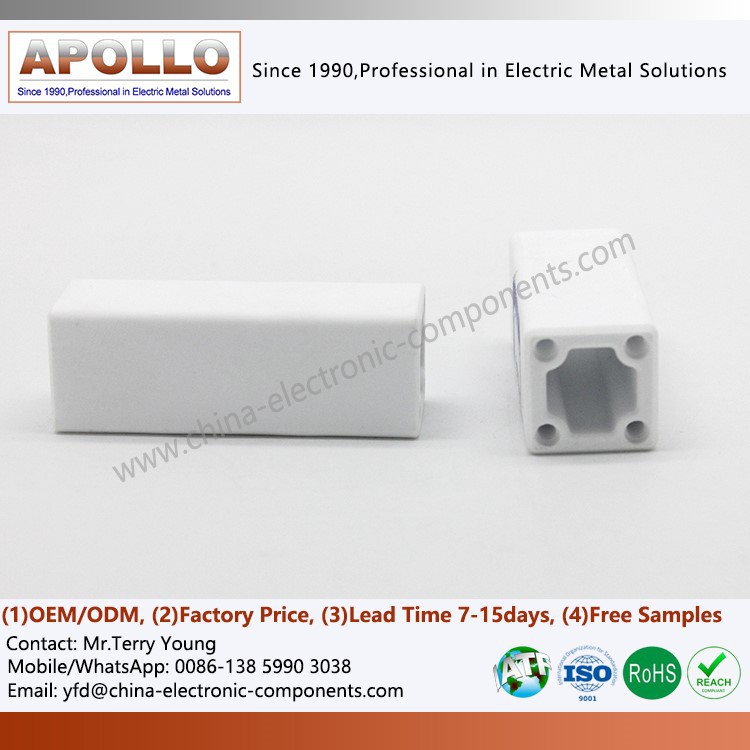

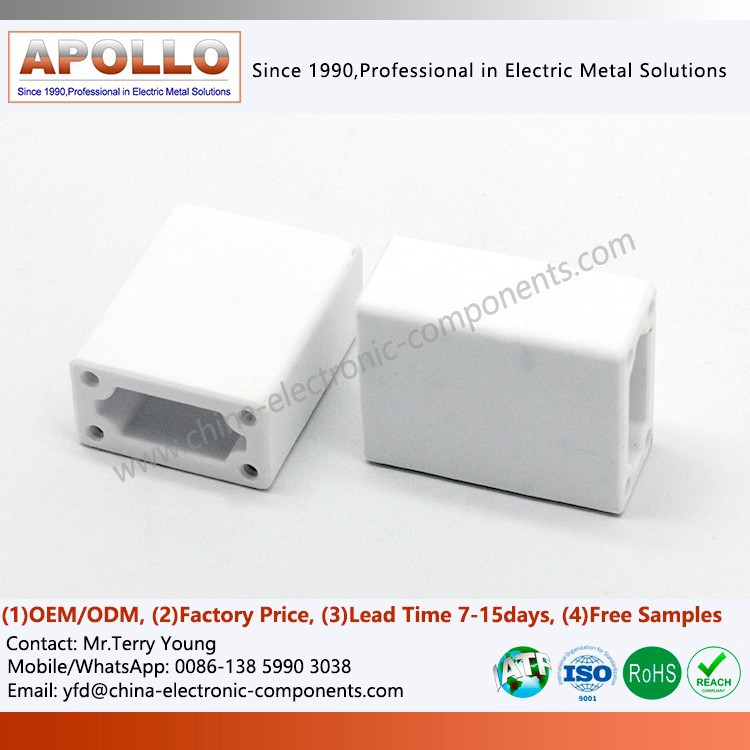

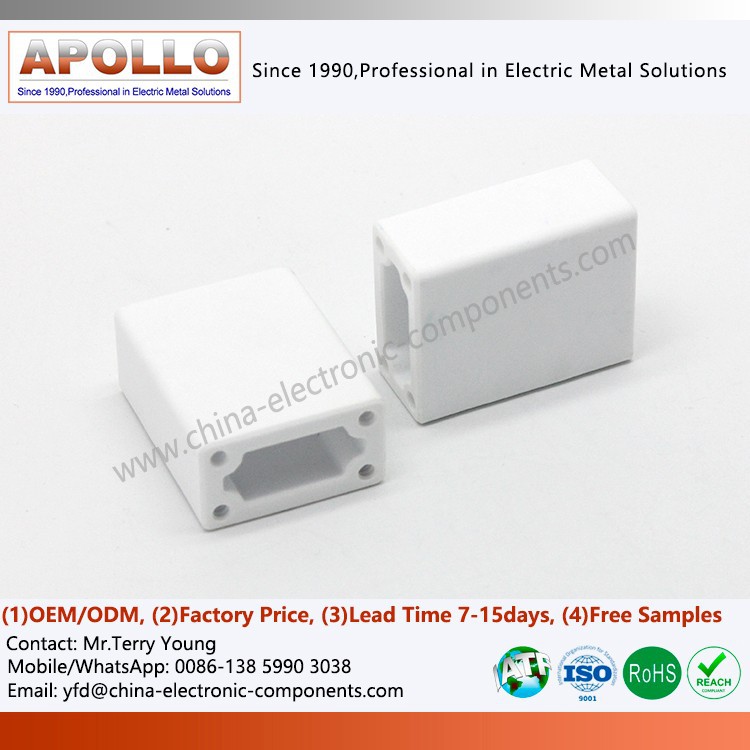

Ceramic Tube For EV British Standard Fuse
Products Description

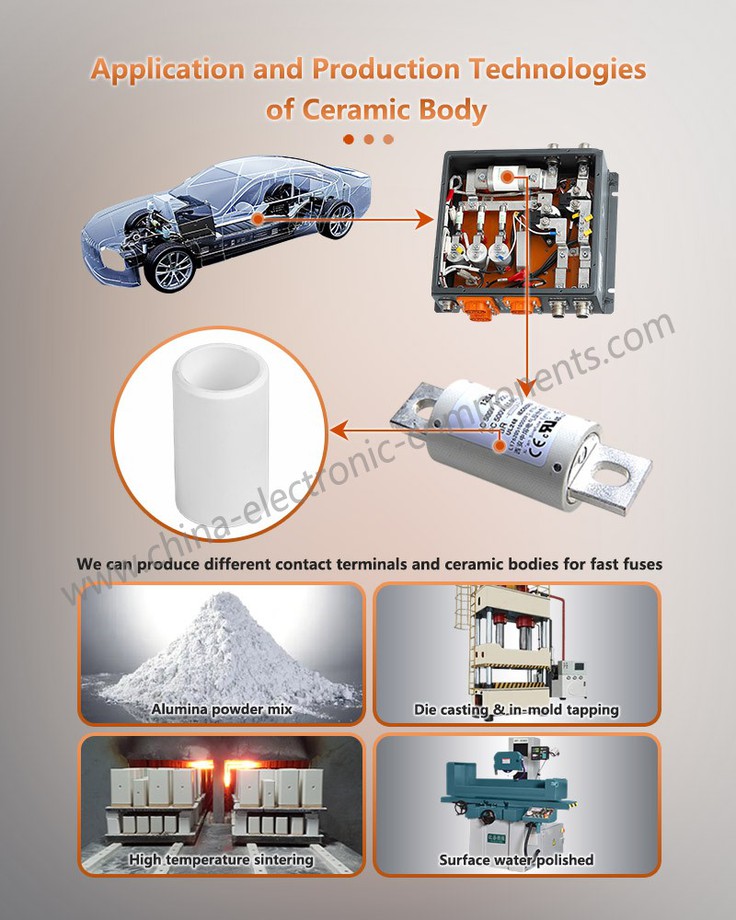

This product is a Ceramic Tube for EV British Standard Fuse, a core insulation component specifically designed for DC fuses in electric vehicles and photovoltaic energy storage systems that comply with British Standard (BS) and mainstream international specifications. As a critical element for arc isolation and structural support within the fuse, it must withstand system voltages up to DC 1500V and effectively suppress arc propagation and maintain mechanical integrity during short-circuit current surges (≥100kA). The product is made of high-density alumina ceramic with a purity of over 96%, manufactured through precision molding and high-temperature sintering processes, resulting in excellent electrical insulation, thermal stability, and mechanical strength.
Core Advantages and Competitive Advantages
Ultimate Safety and Insulation
- Superior Dielectric Strength: The Ceramic Bodies for Bussmann Series Photovoltaic Fuses boasts a dielectric strength ≥18kV/mm, providing reliable insulation protection under high-voltage environments and preventing electrical breakdown.
- High Volume Resistivity: With a volume resistivity ≥10¹⁴Ω·cm, leakage current is virtually nonexistent even under high voltage.
Extreme Heat Resistance and Arc Resistance
- Temperature Limit: Wide long-term operating temperature range -40°C to +1250°C, maintaining structural integrity under the high-temperature impact of arc discharge without cracking due to thermal expansion.

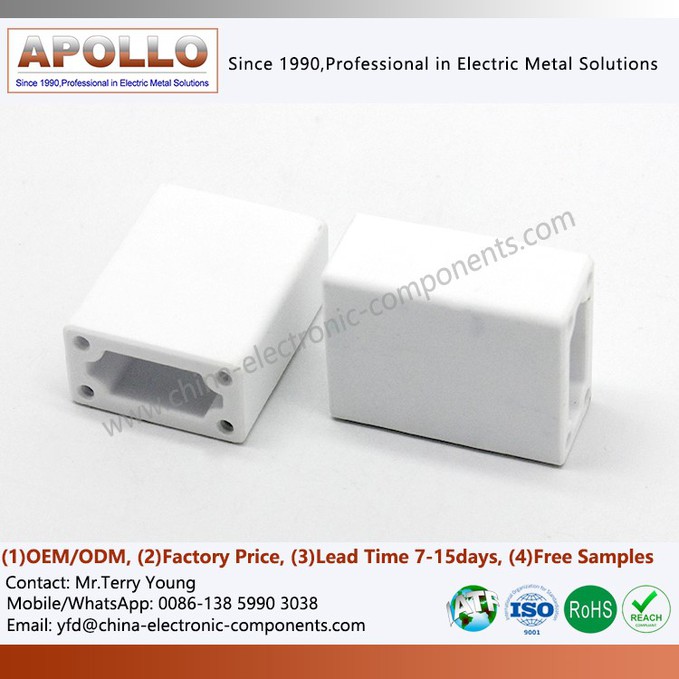

- High Bending Strength: Bending strength ≥350MPa (some models ≥300 MPa), making Ceramic Body for High Speed Fuses resistant to breakage even under mechanical impact under high voltage.
Frequently Asked Questions
Insulation Protection Function
Volume resistivity ≥1×10¹⁴Ω·cm, dielectric strength ≥18kV/mm, excellent insulation performance of Ceramic Bodies for Energy Storage Fuse, effectively isolating the fuse wire from external circuits and equipment housings, preventing leakage and short circuits, ensuring the insulation reliability of the circuit system, and avoiding safety accidents caused by insulation failure in new energy vehicles and photovoltaic energy storage equipment.
Structural Load-Bearing Function
Bending strength ≥350MPa, high mechanical strength of Steatite Ceramic Body for EV Fuse, stably supporting the fuse wire, silica sand, and other fillers inside the fuse, while withstanding external forces such as installation, vibration, and impact without cracking or deformation, ensuring the overall structural stability of the fuse and adapting to the high-frequency vibration conditions during the operation of new energy vehicles.
High temperature tolerance
The long-term operating temperature is up to 1200°C, and the operating temperature range is -40°C to +1250°C. Ceramic Bodies for Bussmann Series Photovoltaic Fuses can operate stably in the high temperature environment of the engine compartment of new energy vehicles and the extreme temperature environment of outdoor photovoltaic energy storage without softening or aging, ensuring that the fuse can play a normal protective role under various working conditions without performance degradation.
Application Areas and Advantages
| Electric Vehicle Main Circuit Fuse | The Ceramic Body for High Speed Fuses at the positive and negative output terminals of the battery pack withstands vibration and temperature cycles during vehicle operation, reliably breaking the circuit in the event of a collision or short circuit. |
| Fast Charging Circuit Fuse | The fuse between the DC fast charging station and the vehicle, requiring it to withstand frequent high-current charge and discharge cycles for Ceramic Bodies for Energy Storage Fuse. |
| Photovoltaic Inverter DC Side Fuse | The DC fuse between the photovoltaic array and the inverter, requiring it to withstand high temperatures and ultraviolet radiation in outdoor environments. |
| Energy Storage System Battery Cluster Fuse | Output protection for battery clusters in industrial and commercial energy storage systems, with voltage levels up to DC 1500V for Steatite Ceramic Body for EV Fuse. |
contact us
For customization or selection support of the Ceramic Tube for EV British Standard Fuse, please contact us. We will provide you with professional solutions and a stable supply guarantee.
