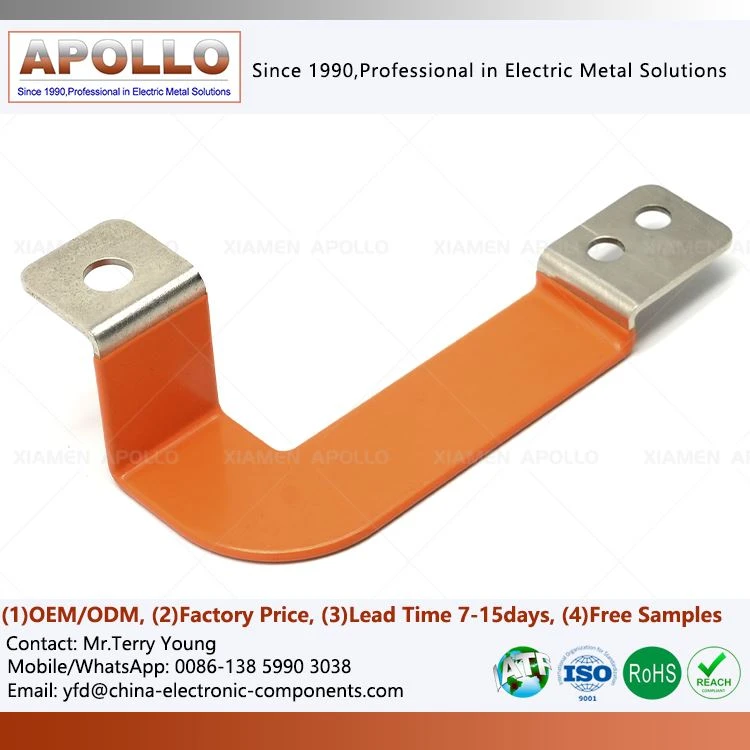

Pure Copper Insulated BusBar
What is Pure Copper Insulated BusBar?
This Pure Copper Insulated BusBar series is specifically designed for demanding power electronics applications. It consists of an integrated conductive component featuring a high-purity oxygen-free copper conductor core encapsulated in a polymer insulation layer.
Fully Encapsulated Insulation: Unlike traditional methods involving partial wrapping or sleeving, we utilize a complete dip-coating process. This creates a tight, void-free bond between the insulation and the copper conductor, effectively eliminating creepage caused by moisture or dust ingress.
Compatibility with Complex Geometries: Engineered to accommodate the intricate layouts of new energy battery modules, these busbars support multi-dimensional bending, multi-layer stacking, and custom punching patterns, making them a perfect fit for compact electrical architectures.
Thermal Stability: The product maintains stable physical and electrical properties across an operating temperature range of -40°C to 125°C, exhibiting neither embrittlement nor softening.
PVC Dipping Insulated Battery Busbar Connector Advantages: Delivering Value by Empowering Core Competitiveness
Ultimate Safety, Eliminating Risks
The void-free dip-coated insulation layer ensures superior voltage withstand and creepage distance capabilities, guaranteeing the absolute safety of high-voltage systems even amidst the complex vibrations and humid environments typical of new energy vehicles.
Cost Reduction and Efficiency Enhancement
Utilizing T2 pure copper and an optimized cross-sectional design, the product minimizes line losses, thereby extending the driving range of new energy vehicles and boosting the power generation efficiency of photovoltaic systems.
Maintenance-Free and Long-Lasting
The cross-linked, cured insulation layer offers exceptional resistance to UV radiation, corrosion, and aging; designed to last the entire lifecycle of the equipment, it significantly lowers post-sales maintenance costs for customers.
Highly Customizable with Rapid Response
Backed by robust flexible manufacturing capabilities, we strictly adhere to engineering change management protocols-from prototyping to mass production-to meet diverse customer needs, ranging from personalized, small-batch orders to large-scale deliveries.

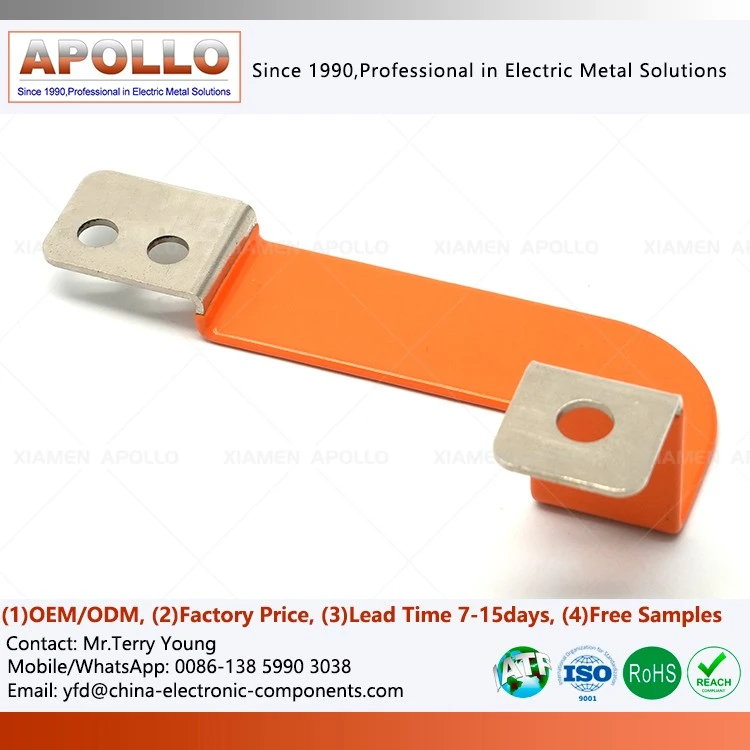

Key Product Functions for Plated PVC Dipping Insulated Copper Busbar
| Efficient Power Transmission and Distribution | Leveraging the superior conductivity of high-purity copper substrates, the product enables high-current, low-loss, and uniform power transmission. It efficiently handles the internal collection, distribution, and output of power for new energy equipment, thereby enhancing overall energy utilization and minimizing energy waste. |
| Comprehensive Electrical Safety Protection | An integrated dip-molded insulation layer creates a closed-loop protective system that effectively isolates high-voltage currents. It eliminates safety hazards such as phase-to-phase short circuits, leakage, arc breakdown, and accidental electric shock, significantly improving the operational safety of new energy electrical equipment. |
| Structural Integration and Compatibility | The integrated molding design streamlines internal conductive connections, replacing traditional multi-component assemblies. This reduces potential points of failure and assembly costs while aligning with the industry trend toward equipment miniaturization and integration. |
| Long-term Protection in Demanding Conditions | With excellent resistance to temperature extremes, wear, aging, vibration, and corrosion, the product withstands the stresses of complex operating environments. It maintains stable performance over the long term, reducing the frequency of servicing and lowering maintenance costs. |
| System Stability Optimization | The seamless conductive circuit eliminates issues such as localized high resistance and overheating. By effectively preventing equipment downtime, malfunctions, or burnout caused by electrical anomalies, it ensures the continuous and stable operation of new energy power systems. |
FAQ
Q1: In which industries are Insulated Flat Copper Busbars primarily used?
-
A: They are primarily used in high-current connection applications within new energy vehicles (EVs), solar photovoltaic systems, energy storage systems, charging equipment, high-voltage power distribution equipment, and industrial power systems.
Q2: What are the advantages of insulated copper busbars compared to standard copper busbars?
-
A: While maintaining the high electrical conductivity of standard copper busbars, insulated versions feature an added insulation layer; this enhances safety, reduces the risk of short circuits, and optimizes internal equipment layout.
Q3: Does Apollo offer customized insulated copper busbars?
-
A: Yes. Apollo can handle structural design, prototype development, and mass production based on customer-provided drawings, electrical specifications, or application requirements.

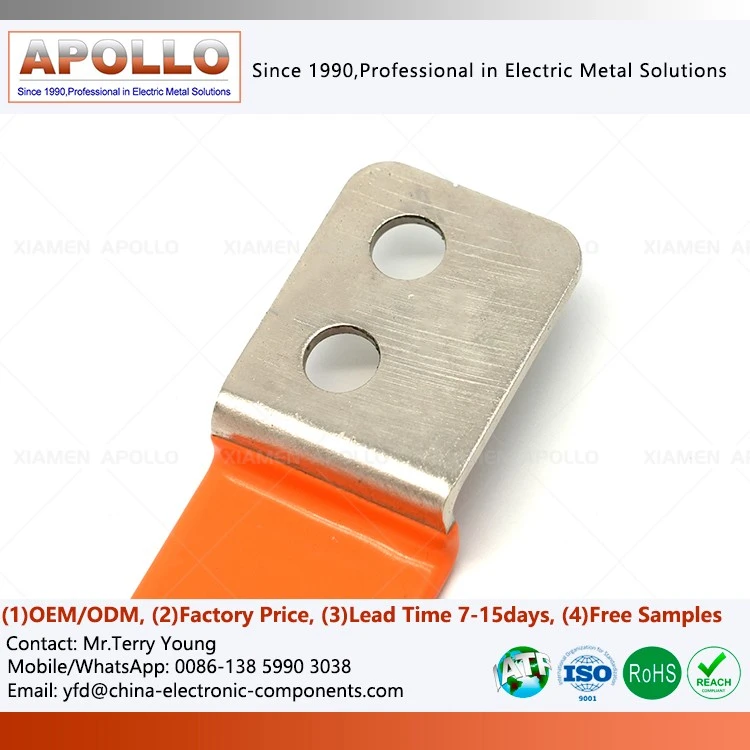

Q4: Can PVC Dipping Cover Copper Busbars be used in the high-voltage systems of new energy vehicles?
-
A: Yes. These products are suitable for high-voltage connections within EV battery packs, high-voltage power distribution units, and electric drive systems.
Q5: Can the insulation material be adjusted according to project requirements?
-
A: Yes. Different insulation materials and processing solutions can be selected based on the operating environment, temperature requirements, and insulation class specifications.
contact us
If you are developing projects in the fields of new energy vehicles, photovoltaics, or energy storage, Apollo can provide reliable PVC Insulated Copper Busbar solutions, leveraging its proven copper busbar manufacturing capabilities, precision machining processes, and experience in engineering customization.
