Tin-plate Busbar Automotive
Products Description
The Tin-plate Busbar Automotive is an integrated busbar solution that combines battery terminal connectivity, capacitor mounting, and power circuit management. Unlike standard battery busbars, it features a circuit design optimized for the high-frequency pulsed currents characteristic of fast-charging scenarios. By directly bridging the power battery output terminals with high-voltage filter capacitors, it effectively suppresses voltage fluctuations and spikes, thereby ensuring the stable operation of high-voltage components such as inverters and On-Board Chargers (OBCs). This solution is tailored to meet the high-voltage connectivity requirements of passenger vehicles, commercial vehicles, and energy storage battery packs.
Manufacturing Advantages

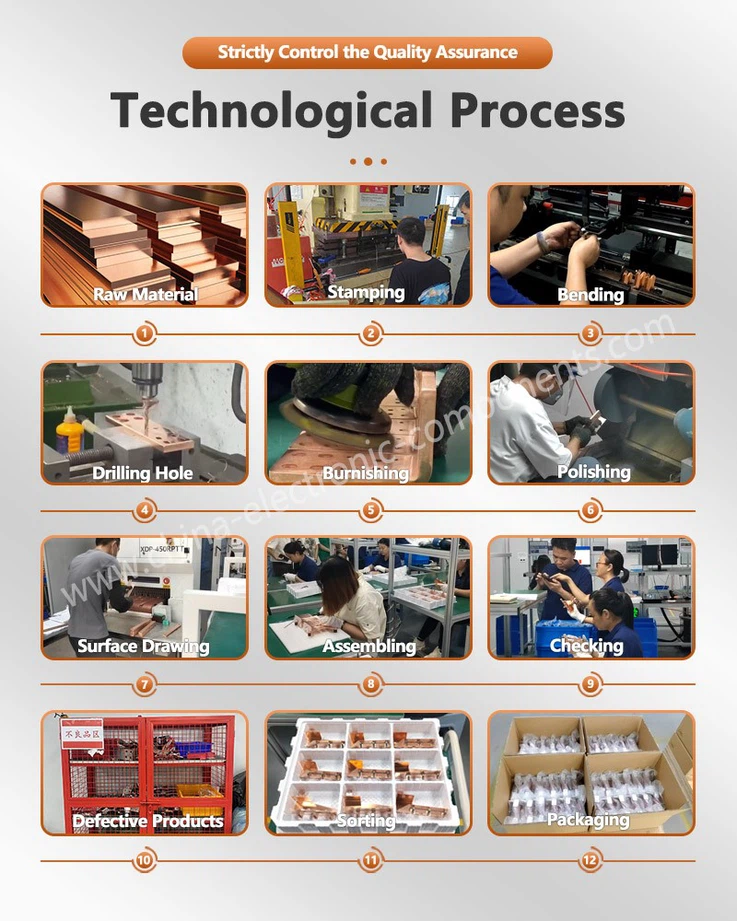

The manufacturing of Bus Bar Connector utilizes automated stamping and injection molding processes, ensuring consistency across production batches. Injection molding parameters for insulating materials are precisely controlled to guarantee uniform wall thickness and dimensional stability. Surface treatment processes-such as continuous plating lines-are performed in-line, thereby enhancing production efficiency.
A comprehensive quality control system spans the entire manufacturing process, encompassing dimensional inspection, dielectric strength testing, salt spray corrosion testing, and other measures. Every Automotive Buss Bar batch undergoes sampling tests to verify compliance with automotive-grade reliability standards.
Core Strengths
Integrated Functional Design
Integrates battery terminals, capacitor mounting, and power output interfaces to minimize external connection points, thereby reducing assembly complexity and the risk of failure for Battery Bus Bar.
High-Voltage Safety Assurance
Features a fully enclosed, insulated structure that meets stringent high-voltage isolation requirements; the high-grade flame-retardant insulation material effectively blocks the propagation pathways of thermal runaway.
Robust Environmental Tolerance
Operates reliably across a wide temperature range of -40°C to 125°C; exhibits strong resistance to vibration, humidity, and heat, ensuring that insulation performance of Power BusBar and connection stability remain undiminished over long-term use.
Fast-Charging Compatibility
An optimized current loop design is capable of handling high-current fast-charging pulses while minimizing temperature rise, thereby meeting the high-current fast-charging demands of 800V high-voltage platforms for
BusBar Systems.
Product Features
Mechanical Characteristics
Features high structural rigidity and resistance to vibration and shock; the Automotive Bus Bar connections offer superior strength, capable of withstanding repeated assembly/disassembly and prolonged vibration.
Thermal Characteristics
Optimized conductor cross-sections ensure uniform heat dissipation, enabling rapid conduction of heat generated by high currents to prevent localized overheating for Bus Bar Connector.
Integration Capabilities
Interface layouts can be customized based on specific capacitor specifications and battery terminal positions, supporting compatibility with various topological structures of Automotive Buss Bar.
contact us
The performance of tin-plated automotive busbars directly impacts the efficiency boundaries and reliability limits of electric drive systems. Drawing upon our expertise in simulation and precision manufacturing, we offer customized solutions tailored to your specific needs. We welcome you to provide your system parameters.
