Copper Foil Laminated Flexible Bus Bars For New Energy Battery
Products Description

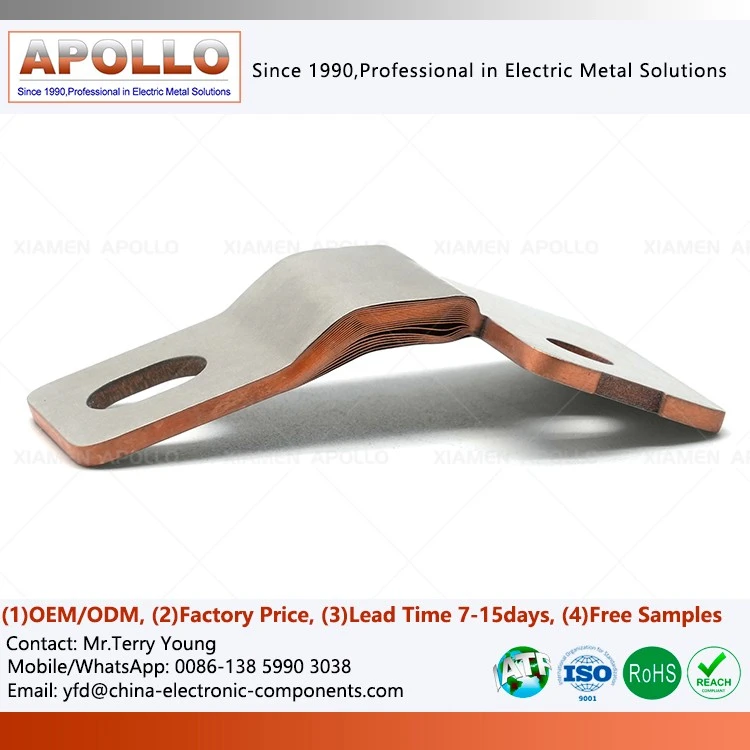

Copper Foil Laminated Flexible Bus Bars for New Energy Battery utilize a design concept featuring a composite structure of multiple conductive layers and insulation layers. Through a lamination process, conductive and insulating functions are integrated into a single unit, achieving a balance between stable current transmission and structural flexibility.
Typical structural components include:
Top and bottom conductive layers: High-purity copper foil conductors
Intermediate insulation layer: High-temperature resistant insulating film or engineered composite material
Localized welding/crimping zones: For terminal or battery tab connections
Protective layer (optional): Enhances wear, moisture, and chemical resistance
This structural design enables the busbar to maintain stable electrical performance under conditions of bending, twisting, or vibration, while simultaneously reducing stress concentration at connection points.
Application Advantages: Deeply Empowering Industry Scenarios
| New Energy Vehicle Battery Modules | Inside battery packs, numerous battery cells are arranged in proximity. Laminated Flexible Busbar for New Energy Vehicles serves as connectors for series or parallel cell configurations; its flexibility effectively absorbs vibration energy caused by road bumps, protecting cell terminals from damage. Additionally, their compact design maximizes internal space utilization, directly extending the vehicle's driving range. |
| Energy Storage Systems | In large-scale containerized energy storage stations, Laminated Copper Busbar for Inverters are essential for connecting battery clusters. They compensate for the thermal expansion and contraction of long-distance conductors, preventing connection failures caused by excessive stress and ensuring the long-term, stable operation of the energy storage system. |
| Electrical Equipment and Switchgear | Used in complete switchgear assemblies, enclosed busway systems, and on the low-voltage side of transformers. In these applications, they primarily function as "expansion joints." The thermal expansion of conductors caused by high currents is significant; the Laminated Connector for Electrical Equipment effectively absorbs this displacement, protecting expensive electrical equipment from mechanical stress damage. |
| Rail Transit and Industrial Variable Frequency Drives (VFDs) | In locomotive traction converters and industrial VFDs, Copper Foil Laminated Flexible Bus Bars connect IGBT power modules to capacitor banks. Their low-inductance characteristics help reduce voltage spikes and protect power components, while also withstanding the high-vibration environments typical of locomotive operations. |
Advanced Manufacturing Advantages and End-to-End Production Processes
Digital Foil Stacking and Stress-Free Blanking
High-precision automatic stacking machines are employed to ensure that the edge alignment tolerance for over a hundred layers of copper foil is controlled at the micron level. The blanking process utilizes high-precision CNC punching or cold laser cutting, resulting in burr-free and tear-free edges; this eliminates the risk of serious electrical short circuits caused by burrs puncturing the insulation layer during subsequent stages.
Intelligent Molecular Diffusion Welding
High-power automated diffusion welding machines are utilized, featuring closed-loop control systems that precisely fine-tune the pressure, temperature, and time profiles for each welding cycle. Copper atoms form a perfect crystalline interlock at the interface without compromising the inherent properties of the foil material, ensuring that the peel strength of the welded zone matches that of the base material.
3D Shaping and Comprehensive Electrical Inspection
Post-welding terminals undergo secondary leveling and shaping using precision molds to ensure flatness meets rigorous standards. Before shipment, every unit undergoes 100% high-voltage insulation (Hi-Pot) testing, micro-ohmmeter contact resistance testing, and random microscopic metallographic inspections, effectively preventing any defective products-such as those with internal lack-of-fusion or micro-voids-from reaching the global market.
Detail Highlights
Laminated Cross-section
Copper foil and dielectric layers are tightly bonded, featuring a clear and uniform interface.
01
Flexibility
Easily withstands small-radius bending and twisting without surface wrinkling or damage.
02
Termination Details
Precision-engineered connection areas ensure a smooth transition and reliable structural integrity.
03
Surface Finish
The insulating layer is smooth and flawless, with well-sealed edges.
04
Packaging & Protection
Anti-static, deformation-resistant packaging ensures the product arrives in perfect condition.
05
contact us
As a critical conductive interconnect component in new energy battery systems, the Copper Foil Flexible Connector Transformer Parts derives its value not merely from its electrical conductivity, but from its ability to comprehensively enhance system structural optimization, thermal stress management, and long-term reliability.
For engineering teams working on new energy vehicles and energy storage systems, selecting a supply chain partner with stable process control and engineering-grade manufacturing capabilities is crucial to ensuring system safety and consistency.
