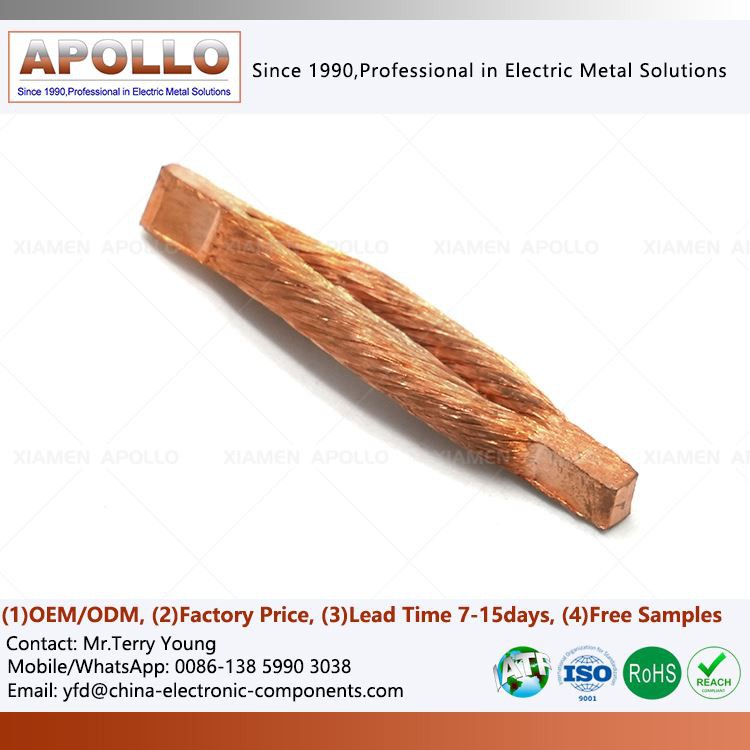

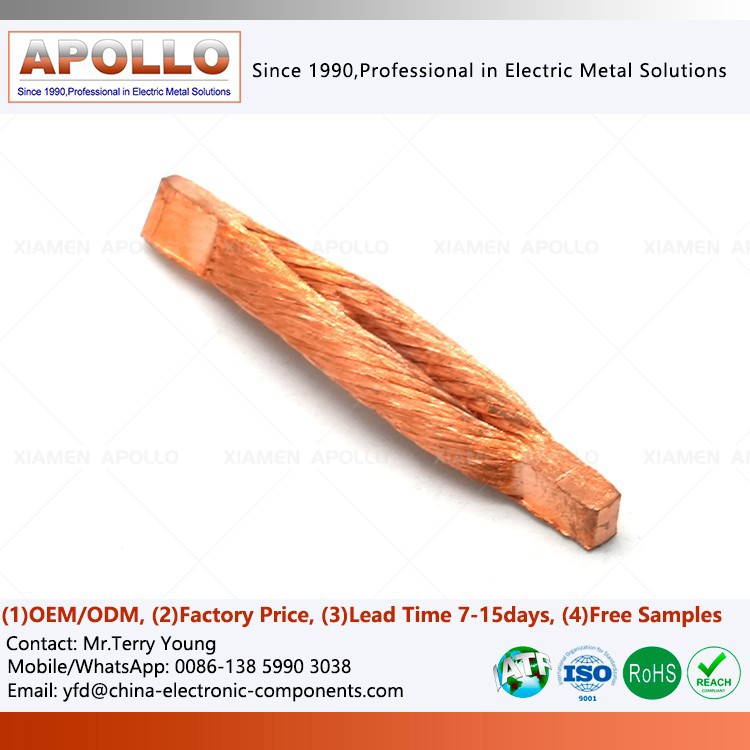

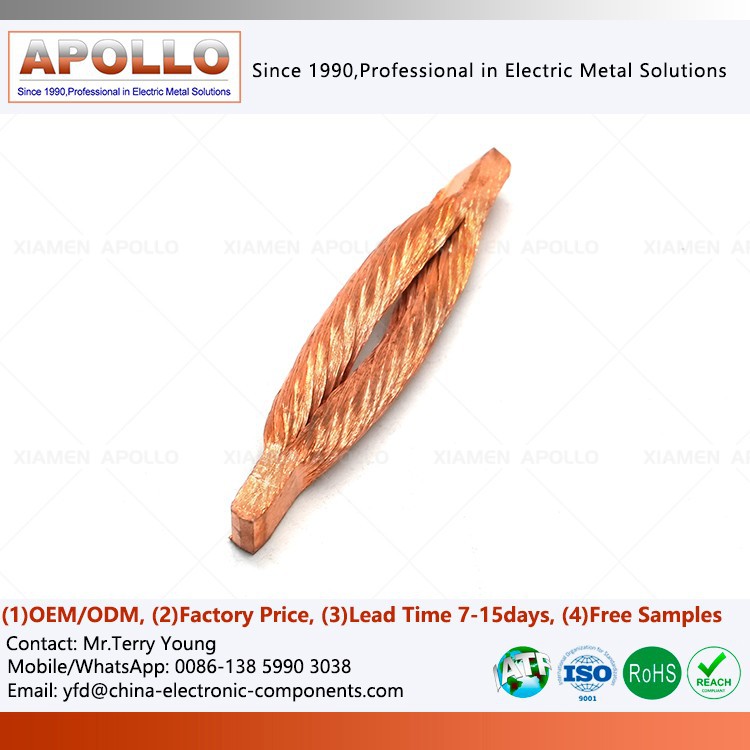

Flexible Electrical Copper Braided Connectors
Products Description
Flexible Electrical Copper Braided Connectors utilize high-density cross-weaving of multiple strands of fine copper wire to form a stable mesh-like conductive structure. Their core characteristics are reflected in the following aspects:
Flexible structural design: Enables multi-angle installation and connection within limited space, adapting to complex structural layouts.
Low impedance conductive path: Multi-point contact structure reduces contact resistance and improves current transmission efficiency.
Excellent vibration resistance: The braided structure absorbs mechanical vibration, preventing loosening or breakage at connection points.
Thermal expansion compensation capability: Effectively copes with thermal expansion and contraction during equipment operation, preventing stress concentration.
Compared to traditional rigid busbars, flexible copper braided connectors are more suitable for dynamic environments and high-frequency operating scenarios.
Product Advantages: Cost Restructuring Throughout the Product Lifecycle
Extremely Long Fatigue Life
In tests simulating millions of high-frequency vibrations, our braided busbars maintain stable low-impedance operation. This directly reduces the frequency of downtime for maintenance and labor costs.
Maintenance-Free Connection Reliability
Thanks to excellent anti-loosening design and corrosion-resistant materials, connection nodes do not require retightening or grinding within the specified lifespan, making them particularly suitable for unattended or inaccessible installation environments (such as underground substations and high-altitude wind turbine nacelles).
Leap in Assembly Efficiency
Compared to rigid copper busbars that require precise hole alignment and twisting, Flexible Copper Braided Busbar Connector allow for a certain range of installation errors. On-site electricians can easily complete the connection by bending, significantly reducing the assembly time of the complete switchgear.

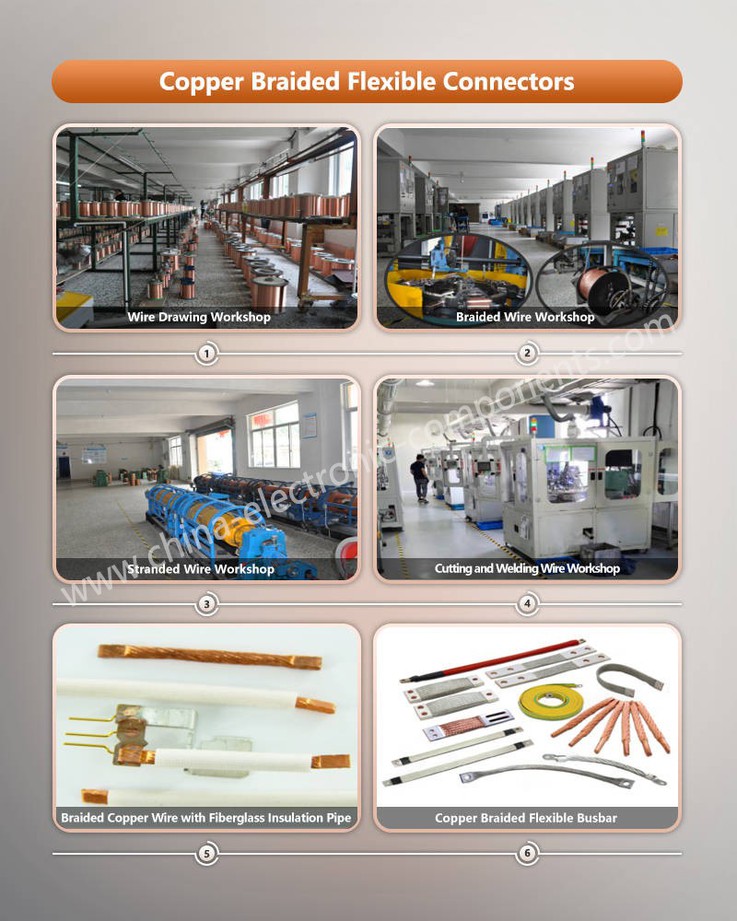

Production Process Flow
Wire Drawing and Annealing
High-quality copper rods are drawn into micron-sized filaments and softened.
01
Multi-strand Stranding
The filaments are grouped and stranded according to current-carrying requirements.
02
Precision Braiding
Cross-braiding is used to form a strip or tubular matrix.
03
End Treatment
The ends are cut and inserted into copper tubes, then subjected to high-pressure cold pressing or molecular diffusion welding.
04
Surface Coating
Overall, tin plating or partial silver plating (optional).
05
Application Advantages – Core Connector Covering Multiple Industrial Sectors
Power Industry

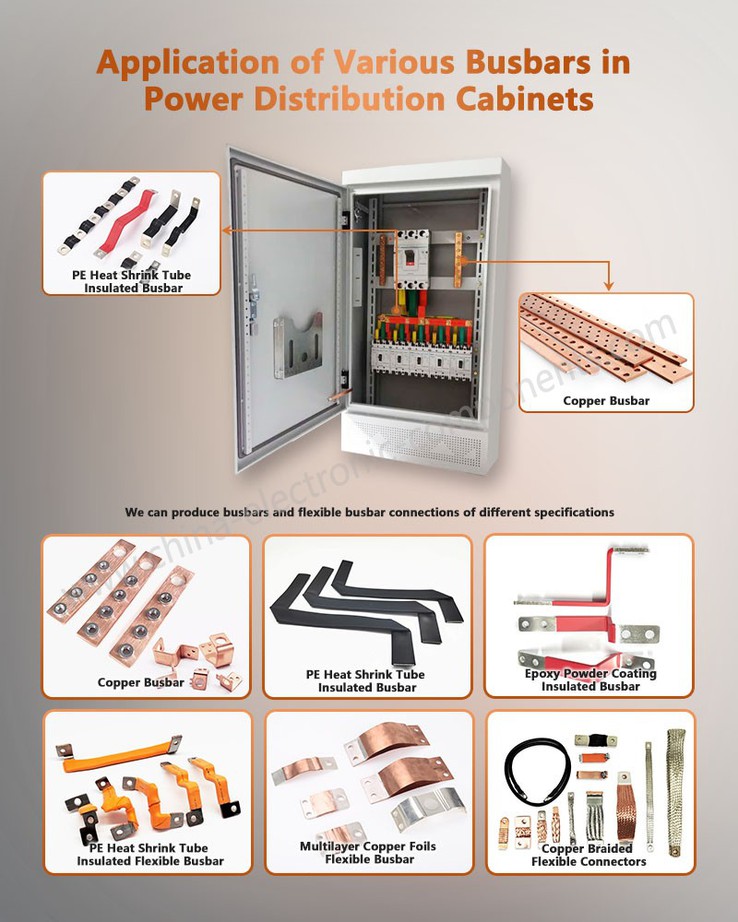

Generator outgoing line connections, transformer phase-to-phase connections, neutral grounding, flexible transitions within switchgear, and grounding circuits for GIS equipment. Especially in substations and power plants, the continuous vibrations generated during equipment operation pose a severe challenge to rigid connections; Copper Braided Connector Flexible Earthing Tape, with its vibration absorption capabilities, becomes the preferred connection solution in these scenarios.
New Energy Sector
Flexible conductive connections between generators and converters in wind turbine generator sets, high-current loop connections within photovoltaic inverters, and series-parallel flexible connections for energy storage battery packs. These scenarios share common characteristics: harsh outdoor environments, frequent vibrations, and large temperature variations-the corrosion resistance and flexible compensation capabilities of braided copper busbars are fully utilized here.
Rail Transit
Roof busbar connections in high-speed trains, subways, and trams, and conductive connections within equipment cabinets, which must continuously withstand the vibrations and impacts of vehicle operation.
Heavy industrial equipment
Electrolytic smelting equipment, industrial electric furnaces, welding equipment, and conductive connections of large electric motors, where the current can reach tens of thousands of amperes, require extremely high conductivity and heat dissipation performance.
contact us
If you are looking for a Braided Copper Flexible Connector With Tin Ends solution that balances conductivity, structural reliability, and project adaptability, we can provide engineering-level customization and selection support based on your application scenario, helping you achieve the optimal balance between performance and cost during the system design phase.
