Silver Electrical Riveted Components
Products Description
In mid-to-high-end electrical systems, a single material is insufficient to simultaneously meet the multi-dimensional requirements of conductivity, arc resistance, and structural strength. The Silver Electrical Riveted Components structure, through a "layered design of functional materials," integrates the excellent conductivity and anti-welding properties of silver with the mechanical strength and cost advantages of copper, forming a composite electrical component that combines performance and economy.
These components not only conduct current but also directly participate in the electrical switching process; their stability and lifespan directly determine the overall reliability of the system. Therefore, riveting quality, interface bonding strength, and material matching become core control factors.

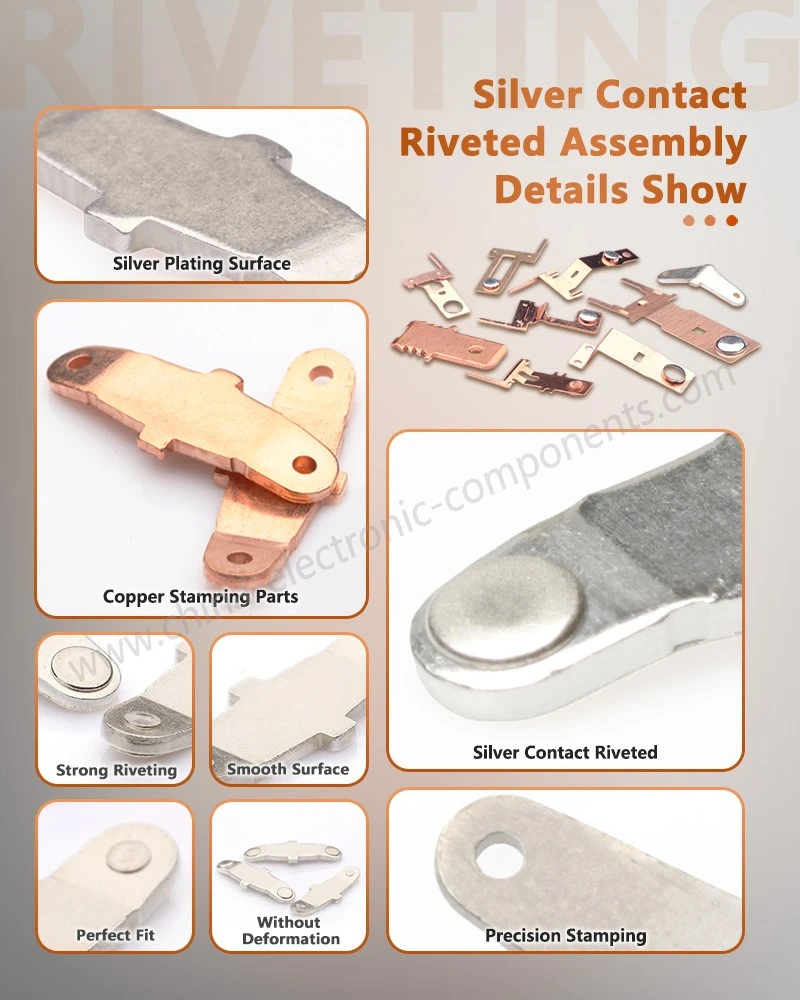

Design Advantages and Details
Contact and Base Adaptation Engineering
We don't just execute drawings; we participate in design optimization. By fine-tuning the base reinforcing ribs, we can enhance component rigidity and prevent deformation under the electrodynamic forces generated by high currents for Embedded Riveted Electrical Contacts.
Surface Microstructure Monitoring

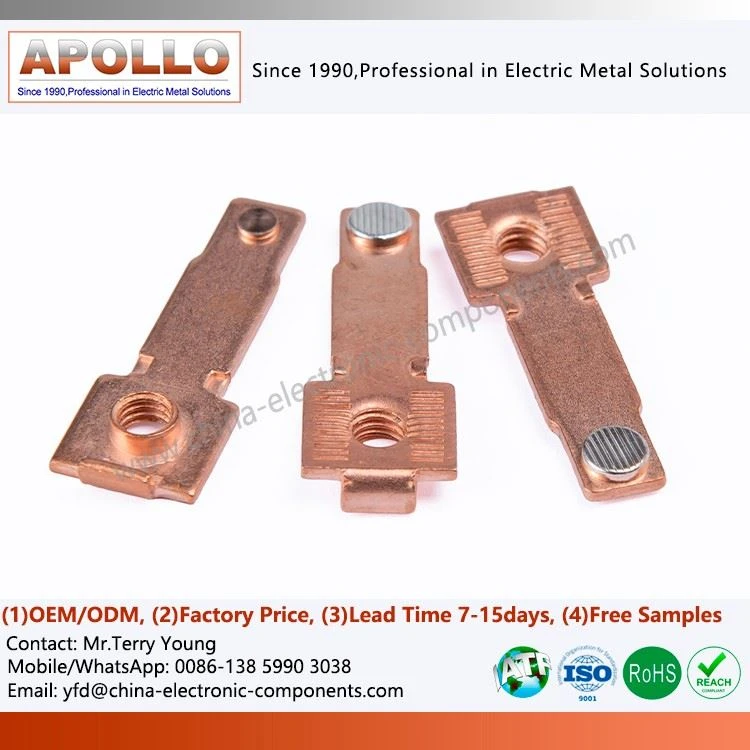

We use high-magnification electron microscopy (SEM) to monitor the microscopic features of the riveted joint surfaces. Each batch of Copper Stamped for Switch undergoes metallographic sectioning to ensure that the "fastening zone" is free of voids and oxide inclusions.
Extremely Simple Assembly-Friendly
Component edges are finely chamfered to ensure smooth feeding and precise positioning on the client's automated assembly line, thereby reducing the error rate of your automated equipment.
Application Advantages
| Industrial Control Relays | In PLC interface relays and intermediate relays, the Custom Copper Stamping serves as a stationary terminal fixed to a plastic base, with the moving contact on the moving spring engaging to complete circuit switching. The vibration resistance of the riveted structure ensures contact stability in high-vibration environments, such as those found in machine tools and rail transportation. |
| Automotive Electronics and New Energy | High-voltage DC relays and charging pile contactors in new energy vehicles require contact assemblies to operate reliably under hundreds of amperes of current and high-frequency breaking conditions. AgSnO₂ or AgCdO silver alloys combined with a thick copper substrate meet automotive-grade reliability standards such as AEC-Q200. |
| Low-Voltage Electrical Appliances and Power Distribution Systems | The internal auxiliary contacts of molded case circuit breakers and miniature circuit breakers utilize riveted silver assemblies to achieve accurate transmission of overload signals. The low impedance characteristics of the copper substrate ensure that signals are not overwhelmed by noise at milliampere current levels. |

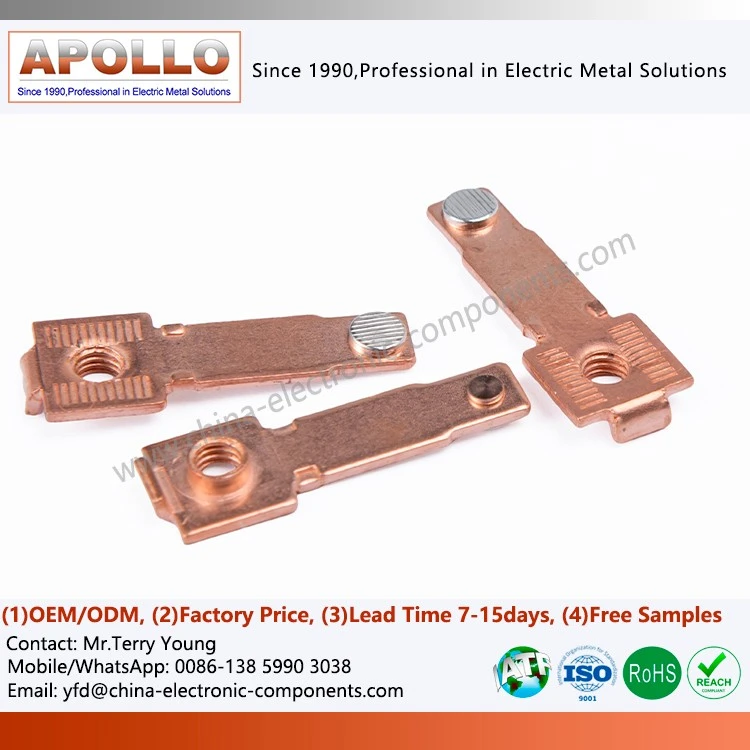

| Consumer Electronics & Home Appliances | In high-end wall switches, smart sockets, and coffee machine temperature control switches, Red Copper Stamping Parts offer advantages in miniaturization and high consistency, supporting mass production at the million-level. Furthermore, the low contact resistance when the contacts are closed reduces standby heat generation. |
| Aerospace & Defense | High-reliability relays in satellite power distribution units and aircraft solid-state power controllers utilize pure silver or AgCu contacts combined with a nickel-plated copper substrate, maintaining stable contact resistance in vacuum, irradiation, and wide temperature range environments. |

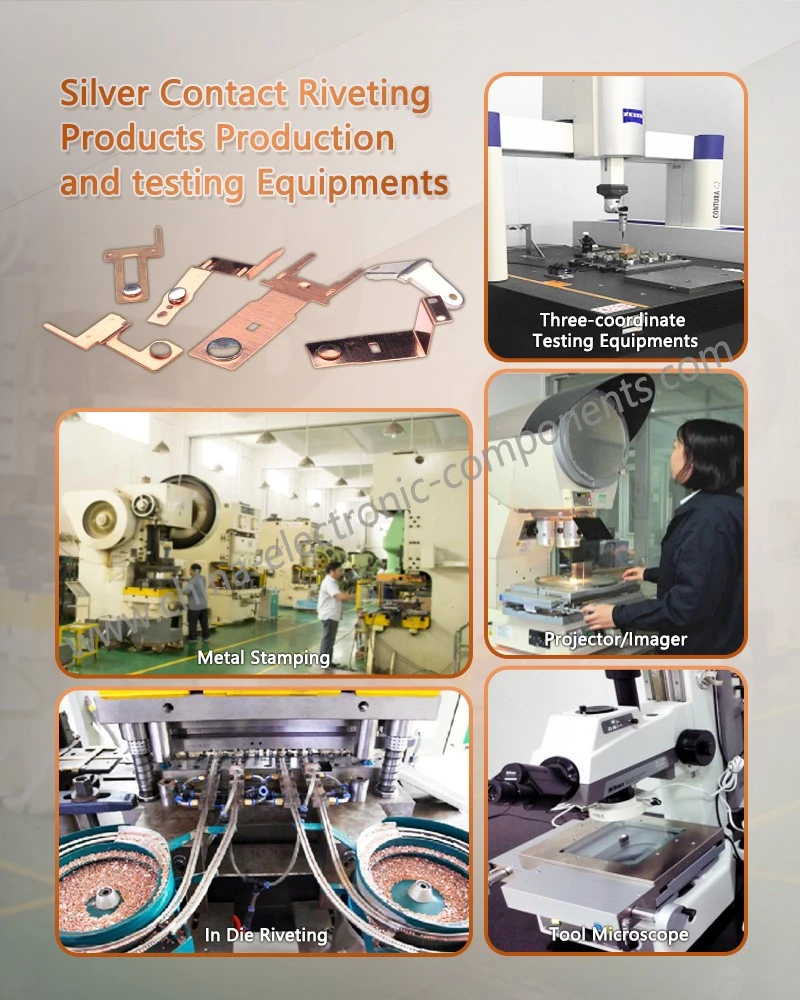

Production Process and Manufacturing Advantages: Seamless Coupling of Progressive Die Stamping and Three-Way Cold Forging
Manufacturing precision determines the fidelity to the design blueprint. We reject the low-end model of "manually assembling purchased parts" and fully adopt a fully automated production line system.
1. Streamline Precision of High-Speed Precision Progressive Stamping: Copper stamping parts are born in a multi-station progressive die. From unwinding, guiding, punching, flanging, to forming, the entire material's fiber flow is perfectly preserved along the stamping contour. This continuous die production ensures the dimensional consistency of each stationary terminal (including the extremely critical concentricity and flatness of the holes), eliminating cumulative tolerance interference for subsequent fully automated riveting.
2. "Cold Welding Effect" of Three-Way Wrap-in Cold Forging Riveting: This is our core manufacturing advantage. When the silver contacts and copper parts meet in the precision riveting machine, they are subjected not only to enormous axial downward pressure, but also to radial compressive shrinkage force applied by the die. Under this "triaxial compressive stress" state, the microscopic protrusions at the contact surfaces of the two metals undergo intense plastic deformation, the surface oxide layer is broken, and clean metal atoms diffuse into each other, producing a metallurgical bonding effect similar to "cold welding". This process does not require high temperatures, does not change the internal metallographic structure of the silver contacts (preserving the original dispersion strengthening state), and has a production cycle of seconds, with capacity and yield far exceeding traditional welding.
contact us
For copper terminals with Silver contact solutions that match your specific current rating and structural design, we can provide engineering-level selection and process optimization support based on actual operating conditions. Feel free to submit your requirements to enter the inquiry process.
