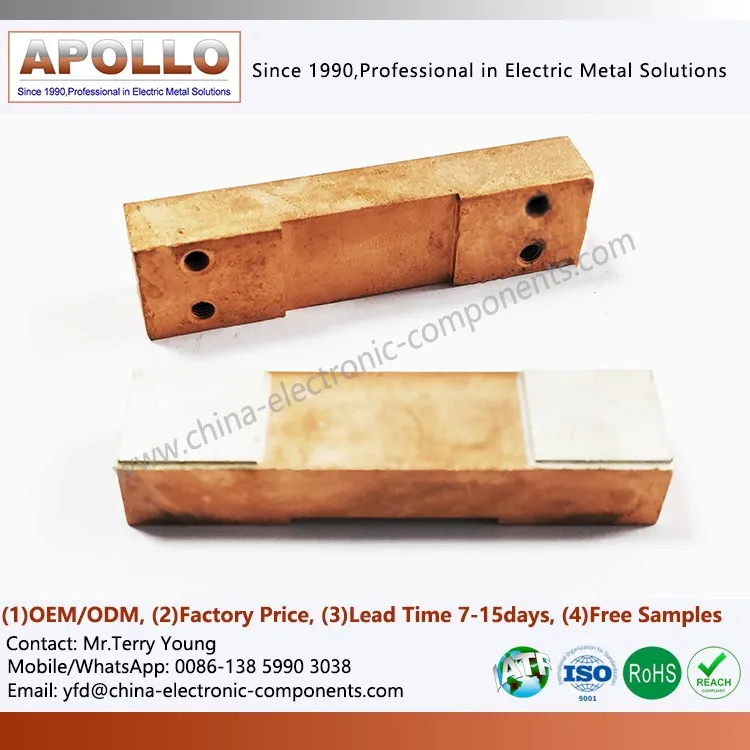

Silver Tipped Copper Contact Assembly
Products Description
The Silver Tipped Copper Contact Assembly is a core electrical contact component customized for track switch applications. Leveraging 30 years of experience in the R&D and manufacturing of electrical metal components, it is engineered for applications such as new energy power converters, low-voltage track switches, and power electronic control cabinets. The product's core structure consists of a highly conductive copper substrate paired with a precious metal silver contact. A mature metallurgical bonding process ensures a stable bond between the silver layer and the copper substrate. From material selection and precision machining to welding, the entire process adheres to the design principles for extreme operating conditions of power components. It is a standardized, customized component for track switch circuits, capable of carrying switching currents and resisting arc erosion.
Product Advantages
Material Engineering Advantages

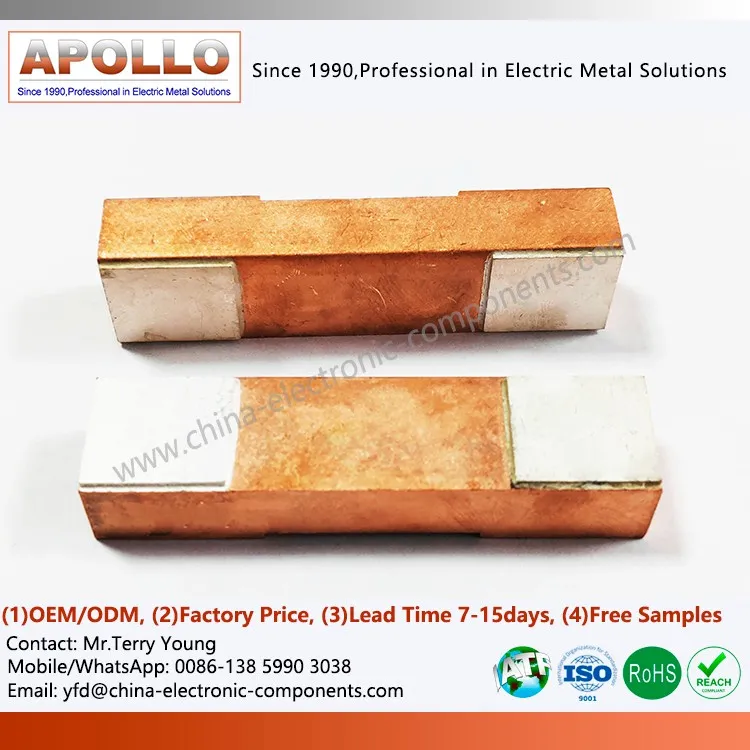

Custom Silver Contact Stamping Assemblies are selected strictly according to electrical contact theory, avoiding the shortcomings of high conductivity loss and insufficient arc resistance of single metals; the silver contacts use national standard electrical silver materials, and the copper substrate uses high conductivity and toughness copper billets.
01
Process Engineering Advantages

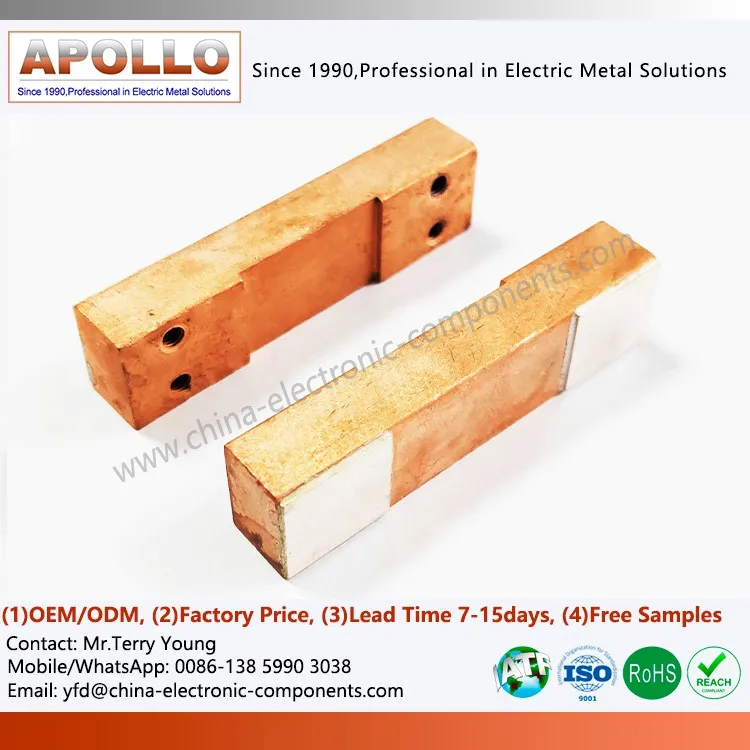

Integrating multiple mature metallurgical processes, such as resistance welding, brazing, and laser welding, corresponding bonding processes are selected for contacts with different rated current levels. Utilizing the Flash Welding Silver Contact process, the density of the silver-copper bond under high current conditions is optimized, eliminating interface porosity and the risk of incomplete soldering.
02
Supply Chain Engineering Advantages
The group owns its own mold, machining, and electroplating production lines, eliminating the need for outsourcing key processes. From mold making to finished product electroplating, the entire process is under independent control. Localized branches are established in multiple countries in Europe and Southeast Asia to conveniently handle after-sales and sample needs for overseas engineering procurement, shortening the localization technology integration cycle.
03
Advantages of Customized Engineering

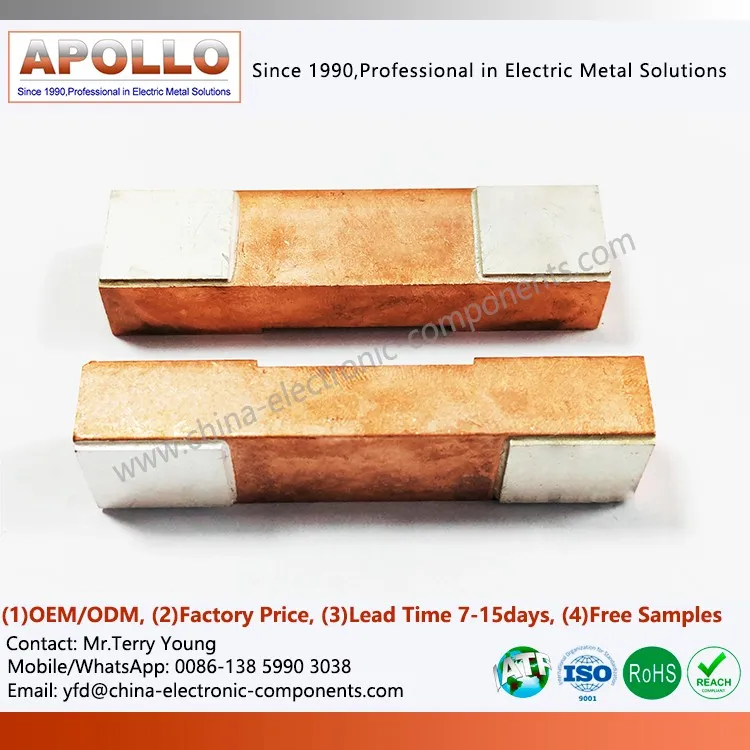

Based on customer CAD/3D drawings, we can complete the entire process from mold making and prototyping of Brazed Silver Contact Stamped Parts to mass production. Free samples can be delivered in 1-2 days, which is suitable for small-batch sample iterations in the R&D stage. The delivery time for bulk orders is fixed in the range of 15-20 days, which can flexibly match the R&D and mass production ramp-up rhythm of projects.
04
Industry Application Cases
Rail Transit Power Distribution Switches
Matching intercity railway track isolating switches, using Brazing Silver Electrical Contacts, already supplied in batches to rail transit projects in Southeast Asia and Europe, are suitable for outdoor open-air track distribution boxes.
New Energy Storage Converters
Matching low-voltage control switches for energy storage cabinets, using Precision Welding for Copper Parts, serving domestic and Indian/Malaysian energy storage equipment manufacturers, suitable for frequent switching conditions of high-power energy storage circuits.
Industrial Low-Voltage Control Cabinets

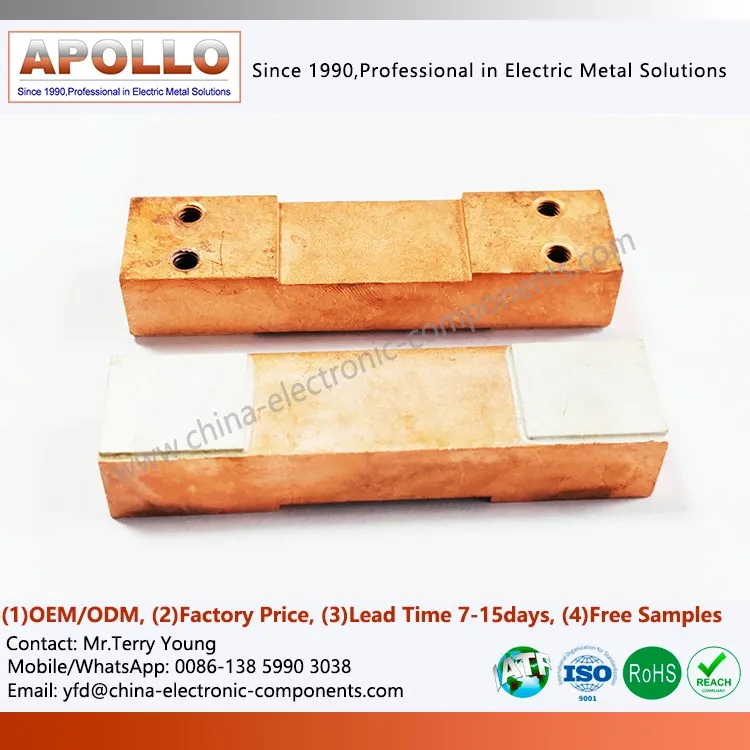

Matching industrial control cabinets with rail-mounted circuit breakers, standardized dimensions, and Electric Resistance Welding Silver Contact components are exported in bulk to low-voltage electrical manufacturers in the Middle East and Japan, meeting the long-term continuous power supply needs of factories.
Frequently Asked Questions
What are the usual lead times for samples and mass production orders?
Free Silver Contact Hard Brazing Assembly samples are shipped within 1-2 days; new mold sample production takes 20-30 days; bulk orders have a fixed lead time of 15-20 days after customer payment confirmation.
Does the Silver Contact Welded Assembly for Contactor meet RoHS and REACH environmental compliance?
All raw materials and electroplating auxiliaries for the entire series of contacts have passed compliance testing, and the products come with compliance reports, allowing for smooth customs clearance and export to the EU, Japan, South Korea, and all of Southeast Asia.
Can the silver-copper welding process be flexibly changed?
We can switch between brazing, flash welding, and resistance welding processes according to the customer's equipment-rated current and operating environment, and customize Precision Welding for Copper Parts, brazed stamped contacts, or spot-welded contact assemblies as needed.
Can the silver contact material of Brazing Silver Electrical Contacts be replaced with copper-plated silver to reduce costs?
The copper-plated silver layer will be rapidly consumed under arc erosion, and the contact resistance will increase sharply after exposing the copper substrate. For scenarios with an electrical life >10⁴ cycles, we recommend using solid silver contacts or a thick silver layer solution.
contact us
If you are selecting or optimizing the structure of Silver Tipped Copper Contact Assembly for rail switches or new energy power equipment, please send product drawings and operating parameters. Our R&D engineers will provide a targeted contact matching solution and an accurate quotation based on material principles and mature manufacturing processes.
