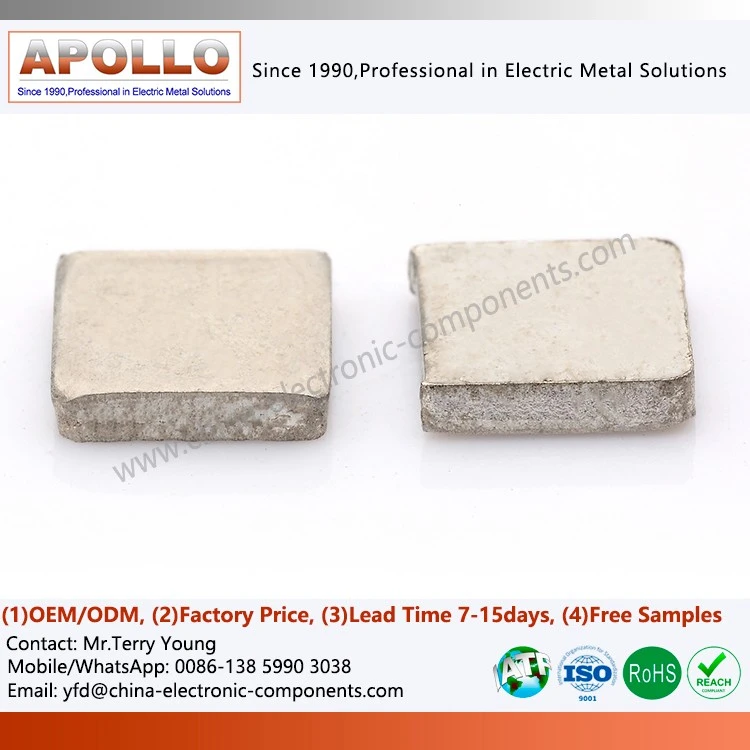

Silver Brazed Contact Tips For Switches
Products Description
The core breakthrough of silver-plated contacts lies in "interface metallurgy"-traditional silver-plated contacts are physical coatings, easily affected by fretting wear; while our Silver Brazed Contact Tips for Switches, through silver brazing, allow silver atoms to diffuse atomically into the copper substrate, forming a silver-copper alloy interface layer. This interface layer does not peel off during switching operations but deforms synchronously with the copper substrate, ensuring the contact surface is always in optimal condition. It is not a passive conductive surface, but an intelligent interface unit that actively adapts to switching operations, transforming the risk of contact failure from a system-level "hidden danger" into a "manageable parameter."
Core Functions: Meeting the core requirements of switchgear
High-Frequency Stable Switching
An arc-resistant and wear-resistant alloy formula and a robust brazed structure support over a million high-frequency switching cycles with no significant attenuation of Contact welding resistance, preventing switch jamming and failure, and ensuring continuous equipment operation.
01
Low Resistance and High-Efficiency Conductivity
High-purity silver/silver alloy material combined with a metallurgical design results in low and stable contact tip resistance and low current transmission loss, adapting to switches of different current ratings (1A~500A) to meet the needs of precision control and high-power transmission.
02
Extreme Environment Adaptability
High and low temperature resistant, corrosion-resistant, and vibration-resistant design, suitable for complex environments such as outdoor, high-temperature, humid, and dusty conditions, ensuring reliable operation of the switch under harsh conditions without the risk of rust or detachment.
03
Safety Redundancy Guarantee
Arc-resistant and anti-welding properties reduce the risk of arc fires during switch switching; the environmentally friendly lead-free formula eliminates the release of harmful substances, ensuring equipment and personnel safety and complying with international safety standards.
04
Easy assembly and maintenance
Precision customised design and standardised interface allow direct replacement of traditional silver buttons without adjusting the switch structure; long life design reduces maintenance frequency and lowers equipment operating costs.
05
Detailed Display
Visual: The brazed seam is smooth, continuous, and uniformly wraps around the joint, forming a beautiful, rounded transition, without any filler metal accumulation, gaps, or porosity. The contact tip welding and substrate are precisely positioned with high concentricity.
Metallographic: Under a metallographic microscope, three areas can be clearly seen: the welding component, the filler metal layer, and the substrate. The interfaces between these three are blurred, forming a dense diffusion layer, which is the ultimate proof of metallurgical bonding.
Application Advantages: Silver brazed contacts are a core choice for achieving high performance in mid-to-high-end switchgear
Automotive Relays and Switches
The substrate is often a complex copper alloy or stamped steel part; brazing perfectly adapts to its structural complexity and the demands of mass production.
Industrial Contactors and Starters
Used for main Electrical Contact Weldings in high-current applications, their excellent thermal management performance and reliable connection are key to the long lifespan of the equipment.
Protectors and Circuit Breakers
In thermal-magnetic circuit breakers, bimetallic strips and silver contacts can be brazed together to integrate overload protection and conductivity.
Precision Microswitches and Temperature Controllers
In applications requiring tiny, precise contact metals Weldings, brazing achieve a level of precision unmatched by other methods.
