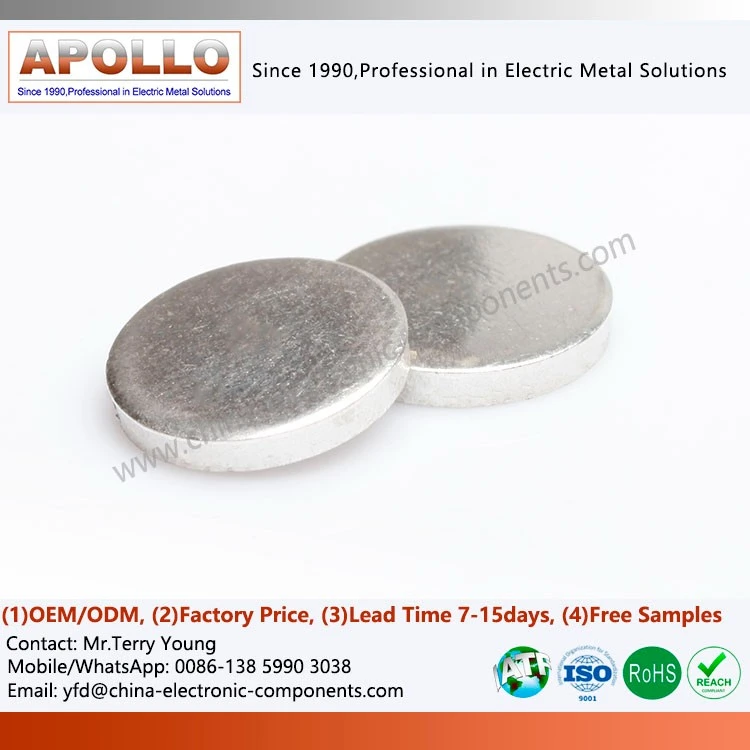

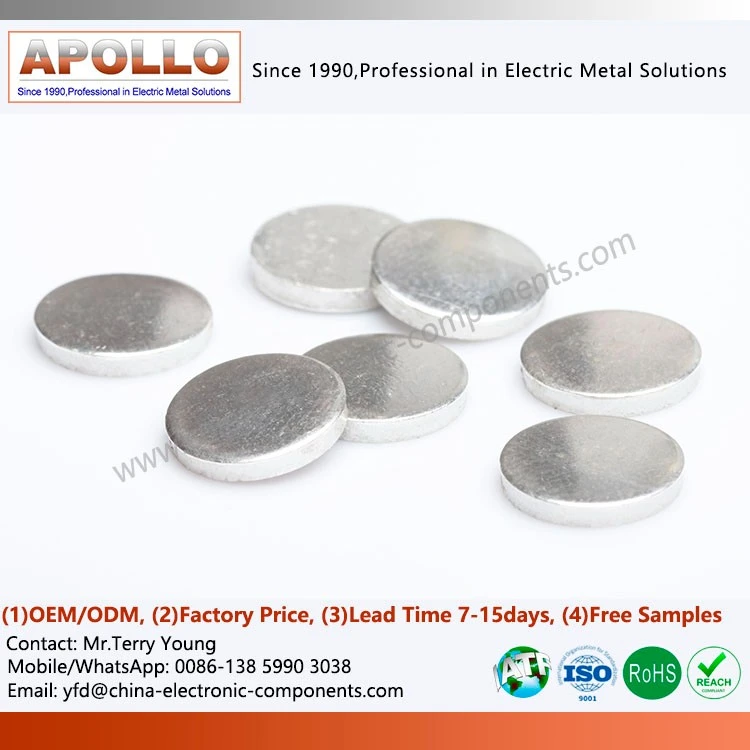

Precision Silver Contact Welding
Products Description
This Precision Silver Contact Welding is a disc-shaped welded button contact element made from silver-based composite materials using a solid-state fusion welding and vacuum brazing integrated process. This component is not an independent, isolated accessory, but rather a system-level collaborative component within the entire power control circuit. Relying on standardized dimensions and stable conductivity and arc resistance, it connects the main control unit, mechanical actuator, and line terminals in series for electrical pathways.
In the multi-level power distribution architecture of large-scale new energy storage systems, wind power converter systems, and vehicle power management systems, Electrical Contact Sheets undertake the basic functions of load switching, fault circuit interruption, and normal current conduction. Relying on the performance stability of the hardware layer, they reduce the operation and maintenance failure rate and downtime risk of the entire new energy system.
Product Details and Features
Working Surface

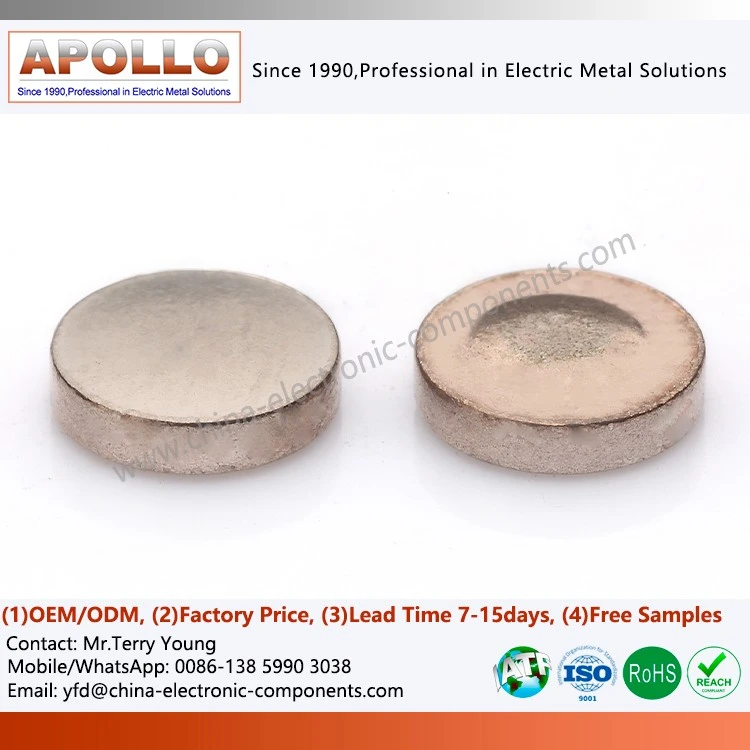

Smooth and dense silver alloy welded surface, free from welding defects such as porosity, slag inclusions, and cracks. The static contact resistance of the Contact Bridge is uniform and stable.
Side Cylindrical Surface
Precision-machined. The dimensional tolerances of the Brazed Composite Rivet Electrical Contacts are strictly controlled. The interference fit is uniform when press-fitted into the relay base, preventing assembly loosening.
Back Base Surface
Flat base material with a welded bottom surface, compatible with various Contact Tip Welding processes. The weld fusion area is uniform and firm, eliminating the risk of incomplete welds or detachment.
Optional recessed structure

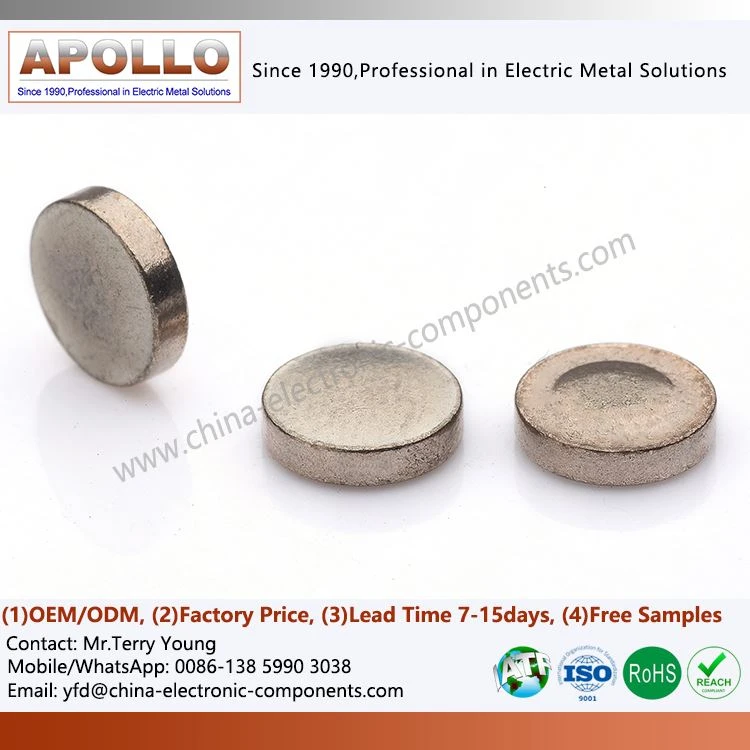

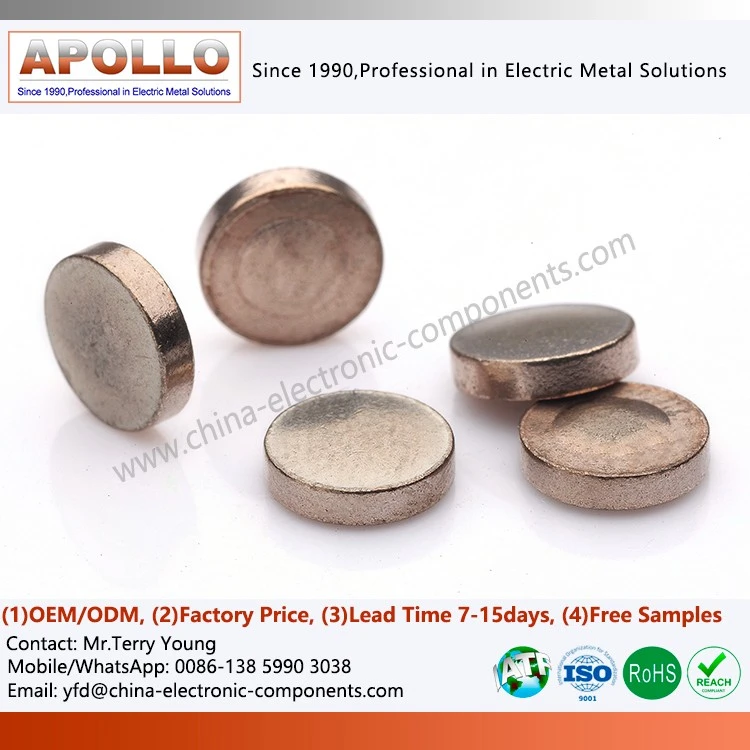

The recessed model shown in the picture can be adapted to a spring plate limiting assembly, while the flat model can be adapted to a flat terminal welding installation. Both forms cover the internal assembly solutions of most new energy relays.
Manufacturing Process
1. Material Preparation
Brazed Contact on Terminal uses high-purity silver ingots and alloying elements (Ni, Sn, Cu, ZnO, etc.), which are smelted, cast, extruded, and drawn into wires or plates of the required diameter. Key control indicators include chemical composition uniformity, oxygen content (≤10⁻⁶), and internal defect control.
2. Forming
The silver alloy material is formed into the required shape of the Welding Button Contact using cold heading or precision stamping processes. For irregularly shaped structures, a multi-station cold heading machine is used for one-time forming to ensure dimensional accuracy.
3. Welding
The contact tip welded to the base material is welded using resistance welding. Welding parameters (current, pressure, time) are precisely set based on the material combination and workpiece dimensions to ensure sufficient fusion and no excessive heat effect in the weld area.
4. Post-processing
After welding, the Silver Button undergoes stress-relieving annealing, surface cleaning, or anti-oxidation treatment according to product requirements.
5. Inspection
- Key inspection items include:
- Dimensional inspection
- Weld strength test
- Contact resistance test
- Metallographic analysis
Industry Application Cases
Photovoltaic Energy Storage Grid-connected Distribution Cabinet System
Electrical Contact Buttons are used inside grid-connected switches and protection relays to stably complete the power switching of the photovoltaic array, ensuring the reliable connection and disconnection of the energy storage system's charging and discharging circuits and reducing the frequency of power station downtime.
01
New Energy Vehicle High-Voltage Power Distribution System
Mounted in the vehicle's high-voltage DC relays, these buttons withstand the instantaneous inrush current during vehicle start-stop and fast charging, adapting to the complex vibration and temperature fluctuations of the vehicle environment, ensuring the stable operation of the entire vehicle's power distribution system.
02
Wind power converter control unit
Switch Contact Tips are applied to the relays in the converter cabinet protection circuit, reliably performing circuit-breaking protection actions under grid voltage fluctuations and lightning surge impacts, safeguarding the electrical safety of the entire wind turbine converter system.
03
Commercial and industrial energy storage containerized power distribution modules
Mass-produced and assembled in modular power distribution relay arrays, Brazed Silver Electrical Contacts provide uniform electrical performance for simultaneous on/off control of multiple energy storage branches, ensuring the overall control accuracy of the containerized energy storage system.
04
contact us
If your system faces challenges related to touch component compatibility, reliability, or supply stability, please provide your operating parameters (such as current, voltage, and ambient temperature). Based on 30 years of experience in electrical contact materials, we will customize a Precision Silver Contact Welding solution for you. Click to inquire or submit your BOM to receive a customized quote.
