Beryllium Copper Fabrication Steps
Products Description

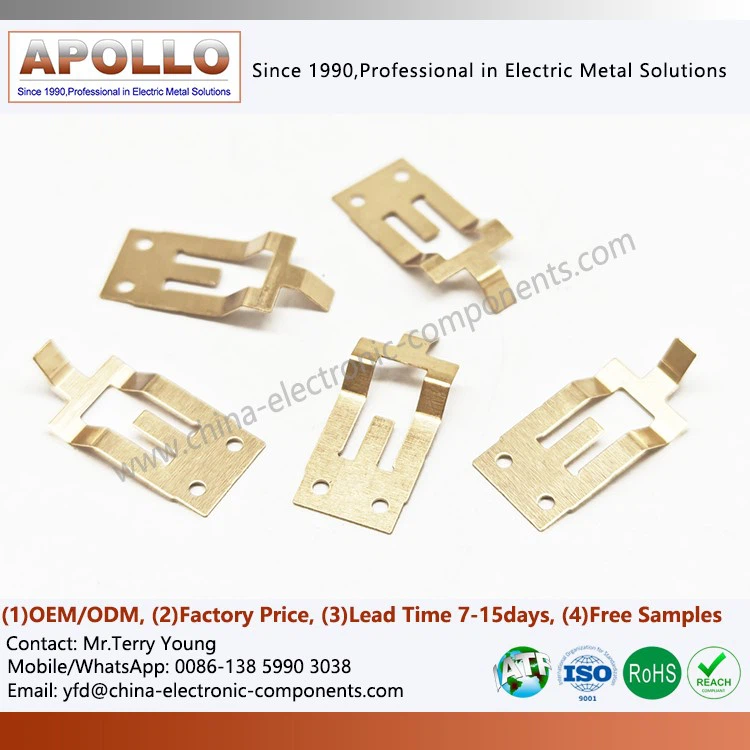

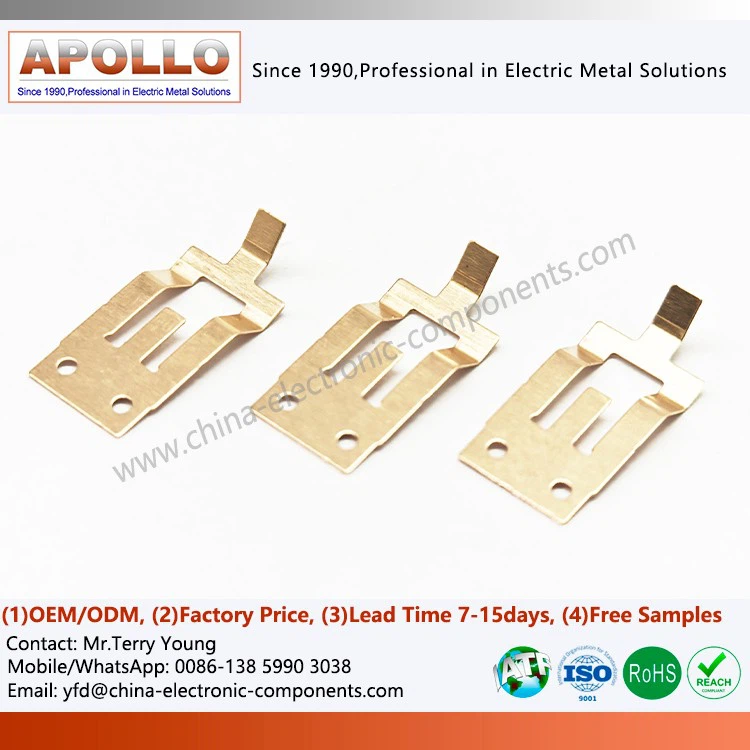

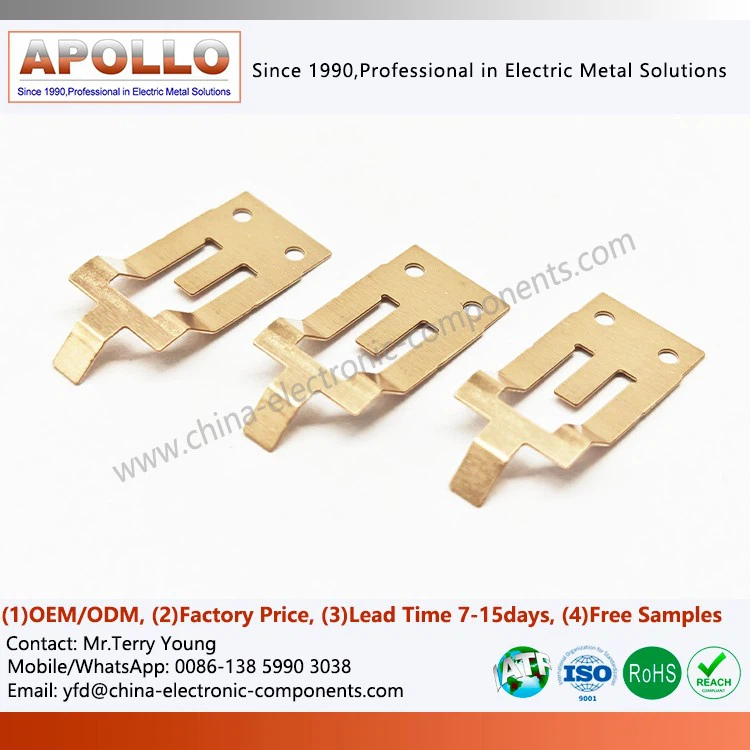

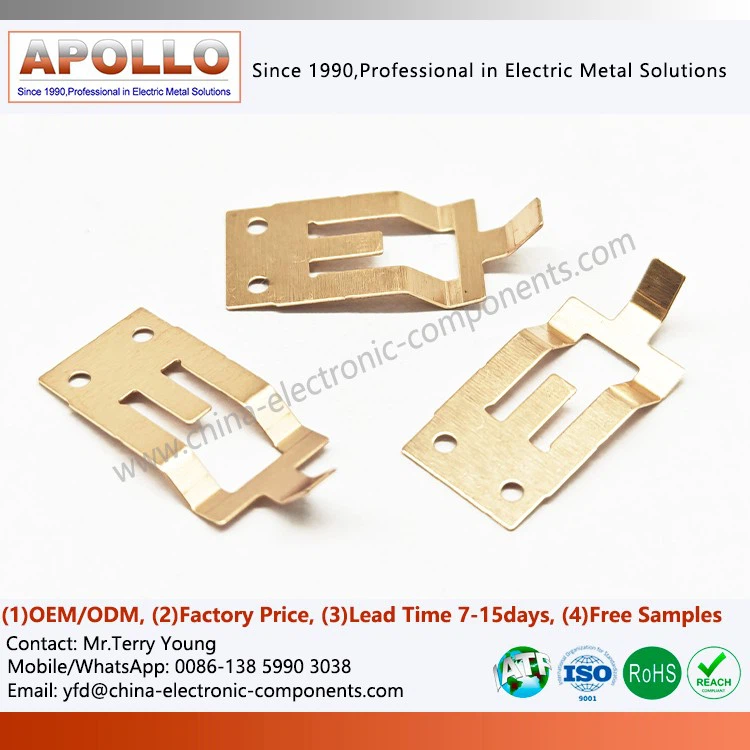

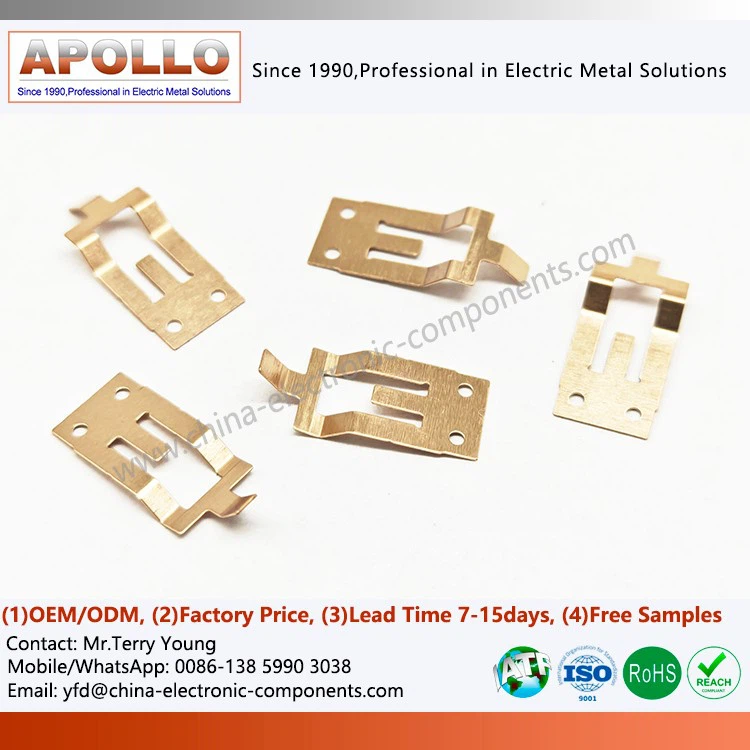

Beryllium copper fabrication steps, through processes such as precision stamping, age hardening, and surface treatment, serve as core elastic conductive elements. Acting as the load-bearing and elastic driving components for the moving contacts of relays, their dynamic elastic stability, fatigue life, and contact reliability directly determine the relay's electrical lifespan and operational precision. These components are widely utilized in high-end relay applications across sectors such as industrial control, automotive electronics, and energy equipment.
Product Properties
Physical Properties
Beryllium copper exhibits a golden-yellow to pale-gold coloration. BeCu sheet fabrication density is approximately 8.25 g/cm³, and its melting point is around 950°C. The material possesses a moderate thermal conductivity-approximately 109 W/m·K-a characteristic that requires special consideration during heat treatment processes.
Mechanical Properties
In the solution-annealed state, beryllium copper has a Brinell hardness of approximately 120–140 HB; in the age-hardened state, this can reach 350–420 HB. Its elastic modulus is around 131 GPa, and its yield strength can exceed 1000 MPa following age hardening for beryllium copper sheet metal forming.
Electrical Properties
The electrical conductivity ranges from 22% to 50% IACS, depending on the specific alloy grade and heat treatment condition. In high-frequency applications, beryllium copper demonstrates superior performance regarding the skin effect compared to ordinary carbon steel, thereby facilitating signal integrity for BeCu components.

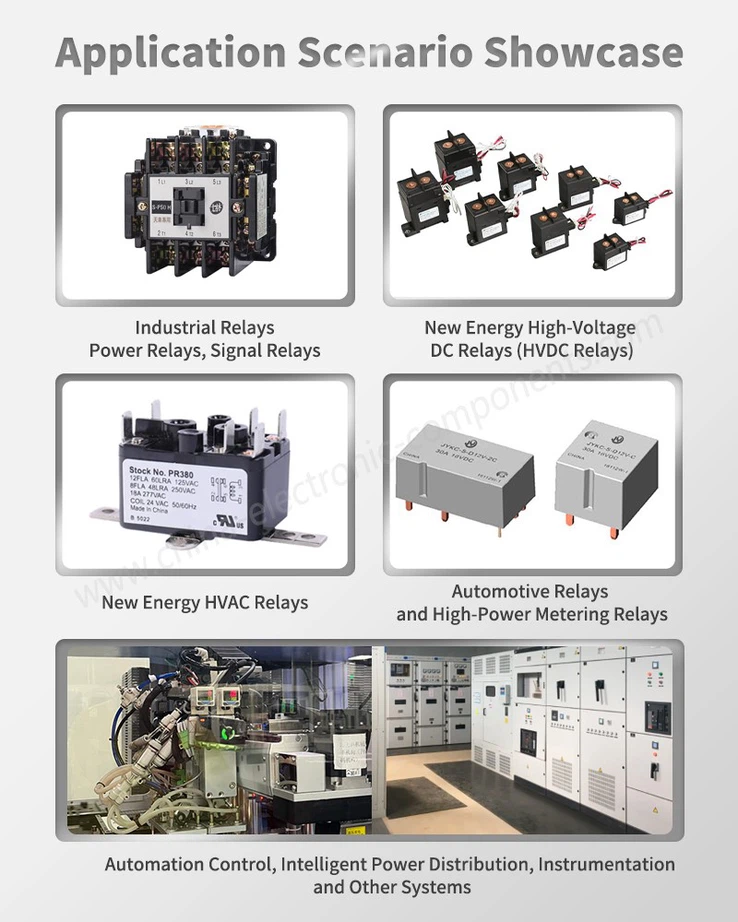

Application Scenarios
High-Voltage DC Contactors / Electric Vehicle Relays
These applications demand exceptional resistance to vibration and shock, as well as robust resistance to arc erosion under high-current loads. The beryllium copper parts Process enables the production of thick-section contact springs characterized by high yield strength and excellent electrical conductivity.
High-Frequency Communication Relays
High conductivity copper stamping in these devices must deliver precise contact force within an extremely limited range of deformation (low deflection) and are highly sensitive to signal transmission loss; consequently, the manufacturing process requires achieving an optimal balance between mechanical strength and electrical conductivity.
High-Reliability Aerospace Relays
These components are subject to the most stringent requirements regarding operational lifespan, performance stability across extreme temperature ranges, and corrosion resistance; the manufacturing workflow therefore necessitates specialized cleaning procedures, surface passivation treatments, and rigorous process controls for Conductive copper alloy stamping.
Key Functions
Elastic Support: BeCu sheet fabrication provides stable contact pressure, ensuring low resistance when contacts are closed and zero adhesion when open.
Conductive Connection: BeCu components serve as the core of the current path, transmitting control signals or load currents while minimizing power consumption.
Dynamic Switching: High conductivity copper stamping responds to electromagnetic actuation to achieve rapid and precise contact opening and closing, with an operating time of ≤10 ms.
Shock Absorption & Vibration Damping: Absorbs operational impact, reduces contact bounce and arcing, and extends contact lifespan.
contact us
The performance of the terminals determines the lifespan of a relay. If your design faces challenges involving high cycle counts, high currents, or harsh environments, our precision manufacturing processes-backed by a deep understanding of materials-can provide you with stable and reliable beryllium copper fabrication steps solutions. We invite you to contact us to discuss your specific parameters.
