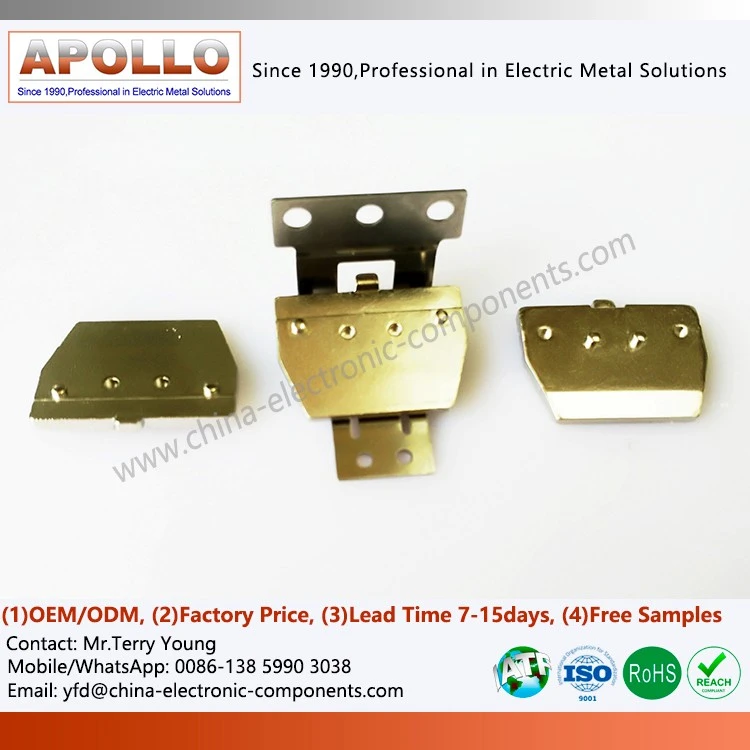

Armature for Electromagnetic Relay
Products Description
An Armature for Electromagnetic Relay is an actuating mechanism that engages and disengages under electromagnetic force. It consists of ferromagnetic materials, riveted joints, a positioning structure, and a spring bearing. When energized, it forms a closed magnetic circuit with the iron core, enabling the physical transmission of actuation commands.
Key structural features include:
High permeability path design: The EV Relay Armature surface is tightly fitted to the iron core, ensuring maximum magnetic flux density.
Fatigue-resistant mechanical hinge: A rotating point structure for repeated engagement/disengagement, reducing wear and increasing operating life.
Lightweight swing arm structure: Reduces inertia and improves response speed.
Precise engagement and disengagement gap control: Ensures consistent engagement force, restoring force, and actuation speed.
Optimized surface passivation treatment: Strong corrosion resistance, suitable for humid, dusty, and vibrating environments.
The overall design prioritizes long-term stable operation, consistent response, and high-frequency operational reliability.
Materials Science and Process Innovation
| High Permeability Core Material | We use specially treated high-permeability silicon steel sheets as the Armature in EV relay core. Through precise heat treatment processes, the core's permeability reaches industry-leading levels while effectively suppressing eddy current losses. This material not only improves electromagnetic conversion efficiency but also significantly reduces armature heat generation during operation, extending relay lifespan. |
| Optimized Coil Winding Process | The Armature Metal Parts of EV Relays' coil winding process directly affects electromagnetic conversion efficiency. Our products employ innovative winding technology to ensure optimal coil turns, distribution, and insulation performance. Precise tension control and interlayer insulation treatment not only improve the coil's electrical performance but also greatly reduce the risk of insulation aging during long-term use. |
| Precision Stamping and Heat Treatment Processes | The armature's stamping and heat treatment processes are crucial to its performance. We use high-precision CNC stamping equipment to ensure that dimensional tolerances for all Armature for Electromagnetic EV Relays are controlled within micrometer levels. Subsequently, precise temperature control is achieved through a vacuum heat treatment system, enabling the core material to achieve optimal magnetic properties and mechanical strength, while avoiding oxidation and deformation problems commonly encountered in traditional heat treatment. |
Precision Structure and Kinematic Optimization
Dynamic Balance Design
Through meticulous mass distribution design, we ensure the EV Relay Armature pure iron plate maintains excellent dynamic balance during high-speed operation. This design significantly reduces vibration and noise during motion, while also minimizing wear on the support structure.
Optimized Mechanical Calibration
The EV Relay Armature Soft Magnetic Iron's fulcrum position and lever arm length are precisely calculated to ensure optimal torque output under a given electromagnetic force. This optimization enables the relay to maintain stable operating characteristics across a wide operating voltage range.
Customized Adaptive Design
We provide customized EV Relay armature plate designs based on the specific structural characteristics of our customers' relays. Whether rotary or direct-acting, we offer optimal magnetic circuits and mechanical solutions.
Application Advantages
Automotive Relays
In the high-temperature, high-vibration environment of the engine compartment, the excellent fatigue resistance and stable magnetic properties of our Relay Armature pure iron plates ensure reliable control of critical components such as headlights, wipers, and fuel pumps. Their rapid response characteristics are crucial for safety systems
Industrial Control Relays
On automated production lines requiring frequent start-stop cycles, the million-cycle mechanical life and low coercivity of our Relay Armature Soft Magnetic Irons guarantee high-frequency, trouble-free operation of the relays, forming the cornerstone of production line continuity.
Communication and Signal Relays
In communication equipment requiring low power consumption and high-speed switching, the high permeability design of our Relay armature plates allows for faster operation with less drive current, reducing overall energy consumption and improving signal transmission efficiency.
Smart Home Relays
In quiet and comfortable home environments, through optimization of the armature's movement trajectory and mass, combined with a buffer design, we can significantly reduce the mechanical shock noise during relay engagement, improving the user experience.
