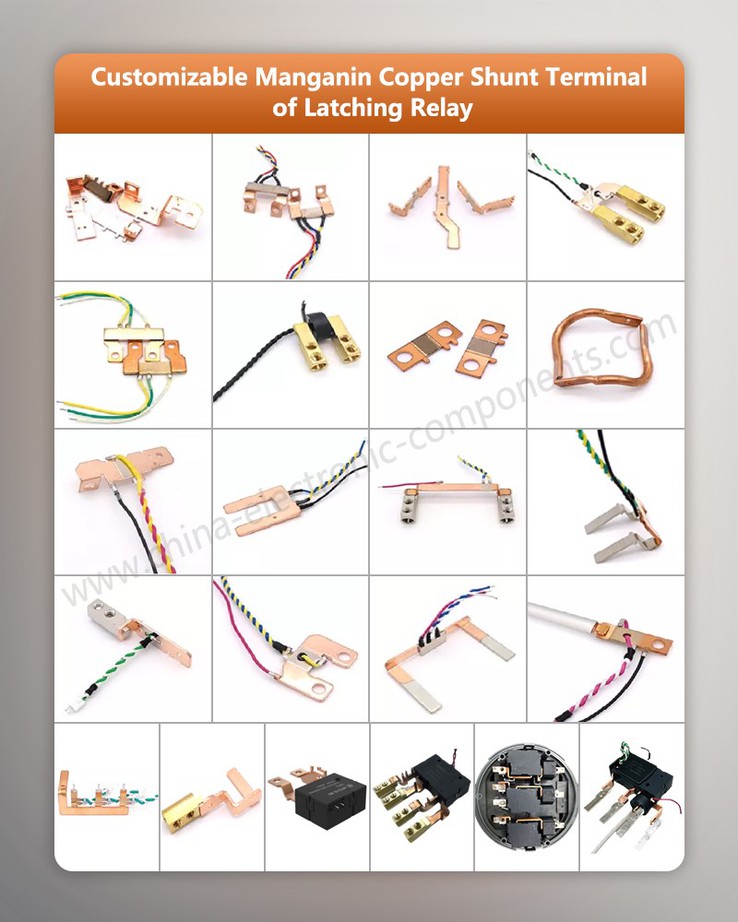

Primary Wire Manganin Shunt
Products Description
Our Primary Wire Manganin Shunt represents the pinnacle of current shunt metering technology. Essentially, it's a composite component made by welding copper (T2 copper) and manganin alloy strips using state-of-the-art electron beam laser welding, followed by continuous stamping using high-precision molds.
This structure addresses industry pain points such as high heat generation and significant resistance drift under high current conditions by combining the superior conductivity of copper with the extremely low temperature coefficient of resistance (TCR) of manganin. It is specifically designed for space-constrained and environmentally demanding magnetic latching relays.
Main Functions: Role in a Magnetic Latching Relay
In a magnetic latching relay, this component performs a dual function:
Current Carrying Path: Responsible for delivering high currents in the main circuit.
Precision Sensing: Provides a reference signal for metering or overload protection through a millivolt (mV) voltage drop across its Manganin Copper Shunts. Its extremely high stability ensures that metering accuracy remains unaffected by contact heating during frequent switching.
Product Performance Advantages: Stable, Accurate, and Safe
| Extremely Low Thermoelectric Potential | Thanks to the excellent thermal conductivity of copper, the heat generated by the Copper Manganin Shunt can be quickly dissipated through the pins at both ends. This efficient thermal management design significantly reduces the temperature rise coefficient of the shunt itself, thereby reducing the interference of thermoelectric potential on weak signal measurements. In precision metering applications, this characteristic directly translates into a higher level of measurement accuracy. |
| Excellent Anti-Pulse Current Capability | Relays often face surge current impacts at the moment of switching. The copper terminals of this product provide sufficient current-carrying cross-section, capable of withstanding instantaneous Joule thermal shocks without melting. The manganese-copper alloy itself has extremely high heat resistance and oxidation resistance; the combination of these two properties gives the Shunt Terminal for Magnetic Latching Ralay 100A excellent short-time withstand current capability, effectively improving the relay's short-circuit resistance. |
| Long-Term Metering Stability | For long-life applications such as smart meters (typically requiring a service life of over 10 years), the resistance value of the Energy Meter Shunts must withstand the test of time. Our manganese-copper material undergoes special annealing treatment, resulting in a uniform and stable internal grain structure. Combined with the high reliability of the welded interface, the annual change rate of the resistance value is extremely low under long-term electrical load, ensuring metrological consistency throughout the entire life cycle. |
Detailed Showcase: Quality Originates from the Details
Weld Metallographic Inspection
Each batch of Manganese Copper Shunts undergoes metallographic section analysis to ensure adequate weld penetration, absence of defects such as porosity and cracks, and smooth, abrupt joint lines.
Surface Treatment
Electric Meters Manganin Shunt surfaces can be tin-plated, nickel-plated, or silver-plated upon request to improve weldability and oxidation resistance. The plating is uniform and dense, without exposed substrate or blistering.
Laser Marking Traceability
Each packaging unit can be laser-marked with a batch code, enabling full-process quality traceability from raw materials to finished EBW (Electron Beam Welding) Manganin Shunts.
contact us
The Electric Current Measure Manganin Shunt, a key current-sensing component in magnetic latching relays, directly impacts the metering accuracy and operational stability of the equipment. Through the combination of manganin and copper composite materials, electron beam laser welding, and precision stamping manufacturing technology, this product provides a reliable and stable solution in the field of current sensing.
If your engineering project is seeking a stable and reliable magnetic latching relay shunt solution, our engineering team can provide professional design and manufacturing support based on the application structure and current requirements.
