Hybrid Residential Solar Storage Systems
Products Description

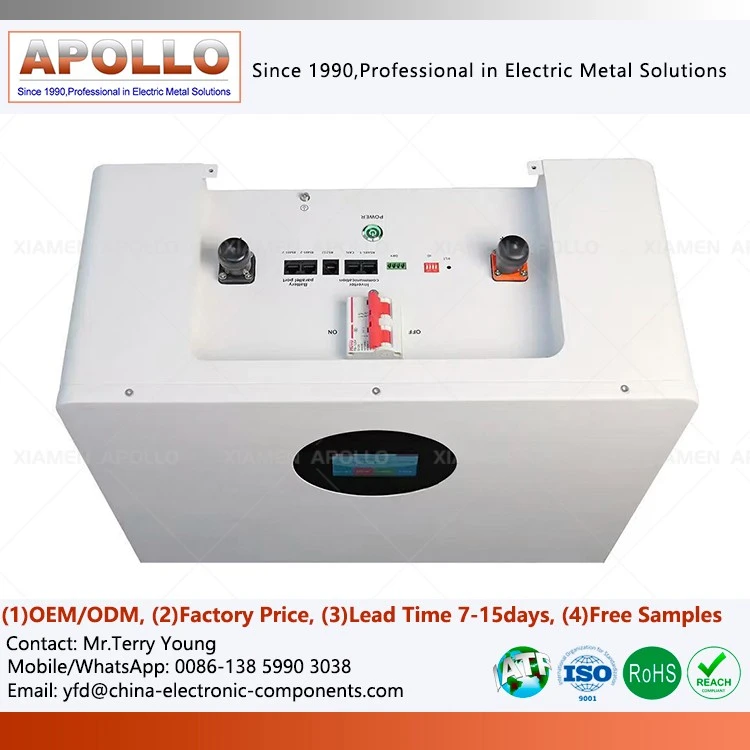

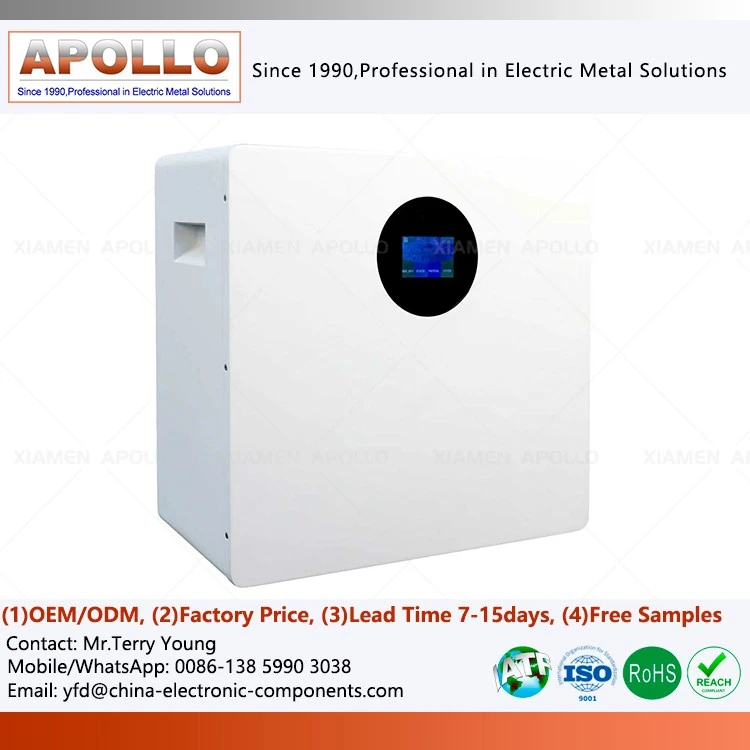

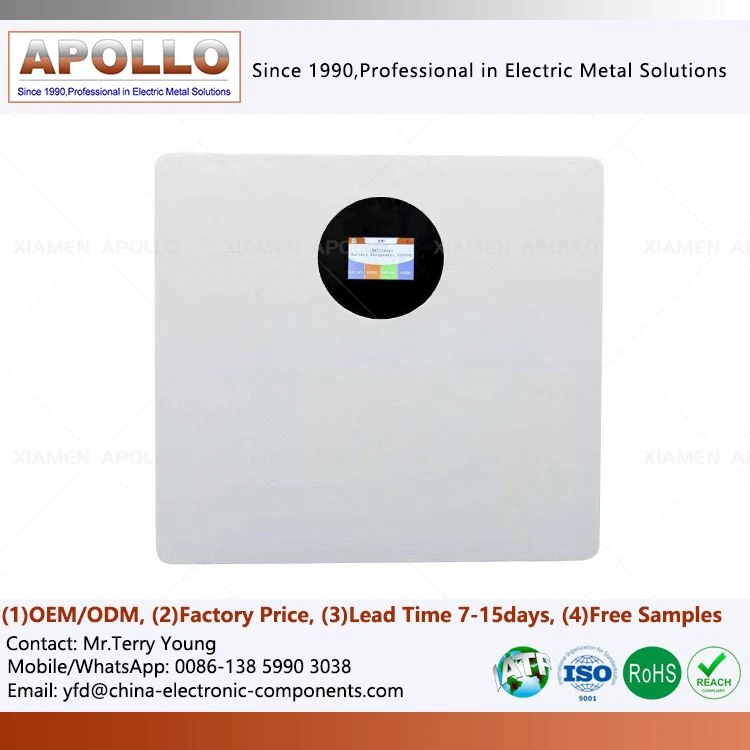

Hybrid Residential Solar Storage Systems are designed for household photovoltaic energy management, combining lithium battery modules, battery management systems, and intelligent power control technology into one integrated energy storage solution.
The system stores excess solar power generated during daytime and supplies electricity during nighttime or grid interruption periods, improving residential energy utilization efficiency.
Xiamen Apollo Technology provides OEM residential solar energy storage systems for global ESS integrators, including wall-mounted residential energy storage systems, low-voltage floor-standing batteries, and customized lithium-ion battery storage solutions.
Technical Specifications & Material Standards
| Parameter | Specification / Standard |
| Battery Chemistry | LiFePO4 (LFP) / NMC (Optional) |
| System Capacity | 5kWh, 10kWh, 15kWh, 20kWh (Customizable) |
| Rated Voltage | 48V Low Voltage (LV) |
| Cabinet Material | SPCC Steel / AL5052 Aluminum Alloy |
| Protection Rating | IP65 (Outdoor Rated) / IP20 (Indoor) |
| Surface Treatment | Powder Coating (Texture / Gloss) |
| Welding Process | Robotic TIG / Laser Welding |
| Salt Spray Resistance | >1000 Hours (ISO 9227) |
| Inverter Compatibility | Hybrid Inverter Integration (Supported) |

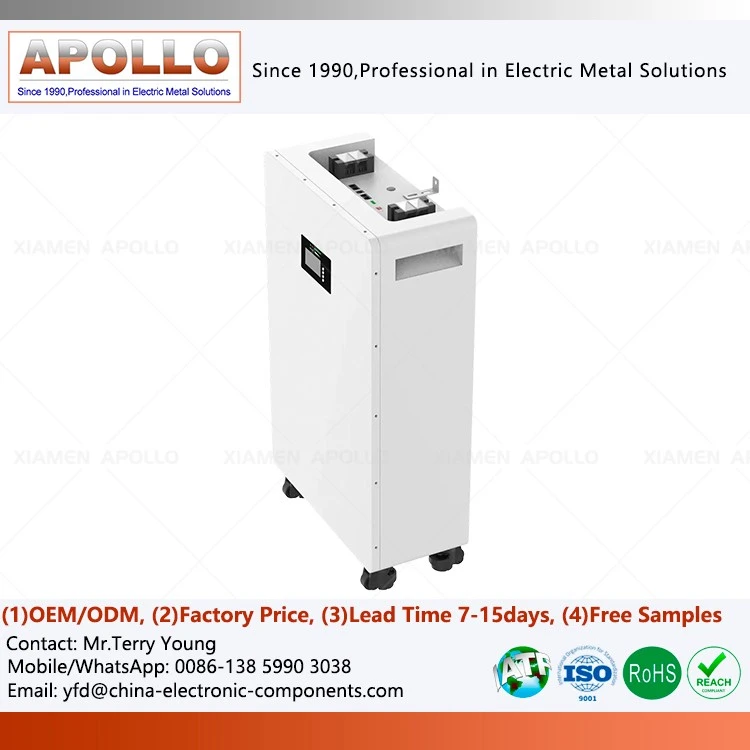

| Mounting Type | Wall-Mounted / Floor-Standing |
Environmental Durability and Coating Protection
Residential energy storage systems are exposed to complex outdoor climates year-round; corrosion resistance and airtightness are critical factors determining post-sales failure rates.
Pre-treatment and Anti-corrosion Preparation: Before coating, all metal enclosures undergo multiple automated pre-treatment stages-including zirconium-based phosphating and degreasing-to thoroughly remove microscopic oil residues and oxide layers, thereby enhancing powder coating adhesion.
Pinhole-free Electrostatic Coating: Weather-resistant epoxy-polyester powder is applied via electrostatic spraying with precise thickness control to ensure a uniform finish free of pinholes and bubbles, successfully passing extended neutral salt spray testing (achieving "Zero Red Rust").
Automated Continuous Sealing: For wall-mounted, waterproof residential energy storage systems, an automated continuous polyurethane foam dispensing process is applied to enclosure seams and joints. Combined with a dual-trapezoidal interlocking groove design, this creates a seamless, watertight barrier upon fastening, effectively blocking the ingress of moisture, salt spray, and tiny insects.
FAQ
Q1: How does the residential solar energy storage system ensure battery safety during long-term home operation?
The system uses LiFePO4 battery chemistry, intelligent BMS monitoring, over-voltage protection, temperature control, and abnormal condition alarms. Multiple electrical safety tests verify stable performance during daily charging, discharging,g and backup power operation.
Q2: Can the wall-mounted residential energy storage system be customized for different solar inverter brands?

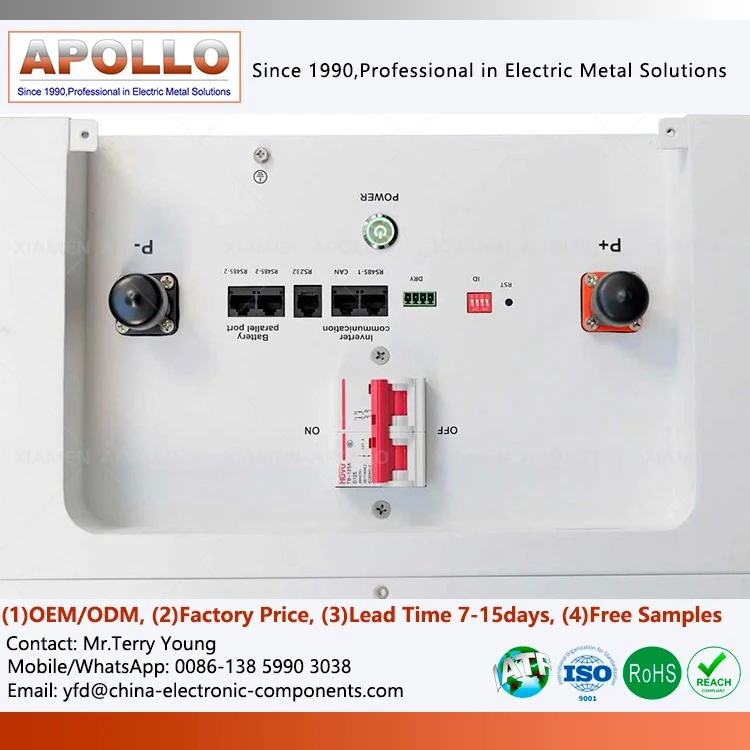

Yes. The ESS platform supports communication adaptation through CAN and RS485 interfaces. OEM customers can request customized battery capacity, enclosure design, software communication protocol, ls, and installation configurations for different inverter systems.
Q3: What quality documents can be provided for bulk residential lithium battery storage projects?
For qualified projects, Apollo provides production inspection records, electrical test reports, material traceability documents, and engineering validation files. PPAP Level 3 style documentation can be prepared according to customer quality requirements
Request OEM Residential ESS Solution
Send your required battery capacity, installation dimensions, or system specifications. Our engineering team will review your project requirements, provide DFM suggestions, and deliver a factory-direct quotation for residential solar energy storage systems.
