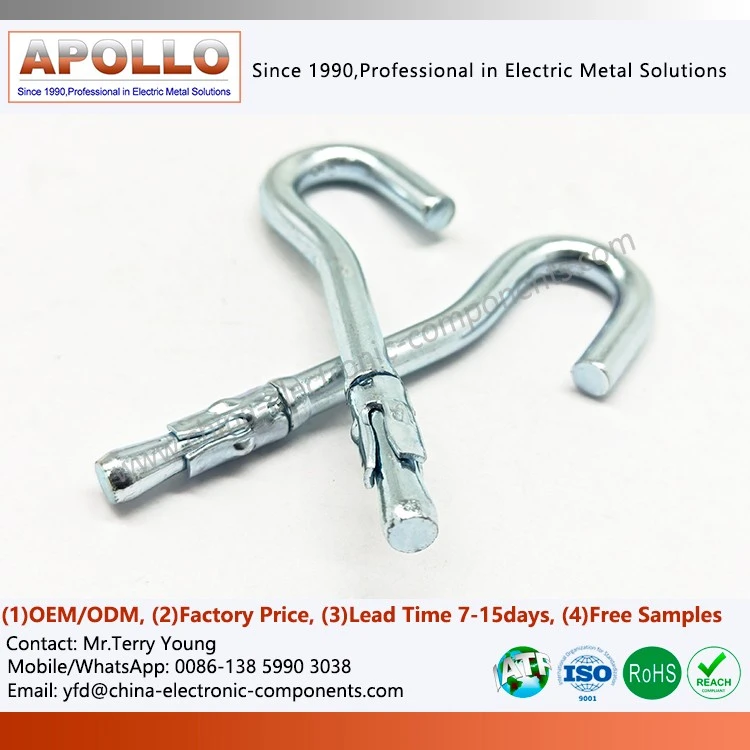

Steel Expansion Hook
Products Description
Our steel expansion hooks are not just simple mounting tools, but a sophisticated force transmission system. Their core features include:
Dynamic Pressure Distribution: The tension generated during the tightening of the expansion tube is evenly distributed, effectively protecting the substrate (such as concrete and brick walls) from cracking due to excessive localised stress.
High Redundancy Hook Design: The hook head is thickened and features an optimised bending radius, minimising stress concentration on the hung object.
Multi-Substrate Compatibility: Suitable for solid walls, heavy concrete, natural hard stone, and some high-performance precast components.
Material Advantages
| Carbon Steel Base: A Balance of Strength and Economy | Q235 or 35K carbon steel, after quenching and tempering, can achieve a yield strength of over 300MPa, sufficient to handle conventional industrial suspension loads. Its excellent weldability and forging properties make the integrated manufacturing of the Expansion Hook and screw feasible. |
| Stainless Steel Material: Intrinsic Protection in Extreme Environments | 304 stainless steel maintains its passivation film intact in chloride-containing atmospheres, suitable for suspension systems in coastal warehouses, sewage treatment plants, and food factories; 316 stainless steel, due to the addition of molybdenum, exhibits superior pitting corrosion resistance in chemically corrosive environments. |
| Sacrificial Anode Mechanism of the Zinc Plating Layer | The electroplated zinc layer preferentially corrodes at scratches or cuts, protecting the carbon steel base from corrosion. The zinc-iron alloy phase of the hot-dip galvanised layer provides higher coating hardness and wear resistance, making it less susceptible to scraping during frictional contact between the expansion sleeve and the hole wall. |
Detailed Display: Industrial Beauty That Withstands Mechanical Examination
Micro-Chamfering of the Hook Tip
The opening end of the Universal Expansion Hook body is not a sharp cutting edge, but rather finely chamfered and ground. This facilitates the quick insertion of lifting rings, wire ropes, or cables while avoiding cutting damage to the surface coating of the suspended object or the insulation layer of the cable.
Full Thread Finish
The area where the thread transitions to the smooth rod uses a gradual retraction design, eliminating the shoulder effect, reducing the stress concentration coefficient in this area, and improving the overall tensile strength of the anchor rod.
Symmetrical Cutting of the Sleeve
Careful observation of the expansion sleeve reveals that its cuts are completely symmetrical and of consistent width. This is microscopic proof that the sleeve expands uniformly outward within the hole without skewed expansion, and a direct reflection of batch processing precision reaching the micron level.
Silky Texture of the Zinc Coating
The high-quality zinc coating exhibits a uniform silver-grey or bright silver silky finish, free from incomplete plating, zinc nodules, and black spots. This is a visual guarantee of corrosion resistance lifespan and irrefutable proof of the perfect execution of each process on the production line, including degreasing, pickling, and immersion plating for Anchor Bolt Hook.
Application Advantages: Covering Eight Major Scenarios from Construction Engineering to Industrial Equipment
The wide applicability of Wall Anchor Hooks is the fundamental reason for their huge market capacity. Mature application cases are available in the following scenarios:
Electromechanical Pipeline Hanger Systems: Provides top suspension anchor points for fire sprinkler pipes, air conditioning water pipes, cable trays, and ventilation ducts, with single-point load capacities ranging from 50kg to 500kg. The Expansion Fixing Hook shape of the expansion hook allows direct attachment to threaded rods, turnbuckles, or universal lifting rings, making the assembly method simpler than conventional expansion bolts with hooks and reducing potential failure points.
Industrial Plant Maintenance: Overhead crane beam maintenance platforms, equipment maintenance lifting lugs, electric hoist track suspension points, etc. Utilising M12~M16 heavy-duty expansion hooks, coupled with double-nut locking and anti-loosening washers, meets the safety requirements of cranes under light-duty conditions.
Warehouse and Logistics Equipment: Automated storage rack back brace anchoring, conveyor suspension support, and high-level picking table counterweight fixing. After installing expansion hooks on concrete columns, maintenance ladders or safety ropes can be easily suspended.
Photovoltaics and New Energy: Alternatives to photovoltaic clamps on corrugated steel roofs (expansion hooks penetrate the concrete eaves of the roof when clamps are unavailable), and suspension points for photovoltaic cleaning system tracks. Stainless steel expansion hooks provide long-term service in this type of outdoor corrosive environment.
contact us
For engineering procurement and industrial projects, Expansion Hanging Hooks are not only fundamental fasteners but also crucial components ensuring system safety and long-term stable operation. Choosing a supplier with mature manufacturing processes, stable quality control, and engineering support capabilities will help reduce later maintenance risks and improve overall construction efficiency.
If you are looking for a Secure-Grip Expansion Hook supply solution that offers long-term, stable supply, supports engineering-grade customisation, and project-specific support, we can provide more reliable manufacturing support and engineering collaboration services for your project.
