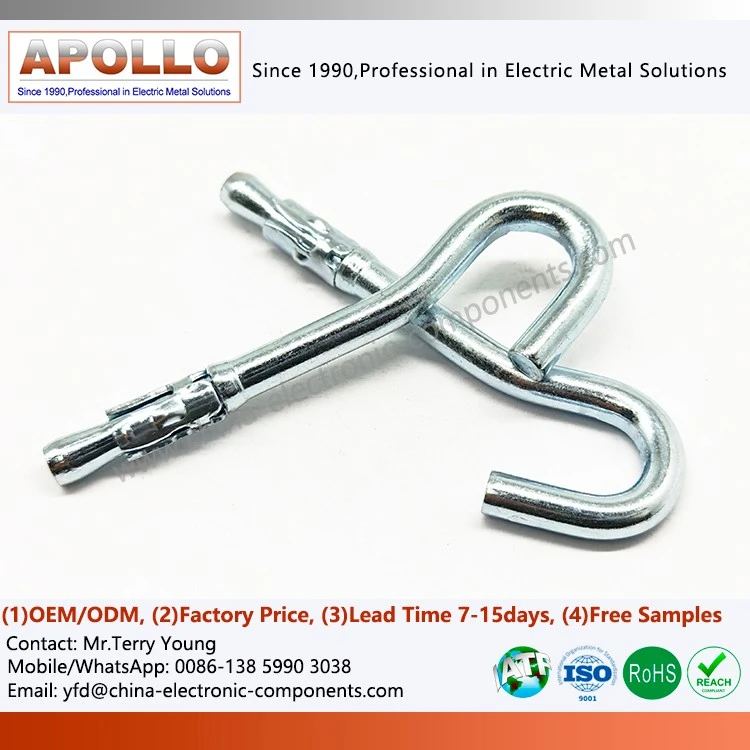

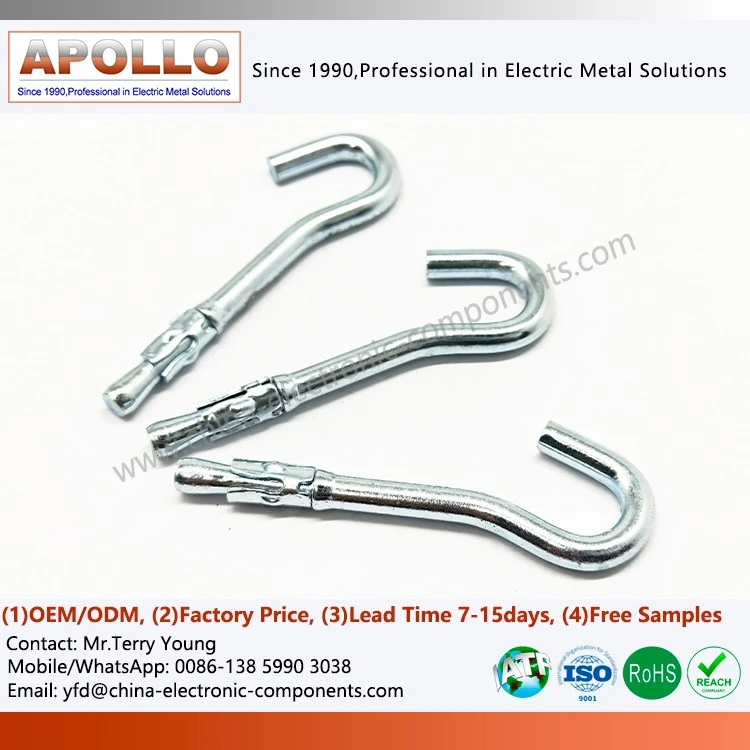

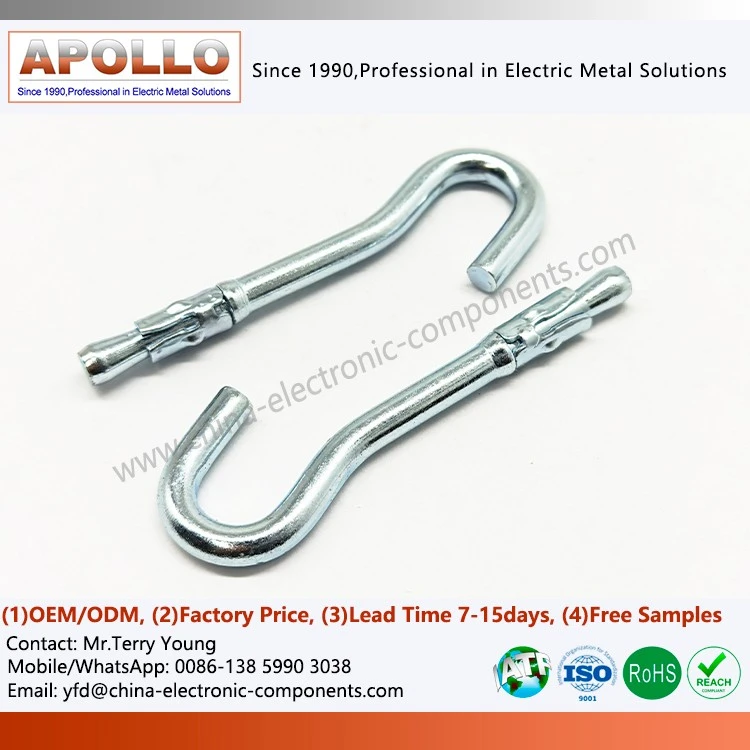

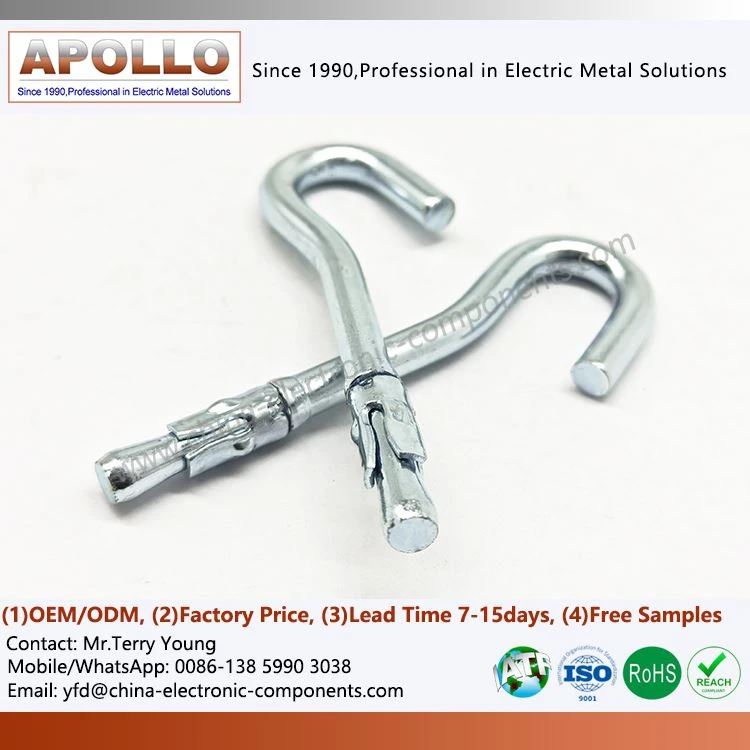

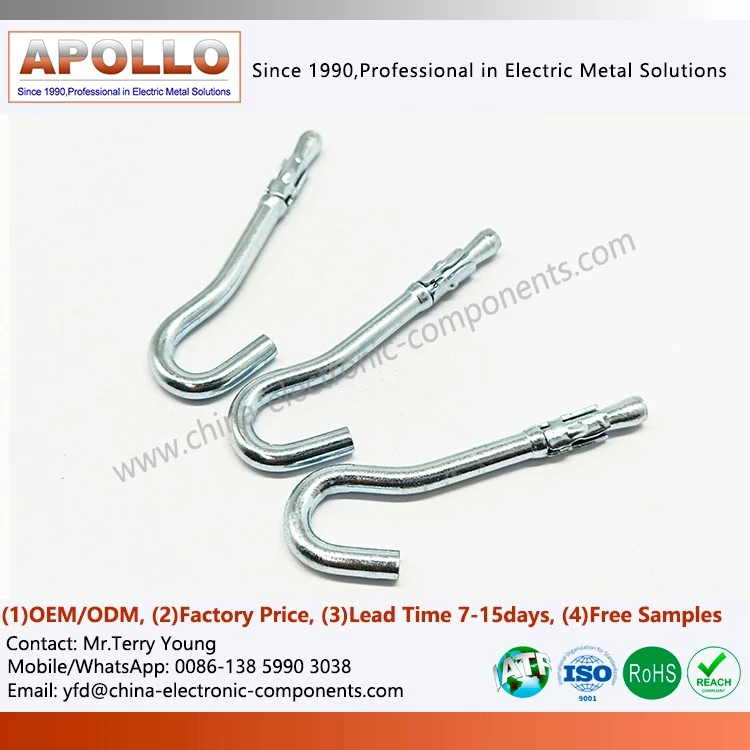

Sleeve Expansion Hook
What is a Sleeve Expansion Hook?
The sleeve expansion hook is a type of mechanical expansion fastener; its fundamental operating principle relies on the radial expansion of the sleeve to create a mechanical lock within the base material.
The product typically consists of the following components:
Hook / Hook Head: Used for suspending, connecting, or securing the target object;
Threaded Shank: Serves the primary function of connection and locking;
Expansion Sleeve: Expands outward during installation to form a mechanical anchor against the hole wall;
Nut / Fastening Structure: Used to apply the locking force and complete the installation;
Washer: Distributes load and enhances connection stability, depending on application requirements.
Specific structural configurations can be optimized for various scenarios, such as suspension, hoisting, equipment installation, pipeline securing, and auxiliary wall mounting.
The structural design of the expansion hook focuses not merely on the strength of individual components, but on the synergistic interaction of the entire fastening system. Factors such as stud size, sleeve length, expansion zone, hook shape, and installation depth all influence the final anchoring performance.
Metal Expansion Hook Typical Applications: Meeting diverse engineering suspension needs
Construction
Suspending ceiling grid systems, securing pipe brackets, installing light fixtures and ceiling fans, and mounting curtain wall components. It is compatible with various substrates-such as concrete slabs and load-bearing walls-without compromising structural integrity, ensuring an aesthetically pleasing finish.
Industrial Settings
Hoisting factory equipment, suspending cable trays, securing assembly line supports, and mounting heavy-duty shelving. It offers excellent vibration resistance and remains secure under long-term loads, ensuring operational safety.
Municipal Engineering
Mounting roadside noise barriers, securing safety netting, fastening street light access covers, and installing traffic signs. It features superior weather resistance; the stainless steel version withstands prolonged exposure to wind and rain without corroding or failing.
Residential/Commercial Use
Installing balcony drying racks, securing bathroom shelving, mounting commercial signage, and fixing garage storage racks. Installation is quick and easy, requiring no professional crew; ordinary users can complete the task independently.
Anchor Hook Expansion Fastener Material Advantages: Dual Compatibility with the Substrate and the Environment
| Material Option | Key Characteristics | Typical Applications |
| Galvanized Carbon Steel (Blue-White/Yellow Zinc) | High strength, cost-effective, indoor rust resistance | Indoor factory pipe hangers, equipment suspension, interior fit-outs |
| Hot-Dip Galvanized Carbon Steel | Thick zinc coating (≥45μm), outdoor corrosion resistance | Exterior wall brackets, outdoor billboards, bridge auxiliary facilities |
| 304 Stainless Steel | Atmospheric corrosion resistance, aesthetic appeal | Coastal building facades, food processing plants, cleanrooms |
| 316 Stainless Steel | Chloride ion corrosion resistance | Dock facilities, seawater treatment plants, chemical plants |
| Brass | Conductive, non-magnetic, decorative | Electrical equipment grounding, museum displays, high-end commercial spaces |
Frequently Asked Questions for Expansion Anchor with Hook End
For which base materials is the sleeve expansion hook suitable?
-
It is primarily suitable for dense, solid base materials such as concrete, solid brick, and stone. Applications involving hollow brick, lightweight blocks, or thin-walled structures require separate assessment or the selection of alternative anchoring methods.
What key points should be observed during installation?
-
The drill hole diameter and depth must match the product specifications, and dust must be cleared from the hole. During expansion, the fastener should be tightened to the specified torque or driven fully into place to avoid under- or over-expansion.
Can the product be reused?
-
Generally, reusing the expansion hook after it has expanded within the base material is not recommended, as repeated installation and removal can compromise anchoring reliability. If a removable solution is required, please consult us regarding specially designed models.
How do I select the appropriate hook opening and load rating?
-
Selection should be based on the dimensions of the item to be hung, the direction of the load (vertical or inclined), and the required safety factor. We recommend providing details of the specific application conditions so our technical team can assist with the selection.
How should the surface finish be selected?
-
Standard zinc plating is suitable for dry indoor environments; for humid or outdoor environments, enhanced corrosion protection or stainless steel material is recommended to extend service life.
contact us
If you are planning a J-Hook Expansion Anchor involving heavy-duty anchoring and suspension systems, our engineering team can provide comprehensive support-including technical verification, custom drawing services, and sample testing-tailored to your specific pull-out strength requirements, base material conditions, and corrosion resistance specifications.
