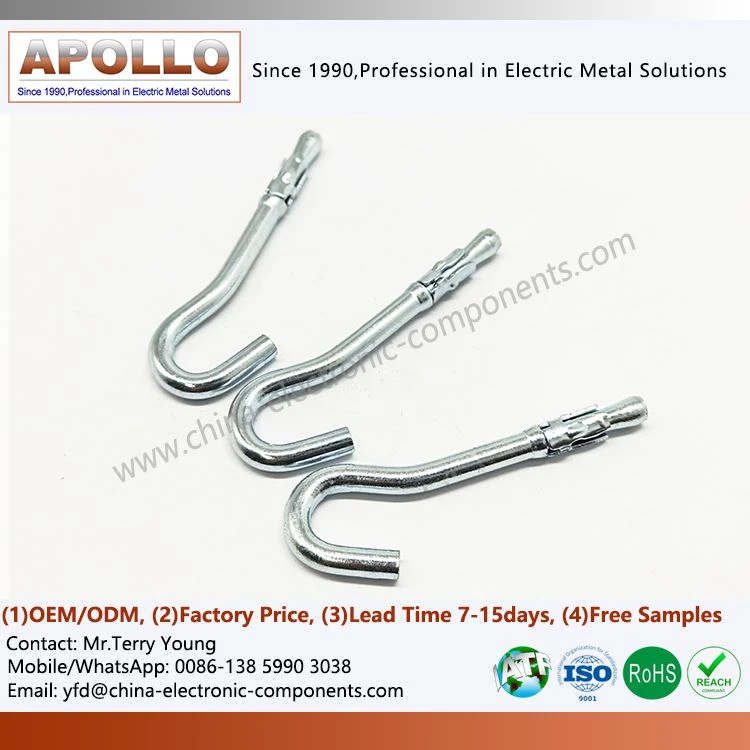

Expansion Wall Hook Bolt
Products Description

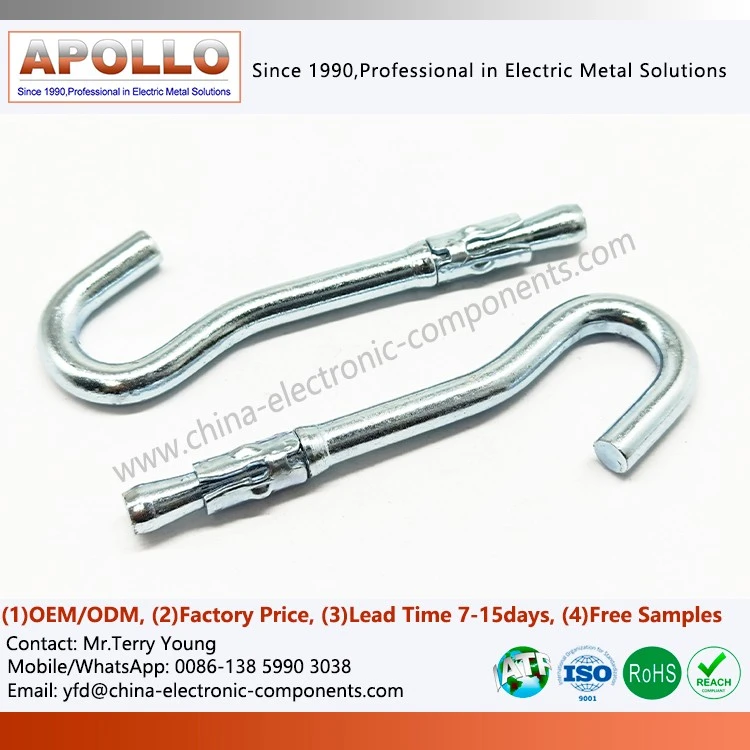

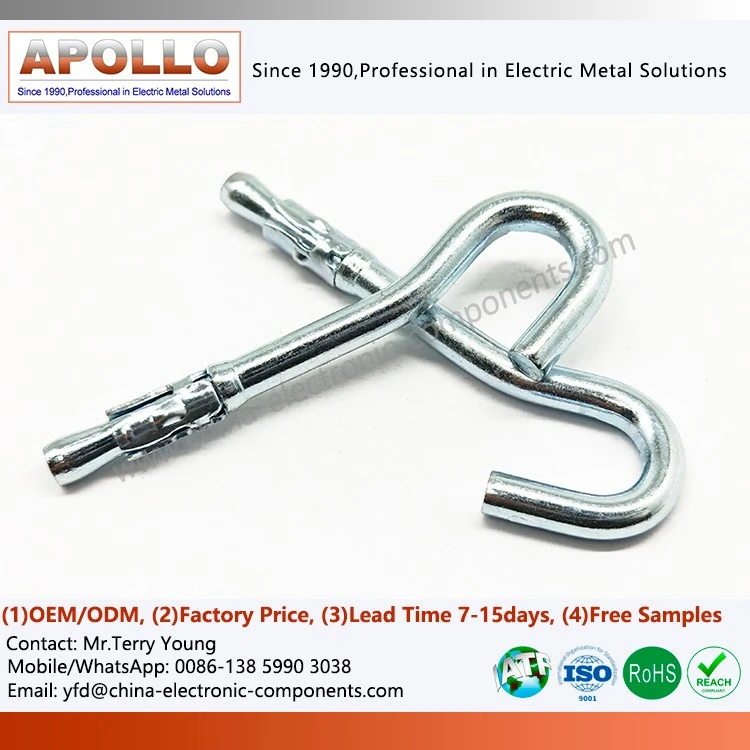

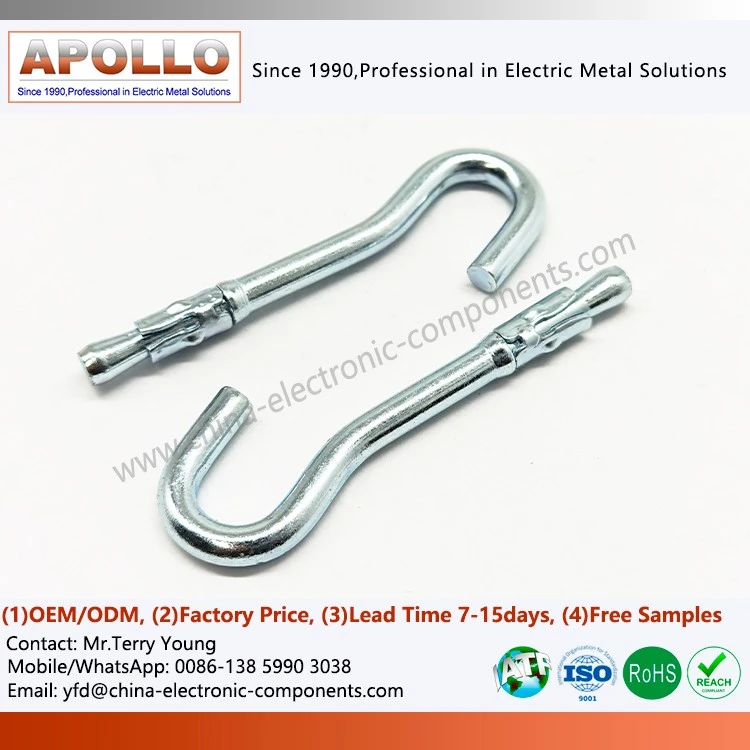

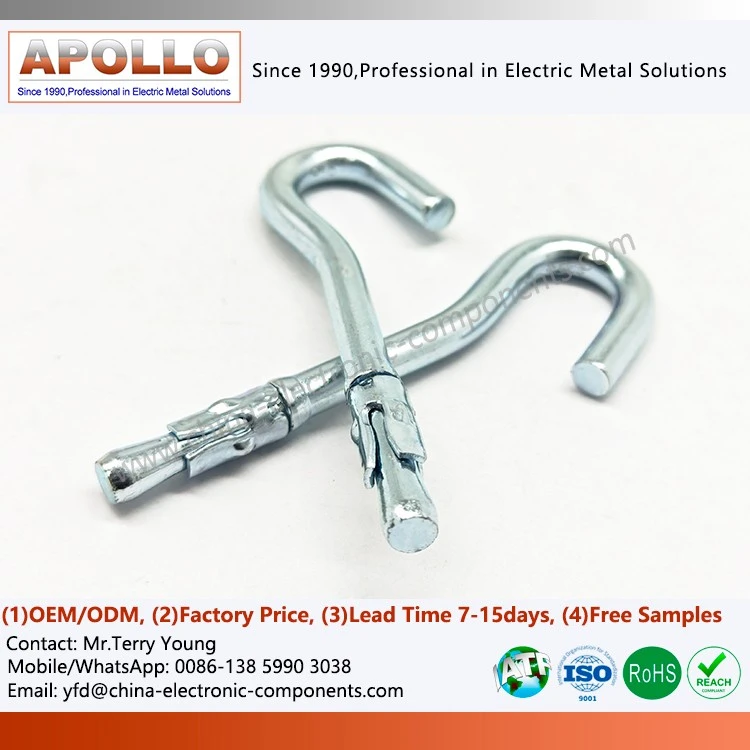

Expansion Wall Hook Bolt is a metal fixing component designed for reliable anchoring in concrete, brick, and industrial wall structures. The self-expanding hook mechanism creates a mechanical locking force inside the mounting base, improving pull-out resistance during long-term loading conditions.
Xiamen Ansite Technology provides OEM metal expansion hook manufacturing services, including progressive stamping, CNC machining, thread forming, surface treatment, and assembly inspection. The factory supports custom dimensions, hook angles, thread specifications, and material selection according to customer drawings.
Our Heavy-Duty Expansion Hook solutions are produced with controlled manufacturing processes for industrial equipment installation, cable management systems, electrical infrastructure support, and mechanical fixing applications. Engineering teams can submit 2D drawings or samples for DFM review before tooling development.
The production system follows ISO 9001 quality management requirements with inspection records covering incoming materials, production dimensions, and final performance checks.
Technical Specifications & Material Standards
| Parameter | Specification |
| Product Type | Expansion Clamp Hook / Hook Type Expansion Anchor |
| Base Material | Carbon Steel / Stainless Steel 304 / 316 |
| Manufacturing Process | Metal Stamping, CNC Machining, Thread Forming |
| Hook Design | J-Hook / Expansion Hook End / Custom Hook Shape |
| Surface Treatment | Zinc Plating / Nickel Plating / Passivation |
| Hardness Range | HRC 25-45 (Material Dependent) |
| Load Capacity | Customized According to Structure Requirement |
| Dimensional Tolerance | ±0.05mm Standard, ±0.01mm Available |
| Corrosion Resistance | Salt Spray Test Available |
| Applicable Standards | ISO 9001, RoHS, REACH |
Application Scenarios & Industry Integration
These fasteners are essential for suspension systems in construction and industrial maintenance. Common applications include:
HVAC Systems
Suspending ventilation ducts and piping from concrete ceilings.
01
Electrical Installation
Supporting cable trays and lighting fixtures.
02
Fire Protection
Anchoring sprinkler system pipelines.
03
General Construction
Fixing safety railings, signage, and shelving units.
04
Infrastructure
Securing components in bridges and tunnels where vibration resistance is required.
05
FAQ
Q1: How does zinc plating improve corrosion resistance for expansion clamp hooks used in outdoor installations?
Zinc plating forms a protective barrier against moisture and oxidation. For outdoor expansion hook applications, coating thickness and salt spray performance can be adjusted according to customer requirements, supporting longer service life in humid environments.
Q2: Can the expansion anchor with a hook end be customized for different wall materials and load requirements?
Yes. The expansion hook structure, sleeve dimensions, material grade, and thread specifications can be modified based on concrete, brick, or industrial wall conditions. Engineering evaluation is performed before tooling approval.
Q3: What quality documents can be provided for OEM heavy-duty expansion hook projects?
For qualified industrial customers, we can provide material certificates, dimensional inspection reports, process control documents, and PPAP-related files. Production traceability supports supplier approval processes for demanding applications.
Request Custom Expansion Hook Solution
Send your drawings, samples, or technical requirements for Expansion Clamp Hook products. Our engineering team provides DFM feedback, prototype support, and factory-direct quotation based on your application specifications. Contact us for OEM manufacturing evaluation and production planning.
