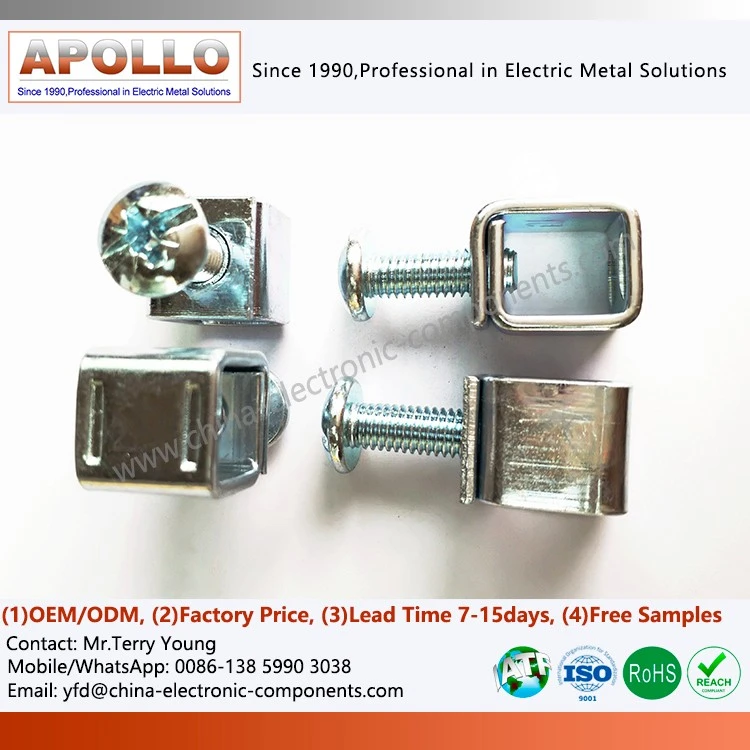

Electrical Screw Terminal Block
Products Description
In traditional electrical cabinets, Electrical Screw Terminal Blocks are often considered passive connectors, but this product redefines them as Electrical Node Management Units. This is not merely a terminology upgrade, but a fundamental shift in functional philosophy: each terminal is an intelligent node with stress buffering, thermal self-regulation, status awareness, and fault isolation capabilities. Addressing the harsh reality of equipment downtime costs calculated in seconds in Industry 4.0 environments, our terminal screw block system, through the cross-integration of materials electrochemistry, precision mechanics, and digital twin technologies, shifts connection failure modes from "reactive maintenance" to "proactive prediction." The product design philosophy stems from a deep analysis of three major hidden costs in industrial settings-wasted installation time, hidden lifecycle failures, and incompatibility with system expansion. Ultimately, what is delivered to purchasing decision-makers is not a single component, but a standardized electrical interface platform that can be embedded into a TPM (Total Productive Maintenance) system.
Precision Manufacturing Process: Ensuring Batch Consistency and Stability
Insulation Shell Molding
Precision injection molding is employed, equipped with high-speed injection molding machines (clamping force ≥1200kN) and high-precision molds. Injection temperature and pressure are monitored in real time to ensure the shell is free of defects such as bubbles, shrinkage cavities, and flash. Dimensional tolerances are controlled within ±0.05mm to ensure a precise fit with guide rails and wires.
Conductive Component Machining
Conductive Ground Terminal Blocks are formed using precision stamping and turning processes, achieving a surface roughness of Ra0.8μm to ensure uniform contact area with wires. The plating uses a continuous electroplating process, with plating adhesion passing a cross-cut adhesion test (no peeling), and thickness uniformity error ≤5%, avoiding abnormal contact resistance caused by uneven plating.
Assembly and Inspection
Automated assembly lines are used, with robotic arms handling processes such as Block Terminal Electrical installation and spring assembly, achieving an assembly consistency of over 99.5%. The entire process implements "raw material inspection - semi-finished product inspection - ... The "full inspection of finished products" three-level quality control includes key testing items such as contact resistance test, insulation withstand voltage test, temperature rise test, vibration test, and aging test. The yield rate of mass production is stable at over 98%.
Design Wisdom: An Embodiment of Engineering Thinking
Modular Design Concept
The Terminal Screw Connector system adopts a modular design, allowing for flexible combination according to actual needs. It adapts to electrical systems of varying sizes and complexities, simplifying design and installation processes.
Ergonomic Considerations
The size and shape of the Screw Block Terminals are ergonomically optimized, making installation and maintenance more convenient, reducing operator fatigue, and improving work efficiency.
Space Optimization Design
Within a compact control cabinet layout, our Screw in Terminal Block design maximizes space utilization, resulting in neater and more organized wiring and reducing system failure rates.
Compatibility Design
Compatibility with electrical equipment of different standards and specifications is considered, ensuring the product's broad applicability.
Engineering Applications: Tailor-Made Solutions
Industrial Automation Systems
In PLC control systems, the reliability of connection points directly affects the stability of the entire control system. Our Screw on Terminals systems ensure the accuracy and reliability of signal transmission, reducing system failures caused by connection point problems.
01
High-End Manufacturing Equipment
In semiconductor manufacturing, precision machine tools, and other equipment, the stability of electrical connections directly affects product precision. Our terminal block clamp systems ensure the stable operation of equipment under high-precision requirements by providing highly reliable connection points.
02
Energy Management Systems
In smart grids and energy management equipment, the reliability of connection points affects the safety and efficiency of the entire system. Our products exhibit excellent performance under high voltage and high current environments, ensuring the stable operation of energy systems.
03
Rail Transportation
In train control systems, the reliability of connection points is crucial to passenger safety. Our Screw Connector Block systems undergo rigorous vibration and environmental testing to ensure connection reliability during high-speed operation.
04
