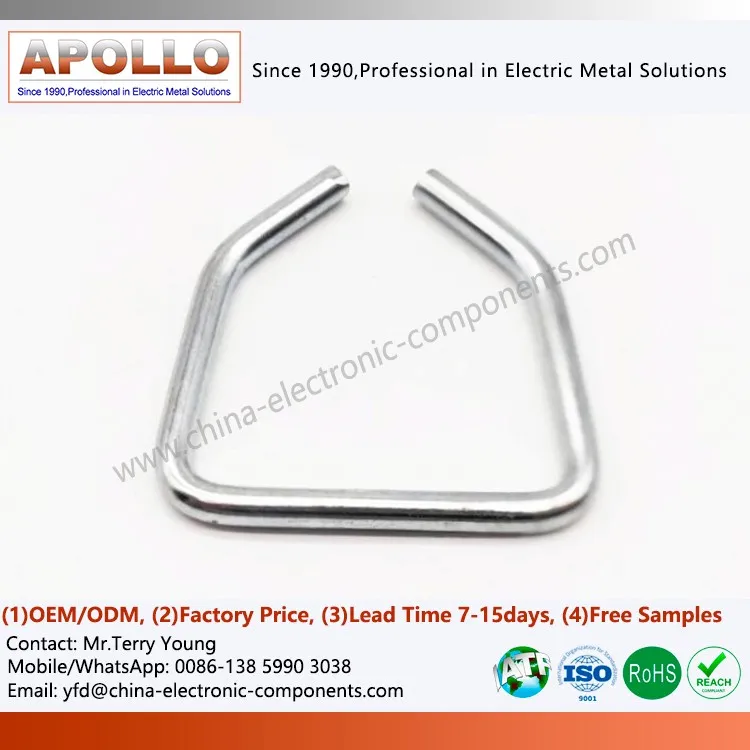

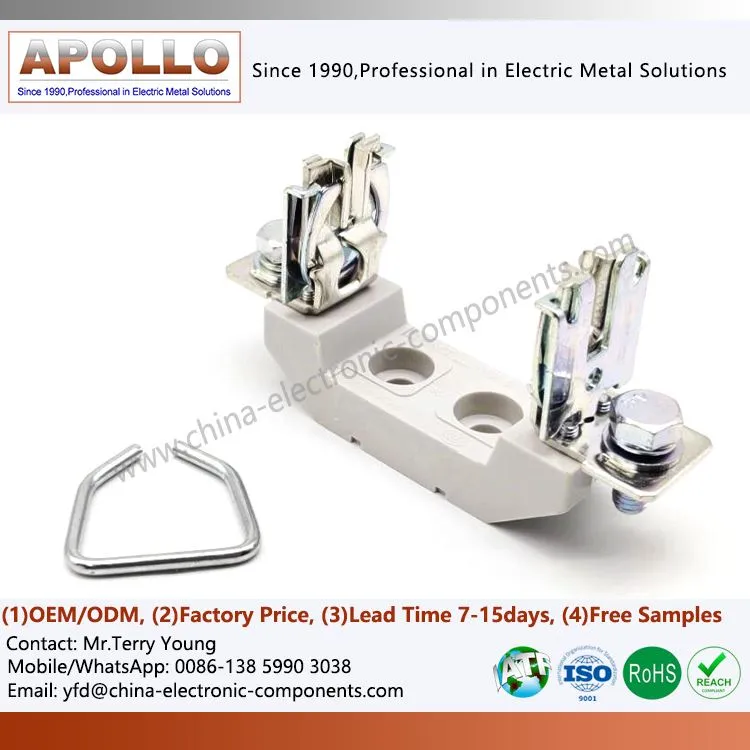

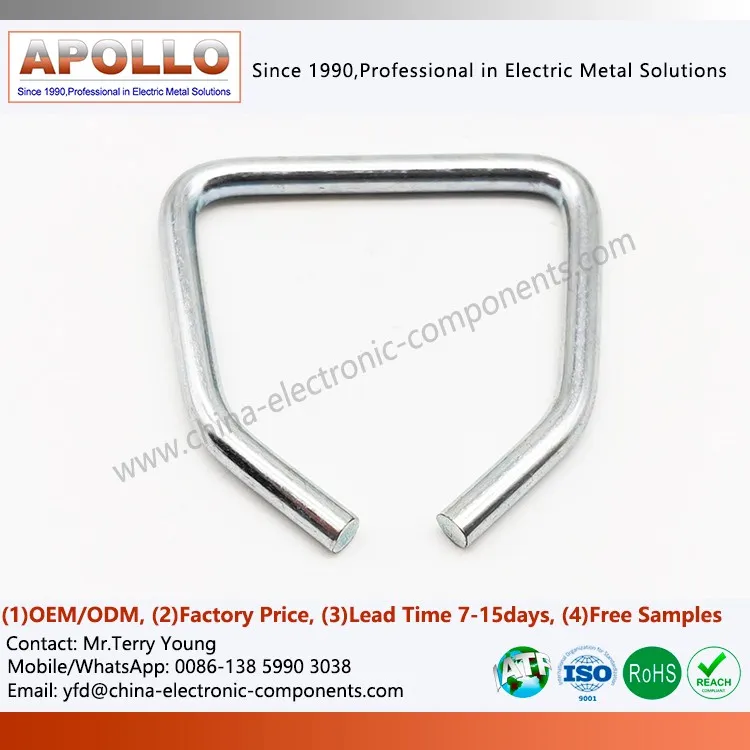

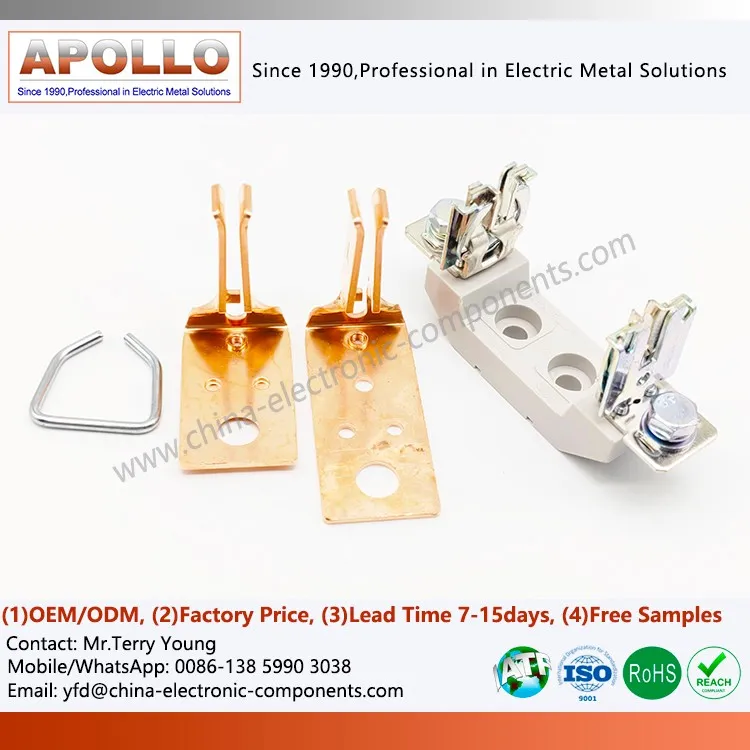

PCB Mount Fuse Clip
Products Description
PCB Mount Fuse Clip is a metal component designed to securely hold a fuse onto a printed circuit board (PCB). It clamps the metal end caps of the fuse using spring tension or a snap-fit mechanism, establishing a reliable electrical connection between the fuse and the circuit. When the current exceeds the rated value, the fuse blows; the clip mechanism ensures the fuse body disengages from the live terminals, preventing sustained arcing.
Key characteristics of these components include:
- Precisely engineered clamping force-insufficient force leads to high contact resistance, while excessive force makes replacement difficult.
- Insulation and clearance distances that meet safety standards to prevent arcing during fuse operation.
- Contact areas capable of withstanding the high-temperature arcs generated at the moment the fuse blows.
- Mounting methods compatible with wave soldering and reflow soldering processes.
Material Properties and Advantages
| Clamping Force Design | The pre-load and opening range of the Fuse Socket Clip are designed based on fuse diameter tolerances (typically ±0.2 mm); this ensures that the jaws are not excessively spread when the largest fuse is inserted, while maintaining sufficient pressure for the smallest fuse. |
| Contact Point Geometry | Three- or four-point line contact is used instead of surface contact to increase contact pressure per unit area and reduce contact resistance. |
| Lead-in Chamfer | A 30°–45° chamfer is designed at the Fuse Carrier Clip entrance to guide the fuse end cap smoothly into place and prevent scratching of the plating. |
| Stop Mechanism | A stop protrusion is added at the base of the Fuse Mounting Clip to prevent the fuse from being inserted too deeply, which could cause the end cap to contact the jaw's solder tabs. |
Manufacturing Process
Multi-stage Bending and Forming
Utilizes multi-axis progressive dies to bend the material incrementally in stages, ensuring a uniform inner bend radius and preventing Fuse Clip fracture.
In-line Optical Inspection (AVI)
At the end of the production line, high-definition industrial cameras compare the opening angle and pin perpendicularity of each Fuse Socket Clip in real-time, immediately flagging any geometric deviations.
Easy to use
The Metric Roller Chain Sprocket is very simple to install and use. The sprocket can rotate in a variety of directions and is very suitable for transmitting complex mechanical equipment for Fuse Carrier Clip.
Frequently Asked Questions
Q: How do I select the right Fuse Mounting Clip specifications?
A: Selection is based on the fuse's outer diameter, rated current range, PCB mounting method (SMD or through-hole), and operating temperature. Standard specifications cover mainstream, general-purpose fuses, while customization is available for special dimensions or high-temperature applications.
Q: Do Fuse Clip affect circuit temperature rise stability?
A: No. The product's low-resistance conductive structure effectively minimizes heat loss during operation, and the balanced contact area prevents localized heat buildup; temperature rise remains stable under rated operating conditions, complying with safety standards for electronic equipment thermal management.
Q: Will frequent insertion and removal of fuses reduce the product's service life?
A: No. The Fuse Socket Clip undergoes a strengthening process to ensure excellent fatigue resistance; standard, proper insertion and removal operations do not cause a loss of spring tension, allowing the clips to meet the maintenance requirements of the equipment's entire lifecycle.
contact us
If your design project requires a reliable and easy-to-install PCB Mount Fuse Clip solution, please feel free to contact our engineering support team. Based on your circuit parameters, layout requirements, and procurement plans, we provide expert selection advice, sample testing, and customization services to help you rapidly achieve efficient circuit protection for your products.
