Round Shape Copper End Cap
Products Description

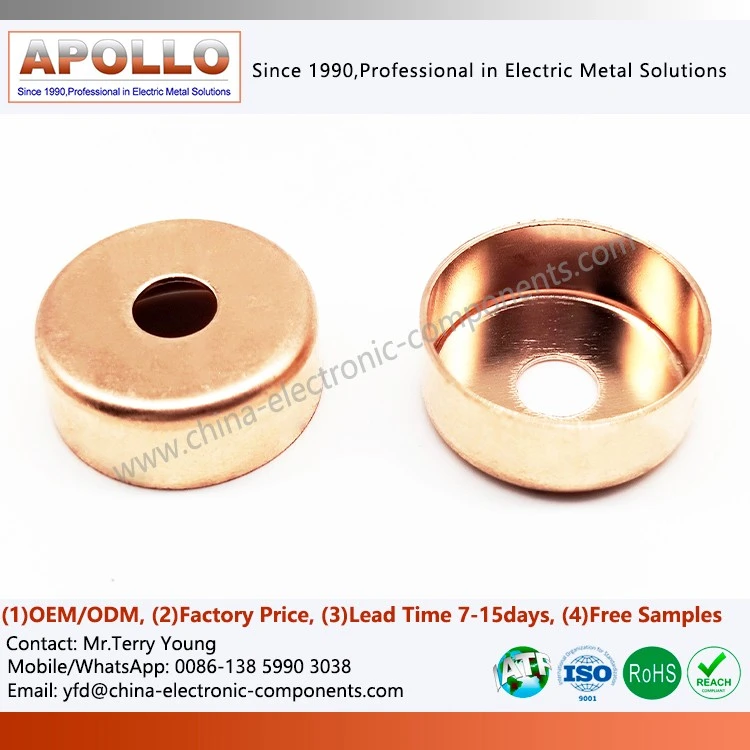

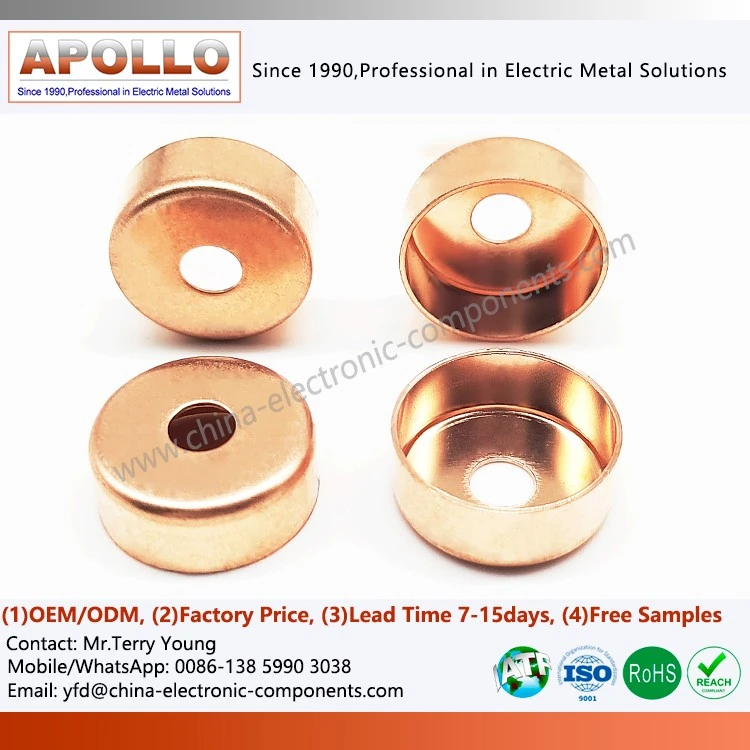

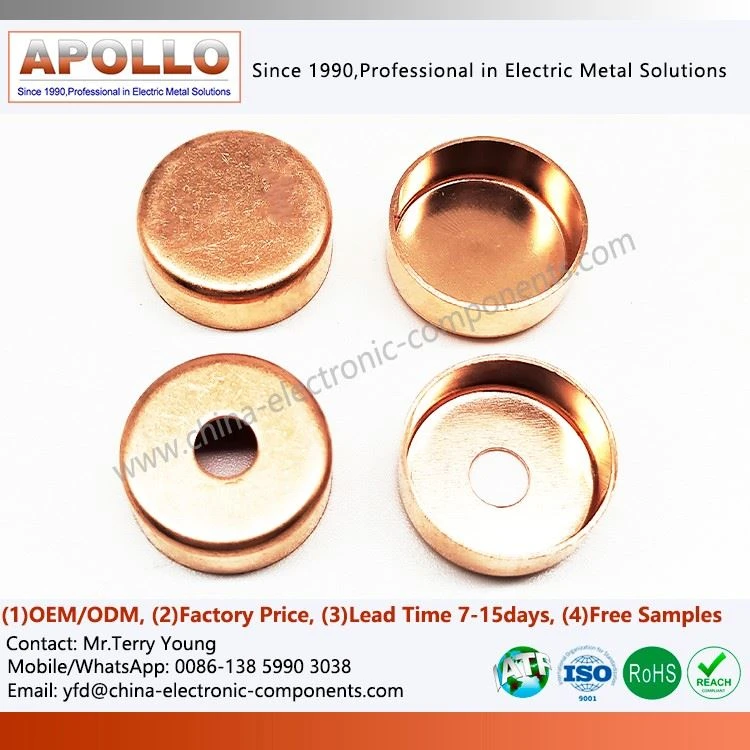

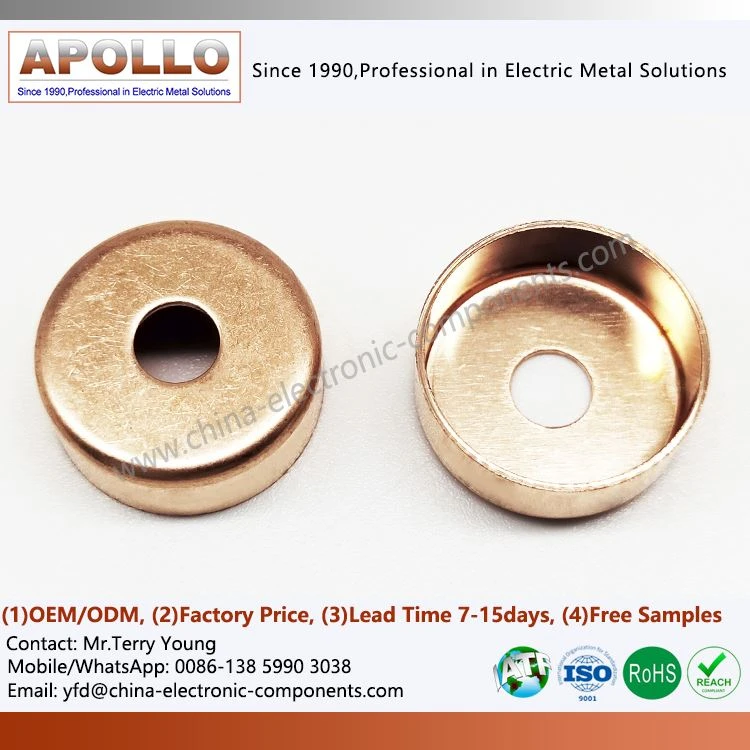

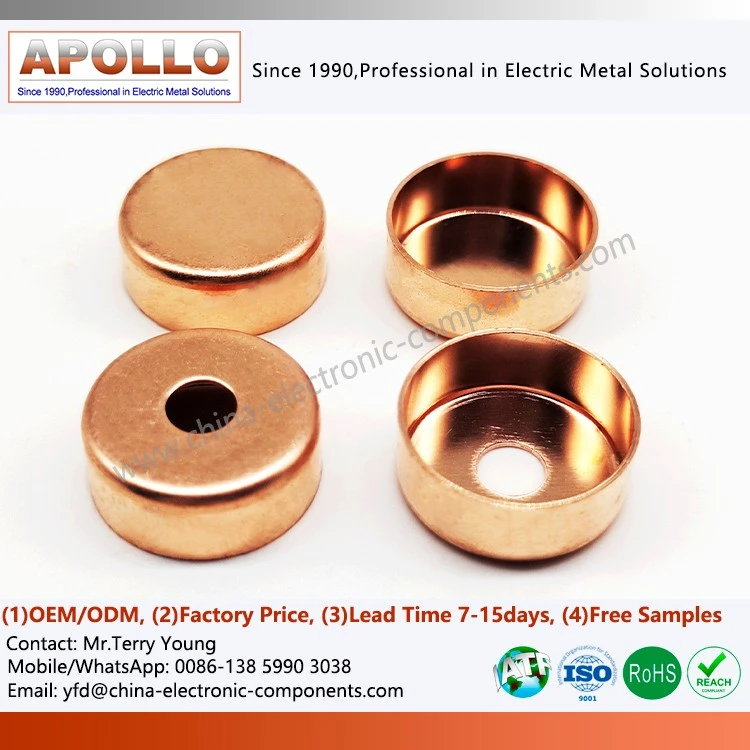

This circular, Round Shape Copper End Cap is precision-crafted from T2Y2 copper, featuring uniform wall thickness and a perfectly round opening, along with excellent electrical and thermal conductivity and suitability for machining. Key characteristics include:
High Electrical Conductivity: The T2Y2 copper material ensures extremely low resistivity, enabling efficient current transmission both before and after fuse operation while minimizing self-heating.
Excellent Welding and Brazing Compatibility: High surface cleanliness facilitates reliable connections with the ceramic body, fuse element, and external conductors, resulting in strong, durable joints.
Balanced Mechanical Strength and Toughness: The circular design provides excellent resistance to deformation and resilience, allowing the cap to withstand assembly pressure as well as operational vibrations and shocks.
Corrosion Resistance and Environmental Adaptability: Specialized surface treatment effectively resists oxidation, moisture, and industrial atmospheric corrosion, thereby extending the overall service life of the fuse.
Material Advantages: The Fundamental Physical Rationale for Using T2 Copper in Electrical Applications
Superior utilization of the current-carrying cross-section
T2 copper boasts exceptionally high electrical conductivity (IACS ≥ 100%). This allows for a thinner wall design for the end cap while maintaining the same rated current, thereby creating space for overall fuse miniaturization and accommodating a larger volume of internal arc-extinguishing media.
Excellent oxidation resistance and electrochemical stability
Upon exposure to the atmosphere, copper naturally develops a dense, thin film of cuprous oxide (Cu2O). This dark-red passivation layer effectively inhibits further, deeper oxidation. In environments prone to complex electrochemical corrosion, copper exhibits minimal potential difference relative to other common electrode materials.
Outstanding thermal conductivity and heat dissipation
When the fuse carries its rated current, the heat generated by the internal fuse element must be rapidly conducted outward for dissipation. The copper end cap serves as an efficient thermal conduction path, effectively lowering the temperature of internal hotspots and delaying the thermal aging of the fuse element.
Application Advantages
High-voltage power distribution systems
Suitable for indoor high-voltage current-limiting fuses (such as the RN and XRN series) rated at 3.6kV–40.5kV. The high electrical conductivity and reliable sealing of the Copper Tube End Caps ensure consistent performance over long-term service.
Medium- and low-voltage industrial power distribution and equipment protection
Suitable for cylindrical cap-type fuses (such as the RT14, RT18, and RO15 series). The circular cross-section and standard dimensions of the end caps ensure compatibility with various fuse bases, offering excellent interchangeability.
Power generation and transmission/transformation facilities
Suitable for high-voltage applications such as transformers, voltage transformers, and capacitor bank protection. The high mechanical strength and thermal shock resistance of the Copper Press Fit End Caps meet the rigorous standards required for these high-reliability applications.
Rail transit and industrial drives
Suitable for circuit protection in rail transit traction systems, industrial variable-frequency drives (VFDs), and high-power power supplies. The vibration resistance and weatherability of the Round Copper Caps ensure long-term reliability under dynamic loads and in complex operating environments.
Detailed Specifications
Exterior Details
The circular copper outer cap features a uniform, glossy finish free of visible scratches or oxidation spots, with smooth, neatly finished edges.
Structural Characteristics
Uniform wall thickness, a smooth internal cavity, and consistent flange height.
Assembly
Fits tightly with the ceramic body, ensuring high concentricity and a professional, aesthetically pleasing appearance.
Performance
Yields robust weld joints; demonstrates a high pass rate in conductivity testing, and maintains excellent condition following environmental stress testing.
contact us
The End Caps for Copper Pipe are precision-machined copper components designed for high-reliability electrical connection applications.
For engineering procurement teams, selecting a supplier with expertise in copper processing, precision manufacturing capabilities, and project support is crucial to ensuring stable product performance and a reliable supply chain.
If you are seeking copper end cap solutions for new energy, electrical protection, or high-current connection systems, we offer professional engineering support and custom manufacturing services-tailored to your drawings, operating environments, and assembly requirements-to help ensure the reliable mass production of your projects.
