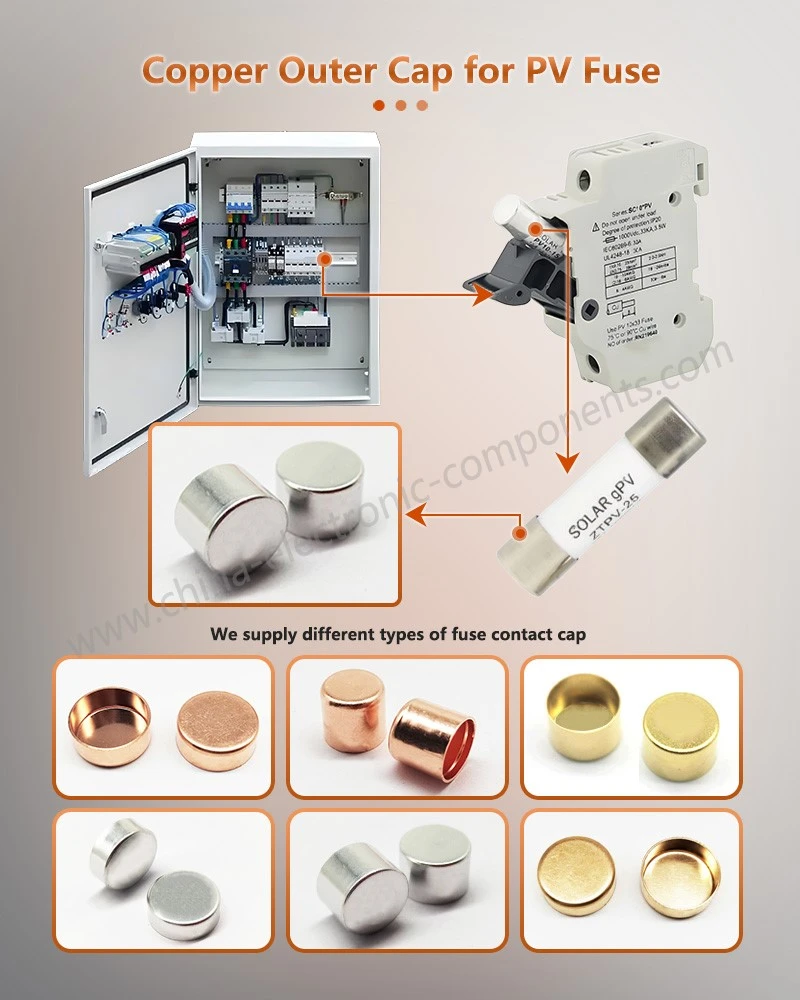

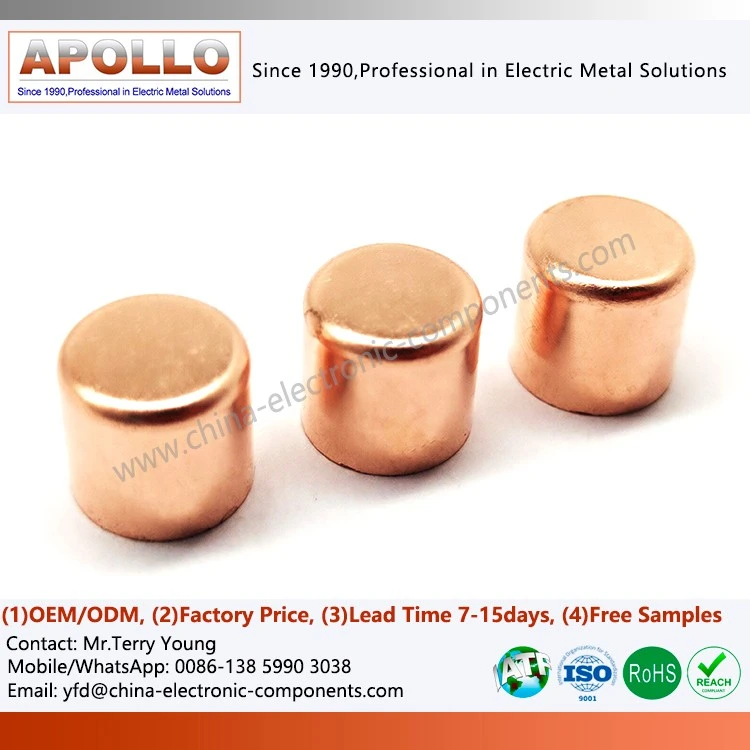

EV Fuse Copper Outer End Cap
Products Description
The EV Fuse Copper Outer End Cap is one of the core components of high-voltage DC fuses for electric vehicles; it refers to a high-conductivity purple copper metal end cap formed through precision stamping, deep drawing, or machining processes. Serving as the critical electrical and mechanical interface connecting the fuse element to the external circuit, its primary functions are to provide high current-carrying capacity, establish a sealed arc-extinguishing chamber, and form a highly reliable, permanent bond with the fuse body (such as a ceramic or epoxy tube). Consequently, it acts as the structural cornerstone that ensures the fuse maintains stable performance and reliable safety during both normal operation and fault interruption events.
Technical Features
| Precision Machining with Burr-Free Finish | Both the inner and outer edges of Copper Cap for BS(British Standard) Type Fuse undergo a meticulous deburring process to prevent puncturing of the insulation layer or damage to mating components during installation. |
| Weldability and Brazeability | The inner wall surface of Copper Cap for Cylindrical Fuses is specially treated to ensure optimal compatibility with melt sheets for laser welding, resistance welding, or brazing, resulting in full, robust, and high-strength weld seams. |
Product Advantage
Protection Advantages
Featuring a precision-sealed structure, the product meets the specific sealing requirements of diverse operating environments. Copper Outer Cap for Industrial Power Fuse effectively safeguards the internal fuse elements, mitigates the impact of external environmental factors, and enhances both the reliability and service life of the fuse.
Assembly Advantages
Characterized by precise dimensions, a rational structural design, and strong compatibility, the product allows for rapid assembly with the fuse body without the need for additional adjustments. This boosts assembly line efficiency and reduces overall assembly costs for Copper Cap for BS(British Standard) Type Fuse.
Design Advantages Analysis
Material Optimization
The wall thickness of the Copper Cap for Cylindrical Fuses is optimized based on current rating requirements, balancing electrical conductivity with mechanical strength.
Crimping Structure Optimization
Finite Element Analysis is employed to optimize the geometry of the crimping groove, thereby enhancing connection strength.
Tolerance Fit Design
The fit tolerances between the Copper Outer Cap for Industrial Power Fuse
and the tubular body undergoes rigorous validation to ensure full interchangeability.
contact us
We specialize in supplying EV Fuse Copper Outer End Cap, offering both standard off-the-shelf products and non-standard custom solutions. We provide expert selection guidance, sample prototyping, and reliable bulk delivery to support your engineering procurement and R&D requirements. We welcome your inquiries and look forward to collaborating with you.
