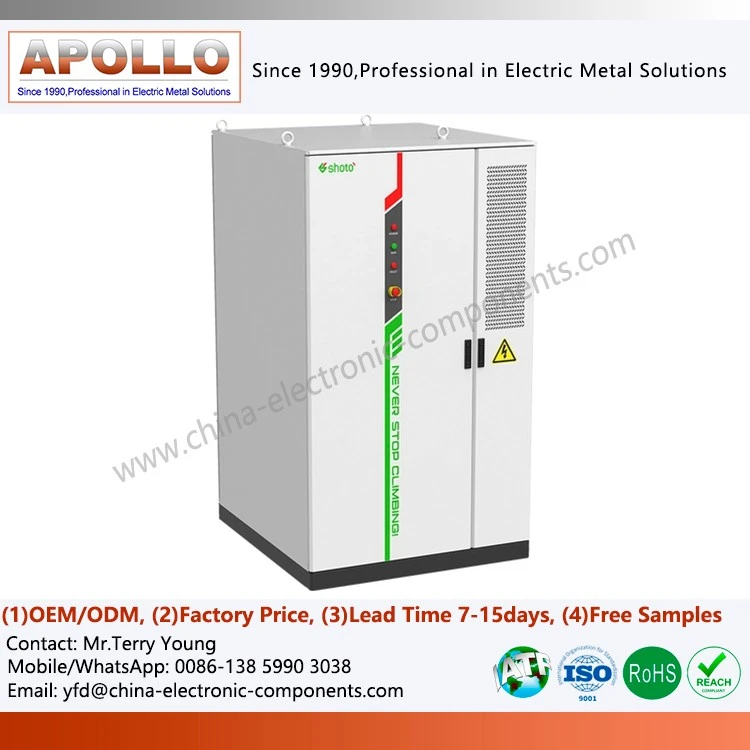

Lithium Iron Phosphate Energy Storage Battery Cabinet
Products Description

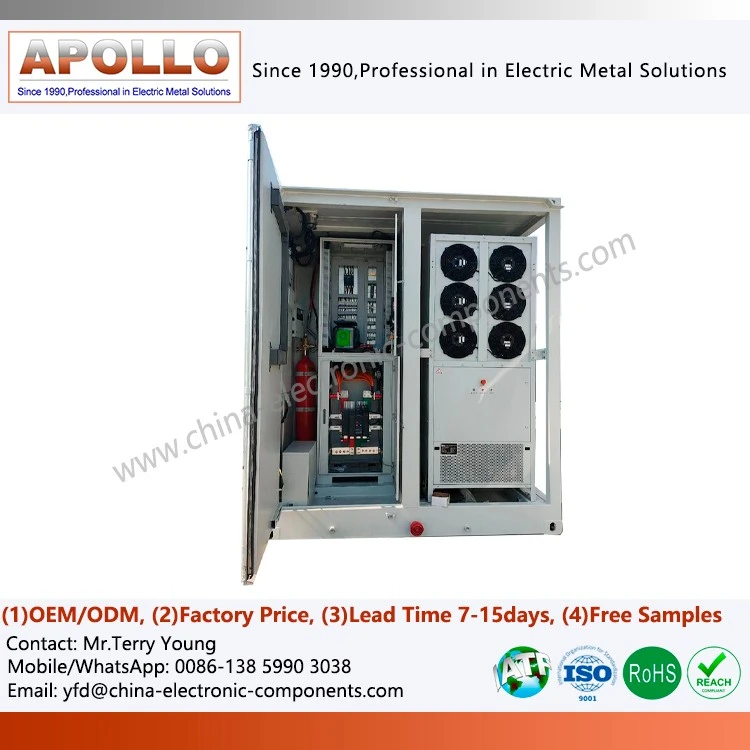

Our Lithium Iron Phosphate Energy Storage Cabinet features a modular, integrated design, allowing for flexible configuration to meet the diverse needs of different energy storage projects. It is suitable for various industrial, commercial, and renewable energy applications.
The main structure includes:

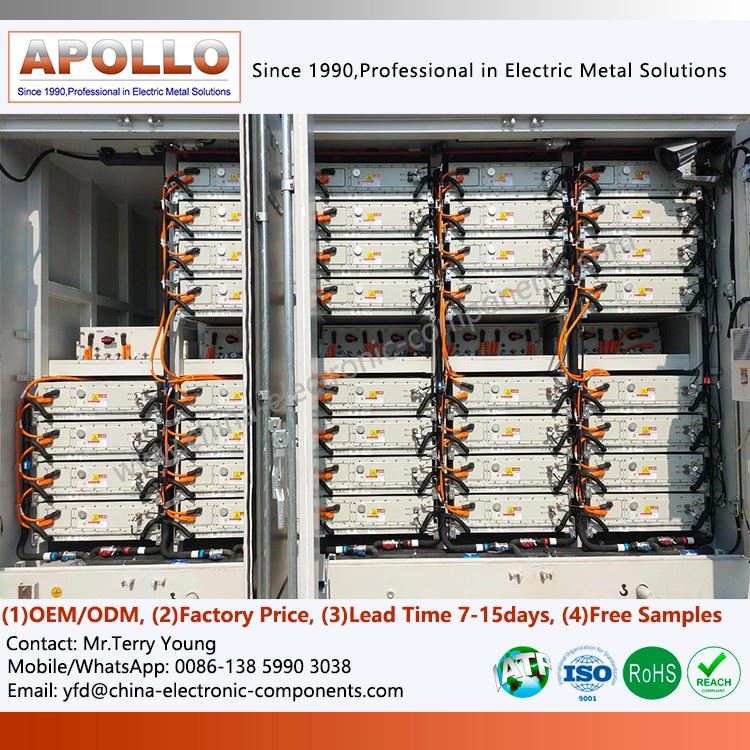

LiFePO4 Battery Modules
Battery Management System (BMS)
PCS Interface
Thermal Management System
Intelligent Monitoring Unit
Fire Protection System
High-strength Energy Storage Cabinet Structure
DC/AC Cable Integration

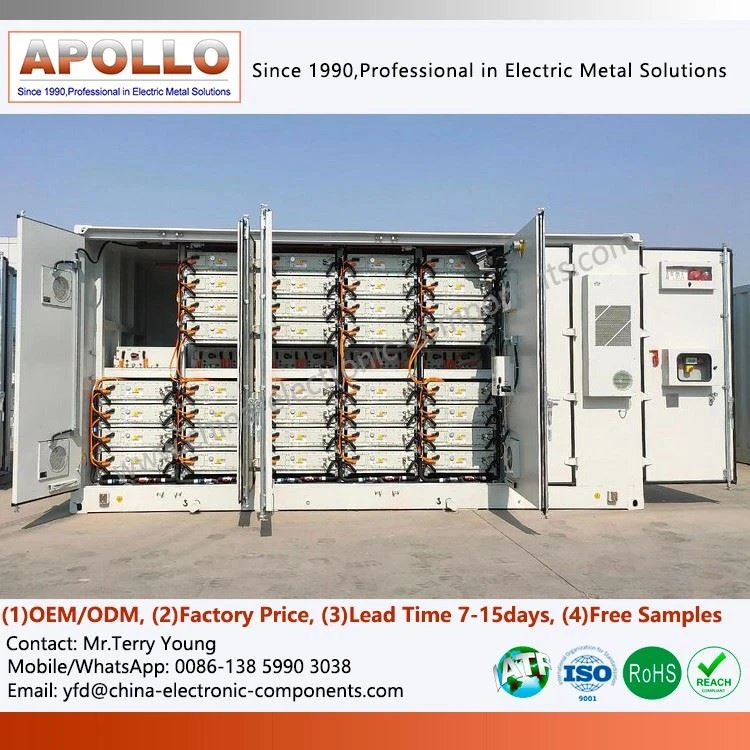

The system supports centralized and distributed deployments, and can be expanded in capacity and connected in parallel with multiple cabinets according to project requirements.
Design Advantages: Extreme Utilization of Thermodynamics and Spatial Topology
| Bionic Microchannel Thermal Management Flow Field | Targeting the heating characteristics of square lithium-iron-phosphate batteries, a CFD (Computational Fluid Dynamics)- driven bionic microchannel liquid cooling plate design is employed. The coolant forms turbulence within the channels, controlling the temperature difference within an extremely small range, eliminating "hot spots" and "cold spots" within the module. This ensures that the internal resistance consistency remains highly convergent with increasing cycle count, directly extending the system-level cycle life. |
| Multi-stage Pressure Relief and Directional Drainage Topology | Under extreme thermal runaway conditions, the liquid-cooled energy storage cabinet structure design follows the principle of "drainage is better than blockage." Gradient pressure relief channels are formed between the module level, compartment level, and cabinet level. High-pressure, high-temperature gas is diverted outward through directional exhaust pipes, ensuring it never affects adjacent modules or electrical compartments, achieving true "point-to-surface" physical isolation. |
| Compact layout with full front maintenance | Designed for limited deployment space in urban data centers or factories, the liquid-cooled energy storage cabinet features a single-sided cabling and insertion box design with full front-opening maintenance. When installed back-to-back or against a wall, no rear maintenance access is required, minimizing the footprint of the energy storage station. |
Core Properties and Material Advantages: A Chemically-Grade Safety Foundation
1. Selection of High-Grade LFP (Lithium Iron Phosphate) Cells
We insist on using a highly consistent lithium iron phosphate chemistry system. Compared to ternary lithium batteries, LFP's olivine structure has an extremely high thermal decomposition temperature (>800°C), fundamentally eliminating the risk of large-scale combustion caused by thermal runaway.
2. Industrial-Grade Shell Materials and Processes
High-Strength Cold-Rolled Steel: The energy storage integrated cabinet utilizes high-thickness cold-rolled steel plates, combined with a reinforcing rib structure design, which meets the requirements for high-intensity earthquake resistance.
Fluorocarbon Coating Technology (C5 Corrosion Resistance): For coastal high-salt spray or extremely humid environments, a multi-layer powder coating process is used to ensure that the cabinet will not rust or fade during 10-15 years of outdoor service.
Application Advantages: Flexible Deployment, Adaptable to All Scenarios
High-energy-consuming industrial and commercial parks
Seamlessly integrated into the factory's power distribution network, Solar Wind Energy Storage Cabinet occupies a minimal footprint, operates with low noise (liquid-cooled mode), and does not affect the production and office environment, helping enterprises achieve zero-carbon transformation, cost reduction, and efficiency improvement.
High-altitude and polar microgrids
Addressing the insulation degradation and heat dissipation deterioration caused by low air pressure at high altitudes, the system features special electrical clearance reinforcement and liquid-cooled flow field pressurization design; the polar version integrates PTC intelligent heating and multiple insulation layers to ensure safe charging and discharging of batteries even at -30 degrees Celsius.
Coal-fired power plants with frequency regulation
Combined with thermal power units, utilizing the millisecond-level response speed of the energy storage cabinet, All in One PV Power Storage System Cabinet significantly improves the K-value performance of frequency regulation for thermal power units, reduces unit wear, and obtains high frequency regulation compensation benefits.
contact us
We not only provide standardized Energy Storage Cabinets for Outdoor products, but also offer engineered energy storage solutions that combine structural design, system integration, and batch delivery, taking into account the project application environment, grid architecture, and energy management needs, to help customers promote the implementation of new energy storage projects more efficiently.
