Electrical Cabinets



Product Type	Main Application Areas	Key Features
Server Cabinet	Data Centers, Cloud Computing Rooms	Modular Design, High Load Capacity, IP55 Protection
Energy Storage Cabinet	Industrial and Commercial Energy Storage, Distributed Power Stations	Fireproof Structure, Intelligent BMS, Modular Expansion
EV Charging Cabinet	Highways, Bus Depots, Commercial Complexes	High Power Output, Liquid Cooling, IP65 Protection
Electric Cabinet	Industrial Control, Power Grid Substations	High/Low Voltage Universal, Insulation Isolation, Modular Expansion









1 Materials and Structural Features

Material: 1.5mm high-quality cold-rolled steel plate, electrostatically sprayed, corrosion-resistant up to C5 grade.

Structure: Modular assembly design, supports front/back/left/right expansion, compatible with standard 19-inch equipment.

Cooling: Dual top-mounted fan assembly + honeycomb ventilation grille; supports hot-swappable redundant power supply system



















































































2 Technical Parameters

Protection Rating: IP55

Static Load Capacity: 1500kg; Dynamic Load Capacity: 800kg

Operating Temperature: -20°C to 60°C



3 Production Process

Cutting and Forming: Fully automatic laser cutting + CNC bending, dimensional accuracy ±0.1mm;

Welding: Robotic laser welding or argon arc welding, weld strength ≥ 90% of the parent material;

Surface Treatment: Seven pre-treatment steps (degreasing, water washing, pickling, phosphating, passivation, and drying) to ensure coating adhesion;

Testing: Coordinate Measuring Machine + Pressure Test (20% higher than the design value).



4 Application Scenarios

Supercomputing Center: Supports customized 42U/48U high cabinets, compatible with hot and cold aisle containment systems;

Financial-grade Disaster Recovery Center: Earthquake-resistant design of magnitude 8, equipped with an intelligent monitoring module;

5G Base Station: IP55 protection, -40°C to 70°C operating temperature range

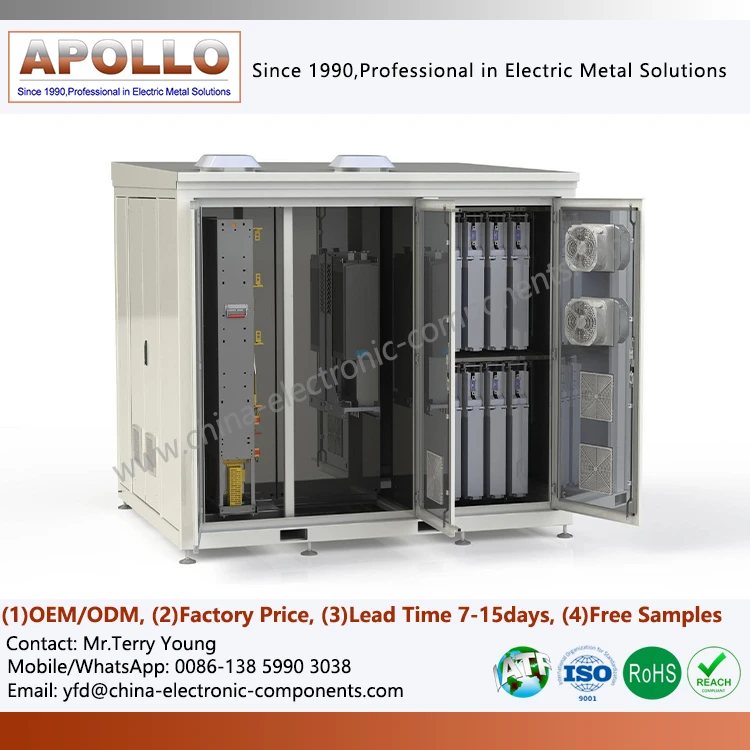

1 Materials and Features

Fireproof Structure: Double-layer flame-retardant steel plate + aerogel insulation, compliant with UL94 V-0 standards;

Smart Management: Integrated BMS system supports remote monitoring and alarms.

Scalability: Supports parallel connection of multiple cabinets, with flexible capacity configuration (100kWh to 10MWh).





























































2 Technical Parameters
Item Parameters Performance Advantages
Capacity Compatibility: 50kWh–3MWh; Supports Multi-Brand BMS Protocols
Cycle Life: ≥6000 cycles @ 80%; 15% lower degradation rate
Energy Density: 160Wh/kg; 20% higher space utilization
Communication Interface: CAN/RS485/Ethernet; Supports OTA remote upgrades

Efficiency: Cycle efficiency: ≥95%

Protection Rating: IP54 (Outdoor model up to IP65)

Operating Humidity: 10%–95% (non-condensing)



3 Processing and Quality Control
Precision Sheet Metal Forming → Fireproof Coating → Explosion-Proof Cable Trunk Installation → System Joint Commissioning → High and Low Temperature Cycle Testing



4 Application Value

Peak shaving and off-peak shifting for industry and commerce: Intelligent EMS control reduces annual electricity bills;

Emergency backup power for data centers/hospitals (switching time <1ms);

Compliant with IEC62933 standards, eligible for carbon asset returns.





1 Materials and Features

Material: 2.0mm aluminum-zinc plate (rust-free after 2000 hours of salt spray testing);

Cooling: Independent air ducts + liquid cooling module, capable of full power operation even at 45°C;

Smart Interaction: 10-inch industrial touchscreen, supports QR code scanning, card swiping, and OTA updates.





























































2 Technical Parameters

Input Voltage: AC 380V ±15% / DC 750V

Output Power: 60kW-480kW

Maximum Current: 500A (Liquid-Cooled Version)

Protection Rating: IP55 (IP65 optional)

Efficiency: ≥92%

Material: SGCC Cold-Rolled Steel / 304 Stainless Steel

Communication Interface: CAN/RS485/Ethernet

Operating Temperature: -35°C-+55°C



3 Production Process
Laser Drilling → Sealing with Beads → Lightning Protection and Grounding → Module Integration → Full-Load Impact Test.



4 Application Scenarios

Highway Service Areas: ISO 16750-certified seismic design;

Urban Fast Charging Stations: Concealed charging connector with side-opening door for easy maintenance;

Old Community Renovation: Lightweight aluminum frame with wall-mount design saves 30% installation space.





1 Materials and Characteristics
Insulation structure: SMC composite partition (arc resistance 15kV), copper busbar tinned;
Intelligent monitoring: built-in wireless communication module and energy consumption detection system;
Standard support: GGD, MNS, GCK, and other types can be customized.



























































(1) GCK low-voltage withdrawable switchgear
Material: 1.5mm cold-rolled steel (Baosteel SGCC certified), galvanized for corrosion protection;
Busbar: T2 electrolytic copper, conductivity ≥98%, surface silver plating ≥8μm;
Modular design: unit module 25mm, support flexible expansion;
Parameters: AC 400V, busbar rated current 6300A, withstand 125kA/1s.
(2) KYN28-12 high-voltage central cabinet

Assembled structure, no welding deformation;

Using an imported epoxy casting circuit breaker;

Complies with IEC 62271-200 standard, arc withstand 31.5kA/1s.

Rated voltage 12kV, rated current 4000A.

















































































2 Process and testing

CNC copper busbar processing → insulation spraying → circuit assembly → AC 4200V withstand voltage test (1 minute).

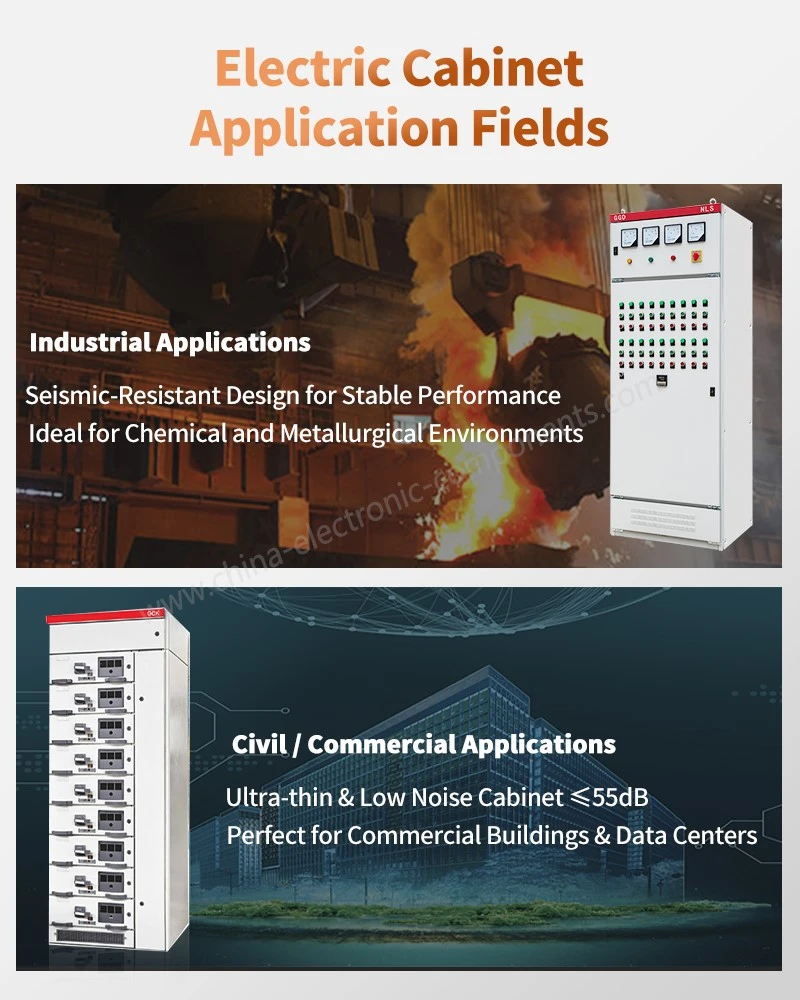

3 Application areas

Industrial scenario: earthquake-resistant design, suitable for chemical and metallurgical environments;

Civil scenario: ultra-thin silent cabinet (≤55dB), suitable for commercial buildings and data centers.





Group strength:
Registered capital of 120 million yuan, dual production bases in Xiamen and Ningbo, with a total production capacity of 8,000 tons/year. The main business covers new energy and low-voltage electrical (revenue ratio 6:4).



Global Service Network:
Four branches in Europe, the Middle East, Southeast Asia, and Northeast Asia, providing localized technical support and rapid response.

Over 500 models in stock, shipped within 48 hours.



Free samples shipped within 1–2 days.

New mold turnaround time: 20–30 days (industry average: 45 days);

Mass production within 15–20 days.



Customization Process (7-step transparent service):
Drawing submission (PDF/CAD/3D) → 48-hour process evaluation and quotation → Sample trial production → Mold fabrication → Sample confirmation → Mass production → Inspection and shipment.





Over 20 years of experience in electrical cabinet manufacturing and sheet metal structure design.

Full-process capabilities include laser cutting, CNC machining, welding, painting, and electrical installation.

Strictly adhere to ISO9001 / IATF16949 / CE / RoHS standards.

Customization capabilities cover the full voltage range from 400V to 35kV.

A global market service system ensures fast delivery, consistent quality, and strong support.
