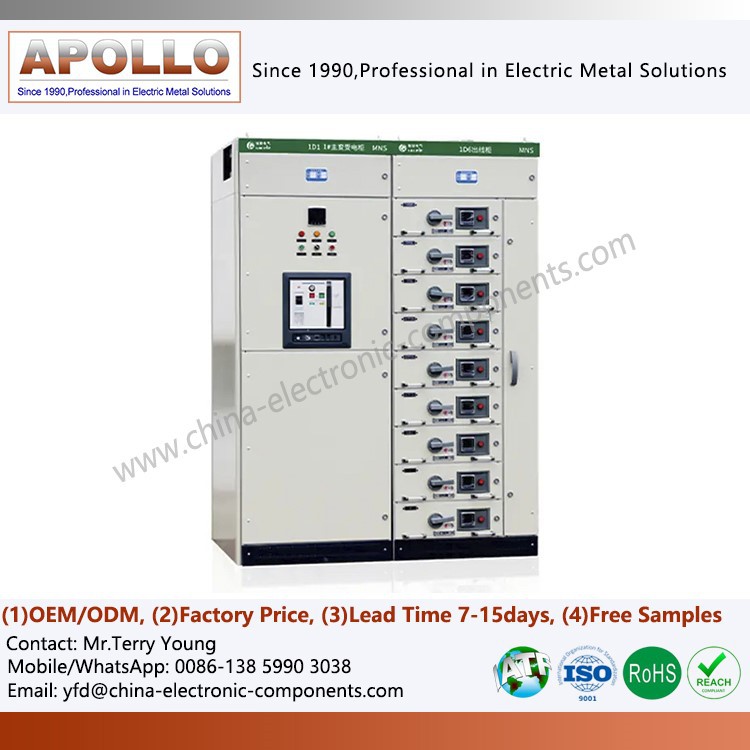

Power Rack Distribution Cabinet
Products Description
Our power rack distribution cabinet series is designed to be "highly reliable, easily expandable, and intelligent." Unlike general power distribution products on the market, we emphasize performance redundancy and electrical isolation under extreme operating conditions.
Robust Physical Architecture: Utilizing a standardized frame structure, it boasts extremely high seismic resistance and load-bearing capacity, ensuring structural integrity even under large-scale cabling environments.
Full Lifecycle Monitoring: Built-in sensing arrays capture current, voltage, harmonics, and busbar temperature rise in real-time, transforming "passive maintenance" into "proactive early warning."
Exceptional Isolation Performance: Functional units are physically isolated using high-strength insulation materials, effectively preventing the escalation of accidents and ensuring that localized faults do not affect overall operation.
Manufacturing Advantages

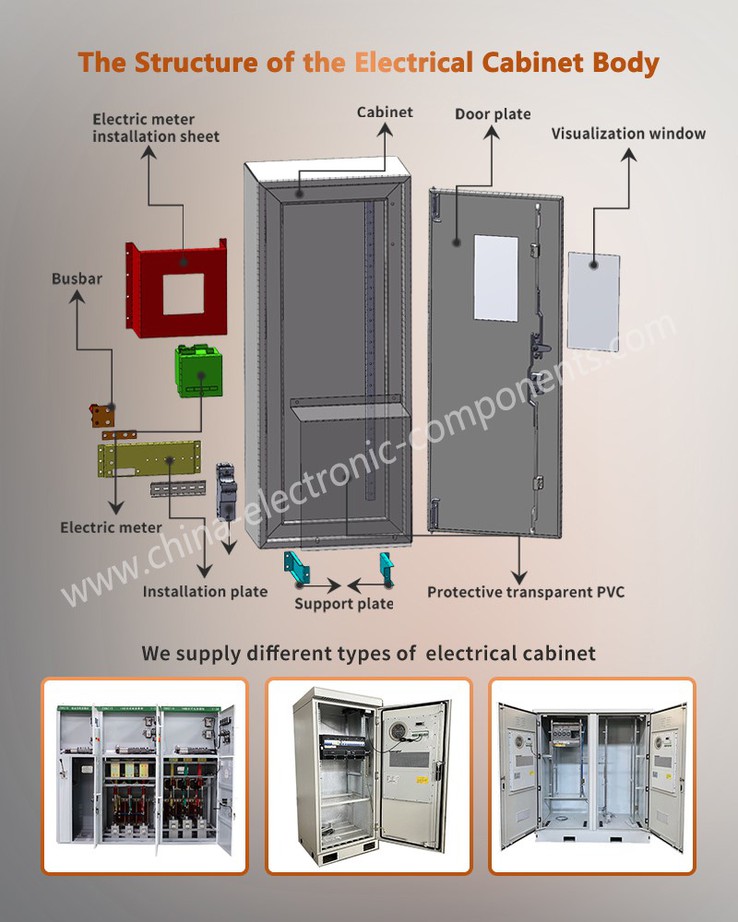

| Modular architecture design is the core of manufacturing | The Steel distribution cabinets frame adopts a modular assembly structure using aluminum profiles or nine-fold profiles, with side panels, top panels, bottom panels, and door panels all being detachable, independent modules. This architecture allows for the rapid development of models with different U-numbers, depths, and functional configurations on the same platform, meeting diverse market demands while maintaining high component interchangeability and optimized inventory. |

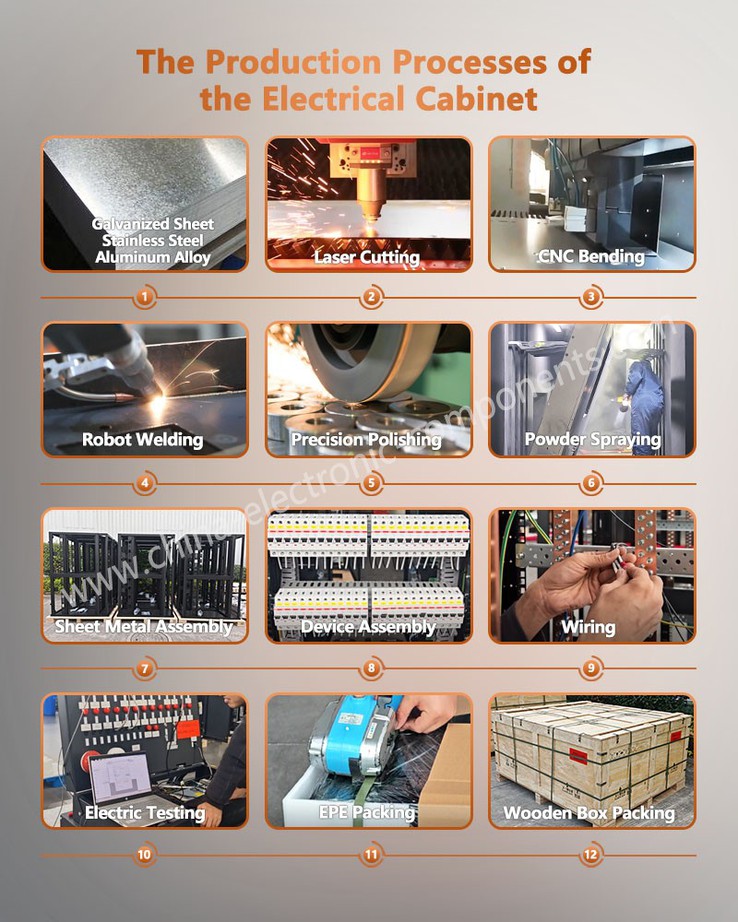

| Precision sheet metal processing ensures structural accuracy | CNC punching and bending machines achieve a machining accuracy of ±0.1mm, ensuring the parallelism and spacing accuracy of the 19-inch mounting rails, guaranteeing smooth installation of circuit breakers and socket modules. Welding utilizes robotic automated welding or laser welding, resulting in uniform and aesthetically pleasing welds with high structural strength. Surface treatment involves three processes: pretreatment (degreasing, phosphating), electrostatic spraying, and high-temperature curing, resulting in a coating with strong adhesion, scratch resistance, and chemical corrosion resistance. |
| Electrical system integration capabilities reflect manufacturing depth | From copper busbar processing, circuit breaker installation, secondary wiring to intelligent module programming, the entire process is completed in the factory. Copper busbars are punched, bent, and sheared using CNC busbar machining centers, ensuring high precision and minimal burrs. Wiring uses crimped terminals and heat-shrink tubing markings, ensuring standardized processes and traceability. Before leaving the factory, 100% insulation resistance, withstand voltage, and power-on functionality tests are conducted to ensure zero-defect delivery. |
| Vertical integration of the supply chain guarantees reliable delivery | Strategic partnerships are established with well-known brands for key components such as circuit breakers, surge protectors, and smart meters to ensure genuine Wall-mounted metal distribution supply and technical support. Sheet metal parts and copper busbars are manufactured in-house or sourced locally, shortening the supply chain radius. Finished product inventory is combined with rapid production lines to support fast delivery of standard models and flexible production of customized models. |
Product Advantages: Value Accumulation Throughout the Product Lifecycle
Exceptional Operational Continuity
Thanks to dual guarantees of thermal management and structural stability, the rate of unplanned downtime due to environmental overheating or loose connections approaches zero.
Simplified Maintenance and Cost Reduction
Clear internal wiring and modular design reduce on-site electrician troubleshooting time from hours to minutes, significantly lowering subsequent manpower maintenance costs.
Seamless System Integration
Whether connected to traditional SCADA systems or modern IoT cloud platforms, open communication protocols and reserved intelligent interfaces allow the Intelligent Distribution Cabinet to seamlessly integrate into the customer's digital ecosystem, preventing the creation of "information silos."
Application Advantages
| In data center scenarios | Fiber Distribution Hub Cabinet are the standard solution for rack-level power supply. Deployed at the top of server racks (Zero-U installation) or inside (1U/2U occupancy), they achieve a three-tier power distribution architecture of "rack-top cabinet - rack power distribution unit - server," shortening the power supply radius, reducing line losses, and improving the controllability of power quality. |
| In communication equipment room scenarios | The product adapts to the -48V DC or 220V AC power supply requirements of telecommunications equipment, supports automatic switching between dual inputs, and meets the high reliability requirements of communication equipment. Its compact structure fits the limited space of communication equipment rooms, and intelligent monitoring supports remote operation and maintenance, reducing on-site inspections. |
| In edge computing nodes | The plug-and-play nature of Distribution Cabinets for Data Centers supports rapid deployment. In prefabricated data centers, containerized data centers, and other scenarios, the product is configured in the factory, requiring only input/output connections on-site, significantly shortening the construction cycle and supporting rapid business launch. |
| In industrial automation scenarios | The Outdoor fiber optic distribution cabinet provides clean power for PLCs, DCS, industrial servers, and other devices. Optional isolation transformers suppress grid noise, UPS interfaces ensure uninterrupted power supply, and surge protection mitigates electromagnetic interference in industrial environments, ensuring stable control system operation. |
| In laboratory and testing environments | Multiple independent outputs and independent protection facilitate power management for different experimental equipment. Intelligent monitoring and recording of energy consumption data support experimental cost accounting, and the compact structure adapts to the limited space of the laboratory. |
contact us
If your Distribution electrical cabinet has higher requirements for stability, structural customization capabilities, and manufacturing consistency of the power distribution system, we can provide engineering-level optimization solutions and in-depth customization support based on specific application scenarios.
