Cooler Master Cabinet With 650w Smps
Products Description

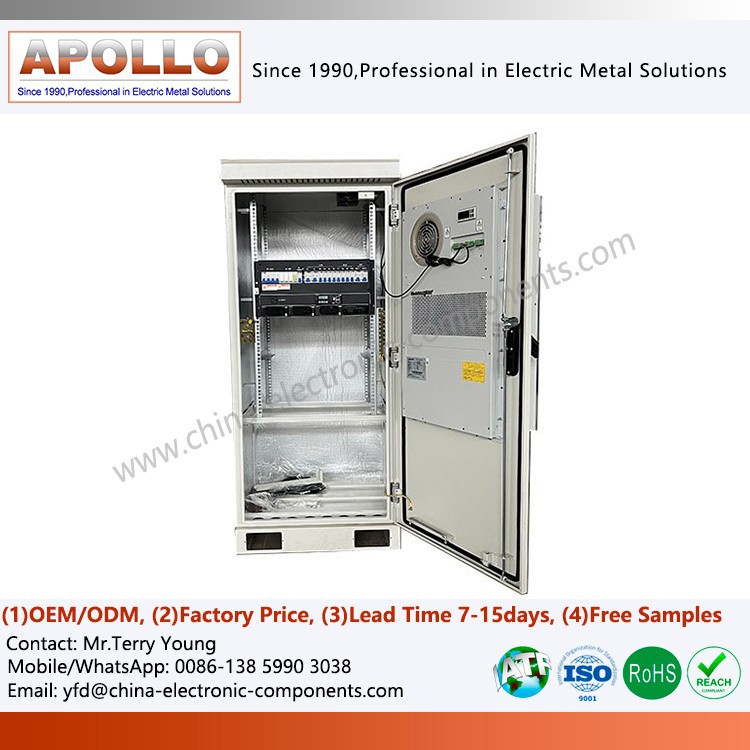

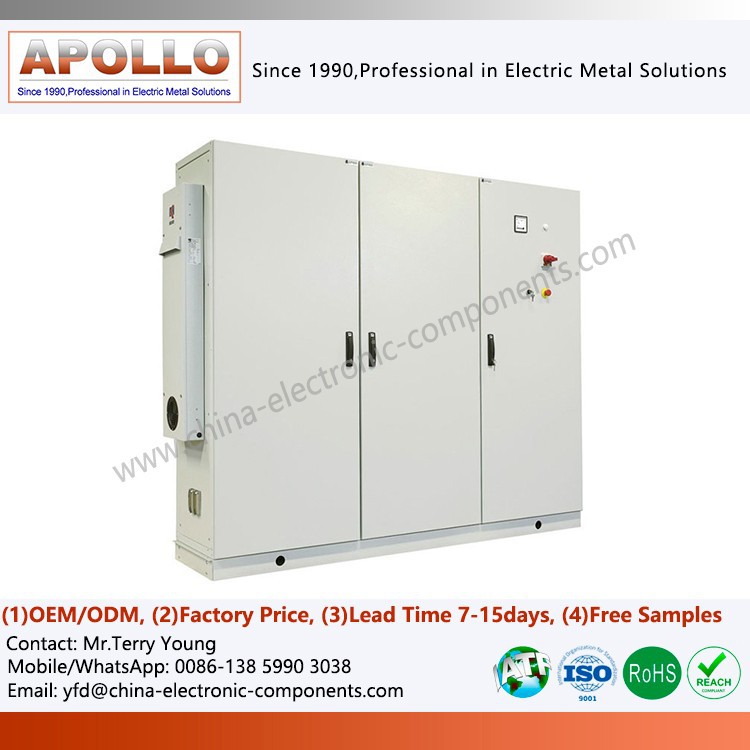

Our cooler master cabinet with 650W SMPS is designed with structural reliability and system integration at its core. It deeply integrates the power module with the electrical cabinet, achieving efficient organization and orderly distribution of internal functional units through a standardized framework and modular layout. The overall structure emphasizes a balance between strength, stability, and ease of maintenance, optimizing space utilization while ensuring mechanical rigidity. The cabinet design focuses on detailed craftsmanship and assembly precision, ensuring tight connections and coordinated operation between functional units. It reflects the stability and consistency expected of industrial-grade products and is suitable for engineering projects with high requirements for structural quality and system integration.
Material Properties and Benefits
1.5mm Cold-Rolled Steel (Baosteel SGCC Certified)
- High Strength: Excellent impact and compressive strength for electrical cabinet outdoor, capable of withstanding the weight and vibration of high-power equipment.
- Corrosion Resistance: Galvanized to prevent moisture and corrosive gases from eroding the metal surface.
SMC Composite Separator
- Arc Resistance: 15kV arc resistance for exterior electrical cabinet, effectively suppressing arc propagation and preventing secondary disasters during arc faults.
Technical features
Thermal Isolation
Heat Dissipation Design: The power supply modules (SMPS) are typically installed in the upper part of the switching cabinet or in a well-ventilated independent compartment. Utilizing the chimney effect or a small cooling fan, the heat generated by the power supply is physically isolated from the heat dissipated by the main busbar and circuit breakers, avoiding mutual thermal interference and ensuring full power output even at an ambient temperature of 50℃.
Double Insulation and Grounding Continuity
In addition to the insulation between functional units provided by the SMC partition, the key for electric box ensures grounding continuity for all metal components through a complete grounding busbar (PE). The input/output of the power supply modules are isolated, and the casing is reliably grounded, meeting Class I equipment protection requirements.
Vibration Resistance and Dynamic Stability

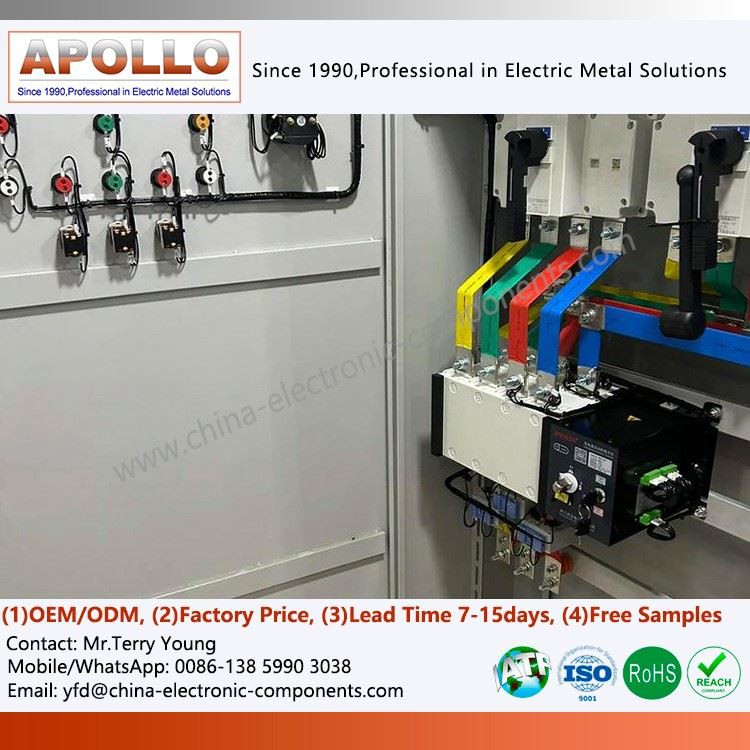

For the short-time withstand current requirement of 125kA, the span of the busbar support components (SMC or epoxy resin) has been optimized through mechanical simulation to withstand significant electrodynamic impacts, preventing busbar deformation or loosening. The power supply modules are internally potted or use vibration-resistant mounting methods for exterior electrical cabinet.
Application Areas and Advantages
Industrial Automation Production Lines (MCC Motor Control Center):
Switching cabinet directly provides power to PLCs, frequency converters, and sensors on-site, eliminating the need for additional power supply boxes; simple wiring; strong anti-interference capability.
New Energy Power Generation Stations (Photovoltaic/Wind Power):
Key for electric box as a distribution cabinet on the low-voltage side of a transformer substation or after an inverter, its SMC partitions' weather resistance and high insulation adapt to outdoor environments; built-in power supplies the monitoring system, ensuring high reliability.
Data Centers and Communication Equipment Rooms (Row-Head Cabinets):
High-current-carrying silver-plated busbars ensure stable power supply to server cabinets; a 650W power supply provides backup power for switches and management modules within the cabinet.
Rail Transit and Port Machinery:
Vibration-resistant exterior electrical cabinet structure; flame-retardant and non-toxic SMC material meets stringent safety standards; integrated power supply simplifies the control system architecture for vehicles or shore power.
contact us
For selection advice, technical information, or customized solutions for a cooler master cabinet with 650W SMPS, please feel free to contact us. We will provide you with efficient and reliable power cabinet solutions.
