Cable Distribution Cabinets
Products Description

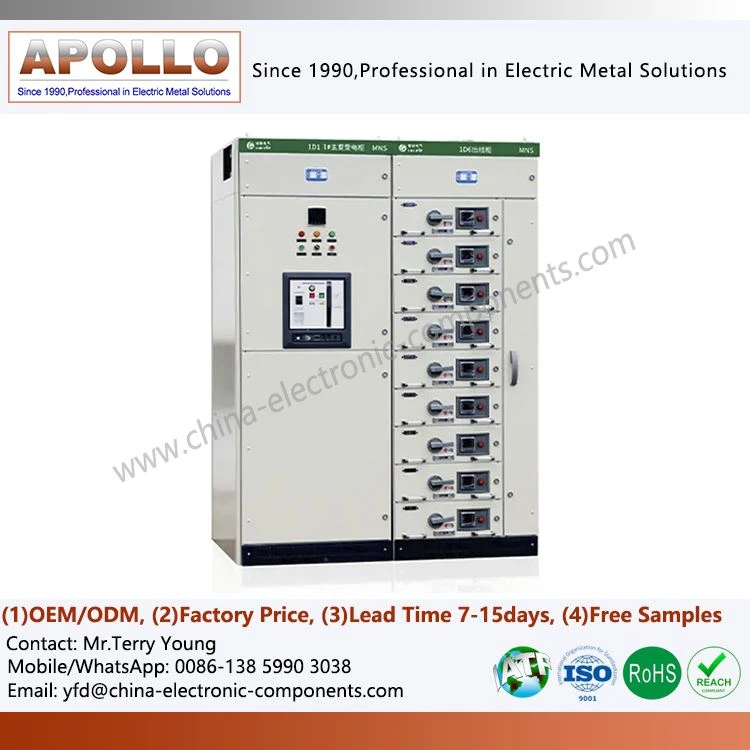

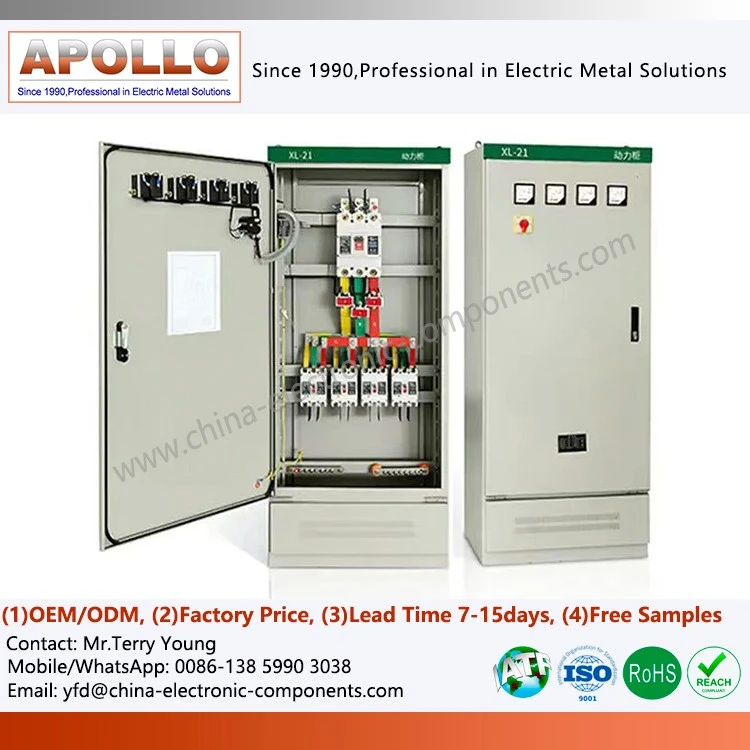

Our Cable Distribution Cabinets feature a modular design and industrial-grade manufacturing standards. Combining a high-strength cabinet structure, high-quality conductive materials, and a scientific wiring scheme, they can adapt to different voltage levels and complex application environments.
The products support multi-circuit configurations, flexible expansion, and customized designs, and can be implemented according to customer project requirements:
Power distribution
Low-voltage distribution
Cable distribution
Energy storage system distribution
Photovoltaic grid-connected control
Industrial automation control
Data center power management
New energy vehicle charging system distribution
Main Functions
| Main Cable Distribution and Transfer | As an intermediate node in the power distribution system, the fiber optic distribution cabinet distributes large-section main cables from transformers or upstream distribution cabinets to multiple branch circuits. Electrical transitions are achieved through busbars or branch terminals, reducing redundant cable laying and the number of joints. |
| Orderly Management of Branch Cables | The cable compartment provides physical space for a large number of incoming and outgoing cables. Layered supports and cable ties allow for the categorization and fixing of power and control lines, maintaining a neat and orderly wiring layout, facilitating later fault diagnosis and circuit identification. |
| Integrated Installation of Electrical Equipment | The equipment compartment houses circuit breakers, disconnect switches, fuses, surge protectors, and measuring instruments, providing overload, short-circuit, and ground fault protection for each branch circuit. A standardized DIN rail mounting system supports rapid component replacement and expansion. |
| Mechanical Protection and Sealing of Cables | The high distribution cabinet housing and sealing system provides dustproof, waterproof, and foreign object intrusion protection for internal cables and electrical components; the cable gland at the cable entry point clamps the cable sheath to prevent tensile and torsional stress from being transmitted to the terminal connection points. |
| Grounding and Shielding Management | The low voltage distribution cabinet grounding system provides reliable equipotential bonding for the cable shielding layer, armor layer, and equipment protective grounding, reducing the threat of lightning-induced overvoltages and operational overvoltages to sensitive equipment, while also suppressing electromagnetic interference coupling into the control circuit. |
Carbon dioxide shielded welding or robotic welding is used to ensure that the cabinet does not deform under high stress.
Material Pre-treatment
High-quality cold-rolled steel sheets or stainless steel sheets are selected and subjected to pickling and phosphating to remove the surface oxide layer.
01
Precision Sheet Metal Forming
Laser cutting machines precisely cut the material, and CNC multi-station punch presses process the installation holes.
02
Frame Welding and Reinforcement
Carbon dioxide shielded welding or robotic welding is used to ensure that the optical distribution cabinet does not deform under high stress.
03
Surface Coating
After multiple pre-treatment processes, the material enters a constant-temperature spray coating line to ensure consistent color and strong weather resistance.
04
Core Component Integration
Precise installation of switching components, secondary circuits, and busbar systems is performed in a dust-free assembly area.
05
Detailed Showcase: Industrial Beauty That Withstands a Magnifying Glass
Triple-Proof Rubber Strips and Labyrinth Seals
The door frame seal is not a simple O-ring, but a multi-lipped hollow silicone rubber strip, combined with a labyrinthine waterproof edge formed by the bending of the door frame. Even in the event of a torrential downpour, the water loses its kinetic energy after turning, making it unable to penetrate the multiple lip defenses.
Concealed Hinges and Multi-Point Interlocking Locks
The Outdoor Fiber Distribution Cabinet door hinges feature a concealed design, not protruding from the cabinet surface, providing both impact resistance and an aesthetically pleasing appearance. The opening angle reaches 180 degrees, providing an unobstructed view for maintenance.
Anti-Slip Bolts and Modular Blind Nuts
All nuts used for installing components inside the Distribution Cabinets for Data Centers are pre-embedded in 25mm pitch posts and equipped with anti-slip claws. Operators can screw in bolts with one hand, eliminating the need to hold the nut behind the cabinet with the other hand, greatly improving assembly efficiency and reducing the error rate.
Flexible transition with a grounding braided strip
The grounding connection between the door panel and the Electrical Cable Distribution Box Cabinets uses a wide tinned copper braided strip, rather than a simple single yellow-green wire. Its low impedance characteristics ensure rapid discharge of leakage current and provide extremely high fatigue fracture life when the door panel is frequently opened and closed.
contact us
If you are looking for a highly reliable switchboard solution that can be adapted to new energy, power engineering, or industrial automation projects, our engineering team can provide customized support with greater engineering implementation value based on your system structure, installation environment, and project standards for the Intelligent Distribution Cabinet.
