Stable, efficient power transfer underpins safe and energy‑efficient rail transit. As high‑speed rail, electric locomotives and urban rail systems evolve, conventional cables struggle with high current, persistent vibration and long‑term reliability requirements. Transportation Locomotive Power BusBar supports centralized power distribution for traction converters, main and auxiliary power circuits, and on‑board energy storage. Optimized structure and proven manufacturing enable consistent electrical performance under high current, vibration and wide temperature swings.
Send Inquiry

What is the Transportation Locomotive Power BusBar?



Transportation Locomotive Power BusBar

Transportation Locomotive Power BusBar in rail vehicles are high-conductivity metallic conductor components, typically manufactured from high-purity copper or copper alloys through multiple processes including stamping, bending, welding, and surface treatment. Compared to traditional cables, busbars offer lower resistance, higher mechanical stability, and a clearer electrical layout.

In the complex electrical systems of rail vehicles, busbars effectively reduce the number of connection nodes, making current paths more direct and stable, thereby reducing system losses and improving overall electrical efficiency.

Simultaneously, the rigid structure of busbars significantly enhances the system's vibration resistance, making them suitable for long-term vibration environments such as those of high-speed trains and heavy-duty locomotives.

Through well-designed busbars, engineers can achieve more compact electrical layouts, improve equipment space utilization, and optimize the overall vehicle power management structure.

Manufacturing Advantages: Stringent Standards, Precise Control




Vertical Integration of the Entire Supply Chain

From copper/aluminum raw material procurement to mold design, precision machining, insulation coating, surface treatment, and final inspection, the entire process is internally controlled to ensure Laminated Bus Bar for Telecom Power Distribution consistency.





Digital Factory Management

Utilizing ERP and MES systems, each Composite Busbar for Train Power Supply Four-quadrant Power Module order has a unique batch traceability code, achieving full traceability from raw material smelting to finished product delivery.





Controlled Production Environment

For high-voltage applications, we perform insulation treatment in a Class 1000 cleanroom, eliminating the risk of partial discharge caused by impurities.

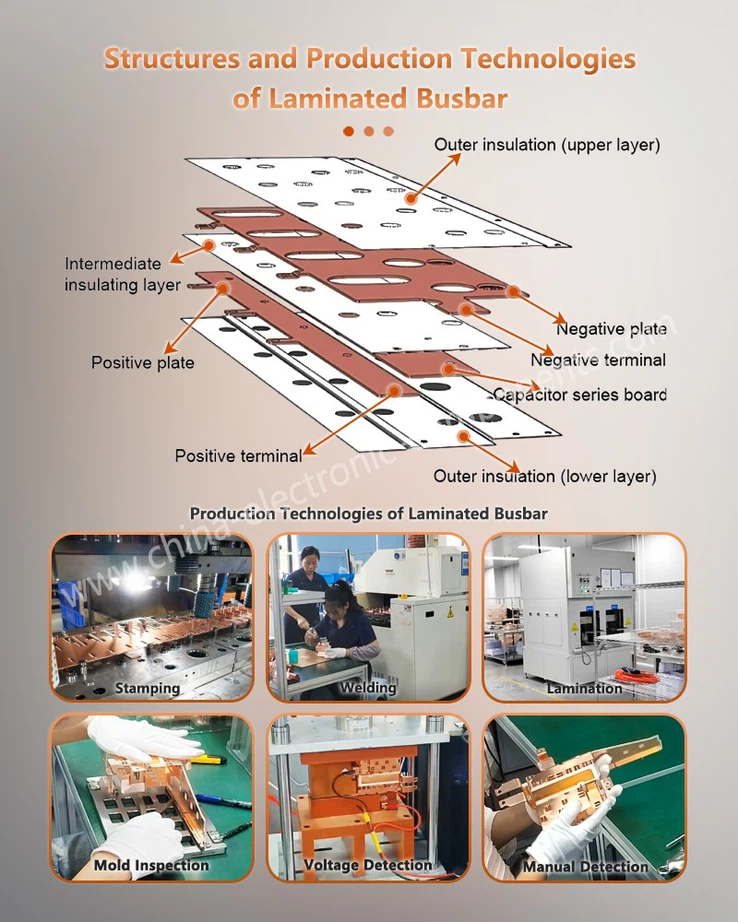

Structures and Production Technologies of Transportation Locomotive Power BusBar



Application Advantages: Full Coverage of Rail Transit Scenarios





High-voltage boxes and pantograph circuits

Withstand 25kV/1500V/750V high-voltage input. An optimized creepage distance design ensures high-voltage insulation safety, while a lightweight design reduces the roof load for Laminated Bus Bars used in Rack Mount Power Distribution.




Traction converter busbars

Connect the DC link to the IGBT module. Low inductance design effectively protects power devices, and optimized heat dissipation improves the converter's continuous output power.




Auxiliary converters and chargers

Power the car's lighting, air conditioning, and door systems. Modular Laminated Bus Bar for Internet Router Backplane design makes the equipment structure more compact and maintenance easier.




Braking resistors and energy dissipation devices

Withstand the large current surges generated during braking. Excellent thermal stability ensures efficient dissipation of braking energy.



Application Area for Transportation Locomotive Power BusBar



Material Advantages: Material Selection Determines the Upper Limit





Electrolytic Copper (T2/C1100): Conductivity ≥101% IACS; extremely low impurity content ensures excellent machinability.

New Lightweight Aluminum Alloy: For projects requiring lightweight construction, we offer specially formulated aluminum busbars that reduce weight by more than 50% while maintaining current-carrying capacity.

High-Performance Insulation Materials: Utilizing UL94-V0 grade flame-retardant materials, possessing extremely high dielectric strength and tracking index (CTI) for DC and AC Laminated Bus Bar for Fork Lift Truck.

99.99% Pure Copper Strip for Transportation Locomotive Power BusBar



contact us



If your project is looking for a stable and reliable locomotive Laminated Bus Bar for Compact IGBT DC Power solution, our engineering team can provide professional busbar design and manufacturing support based on your equipment structure and electrical requirements.
