Laminated Bus Bar For PDA Assembly A Hit In Stage Lighting Systems
Products Description

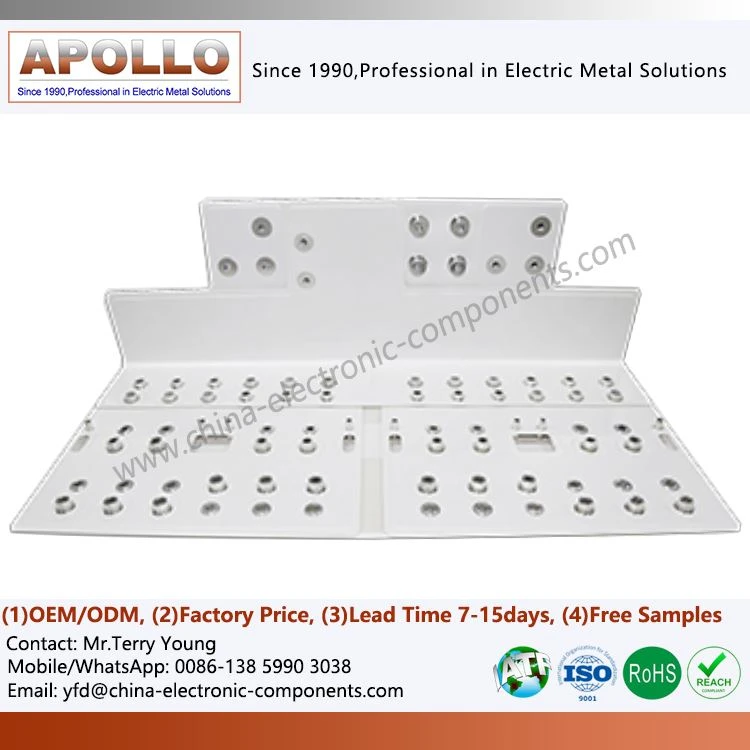

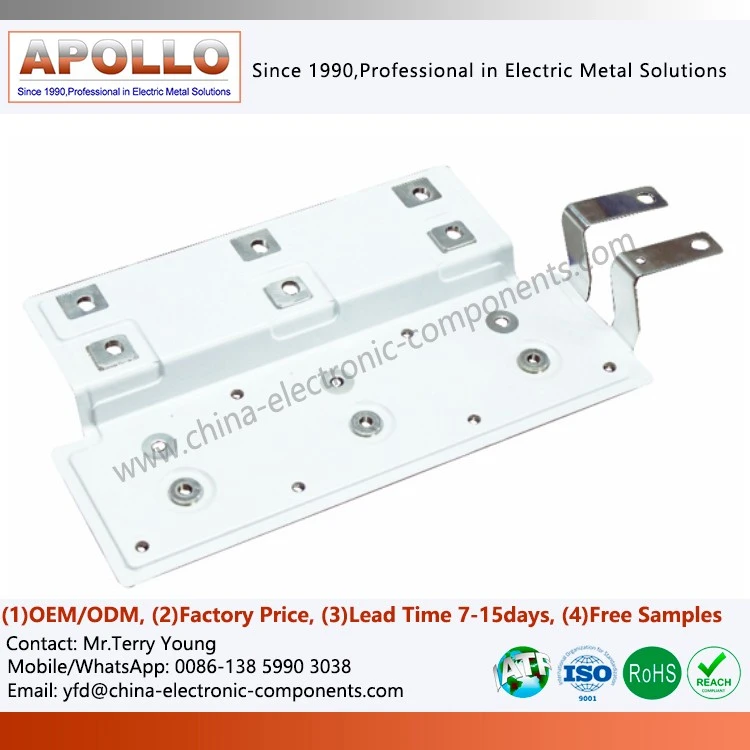

Laminated Bus Bar for PDA Assembly A Hit In Stage Lighting Systems
employs a multi-layer composite molding process, alternately laminating high-purity conductive copper layers and high-performance insulating films under high temperature and pressure to form a compact, robust, and electrically superior integrated structure. For battery system engineers and project managers, this means achieving stable transmission of higher currents within limited cabinet space, while significantly reducing voltage spikes and electromagnetic interference (EMI) caused by high-frequency switching. Whether facing the rapidly changing load demands of stage lighting systems or the extreme pursuit of neat wiring in PDA assembly, this multi-layer busbar provides an engineering-grade solution that surpasses traditional approaches.
Key Functions
| Power Backbone Transmission | High Voltage Explosion-Proof Inverter Busbar serving as the backbone between the UPS system and the lighting load, it carries currents up to hundreds of amperes. |
| Signal Shielding | The multilayered design for the Laminated Busbar for Three Level Inverter effectively suppresses high-frequency noise (RF noise), preventing electromagnetic interference from affecting the accuracy of lighting control signals. |
| Heat Dissipation | Multi-Layer Composite Structure Connection Bar can quickly dissipate heat generated by the power module and amplifier chip, preventing localized overheating. |
Manufacturing Advantages
High-Frequency Electromagnetic and Thermal Co-simulation Platform
During the design phase, 3D electromagnetic field simulation (such as ANSYS Q3D, CST) is used to accurately extract parasitic parameters (R, L, C), optimizing the Subway Laminated Busbar structure and via design to minimize parasitic inductance and AC resistance. Combined with thermal and structural mechanics simulations, thermal reliability and mechanical stability are ensured under extreme operating conditions.
High-Precision Laser and Chemical Etching Composite Processing
Complex copper layers are processed using ultraviolet lasers or high-precision chemical etching processes, with minimum linewidth/spacing as low as 0.2mm/0.2mm, achieving high-density wiring and fine features. Laser processing is particularly suitable for handling thick copper (≥2oz) and forming burr-free, vertical sidewalls for Laminated Low Inductive Bus Bar.
Multi-Layer High-Precision Positioning and Vacuum Pressing Technology

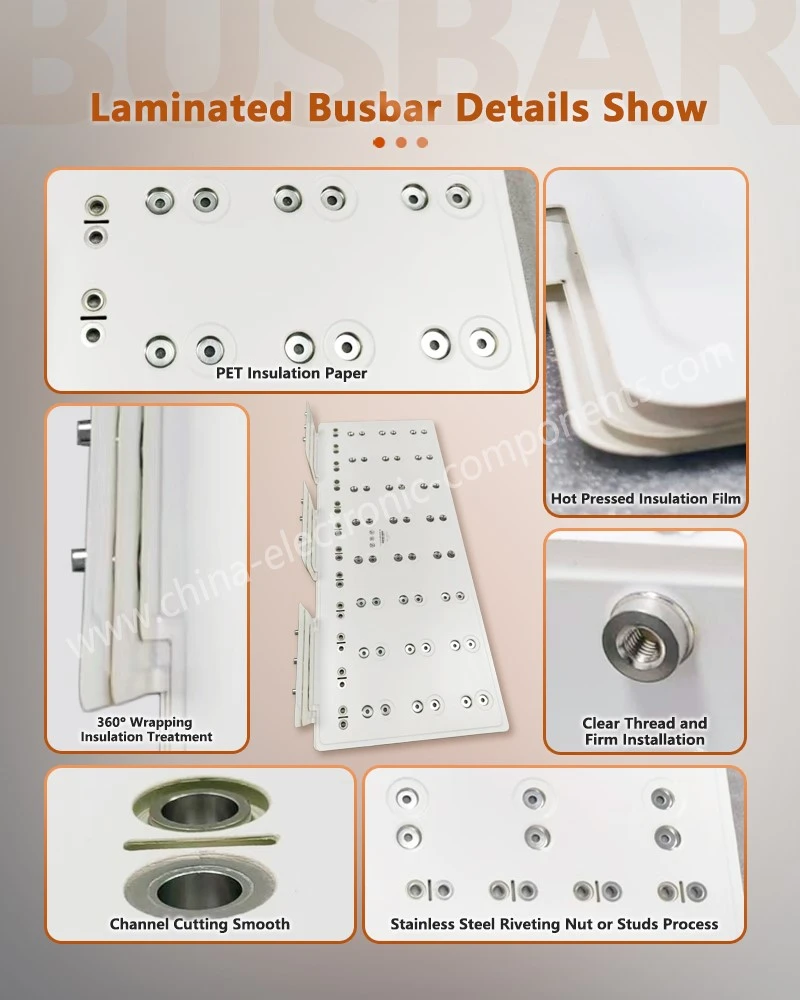

An optical alignment system ensures precise alignment of multi-layer insulating films and conductive layers. In a high-temperature vacuum press, precise control of pressure, temperature, and time curves ensures that each layer achieves an ideal state of bubble-free, high-bond strength, and uniform insulation for High Voltage Explosion-Proof Inverter Busbar.
Material Properties and Advantages

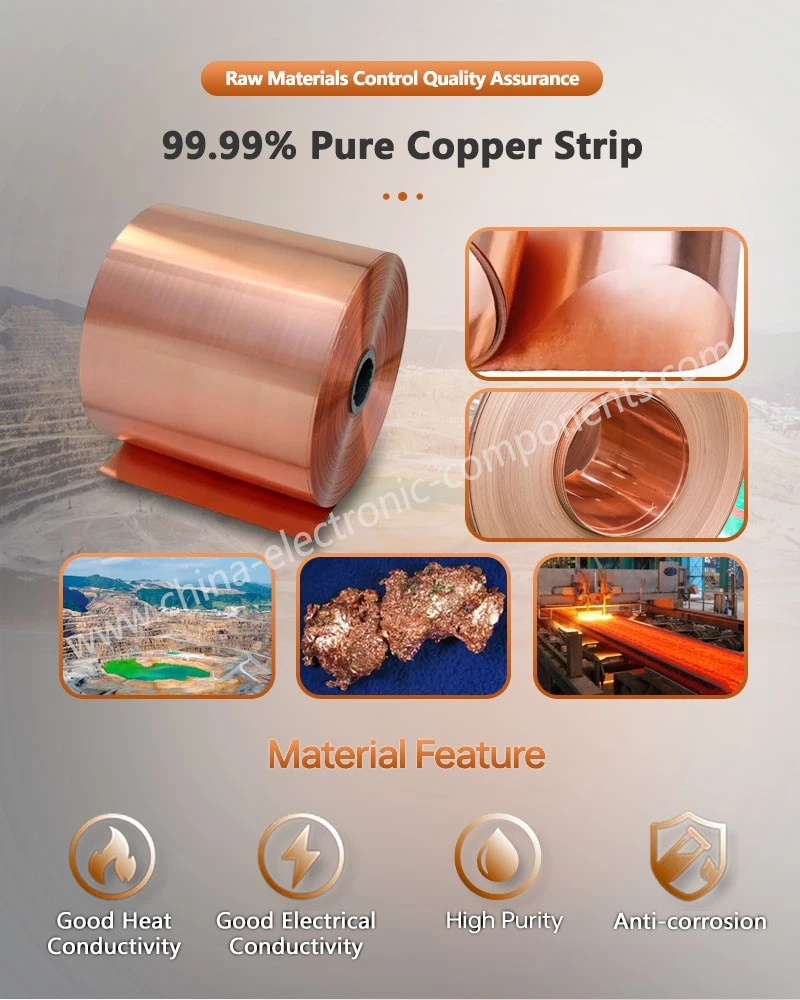

Conductivity: Laminated Busbar for Three Level Inverter's copper purity ≥99.99%, conductivity ≥97% IACS, ensuring lossless signal transmission.
Mechanical Properties: Multi-Layer Composite Structure Connection Bar's hardness 80-110 HV, tensile strength 245-345 MPa, possessing excellent tensile and deformation resistance.
Compatibility: Subway Laminated Busbar complies with multiple international standards including GB, DIN, EN, ISO, UNS, JIS, BS, etc., globally applicable.
contact us
For further inquiries about Laminated Bus Bar for PDA Assembly A Hit In Stage Lighting Systems customization details, access to detailed technical parameter manuals, or to discuss bulk purchasing cooperation and export compliance matters, please feel free to contact us. We will provide one-on-one professional services to help you reduce costs and enhance product competitiveness.
