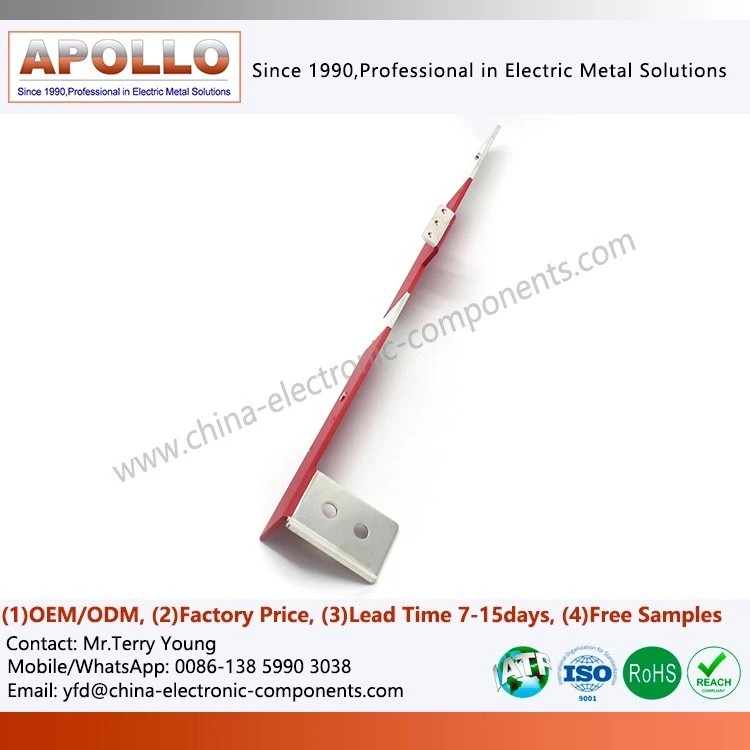

Powder Coating Cu Busbar
Products Description
Powder Coating Cu Busbar are functional conductive components that utilize a high-adhesion insulating powder coating on the surface of traditional copper busbars. Their core features are as follows:
Integrated conductivity and insulation design: Ensuring high conductivity while providing reliable insulation protection, reducing the risk of system short circuits.
High structural integration: Supports complex bending and irregular shapes, adapting to compact power supply structures.
Strong environmental adaptability: The coating possesses excellent temperature resistance, moisture resistance, and corrosion resistance.
Long-term stable operation: Suitable for 24/7 continuous power supply environments.
This product is particularly suitable for DC buses within UPS systems, power distribution units (PDUs), and server power connection modules.
Manufacturing Process: From Micron-Level Control to Overall Delivery
Surface Activation
Automated shot blasting or ultrasonic cleaning thoroughly removes the oxide layer and grease from the copper bus bar surface, crucial for ensuring the quality of subsequent coating.
Induction Pre-heating
Medium-frequency induction heating ensures a uniform temperature rise across the Busbar Coating Powders, guaranteeing that the powder flows immediately upon contact with the copper, forming a smooth and uniform coating.
Electrostatic Fluidized Bed Coating
Precisely controlled fluidized bed pressure liquefies the powder, allowing for uniform adsorption via electrostatic attraction, ensuring extremely low tolerances to coating thickness consistency.
Curing
Molecular cross-linking is completed in a precisely controlled tunnel oven, forming a tough protective armor.
Application Advantages: Validation for Critical Infrastructure
UPS (Uninterruptible Power Supply) is the core application scenario for powder-coated busbars. In double-conversion, line-interactive, and standby UPS systems, Electric Vehicle Busbar Coatings connect rectifiers, inverters, static switches, and battery packs. Their arc-resistant properties limit the spread of fire during short-circuit faults, and their low-smoke halogen-free (LSZH) formulation reduces the toxicity of fire smoke, meeting data center safety standards.
Server and data center power distribution requires busbars to adapt to high power density and hot-swappable requirements. In rack-mount power distribution units (RPPs) and rack-mount PDUs, they serve as the connection between the main power distribution and branch circuits. Their smooth surface reduces dust accumulation, and their flame-retardant properties meet the fire protection requirements of UL 60950 and IEC 62368.
In new energy converters such as photovoltaic inverters, wind power converters, and energy storage PCS, powder-coated busbars withstand outdoor temperature cycling, UV radiation, and salt spray corrosion. The weather resistance of the polyester-polyurethane coating ensures a protective lifespan of over 20 years.
In industrial automation power distribution systems, such as frequency converters, servo drives, and robot power supplies, Copper Bus Bar Epoxy Powder Coating resists the erosion of oil mist, metal dust, and chemical cleaning agents, while the solvent resistance of the epoxy coating ensures long-term insulation reliability.
Detailed Display and Quality Control
Edge Coverage Integrity
The cut edges, chamfered surfaces, and outer bends of the Copper Busbars with Epoxy Powder Insulations present challenges for coating coverage. We perform additional pre-treatment on the edges before spraying, and during spraying, we use a multi-angle spray gun layout to ensure that the edge coating thickness is no less than 80% of the surface thickness, with no exposed copper layer. This is a crucial detail to prevent creepage and tip discharge.
01
Masking Accuracy and Transition Zone Treatment
At the junction of the exposed conductive surface and the coating, we employ a precision masking process to ensure a clear boundary line, no coating overflow onto the contact surface, and no exposed areas exceeding design requirements. For threaded mounting holes, after spraying, we use a tap to clean any powder residue from the threads to ensure smooth installation.
02
Coating Appearance and Consistency
The cured coating surface is smooth, free of orange peel, particles, and bubbles. The color is uniform, with a color difference controlled within ΔE ≤ 1.0 (compliant with RAL or Pantone color codes). For Powder Coating EV Busbars requiring text or symbols, we use laser marking or secondary screen printing to ensure clear and durable markings.
03
Pressure test marking
After each Bus Bar with Insulated Epoxy Powder Coating passes the pressure test, a pressure test pass label or laser mark is affixed to a designated location, achieving 100% traceability.
04
contact us
We not only provide standardized Bus Bars with Insulated Epoxy Powder Coating, but also help customers achieve higher reliability and better system integration efficiency through structural design optimization and manufacturing collaboration capabilities. We welcome you to submit your project parameters, and we will provide you with matching engineering solutions and rapid response support.
