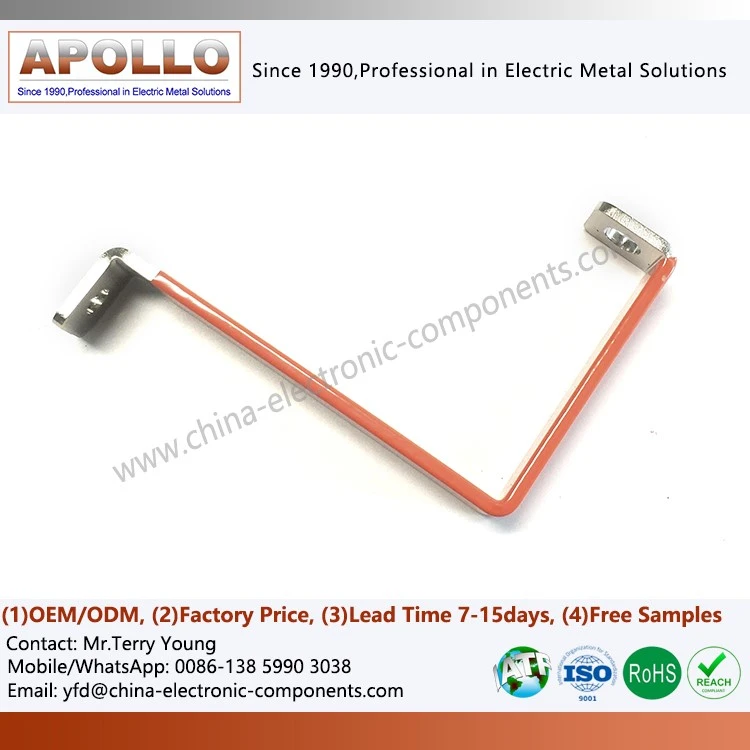

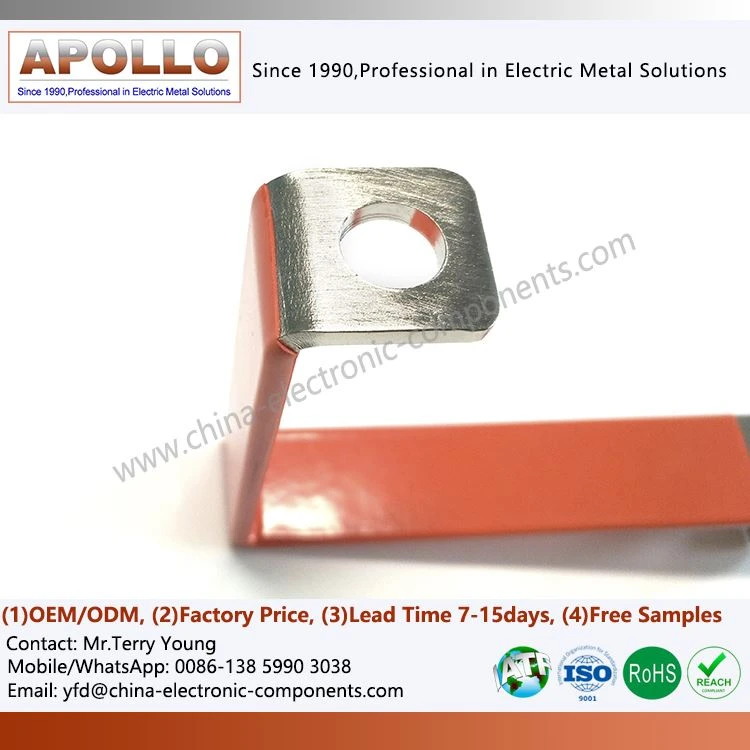

Insulated Copper Bus Bar
Products Description
Insulated copper bus bars are core conductive components designed for UPS uninterruptible power supplies, server clusters, and data center power distribution systems. They feature an integrated structure of a high-conductivity copper substrate and an electrostatic powder-coated insulating coating, combining four core functions: low-resistance conductivity, full-dimensional insulation, balanced heat dissipation, and compact installation. Unlike traditional bare busbars or products with tape-wrapped insulation, this product is deeply optimized for demanding scenarios involving high voltage, high-density layouts, long-term full-load operation, and limited space.
Product Properties and Structural Features

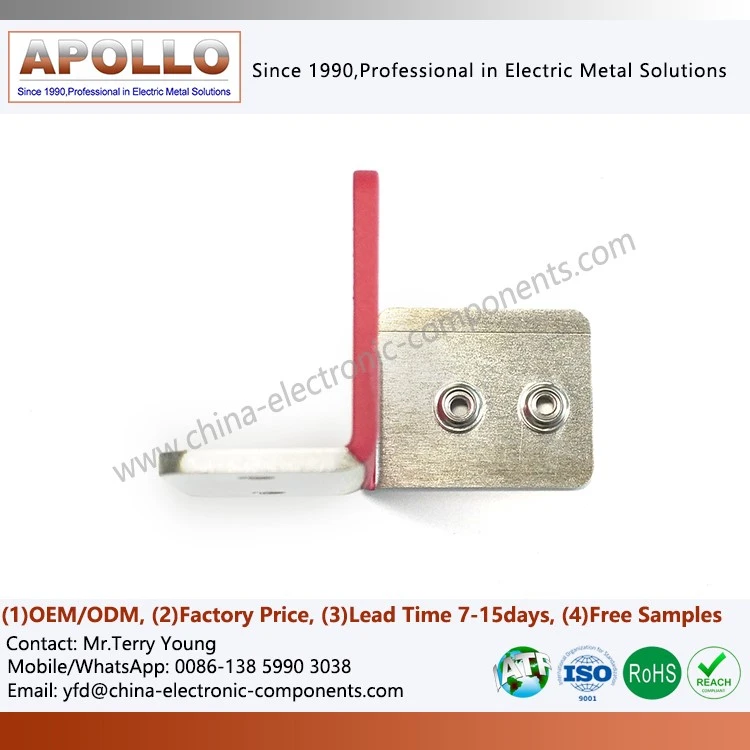

The Epoxy Spray Copper Bus Bar uses high-conductivity T2 copper/C1100 copper as the core conductor, and forms a high-voltage, high-adhesion insulating protective layer through electrostatic powder coating. This structure possesses the following characteristics:
■ High-efficiency conductive core
The pure copper bus bar conductor has excellent current-carrying capacity, meeting the requirements of UPS and server power supplies for stable high-current transmission.
The surface-coated insulating layer replaces traditional heat-shrink tubing, adhesive tape, or epoxy layers, providing stable insulation performance and resistance to aging.
■ Integrated structural insulation protection
The powder-coated insulation layer is uniformly applied, without seams or wrinkles, significantly reducing the risk of partial discharge.
The insulating film is scratch-resistant, moisture-resistant, and unaffected by condensation and dust in high-density cabinet environments.
■ Highly Customizable
Suitable for system space, busbar routing, and current rating:
Bending, stamping, tin plating/silver plating
Customized openings and terminal designs
Multi-layer stacked structure design
Meets the compact layout requirements of large UPS and server power supplies.
In-depth Technical Analysis: The Science and Control Behind the Perfect Coating
| Chemical Engineering for Surface Pretreatment | Before spraying, the Insulated Coating Tinned Solid Copper Busbar Connectors undergo a complex chemical pretreatment process, including degreasing, pickling, surface conditioning, and phosphating. This process aims to thoroughly remove surface oil and oxide layers and form a micro-roughened phosphating film to maximize the adhesion and corrosion resistance of the powder coating. |
| Physical Precision of Electrostatic Spraying | We employ high-voltage electrostatic spraying, which imparts a negative charge to the powder particles, causing them to be uniformly adsorbed onto the grounded copper busbar surface under the influence of an electric field. Precise trajectory control by a robotic arm and closed-loop feedback from the powder supply system ensure a highly consistent coating thickness across Epoxy Powder Insulated Bending Copper Busbars of any complex shape. |
| Materials Science for High-Temperature Curing | The sprayed Epoxy Coating Powder Busbars are then placed in a precisely temperature-controlled tunnel oven. Under a precise temperature profile of 180-220°C, the powder particles undergo a series of chemical and physical changes, including melting, leveling, and cross-linking curing, ultimately forming a smooth, glossy, and dense coating. We strictly control the heating rate and holding time to ensure complete curing and optimal performance of the coating. |
| Edge Coverage Challenges and Breakthroughs | The sharp edges of Copper Busbars at Coatings present a significant challenge for coating coverage. By optimizing powder particle size distribution, adjusting spraying parameters, and employing a unique grounding technology, we achieved 100% complete coverage of rounded corners and cut edges, with no exposed areas-the gold standard for evaluating powder coating process quality. |
Detailed Display: A Perfect Presentation of Quality and Craftsmanship
Microstructure
Under a high-powered microscope, the insulation layer structure is uniform and delicate, free of bubbles or cracks.
Surface Quality
The insulation layer surface is smooth and flat, exhibiting excellent weather resistance after special treatment.
Dimensional Accuracy
The Epoxy Spray Copper Battery Bus Bar dimensions are precise, with tolerances controlled within ±0.05mm, ensuring perfect matching with equipment.
Insulation Performance
Insulation tests show an insulation resistance value exceeding 1000MΩ, far exceeding industry standards.
