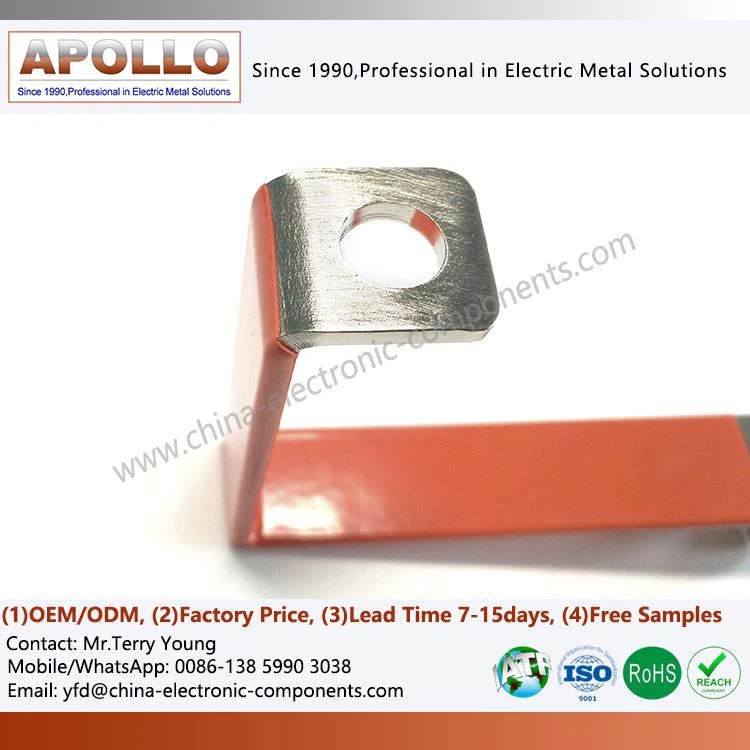

EV Busbar Powder Coating
Products Description
EV Busbar Powder Coating is not simply a surface treatment, but an integrated solid insulation technology.
Full-coverage geometric adaptability: Unlike heat shrink tubing, which leaves wrinkles and gaps at irregular bends, powder coating achieves a tight, 360° fit, regardless of whether it's a 90° right angle, a Z-bend, or a complex torsion structure.
Excellent dielectric strength: A thin epoxy coating (typically 0.1mm to 0.5mm) provides thousands of volts of insulation withstand voltage, significantly optimizing creepage distances within the cabinet.
Dual physical and chemical stability: Possesses extremely high adhesion and hardness, is impact-resistant, chemically resistant, and meets UL94-V0 flame retardant standards.
Manufacturing Process: Stringent Precision Control Procedures
Pre-treatment
Multiple ultrasonic cleaning and sandblasting/phosphating processes thoroughly remove grease and oxide layers from the metal surface, establishing extremely strong intermolecular bonding anchors.
Electrostatic Spraying
In a controlled, dust-free environment, high-voltage electrostatics uniformly adsorb powder particles. Digitally controlled voltage and spraying distance ensure uniform coating thickness.
Curing Process
The coating enters a precision-temperature-controlled circulating oven, where segmented heating allows the powder to fully level and undergo a chemical cross-linking reaction. This process ensures the coating has sufficient hardness while maintaining flexibility, even with slight deformation of the Busbar Epoxy Coating.
Induction Heating Assist
For ultra-thick or ultra-large busbars, induction preheating technology solves the problem of uneven powder coating caused by large-volume heat sinks.
Application Advantages: Tailor-made for UPS Systems
High-Power UPS for Data Centers
For high-power tower UPS systems, the Bus Bar with Insulated Epoxy Powder Coatings solves the insulation isolation problem when multiple copper busbars are connected in parallel, reducing airflow obstruction and optimizing airflow organization.
Modular UPS Power Cabinets
For modular plug-in structures, the powder coating layer has excellent wear resistance. During frequent module plugging and unplugging, the insulation layer will not be damaged by friction like heat shrink tubing, extending the component's lifespan.
Industrial-Grade Inverters and Power Supplies
In addition to UPS, this technology is also suitable for inverters, new energy converters, and other equipment, solving the problem of insufficient creepage distance caused by dust and oil in industrial environments.
Detailed Showcase: A Microscopic Perspective on Quality
R-Corner Free Flow
At the R-corners of the Copper Busbars with Epoxy Powder Insulation bends, the coating thickness remains highly consistent with the flat surface, with no accumulation or exposed substrate, ensuring uniform insulation strength.
01
Edge Coverage
Edge coverage has been significantly enhanced. Due to the edge effect, powder adsorption at edges is often insufficient. We ensure sufficient insulation thickness at the Electric Vehicle Busbar Coating edges (beveled areas) by adjusting electrostatic parameters and a special spray gun angle.
02
Contact Surface Smoothness
After masking removal, the solder/lap areas are smooth and bright, without any powder residue or oxidation marks, ensuring contact resistance is below industry standards, reducing energy consumption through attention to detail.
03
Surface Texture
The coating surface exhibits a delicate micro-wrinkle or matte texture, with a smooth feel. Powder Coating Cu Busbar is not only aesthetically pleasing but also resists dust accumulation, facilitating easy daily cleaning and maintenance.
04
contact us
For Powder Coated copper bus bar insulation optimization in UPS or data center projects, we can provide engineering-level, customized support based on your system structure and electrical requirements, ensuring simultaneous improvements in performance and assembly efficiency.
