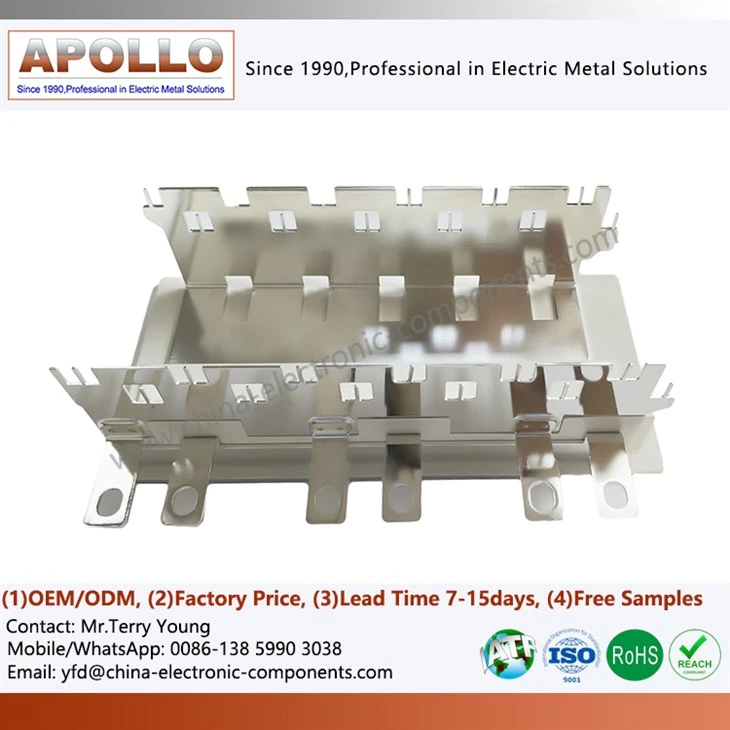

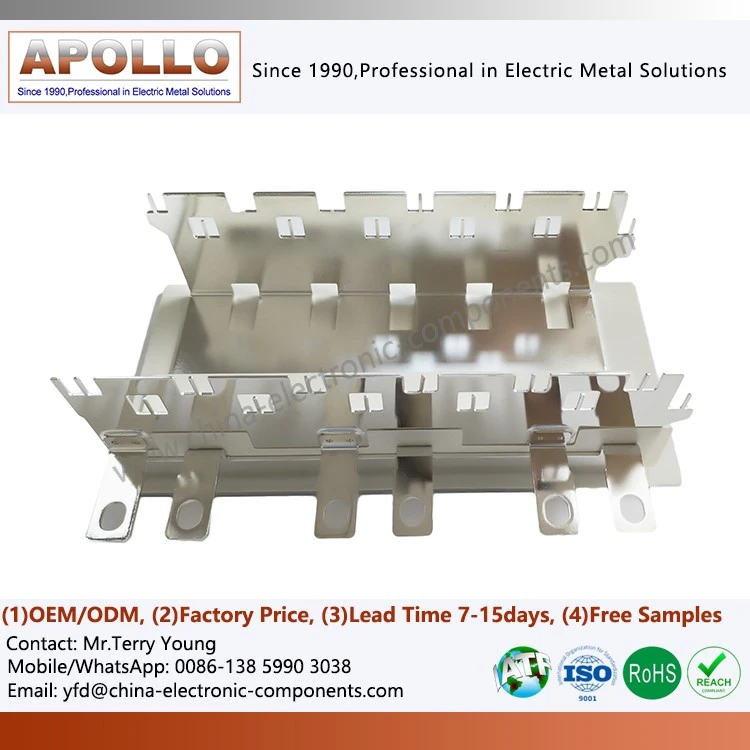

Tin Plated Copper BusBar for EV
Products Description

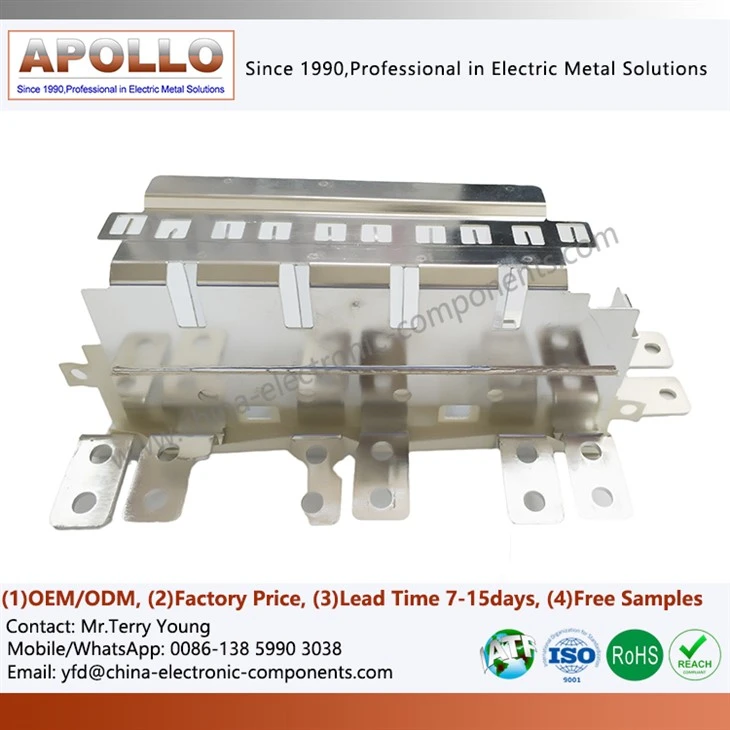

In the rapidly evolving field of electric vehicles (EVs) and high-power energy storage systems, power distribution components face increasingly stringent demands for electrical performance, reliability and environmental adaptability. Our Tin Plated Copper BusBar for EV is specifically engineered to meet these requirements in vehicle onboard high-voltage bus systems, battery module interconnections, and charging infrastructure. Constructed from premium copper substrate and treated with a precision tin-plating process, this busbar solution delivers high conductivity, stable current-carrying capability, exceptional corrosion resistance and excellent weldability. Whether applied in battery packs, BMS (battery management systems), charging stations or high-voltage distribution assemblies, the Automotive BusBar PET Insulation offers engineers and procurement professionals a highly reliable electrical distribution component tailored for automotive-grade applications.
Product Feature
Material & Substrate
- High-purity electrolytic copper (e.g., T2, C1100) or oxygen-free copper (OFC) serves as the core conductor, offering low resistivity and excellent thermal conductivity.
- On top of the copper substrate is a tin plating layer applied via continuous automated electro-plating (typical thickness: 5–20 µm).
Electrical Behaviour
- The tin-plating preserves the conductor's high IACS (International Annealed Copper Standard) percentage-typically ≥ 97 %-ensuring current-flow capability is effectively maintained.
- Contact resistance is significantly reduced, improving connection integrity and minimizing voltage drop under load.
Corrosion & Environmental Resilience
- The tin layer forms a barrier against oxidation, sulfur-containing atmospheres and humidity, thereby extending the operational lifespan of the conductor.
- Proven suitability for EV and energy-storage environments where humidity, temperature variation and vibration may be severe.
Manufacturing Flexibility
- The Automotive BusBarcan be customised in width, thickness, hole-pattern, bending form (L/U shape) and surface marking to match the module or vehicle system layout.
- Surface finish is clean, smooth and ready for welding or bolted connections, improving downstream assembly efficiency.
Assembly & Installation Ready
- Excellent wettability and solderability thanks to the tin plating, making the component particularly suited for automated or semi-automated production lines in EV manufacturing.
- Suitable for high-volume fabrication, logistics-friendly packaging and adapted for high-speed production lines.
Manufacturing Process Excellence
Material Selection
High‑purity copper (such as T2, C1100 or oxygen‑free copper) is selected as the substrate to guarantee superior conductivity and thermal performance.
01
Precision Cutting & Forming

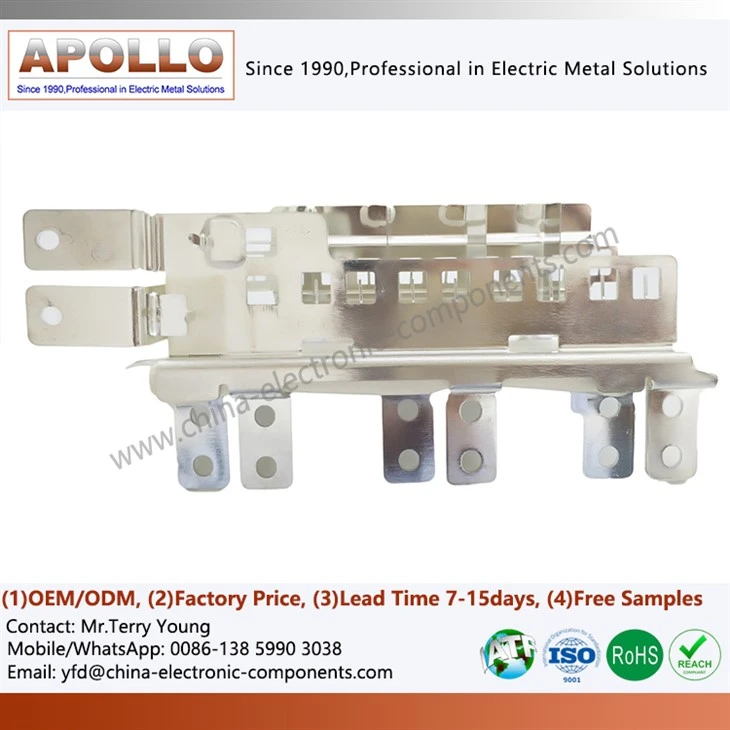

The substrate is machined, stamped, laser‑cut or CNC‑processed to exact dimensions, then bent or folded into the required shape for the BusBar automotive, ensuring correct fit in the vehicle or module layout.
02
Surface Cleaning & Pre‑Treatment
Prior to plating, the copper body undergoes rigorous cleaning (e.g., acid pickling, degreasing) and oxide‐layer removal to achieve optimal surface condition for tin adhesion.
03
Tin Plating
The Car Battery Bus Bar is subjected to electroplating or hot‑dip tinning to deposit a uniform tin layer (typically 5–20 µm) that enhances solderability and corrosion resistance, while maintaining electrical performance.
04
Application Advantage
Vehicle Power Distribution

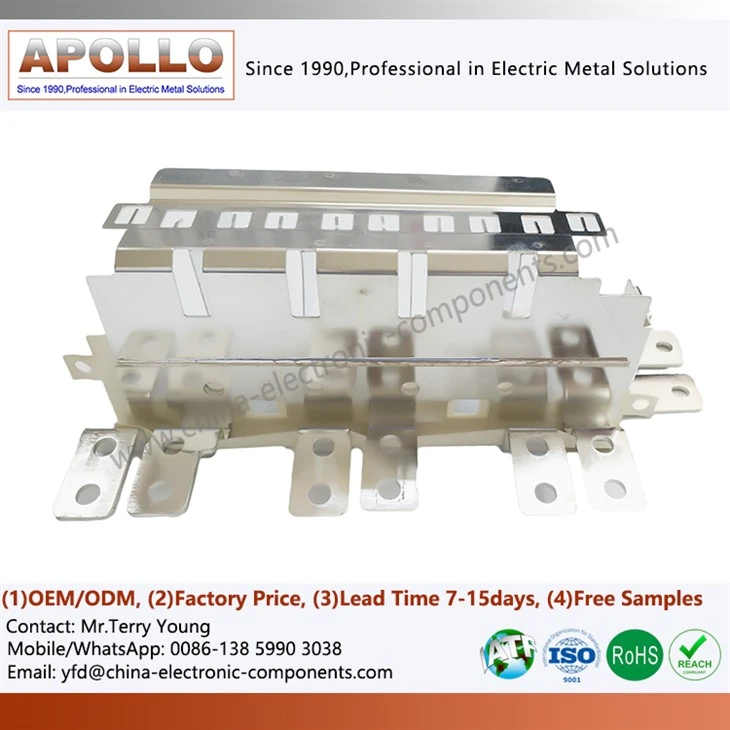

Inside battery modules or HV distribution boxes of EVs, the Automotive Ground Bus Bar serves as the backbone conductor, offering minimal voltage drop, high current capacity and stable performance under dynamic loading.
Charging & Energy-Storage Systems
In high-voltage charging stations or energy storage cabinets, this busbar supports repeated plug/unplug cycles, high temperature/humidity environments, and must deliver long-term reliability - exactly the contexts for which the product is designed.
Future-Proofing for High-Power Systems
Although targeted at EV applications, the Tin Plated Copper BusBar for EV also offers potential in rail-transit, UPS or large energy-storage systems where high currents and rigorous environments are present.
