Copper Foil Laminated Flexible Connectors For Transformer
Products Description

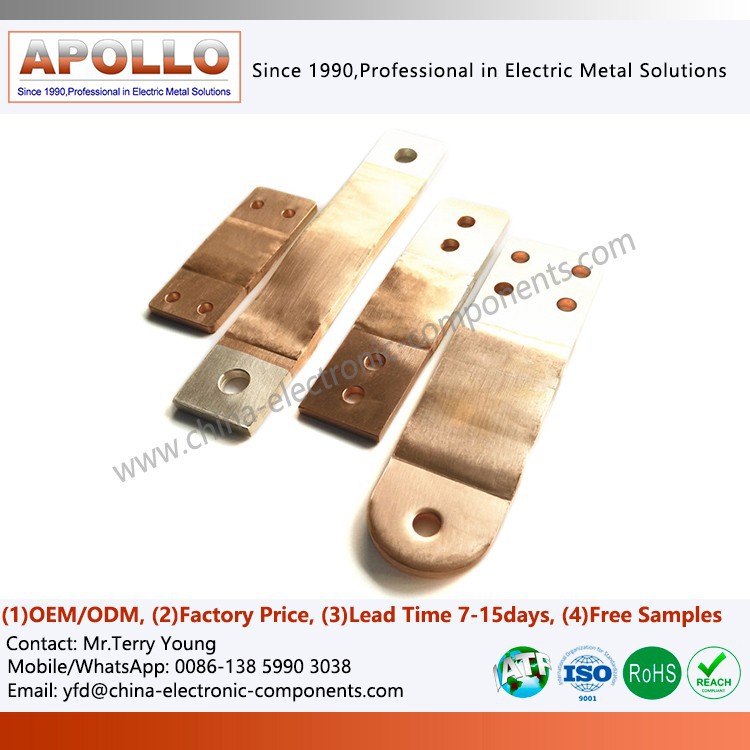

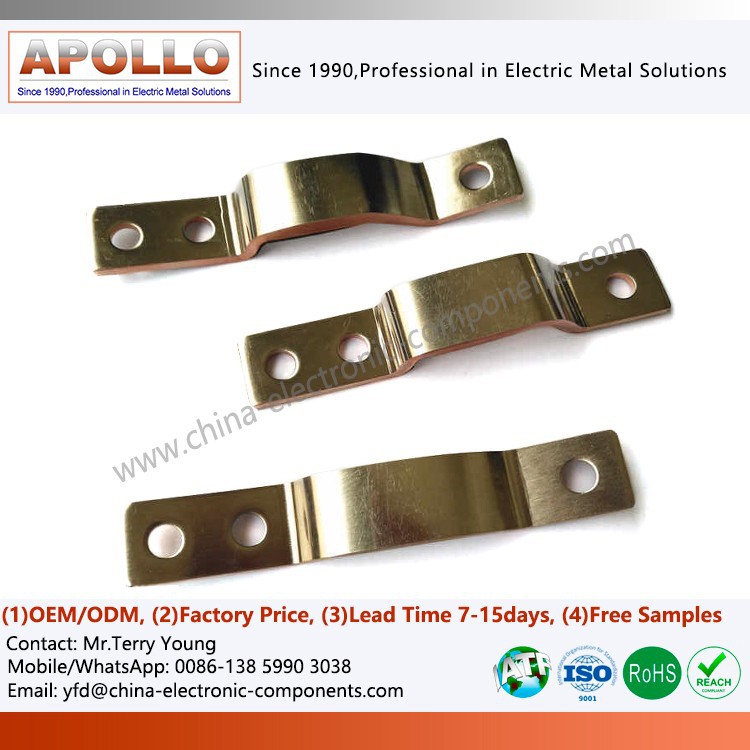

Copper Foil Laminated Flexible Connectors for Transformers are characterized by "flexible conductivity + mechanical compensation." Their structure typically consists of multiple layers of thin copper foil precisely stacked to form the conductor body, with both ends machined into solder surfaces or contact terminals according to installation requirements. Compared to traditional rigid busbars, these products offer superior bending and fatigue resistance while carrying high currents.
In terms of structural design, the products can be divided into two categories based on application scenarios:
Small-size flexible connectors: Primarily used within battery modules or packs in new energy vehicles to achieve current connection and buffering between cells or modules;
Large-size flexible connectors: Primarily used in power systems such as transformers, switchgear, and rectifier equipment for main circuit conductivity and inter-equipment connections.
Typical features include:
Multi-layered structure for stable conductive paths
Integrated molding of flexible areas and rigid terminals
Customizable thickness, width, and number of layers
Support for complex spatial wiring and installation structures
Design Advantages: Precise Calculations from Microscopic Cross-Sections to Macroscopic Geometry
| Cross-Section Gradient Optimization Design | For high-current transformer output terminals, the current is not uniformly distributed. Our engineers use electromagnetic field simulation software to calculate the current density distribution cloud map across the cross-section. The number of layers is increased in areas of high current density and appropriately reduced in areas of low density, forming a streamlined "variable cross-section" design. This achieves Copper Foil Flexible Busbar with Insulated Tube lightweighting and extreme compression of installation space while ensuring current carrying capacity. |
| Stress Dissipation Chamfer in the Transition Zone | From the rigid crimp ends to the flexible foil area in the middle, there is a "shear hazard section" highly susceptible to stress fracture. Instead of using right-angle transitions in this area, we design precisely calculated "flared" or "teardrop" arc transitions to ensure a smooth stress flow and eliminate stress concentration points. |
| Miniaturized Integration Design for New Energy | In battery pack applications, space is extremely limited. We integrate Nickel Copper Foil Strip For Flexible Packaging Battery Connectors with injection-molded brackets and even temperature sensors into a pre-embedded design. Through an extremely narrow bending radius (R-angle control), we complete the 90-degree current reversal within a very small Z-axis height, freeing up valuable battery pack assembly space for customers. |
Application Advantages
Power Transformers (Dry-type/Oil-immersed)
In the low-voltage side outgoing line connections of 10kV to 110kV transformers, Copper Foil Flexible Connector for Busway Systems can significantly improve the problem of local overheating caused by high current. Especially for rectifier transformers, electric furnace transformers, and other applications with frequent overload conditions, the thermal stability advantage of the laminated structure is even more prominent.
Step-up Transformers in New Energy Power Generation
Box-type transformers in photovoltaic power plants and wind farms need to adapt to outdoor temperature fluctuations and wind sway vibrations. Copper foil flexible connectors, combined with tin-plated surface treatment, can maintain stable conductivity within an ambient temperature range of -40℃ to +85℃, while absorbing the pulling force on the transformer terminals caused by nacelle swaying.
New Energy Vehicle Battery Modules
Short and compact No-Plating Flexible Copper Foil Laminated Connectors (thickness 1-3mm, length 50-150mm) are widely used in the series connection between cells in power battery packs. Its ultra-low loop resistance helps reduce heat loss during high-rate charging and discharging, while the laminated structure maintains pressure balance during battery expansion and contraction, preventing loosening of connection points.
High-Power Rectifier Equipment and Electrolytic Power Supplies
In applications requiring thousands of amperes of DC, such as copper foil electrolysis and the chlor-alkali industry, copper foil flexible connectors, serving as flexible sections of the busbar between the rectifier cabinet and the electrolytic cell, effectively solve the problems of difficult installation and thermal stress concentration associated with rigid busbars for high current applications.
Material Advantages: Why T2 Copper Foil is Irreplaceable?
Superior Inductively Coupled Conductivity (IACS)
Ensures extremely low energy loss during long-distance transmission, meeting the stringent requirements of green energy for efficiency improvement and emission reduction.
Excellent Ductility
Maintains good structural stability during cold working and welding processes, preventing micro-cracks from forming due to bending.
Corrosion Resistance
Combined with surface coatings, Flexible Copper Laminated Foil Connectors resist corrosion from acids, alkalis, and industrial waste gases, making it particularly suitable for use in chemical plants and coastal power plants.
contact us
Laminated Copper Foil Shunts are not merely simple conductive components, but also crucial carriers for the reliability of connection systems and the optimization of engineering design. Their value will continue to increase as new energy vehicles and power equipment continue to evolve towards higher power and higher integration.
If you are evaluating flexible conductive solutions suitable for specific operating conditions, we can provide engineering-level customized design and rapid prototyping support based on your electrical parameters and structural requirements.
