What is the importance of the EV Relay Armature in a relay?

A relay is an electrical control device that, when the input quantity (current, voltage, resistance, etc.) changes, causes a predetermined step change in the output quantity through electromagnetic or electrothermal effects. Relays play roles in automatic adjustment, safety protection, and circuit switching in circuits, and are widely used in various electrical control systems. One of the core components of a relay is the EV Relay Armature, which plays a crucial role.

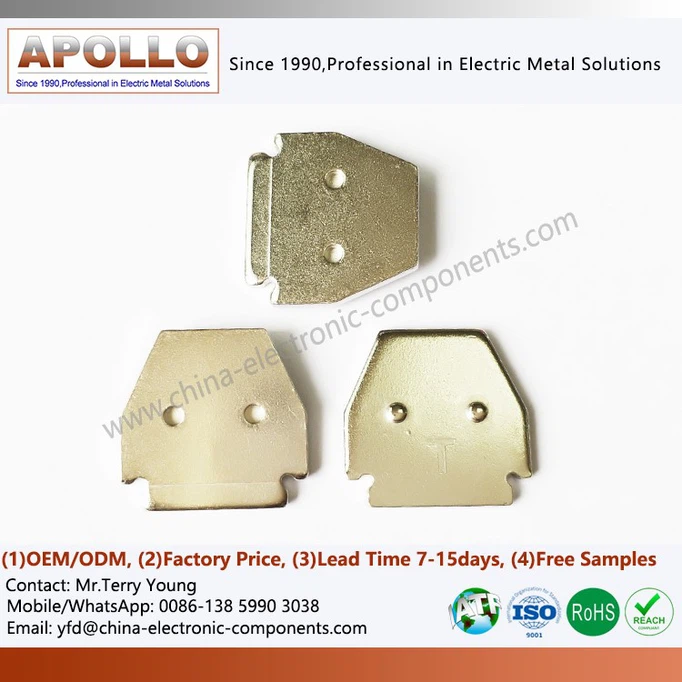

The Armature in EV relay is a magnetic element, usually made of soft magnetic materials such as silicon steel sheets or permalloy. Its shape and size vary, but its basic principle is the same. Its main function is to generate attractive or repulsive forces under the influence of an electromagnetic field, thereby realizing the switching function of the relay.

When the relay is energized, a magnetic field is generated in the coil. The strength of the magnetic field is proportional to the magnitude of the current. When the magnetic field strength reaches a certain level, it attracts the armature, causing it to overcome the spring force and actuate. This process is called the engaging process. When the coil is de-energized or the current decreases, the magnetic field weakens, and the attractive force on the Armature Metal Parts of EV Relays also decreases. At this time, the spring force returns it to its original position. This process is called the releasing process.

1. Switching Function: During the attraction process, the Armature for Electromagnetic EV Relay drives the contacts to close, connecting the circuit; during the release process, it drives the contacts to open, disconnecting the circuit. This allows the relay to control and switch circuits.

2. Signal Transmission Function: In certain special applications, such as temperature, pressure, and speed sensors, it is necessary to convert physical quantities into electrical signals for transmission and processing. The EV Relay Armature Pure Iron Plate can be used to convert physical quantities into changes in the magnetic field, thereby achieving signal transmission.

3. Amplification Function: In certain special applications, such as current and voltage sensors, it is necessary to amplify weak signals. The EV Relay Armature Soft Magnetic Iron can be used to convert weak signals into changes in the magnetic field, thereby achieving signal amplification.

4. Isolation Function: In certain special applications, such as high-voltage and high-current environments, it is necessary to isolate the circuit from the external environment. The armature is used to isolate the circuit from the external environment, ensuring the safe operation of the circuit.

For high-voltage DC applications in new energy vehicles, we professionally provide EV Relay Armatures. Utilizing high-precision soft magnetic materials and precision molding processes, these armatures boast advantages such as high permeability, low remanence, fast response, vibration resistance, high temperature resistance, and long lifespan. They perfectly match various on-board high-voltage DC relays, stably achieving engagement, release, and contact switching, fully meeting the stringent reliability and safety requirements of electric vehicle electronic control and battery systems.

We welcome inquiries and orders from customers; we will provide you with high-quality EV Relay Armature Plates and one-stop integrated solutions!
