Red Copper T2Y2 material characteristics:
1-Red Copper T2Y2 is Copper-silver alloy,Cu+Ag≥99.9%;
2-Semi-hard state,tensile strength 245~345（MPa）,Elongation ≥8%,Vickers hardness 80~110Hv;
3-Conductivity ≥56Ms/m, resistance ≤0.0178x10-6 Ω.m,Density: 8.9 g/cm³;
4-Good electrical conductivity,thermal conductivity,corrosion resistance and processing properties, can be welded and brazed.

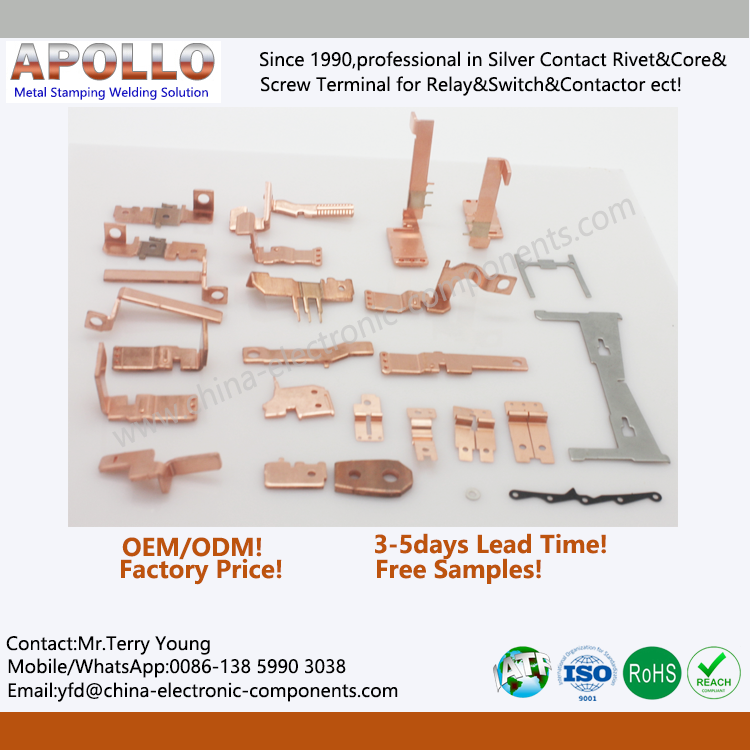

Metal Custom Copper Stamping process characteristics:
(1) Copper Stamping is a processing method with high production efficiency and low material consumption. The stamping process is suitable for the production of larger batches of parts, which is easy to realize mechanization and automation, and has high production efficiency. At the same time,Copper Sheet Stamping production can not only strive to achieve less waste and no waste production, but also has margins in some cases. The leftover material can also be fully utilized.
(2) The operation process is convenient and does not require the operator to have a higher level of skill.
(3) The Electrical Copper Stamping Parts generally do not need to be mechanically processed, and have high dimensional accuracy.
(4) Metal Stamping Parts Electric Copper have better interchangeability. Stability of stamping processing is better, the same batch of stamping parts. Can be used interchangeably without affecting assembly and product performance.
(5) Since the Copper Stamping Parts are made of plates, its surface quality is better, which provides convenient conditions for subsequent surface treatment processes (such as electroplating and painting).
(6) Copper Strip Stamping can obtain parts with high strength, high rigidity and light weight.
(7) The cost of Red Copper Stamping Parts produced in batches with molds is low.
(8) Precision Copper Stamping Parts can produce parts with complex shapes that are difficult to process with other metal processing methods.
How to wash and brighten the surface oxidation of red copper parts after processing?
The simple treatment method of copper material after oxidation and rust-the main process flow of chemical method is: firstly carry out the cleaning treatment of oil removal and oxide removal → water washing → Custom Copper Stamping polishing treatment→ Copper Stamping protection treatment. The Copper Stamping Parts processed by this method can not only restore the original luster (or even brighter) of the copper parts, but also prevent the Stamped Copper Terminal from being oxidized and keep the copper parts bright as new for a long time.
One is that the oxidized part of the Copper Stamping Processing surface can be cleaned by surface pickling, but the pickling time is relatively short. After pickling, if the surface is directly touched with hands or touched with water, it will quickly oxidize back.
Another method is to do the surface passivation treatment of the Copper Stamping. The anti-oxidation treatment of the surface lasts longer than the pickling process, and the color of the Stamping Copper Sheet surface after passivation will look better, like rose gold.
